Whirlpool LA7000XP Manual de usuario

AUTOMATIC

WASHER

fW&tpPacity

LA7000XP

and

LA7005XP

IWOYC Ovens. Trash Compactors, Room Air Condltloners. Oehumldlliets Automatic Washers Clothes Dryers, Freezers. Refrigerator-Freezer,

Parts and features

LAUNDRY TEMPERATURE

LOAD INFORMATION SELECTOR

SIZE CENTER

SELF,CTOR / / CYCLE

JID BLE

MAGIC CLEA

LINT FILTER

(not shown

ACH

DISPENSER

-MODEL AND SERIAL

NUMBER PLATE

(not shown)

/ AGITATOR

BASKET

- TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When vouneed service or call with a

question, have this information ready

Model Number

1. Complete Model and Serlal Num-

bers (from plate underthe lid nearthe

hinge).

Serial Number

2. Purchase date from sales slip

Copy this Information In these spaces

Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty.

Service Company

Phone Number

There

no warranty regtstratlon to return Proof-of-purchase

all

that IS required for In-warranty service.

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information

You are personally responsible

for making sure that your

washer..

installed by a qualifiedinstaller.

is properly installed and

leveled on a floor th‘at can

support the weight:

is connected to the right kind

of outlet, electric supply, water

supply and drain:

is properly grounded

IS used only for jobs normally

expected of home aufomatlc

washers

. is properly maintarned.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

not run by children or anyone

unable to operate it properly.

‘See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE. 6

OTHER OPERATING

INSTRUCTIONS IO

For a Rinse and Spin 10

For a Drain and Spin 10

For a Soak or Pre-Wash 10

Liquid Bleach Dispenser 11

MAGIC CLEAN RFilter 11

SUDS-MISER” System 12

CARING FOR YOUR WASHER 13

Winterizing 14

IF YOU NEED SERVICE OR

ASSISTANCE.. 15

I, Before Calling for

Assistance 15

2. IfYou Need Assistance 15

3. IfYou Need Service 15

4. If You Havea Problem 15

c 1984 Whirlpool Corporation

Starting your washer

Beforestarting

yourwasher: 1 Measure and add detergent

2 Place sorted load in washer.

3 Start washer

Select a Select WATER

1. LOAD SIZE

TEMPERATURES

To change the setting on the LOAD

SIZE SELECTOR, turn the knob to RESET

Then turn the knob to point at a

setting that describes the size of the

load you want to wash.

Set the knob anywhere on or be-

tween HAND WASHABLE (a few small

items] and EX LARGE (a full load)

See your “Laundry Guide” for details

on load sizes.

. Select wash and rinse water tem-

peratures by pushing a button.

This drawing shows a warm wash

[top temperature) and cold rinse

(bottom temperature) selection.

Recommended wash temperatures

can be found in your “Laundry Guide”

LOAD SIZES AND WATER LE\ELS

For best cleaning results, the

load must be able to move freely

In the water. Too big a load or too 0

DO NOT

little water can cause wear or OVERLOAD WASHER.

tearing of load items.

*Approximate

fill with load.

EX-LARGE (20 5 gals 77 6 L)’

MEDIUM (13.9 gals.,52.6 L)’

HAND WASHABLE (7.8 gals 129.5 L]’

Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed In and turned only

clockwise

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in’

the REGULAR Cycle.

Start the washer by pulling out

the Control Knob. The washer

WIII fill to the level you set with

wash water of the selected

temperature After filling, the

washer will agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics Numbers on the dial In each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends

REGULAR HEAVY Cycle

REGULAR Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled

cycle for regular loads of

fabrics that are moderately

soiled

PERMAIVEIVT PRESS Qcle

A special cycle wfth the

necessary cool down rfnse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics III

NOTE: You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to help

with the rinsing.

DRAIN

Agltatlon

DRAIN

Agitation

PARTIAL

DRAIN

(Pause

about 2

minutes)

-----

HIGH FILL RINSE DRAIN HIGH

SPEED

SPIN 1 I$& ) :$E ) Ag!%on 1 4igy

4 Spray

Rinses

IUUUU

WASH

2 NOTE: Always use cold rinse water for

Minutes

permanent press fabrics

High

Speed

KNITS/GENTLE Cyde

A cycle that gently washes

and spins delicate items

and washable knits

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

DRAIN LOW

Agikon ) 4Ey 1

+Pre-wash setting begins here, (see pagelo).

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle. k

PARTIAL REFILL

DRAIN

No 1 d&d )

Agitation

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash. push in

the cycle control knob, turn

to the cycle and time you

want, pull knob out to start.

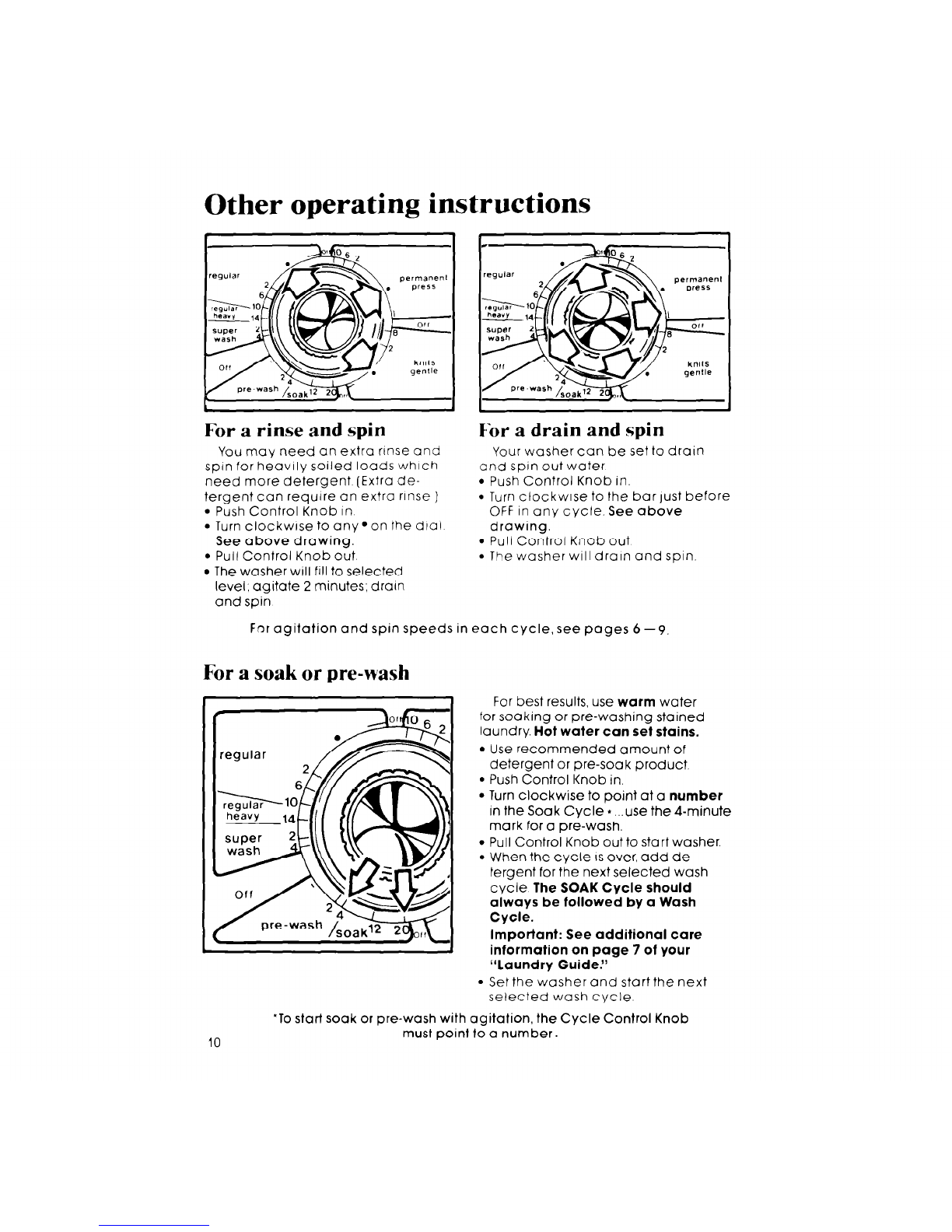

Other operating instructions

For a rinse and spinFor a rinse and spin

I L

For a drain and spinFor a drain and spin

You may need an extra rtnse andYou may need an extra rtnse and

spin for heavily soiled loads whichspin for heavily soiled loads which

need more detergent (Extra de-need more detergent (Extra de-

tergent can require an extra rinse )

Push Control Knob In

Turn clockwise to any@on the dlai

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin

Your washer can be set to drainYour washer can be set to drain

and spin out waterand spin out water

Push Control Knob In.

Push Control Knob in.

Turn clockwlse to the bar lust before

OFF in any cycle. See above

drawing.

Pull Control Knob out

The washer

will

drain and spin

For agitation and spin speeds in each cycle, see pages 6 -9.

For

a soak or prewash

For best results, use warm water

for soaking or pre-washing stained

laundry. Hot water can set stains.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

Turn clockwise to point at a number

in the Soak Cycle 1...use the 4-minute

mark for a pre-wash.

Pull Control Knob out to start washer.

9 When the cycle

over, add de-

tergent for the next selected wash

cycle The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide!’

Set the washer and start the next

selected wash cycle

‘To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number.
