Whirlpool LA6300XS Manual de usuario
AUTOMATIC
WASHER
Large Capacity
Model
LA63OOXS
Contents
Page
PARTS AND FEATURES 2
IMPORTANT SAFETY
INSTRUCTIONS.. 3
OPERATING INSTRUCTIONS.. 4
Starting Your Washer 4
What Happens in Each Cycle 6
OTHER OPERATING
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin
Liquid Bleach Dispenser
Cleaning the Lint Filter
CARING FOR YOUR WASHER
Winterizing
IF YOU NEED SERVICE OR
ASSISTANCE
WASHER WARRANTY
Page
10
11
11
12
13
14
16
01988 Whirlpool Corporation
Parts and features
LOAD
LAUNDRY CYCLE
SIZE INFORMATION CONTROL
LINT
FILTER
SELECTOR / CENTER / KNOB
[not shown]
I / -/
TEMPERATURE
\ - SELECTOR
MODEL AND SERIAL
NUMBER PLATE
K\ I
DISPENSER
Remove the Consumer
Buy Guide label. It will be
easier to remove before the
washer is used.
You should wipe out the
basket with a damp cloth
before using to remove dust
from storing or shipping.
Thank you for buying a Whirlpool appliance. Please complete and mail
the Owner Registration Card provided with this product. Then complete
the form below. Have this information ready if you need service or call with a
question.
l
Copy Model and Serial Numbers
from plate (under lid near hinge]
and the purchase date from the
sales slip.
l
Keep this book, your “Laundry
Guide” and your sales slip in the
Laundry Information Center.
Model Number
Serial Number
Purchase Date
Service ComDanv Phone Number
2
1 I I

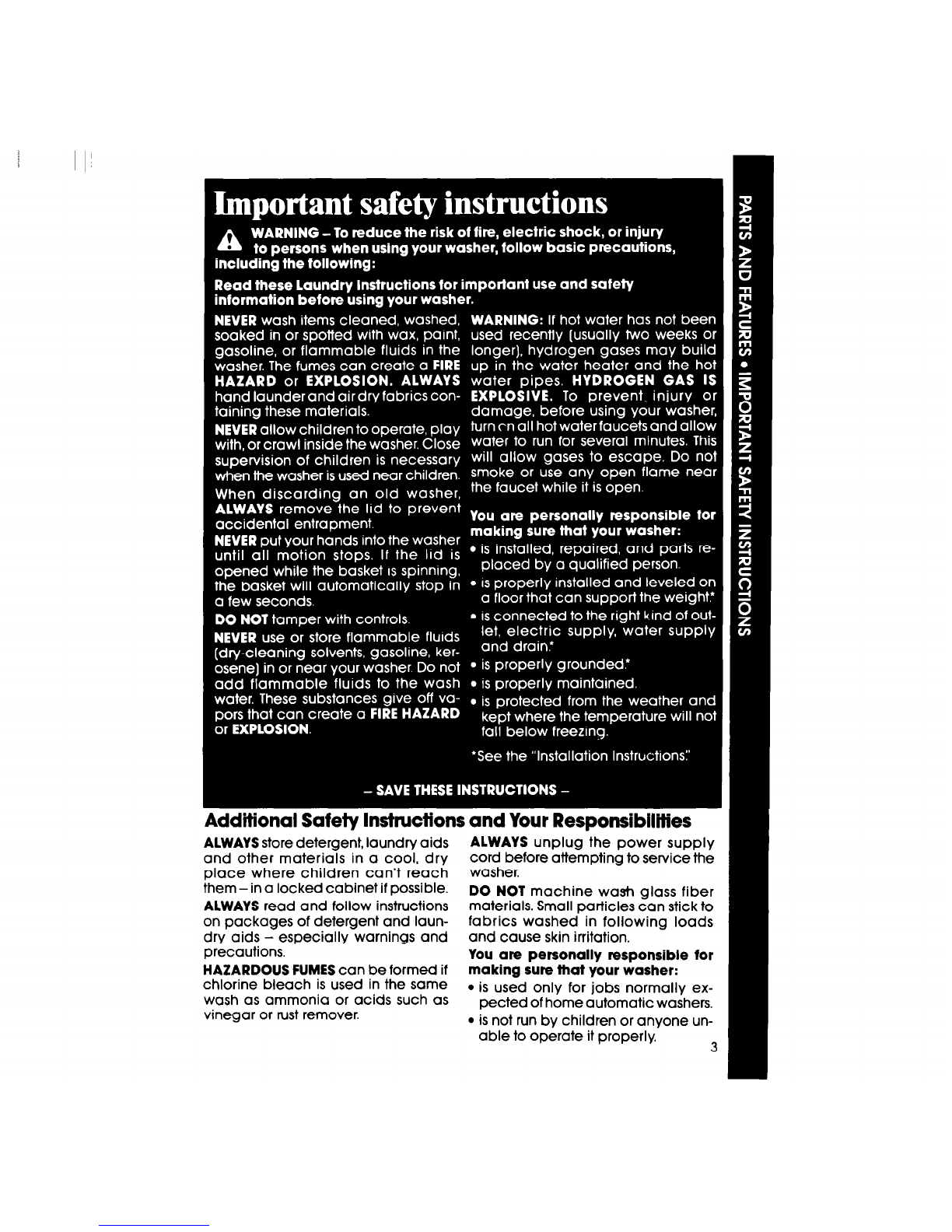

Additional Safety lnsfrucfions and Your Responsibiltties
ALWAYS store detergent, laundry aids ALWAYS unplug the power supply
and other materials in a cool, dry cord before attempting to service the
place where children can’t reach washer.
them-in a locked cabinet if possible.
DO NOT
machine wash glass fiber
ALWAYS read and follow instructions materials. Small particles can stick to
on packages of detergent and laun- fabrics washed in following loads
dry aids - especially warnings and and cause skin irritation.
precautions.
You are personally responsible for
HAZARDOUS FUMES
can be formed if
making sure that your washer:
chlorine bleach is used in the same
wash as ammonia or acids such as
l
is used only for jobs normally ex-
vinegar or rust remover. petted of home automatic washers.
l
is not run by children or anyone un-
able to operate it properly.
3
!
I I
Operating instructions
Starting Your Washer
Be sure to measure and add detergent, then place
a sorted load in the washer before starting it.
1
. Select
a
LOAD SIZE
2
Select
. WATER TEMPERATURES
l
Turn the knob to point to a setting
that describes the size of load you
want to wash.
l
Set the knob on or between
EX SMALL (a few items] and LARGE
(a full load).
NOTE:Use the LARGE water level
for best permanent press results.
l
Match the wash water temperature to
the type of fabrics and soils
being washed.
. This drawing shows a warm wash
(top temperature] and cold rinse
(bottom temperature) selection.
Recommended wash temperatures can
be found in your”Laundry Guide!’
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items.
*Approximate
fill with load.
CAUTION:
DO NOT
OVERLOAD WASHER.
EX LARGE
(17.3 gals./655 L)’
(14.7 gals./557 L)’
(12.1gaW45.8 L)’
EiSMALL (9.5
galsJ36.0 L)’
4
3. Start the washer
A.
Push in the Control Knob and turn
it to the right. It must be pushed in
and turned only clockwise.
B.
Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows 10 minutes of agitation in
the REGULAR NORMAL Cycle.
C.
Start the washer by pulling out
the Control Knob. The washer will
fill to the level you set with wash
water of the selected temper-
ature. After filling, the washer will
agitate for the selected number
of minutes.
D.
To stop the washer at any time,
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
What Happens in Each Cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer fills
before agitation and timing starts. After agitation starts, the knob turns clock wise
until it points to OFF and the cycle ends.
REGULAR HEAVY Cycle
A cycle for sturdily con-
structed fabrics that are
heavily soiled.
REGULAR NORMAL Cycle
A cycle for regular loads
of fabrics that are moder-
ately soiled.
PERMANENT PRESS NORMAL Cycle
A cycle designed for mod-
erately soiled permanent
press and some synthetic
fabrics. The cool-down
rinse helps keep wrinkles
from setting into these
items.
REFILL
u
COOL
DOWN
6
Gentle Wash Svstem
NOTE:You
may hear the sound of water spraying during the spin parts of some
cycles. In some cycles, cold water is sprayed on the spinning load to help with
the rinsing.
For better fabric care in the REGULAR and PERMANENT PRESScycles, the
agitation speed is reduced during the last few minutes of wash time.
NOTE:
Always use
cold rinse water
for permanent press fabrics.
PERMANENT PRESS LIGHT Cycle
A cycle designed for
lightly soiled permanent
press and some synthetic
fabrics. The
cool-down
rinse helps keep wrinkles
from setting into these items.
KNITS/GENTLE NORMAL Cycle
1 I A Indicates the machine is
pausing for a brief soak
A cycle that gently
period.
washes and spins moder-
ately soiled delicate items
and washable knits.
KNITS/GENTLE LIGHT Cycle
A cycle that gently
washes and spins lightly
soiled delicate items and
washable knits.
A Indicates the machine is
pausing for a brief soak
period.
SUPER WASH Cycle
Use for washing heavily
soiled loads that require
maximum soil removal.
Double the amount of
detergent recommended
when uslng the SUPER
WASH Cycle.
NOTE:
Always use
cold rinse water
for permanent press fabrics.
DRAIN SPIN
No Low
Agitation Speed
1 Spray
Rinse
The washer will proceed to the
REGULAR/HEAVY Cycle. If you
want a different cycle to follow
SUPERWASH, push in the cycle
control knob, turn to the cycle and
time you want, pull knob out to
start.
Other operating instructions
For a rinse and spin For a drain and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra detergent
can require an extra rinse.)
1.
Push Control Knob in.
2. Turn clockwise to any
l
on the dial.
See above dmwing.
3. Pull Control Knob out. The washer
will fill to selected level; agitate 2
minutes; drain and spin.
Your washer can be set to drain and
spin out water.
1.
Push Control Knob in.
2. Turn clockwise to the bar just before
the OFF area in any cycle. See
above drawing.
3. Pull Control Knob out. The washer
will drain and spin.
For agitation and spin speeds in each cycle, see pages 6-9.
10
