Whirlpool LA52OOXT Manual de usuario

AUTOMATIC

WASHER

Large Capacity

Model

LA52OOXT

Ms. Clothes Dryers, Freezers. Relrigeralor-Freezer, Ice Makers Dishwashers Bwll In Ovens and Surlace Un~ls. Ranger. Microwave Ovens. Trash COmD?*‘”

Contents

Page

PARTS AND FEATURES 2

IMPORTANT SAFETY

INSTRUCTIONS. 3

OPERATING INSTRUCTIONS.. 4

Starting Your Washer 4

What Happens in Each Cycle 6

OTHER OPERATING

INSTRUCTIONS. 10

For a Rinse and Spin 10

For a Drain and Spin

For a Soak

Cleaning the Lint Filter

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE

WASHER WARRANTY

Page

01988 Whirlpool Corporation

Parts and features

LOAD

LAUNDRY CYCLE

SIZE INFGRMATION CONTROL

TEMPERATURE

SELECTOR

MODEL AND

SERIAL

- NUMBER PLATE

LINT FILTER

[not shown]

(not shown)

Remove the Consumer

Buy Guide label. It will be

easier to remove before the

washer is used.

You should wipe out the

basket with a damp cloth

before using to remove dust

from storing or shipping.

Thank you for buying a Whirlpool appliance. Please complete and mail

the Owner Registration Card provided with this product. Then complete

the form below. Have this information ready if you need service or call with a

question.

Copy Model and Serial Numbers

from plate [under lid near hinge)

and the purchase date from the

sales slip.

Keep this book, your “Laundry

Guide” and your sales slip in the

Laundry Information Center.

Model Number

Serial Number

Purchase Date

Service Comoanv Phone Number

Additional Safety lnsfruciions and Your Responsibilities

ALWAYS store detergent, laundry aids

and other materials in a cool, dry ALWAYS unplug the power supply

cord before attempting to service the

place where children can’t reach washer.

them- in a locked cabinet if possible.

ALWAYS read and follow instructions DO NOT machine wash glass fiber

materials. Small particles can stick t-.

on packages of detergent and laun-

dry aids - especially warnings and fabrics washed in following loads

and cause skin irritation.

precautions. You are personally responsible for

HAZARDOUS FUMES can be formed if

chlorine bleach is used in the same

wash as ammonia or acids such as

vinegar or rust remover.

making sure that your washer:

is used only for jobs normally

petted of home automatic wash

is not run by children or anyone

able to operate it properly.

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a sorted load in the washer before starting it.

1 2

Select

. Select a LOAD SIZE . WATER TEMPERATURES

Turn the knob to point at a setting

Match the wash and rinse water

that describes the size of load you temperature to the type of fabrics

want to wash. and soils being washed.

The water level can be set for EX

All rinses are cold. Cold rinses save

SMALL (a few items], MED or LARGE energy and help prevent wrinkles

[a full load]. from setting into fabrics.

NOTE: Use the LARGE water level Recommended wash temperatures

for best permanent press results. can be found in your “Laundry Guide:’

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items.

*Approximate

fill with load.

CAUTION:

DO NOT

OVERLOAD WASHER.

LARGE (17.3 gals./655 L)*

MEDIUM (13.4 galsJ50.8 L)*

EX SMALL (9.5 galsJ36.0 L)*

Select CYCLE and WASH TIME;

. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows IO minutes of agitation in

the REGULAR/HEAVY Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected tem-

perature. After filling, the washer

will agitate for the selected

number of minutes.

To stop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What Happens ifi Each Cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns

clockwise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

WASH

Minutes

Low

Speed

A cycle for sturdily con-

structed fabrics that are

heavy to moderately soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for mod-

erately soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these

fabrics.

NOTE: You may hear the sound of water spraying during the spin parts of some

cycles. In some cycles, cold water is sprayed on the spinning load to help with

the rinsing.

Gentle Wash System

For better fabric care in the REGULAR and PERMANENT PRESScycles, the

agitation speed is reduced during the last few minutes of wash time.

KNITS/GENTLE NORMAL Cycle

A cycle that gently

washes and spins moder-

ately soiled delicate items

and washable knits.

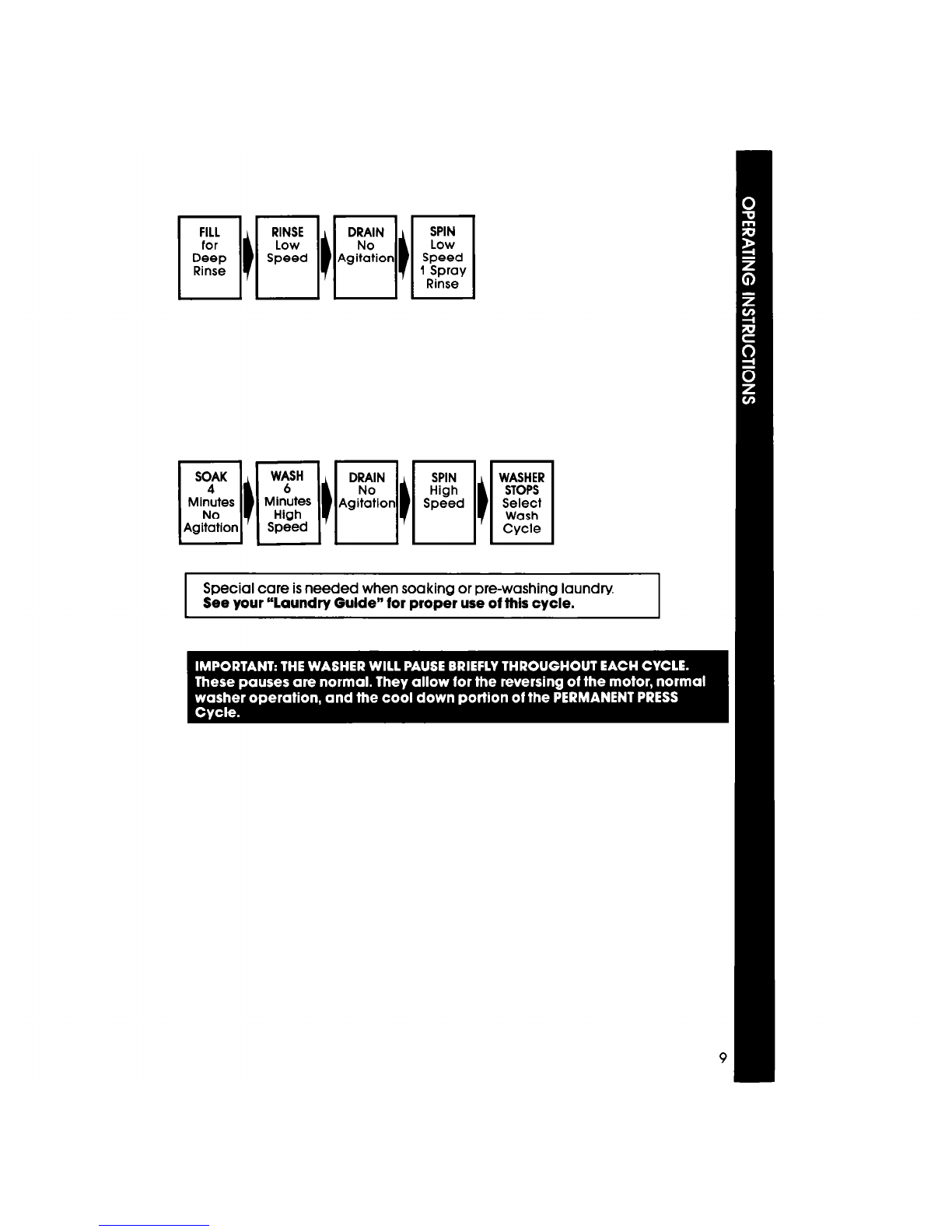

SOAK Cycle

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

Special care is needed when soaking or pre-washing laundry

See your “Laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

1. Push Control Knob in.

2. Turn clockwise to any 0 on the dial.

See above drawing.

3. Pull Control Knob out The washer

will fill to selected level; agitate

2 minutes; drain and spin.

Your washer can be set to drain and

spin out water.

1. Push Control Knob in.

2. Turn clockwise to the bar just before

the OFF area in the REGULAR cycle.

See above drawing.

3. Pull Control Knob out. The washer

will drain and spin.

For agitation and spin speeds in each cycle, see pages 6-9.

For a soak

Use recommended amount of

detergent or presoak product.

Push Control Knob in.

Turn clockwise to point to the

number in the SOAK Cycle.

Pull Control Knob out. The

washerwill start.

When the cycle is over, add

detergent for the next selected

wash cvcle. The SOAK Cvcle

For best results, use warm water

for soaking or pre-washina stained

laundry H&t water can s&stains.

should ‘a~lways be followed by a

Wash Cycle.

ImDortant: See additional care

infor.mation in your “Laundry

Guide.”

‘To start soak with agitation, the Control Knob

must point to a number in the SOAK Cycle.
