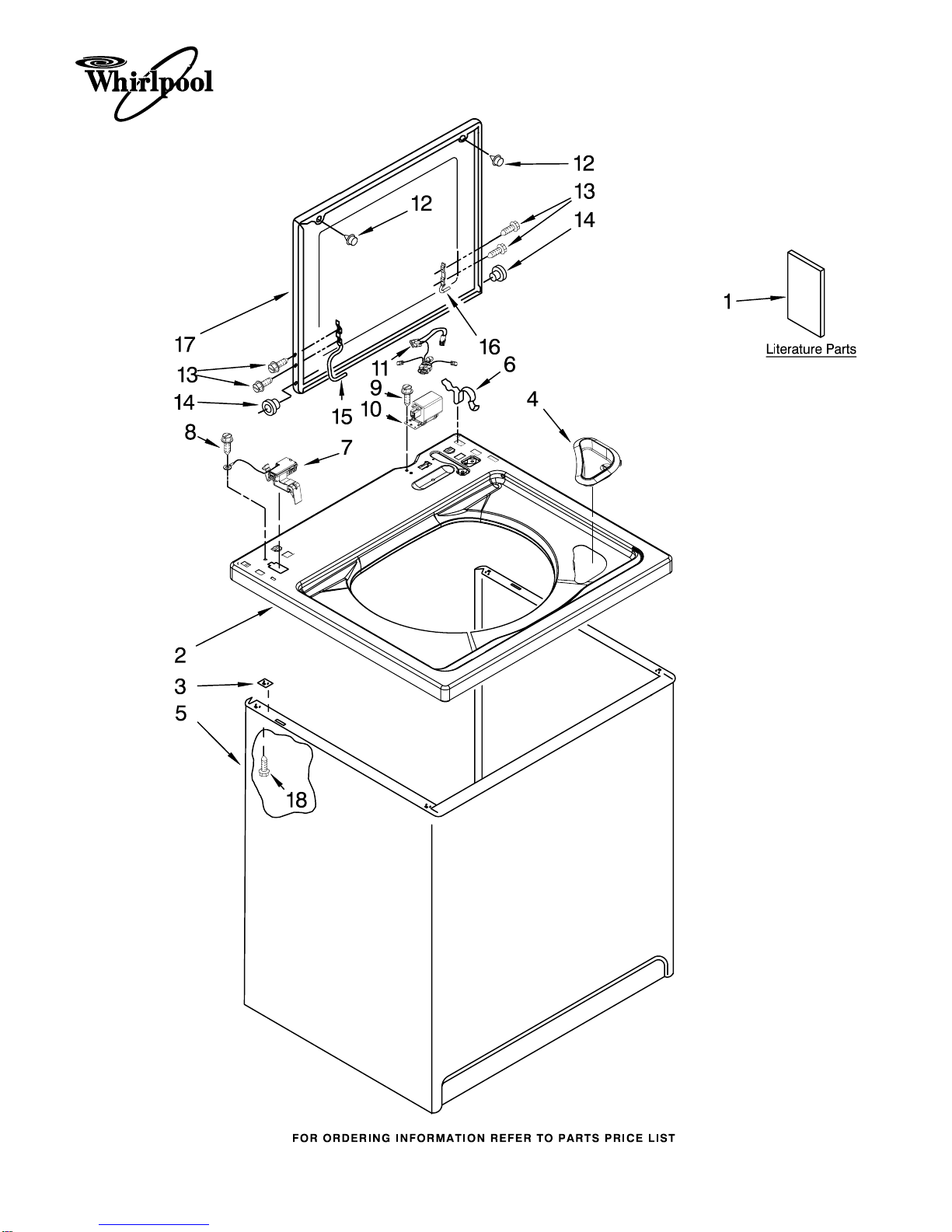

TOP AND CABINET PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

11−08 Litho in U.S.A. (drd)(bay) Part No. W10222396 Rev. B

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

W10200331

English/French

W10200662

Spanish

Use & Care Guide

W10200828

English/French

W10200829

Spanish

Feature Sheet

W10200856

English/French

W10200857

Spanish

W10062856

Energy Guide

W10177829

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 Top

W10194572

White

W10205691

Red

3 62750 Spacer, Cabinet To

Top (4)

W10192089

Dispenser, Bleach

5 Cabinet

63424 White

W10205707

Red

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 8318084 Switch, Lid

8 3351614 Screw, Ground

9 90767 Screw, 8−18 x 3/8

10 8540229 Filter, RFI

W10217789

Harness, Jumper

12 9724509 Bumper, Lid (2)

W10119828

Screw, Lid Hinge

Mounting (4)

14 8319539 Bearing, Lid

Hinge (2)

15 8559336 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 Lid

W10171313

White

W10205703

Red

18 3390631 Screw,

10−16 x 3/8 (4)

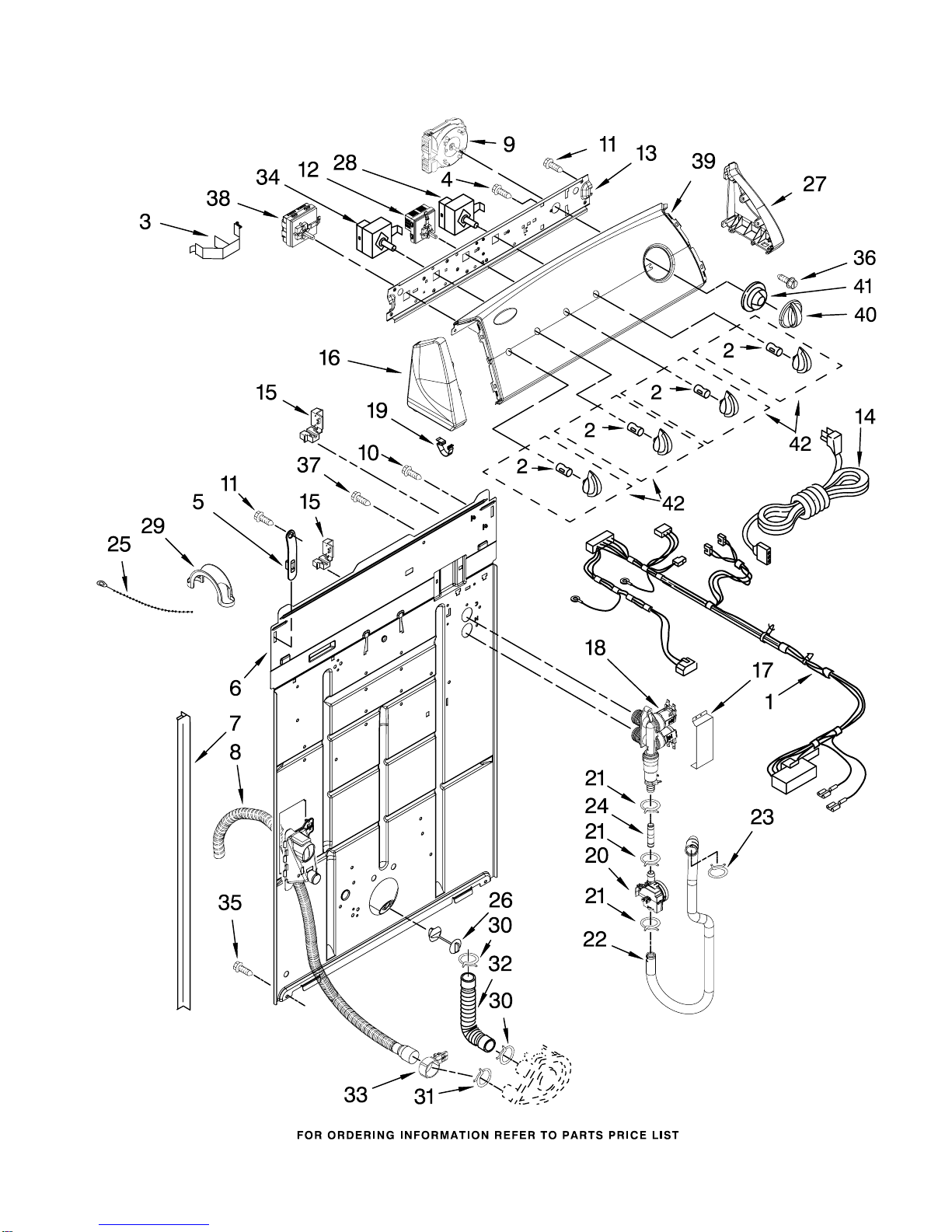

CONTROLS AND REAR PANEL PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

CONTROLS AND REAR PANEL PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10180973

Harness, Wiring

(For Detail See

Pages 9 & 10)

2 8536939 Clip, Knob

3 8055003 Clip, Harness &

Pressure Hose

4 3400073 Screw, Ground

5 8568314 Strap, Console (2)

W10194451

Panel, Rear

7 62747 Pad, Rear Panel

W10189267

Drain Hose

Assembly

(Includes Item 33)

W10177827

Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 X 3/8

W10177795

Switch, Auto

Load Sensing

13 8566003 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

(Includes Item 19)

8566035 White

W10205959

Red

W10188372

Shield, Suds

W10175893

Valve, Water Inlet

19 8312709 Clip, Console

W10176591

Flowmeter

W10185367

Clamp, Hose

W10166732

Hose, Flowmeter

To Tub Ring

W10117298

Clamp, Hose

W10166731

Hose, Valve

To Flowmeter

25 3347868 Cable Tie

26 8519200 Support, Rear

Panel

27 Cap, End (R.H.)

(Includes Item 19)

8566032 White

W10205953

Red

W10180780

Switch, Rotary

29 8577378 U−Bend,

Drain Hose

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 8541668 Clamp, Hose

34 3949187 Switch, Rotary

35 62863 Screw, 10−16 x 3/8

36 3400818 Screw, Timer

Mounting

37 9740848 Screw, 8−18 x 1/2

W10179666

Switch, Water

Temperature (ATC)

W10196933

Panel, Console

W10034730

Knob, Timer

41 8566018 Dial, Timer

W10034380

Knob, Control

AGITATOR, BASKET AND TUB PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

AGITATOR, BASKET AND TUB PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION

1 8575076 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

W10167984

Tub Ring & Gasket

6 3359585 Seal, Tub Ring

7 3354845 Clip, Agitator

8 8543666 Washer, Agitator

9 3951682 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3952374 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

14 2219077 Clip, Pressure

Switch Hose

15 387240 Balance Ring

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

W10211144

Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

W10072840

Seal, Inner Cap

26 3949550 Washer

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

14 8577374 Seal

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661600 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

25 62863 Screw, 10−16 x 3/8

26 8572717 Capacitor

27 3949496 Clamp, Capacitor

MACHINE BASE PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

WIRING HARNESS PARTS

For Models: WTW57ESVW0, WTW57ESVH0

(White) (Red)

W10222396

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE
