Whirlpool LASOOXM Manual de usuario

AUTOMATIC

WASHER

Large Capacity

Model

LASOOXM

Parts and features

.AUNDRY

1-m.. ._.A., TEMPERATURE

SELECTOR

\ !-k&m / KNOB

SERIAL

‘LATE

(not shown)

- LINT FILTER

- AGITATOR

- BASKET

- TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready: Model Number

1. Complete Model and Serial Num-

bers [from plate underthe lid nearthe

hinge). Serial Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchose Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty Service

Company/

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

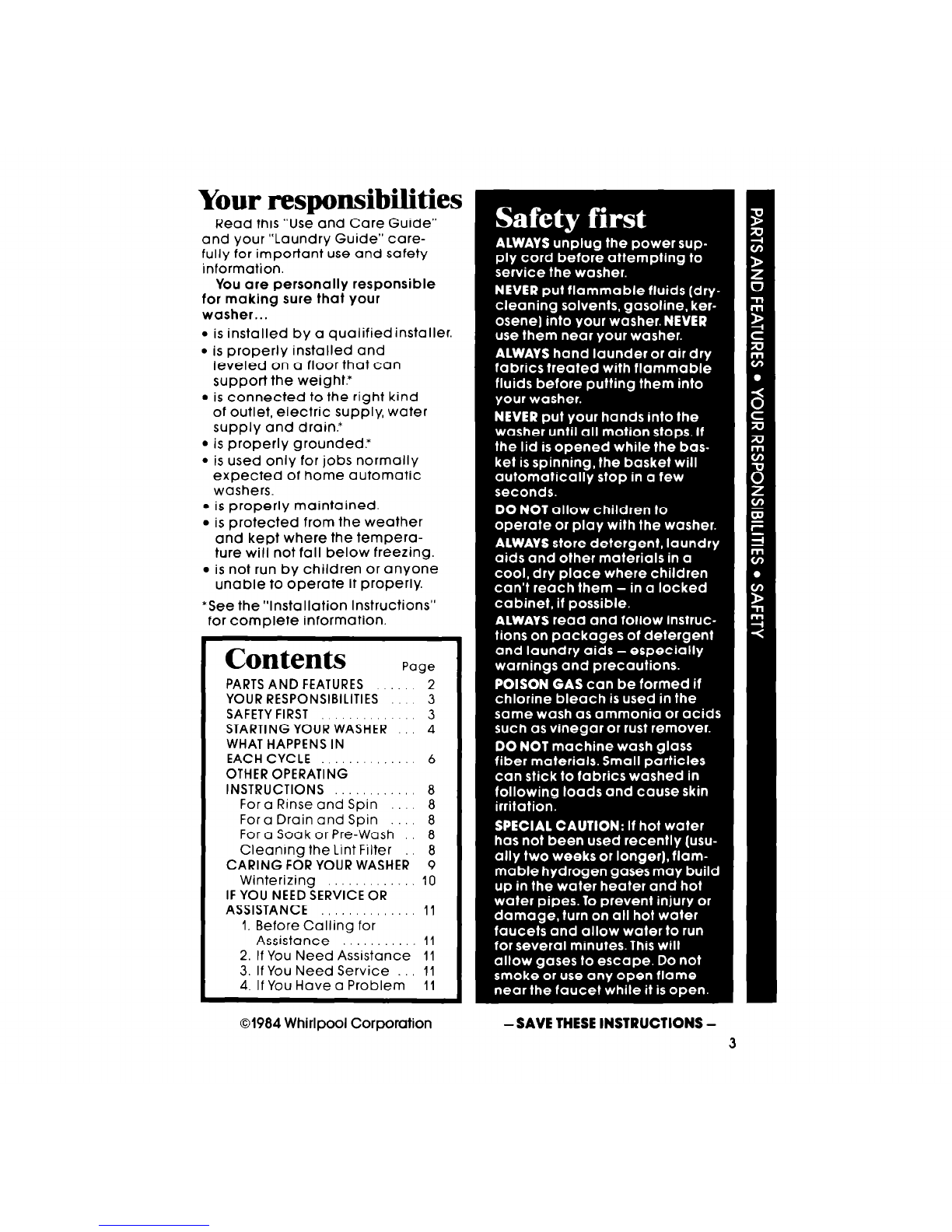

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded.-

* is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN

EACH CYCLE 6

OTHER OPERATING

INSTRUCTIONS 8

For a Rinse and Spin 8

For a Drain and Spin 8

For a Soak or Pre-Wash 8

Cleanrng the Lint Filter 8

CARING FOR YOUR WASHER 9

Winterizing 10

IF YOU NEED SERVICE OR

ASSISTANCE 11

1. Before Calling for

Assistance 11

2. If You Need Assistance 11

3. If You Need Service 11

4. If You Have a Problem 11

01984 Whirlpool Corporation -SAVE THESE INSTRUCTIONS - 3

Starting your washer

Before starting

your washer: 1. Measure and add detergent

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

All rinses are cold.

Set the knob anywhere on or be-

tween EX SMALL (a few items) and

LARGE (a full load).

See your “Laundry Guide” for details

on load sizes.

Recommended wash temperatures

can be found in your “Laundry Guide”

and printed under the washer lid.

: LOAD SIZES AND WATER LEVELS

For best cleaning results, the

Use less than a full tub of water

’ when you have less than a full load load must be able to move freely

to wash. in the water. Too big a load or too

little water can tear items.

LARGE (16.9 galsJ64.0 L)’

MEDIUM (13.5 galsJ51.1 L)’

EX SMALL ( 9.9 gals.137.5 L)’

‘Approximate fill with load.

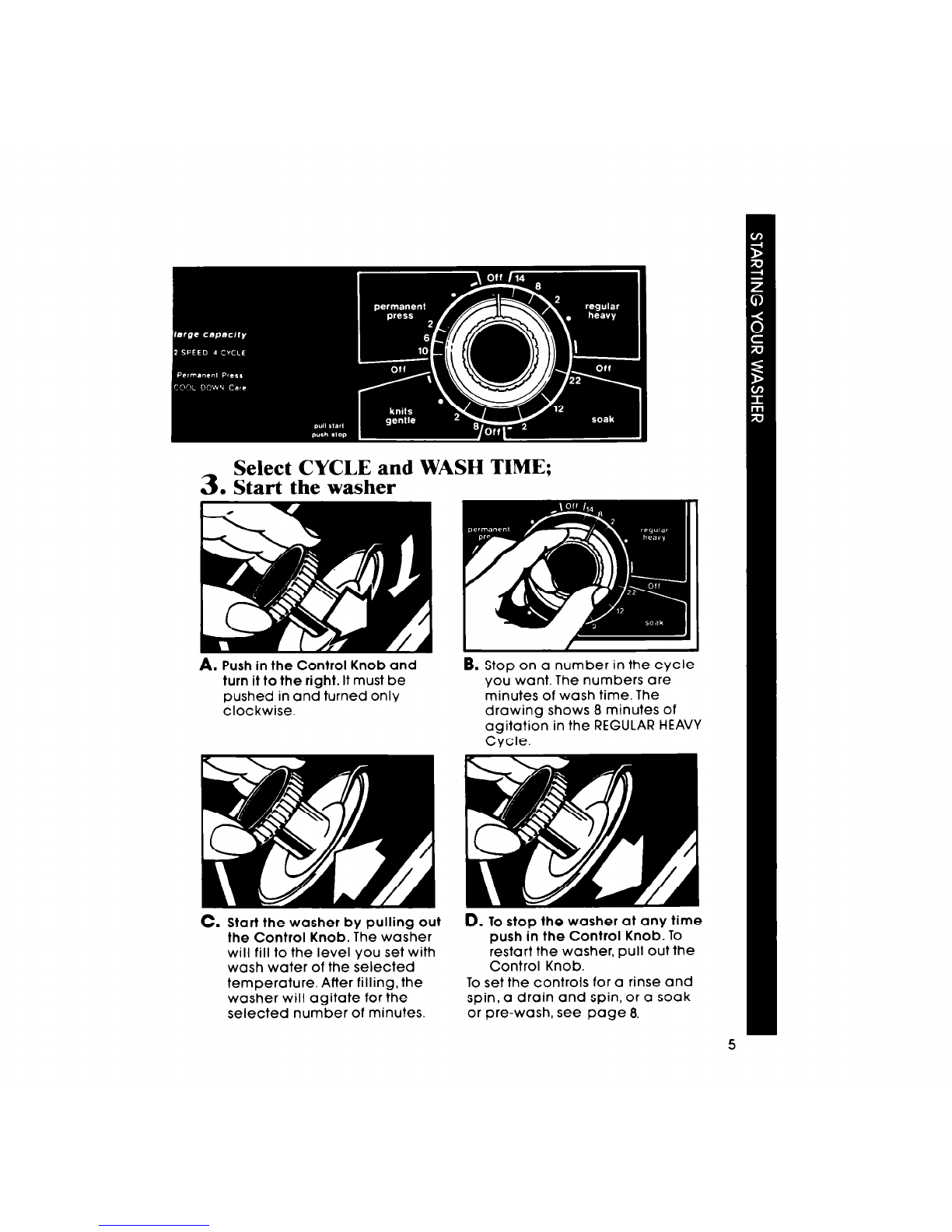

Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

I I

Stop on a number in the cycle

you want. The numbers are

minutes of wash time. The

drawing shows 8 minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling oui

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To set the controls for a rinse and

spin, a drain and spin, or a soak

or pre-wash, see page 8.

What happens in each cycle

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing start. After agitation starts, the knob turns

REGULAR HEAVY Cycle

High agitation and

spin speeds help remove

heavy soils and spin

water from heavy or

sturdy cotton fabrics.

PERMANENT PRESS Cycle

Low-speed spins and

cooling of the wash water

before the spin helps

keep wrinkles from setting

into permanent press

fabrics.

KNITS/GENTLE Cycle

Low agitation and spin

speeds and shorter wash

~9 time gently wash delicate

items and washable

synthetic knits.

I I l\

WASH

Selected

Time;

High

Speed

SOAK Cycle

clockwise until it points to OFF and the cycle ends.

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing.

DRAIN

Agltation I

DRAIN

Agitation

SOAK

Minutes

Agitation

WASH

Minutes

Low

Speed

SOAK

Special care is needed when soaking or pre-washing laundry.

See your’laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.]

Push Control Knob in.

Turn clockwise to any* on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected level

with cold water,agitate 2 minutes,

drain and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 and 7.

For a soak or pre-wash

Use enough detergent or pre-soak

For best results, use warm water product for a single load.

for soaking or pre-washing stained

Push Control Knob in.

laundry.

Turn clockwise to point at a number

in the SOAK Cycle...use the 12-

minute mark for a pre-wash.

Pull Control Knob out.

When the cycle is over, add de-

tergent for the next selected wash

cycle. Important: See additional

care information on page 7 of your

“laundry Guide.”

Set the washer and start the next

selected wash cycle.

To start the soak or pre-wash with agitation, the Cycle Control

Knob must point to a number in the SOAK Cycle.

Cleaning the lint filter

Water runs through the lint filter

whenever the washer agitates.

Check it often to make sure it’s clean

and is filtering at its best.

To remove it for cleaning, press the

release and pull straight out. Instruc-

tions for cleaning are printed on the

bottom of the filter.

Caring for your washer

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet valve

and hoses.

AFTER WASHING, use a soft dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right away. Spills can

dull or damage the finish.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer di

consoles and finishes. Do not use

these products on or near your

washer or dryer.

WINTERIZING

Because some water stays in the washer, freez-

ina can cause a lot of damaqe. If your washer is

stored or moved during the cold weather.

1. Shut off both water 2. Put a quart of

faucets. Discon- automobile-type

nect and drain antifreeze in the

water inlet hoses. basket.

To use the washer again.. .

1. Flush water pipes and hoses.

2. Connect hoses to the washer.

3. Turn on the water faucets.

3. Set the washer for a

DRAIN and SPIN

[see page 8). Let it

run for about 30

seconds to mix the

antifreeze and

water.

4. Run the washer

through a com-

plete cycle with

one cup of deter-

gent to clean out

the antifreeze.
