Whirlpool LWT-800 Manual de usuario

LWT-800

HOME APPLIANCES

Wash cover

Control panel

Lint filter

Pulsator

Case

Wash tub

Plug

Base

Spin cover

Drain hose

Spin tub

Frame

Water Inlet hose

Safety Cover

Above picture for illustration purpose only.Actual product may vary.

Instructions for use

Preparation for use

Description of washing machine......1

Precautions and recommendations..2

Installation.................................... 3

Main functions ............................ 4

Preparation before washing........... 4

Guide on usage

Washing recommendations........... 5

Usage of detergent and bleach....... 5

Washing sequence.............................6

Maintenance.................................. 8

Clean lint filter................................8

Clean machine................................8

Remaining water is frozen...................8

Trouble-shooting.............................9

Do not install the washing machine in a damp

environment.Do not splash water on switches.

Do not put wet clothes on the control panel.

Do not pour water with temperature of above

50 into the wash tub.

Do not put your hand into the spin or

wash tub while it is working.

Do not dismantle,repair or refit washing

machine by yourself.

Do not put any hot or heavy object on the

washing machine.

Clothes stained with volatile

substance(eg,thinner,fuel etc.)should not

be washed in the washing machine.

Do not let children play with the washing

machine.

Keep the machine away from direct

sunlight and heat source .

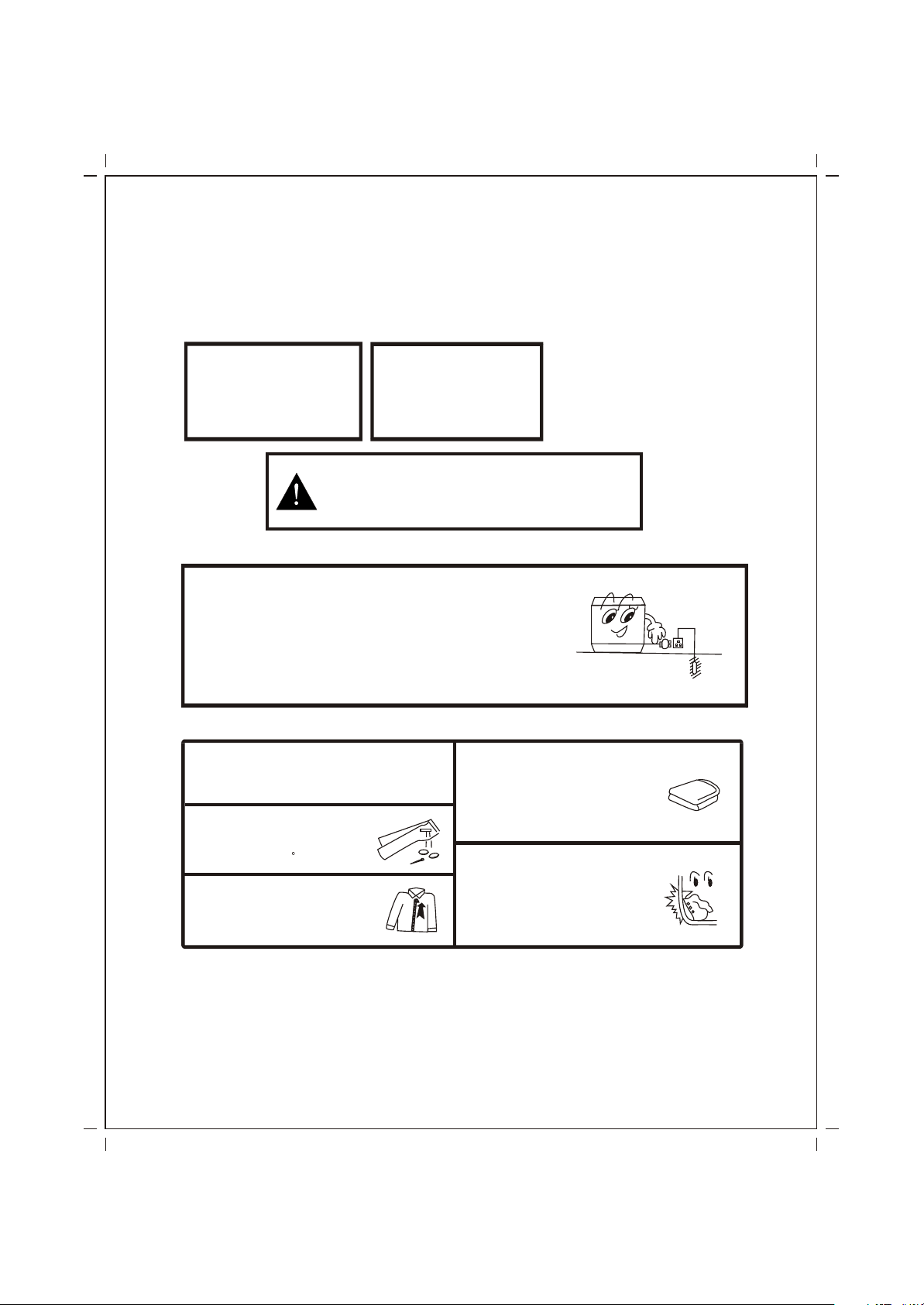

Precautions and recommendations

Use appropriate plug.The earth

should be well connected.

Pull out the plug when not in

use.

If wiring is defective,do

contact after-sales service.

50 C

INSTALLATION

Using the drain hose

Factory installation position of the drain

hose is shown in Figure 1.

The hose protrudes out from the washing

tub side.

Lay down the machine. And take the hose

out from the fixing groove. (Figure 2)

Insert the hose in the groove by hand, do

not damage the hose.

Along with the groove of the washing tub

side, insert the hose with steps 1 to 3 and

spread it to the washing side. (Figure 3)

Change the direction of the drain hose

Please install your washing machine according to the instructions provided.

Figure 1

Figure 2

Figure 3

Soft object

Back

Front

Soft object

Drain

2. Maximum fixation height for hanging the

hose(with a hook)over a drain outlet(eg.drain

pipe,bath or sink)should not be higher than

1.2metres above the floor. (This is for pump drain

model only)

3. Do not trample or press the hose.

10cm

The hose should drain smoothly

1. The fixation heig t of the hose should be less

than 10cm from the ground.

MAIN FUNCTIONS

To remove excess

detergent,saving both

time and water.

Hand washing can

improve the washing

ability.

1.Rinse and foam-

removing spinning 2.Hand washing

Preparation before washing

Attention before washing

Follow washing instructions stated on

clothing labels.

Remove all hard objects

(eg coins,hairpins etc)

from clothings

Fasten buttons and

zippers.

Always put clothes with

buttons in the middle of the

wash load to minimise

contact with the pulsator.

When filling the water into the washing

tub,please do not leave until the water

level reaches the anticipated level,then

turn off the tap.

The quantity of Clothes

should not exceed the

rated capacity.

1.Install the water inlet hose. The max water

pressure permitted is between 0.03-0.6mpa

2.Be sure the earthing is in proper working condition

and insert the plug.The earthing should not join with

any gas pipe or water hose.

3.Lay down the drain hose.(Down drain)

4.Put up the drain hose.(Up drain)

5.Please keep machine level, otherwise it will cause

an abnormal sound.

WASHING RECOMMENDATIONS

Reference weight

How to use bleach

Fill water to the specified level, and pour the bleach into the wash tub.

Do not use bleach on coloured clothings.

Bleach should not contact with clothes directly.

Do refer to instructions provided by bleach manufacturer.

Powder bleach can be used , do follow instructions provided by bleach

manufacturer.

How to use washing powder

The capacity will be affected by the thickness, size and type of the clothes.

If the weight of the clothes is below 2kg,do not select the high water level, so as

to prevent splashing of water.

Total dry laundry weight should not exceed rated capacity

Normal dissolving of washing powder.

1.Fill small quantity of water in wash tub.

2.Add some washing powder run for 30 seconds to dissolve it completely.

3.Put the clothes in and select the proper water level.

Quick dissolving of washing power

1.Prepare warm water of 30 in a container.

2.Put the powder in and stir.

When using powder detergent, do follow instructions provided by detergent

manufacturer.

Work

clothes

(1120g)

Pajamas

(200g) Shirt

(300g)

Undershirt

(180g)

Blanket

(900g)

Socks

(50g)

Underwear

(70g) Jacket

(800g)

Coat

(800g)

Jeans

(800g)

Bedsheet

(600g)

USAGE OF DETERGENT AND BLEACH

WASHING SEQUENCE

1.Put the clothes into the spin tub.

2.Spin.

(1)Place the safety cover properly.

(2)Close the spin cover .

(3)Spin for 1- 2 minutes.

3.Rinse and foam-removing spin

(1)Open the spin cover.

(2)Put the water inlet house into the spin

inlet and fill water for 1 minute.

(3)Close the cover, spin for 1-2 minutes.

Midway spinning sequence

Wash inlet Wash timer Spin timer

Program&drain selector Spin inlet

2.Fill water

and add

dissolved

washing powder

the specified

level

3.Put in the clothes.

4.Select

the

program

according

to the

clothes.

5.Select

the wash

time

according

to clothes.

6.After

washing,

set the

selector to

position

"drain".

1. Put the water inlet hose

into the inlet,move the

water inlet switch to wash

side.

WASHING SEQUENCE

Rinse(filling water)

1.Put clothes in the washing tub and select the suitable water flow according

to the clothes.

2.Fill water to the specified level.

3.Rinse by adjusting the wash timer to 2-3 minutes .When the weight of

clothes is below 3kg, use standard water flow. If you use strong water flow,it

may make the water splash.

Spray Rinse

1.Put the clothes into spin tub.

2.Move the water inlet switch to spin side.

3.Select the spin time.

Notes:You may repeat the above 1~3 steps to do more than one spray rinse.

1.Put clothes in the wash tub and select the suitable water flow according to

the clothes.

2.Rinse

Adjust the wash timer to 5-7minutes to do rinsing.

Rinse with water(Repeat the midway spinning and rinse for 2-3 times.)

Spinning

1.Put the clothes in spin tub .

2.Press the safety cover properly and close

the spin cover

3.Spinning

Select the spin time according to the type of

clothes .

If there is abnormal sound produced,while

spinning,do switch off washing machine and

rearrange clothes.

While spinning,if spin cover is opened,

spinning will stop, Close it, it will resume

spinning.

Clothes Spin time(m)

Bedsheet, blanket

Underwear(knitwear)

Sweater(fabric)

Thin clothes

About4~5

About2~4

About1~2

Within 1

Selection of spin time

Rinsing

To do spinning and draining or rinsing(filling water) together,please

first do spinning for about 1 minute,then do draining or rinsing,

otherwise the spinning will stop owing to too much water stored in the

spin tub.

MAINTENANCE

After washing, clean lint and foreign objects from the lint filter and frame after

each use .

Before cleaning, pull the plug out of the socket.

During washing,the lint-filter must

be used.

Be sure to clean it after each use.

1.Toremove filter,put your hand in the

groove,press and pull down the filter.

2.Clean the filter in water.

3.After cleaning,insert the filter into the

frame,and press in the upper part.

Clean lint filter

Clean the washing machine

Clean machine with soft cloth.

Clean with neutral detergent.

Never wash it directly with water.

After washing, remove the water inlet hose.

Pull out the plug and hang up the wire.

Do not keep water in wash tub for too long .

After washing, drain immediately.

Clean the outside and inside of the washing

machine with soft cloth. Leave upper cover

open and close it after 1 hour .

Hang up the drain hose well.

When the remaining water is frozen

To prevent freezing,after each wash,drain water

completely

After complete draining,set the program/drain

selector to the strong or standard position.

If it is on the drain position, ice is hard to melt,

when it is frozen.

Pour water below 50 degree into wash tub to

soak.Then turn the pulsator with your hands

gently until it drains.After that,it is ready for use.

2-3 L

Problem Reason

TROUBLE-SHOOTING

The machine does not work

Power failure

Machine is not plugged in and powered up.

Pulsator is clogged

The draining does not work

Drain hose is not kept down.

Drain hose is frozen.

Drain hose is blocked.

Clothes outside spin tub.

Abnormal noise during

washing

There are hairpins, coins, or metal items in

wash tub

Abnormal noise and violent

vibration during spinning

Machine is not level.

Safety cover not properly placed.

Clothes are outside spinning tub.

Amount of clothes beyond stated capacity.

Water flows from the drain

hose during first use

It is the water remained from factory

inspection of performance.

WARNING

3.This appliance is not intended for use by persons(including children) with reduced

physical,sensory or mental capabilities or lack of experience and knowledge,unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.

4.Children should be supervised to ensure that they do not play with the appliance.

1.If the supply cord is damage,it must be replaced by the manufacturer

or its service agent or similarly qualified persons in order to avoid a hazard.

2.For washing machine with ventilation openings in the base,that a carpet

must not obstruct the opening.

NOTE

1.Maximum pressure allowed at the water inlet:0.6Mpa

3.The new hose-sets supplied with the appliance are to be used and that old hose-sets

should not be reused.

2.Minimum pressure allowed at the water inlet:0.03Mpa

Tabla de contenidos

Otros manuales de Arandela de Whirlpool

Whirlpool

Whirlpool 3363560 Instrucciones de instalación

Whirlpool

Whirlpool HWMB9002GW Guía de instalación

Whirlpool

Whirlpool FWG81283W GCC Manual de usuario

Whirlpool

Whirlpool LSR4311DQO Guía de solución de problemas

Whirlpool

Whirlpool Gold GSW9545JQ0 Manual de usuario

Whirlpool

Whirlpool AMW 835 Manual de operación y mantenimiento

Whirlpool

Whirlpool 3951059C Manual de usuario

Whirlpool

Whirlpool Gold GSX9885JQ0 Manual de usuario

Whirlpool

Whirlpool LSC5000PQ1 Manual de usuario

Whirlpool

Whirlpool WFW87HEDW Manual de usuario

Whirlpool

Whirlpool Gold GSW9545JQ0 Manual de usuario

Whirlpool

Whirlpool AWZ 414 Manual de usuario

Whirlpool

Whirlpool GVW9959KL0 Manual de usuario

Whirlpool

Whirlpool ITW4971EW0 Manual de usuario

Whirlpool

Whirlpool Duet Sport WFW8400T Instrucciones de uso

Whirlpool

Whirlpool 1CWTW4815EW1 Manual de usuario

Whirlpool

Whirlpool Inglis IAS5000RQ2 Manual de usuario

Whirlpool

Whirlpool WFW92HEFU Manual de usuario

Whirlpool

Whirlpool LSS7233AN0 Manual de usuario

Whirlpool

Whirlpool WFW97HEXR Instrucciones de montaje

Whirlpool

Whirlpool LA56OOXP Manual de usuario

Whirlpool

Whirlpool WFW94HEXR0 Manual de usuario

Whirlpool

Whirlpool Cabrio WTW6400SW1 Instrucciones de montaje

Whirlpool

Whirlpool 8MWTW1612 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
