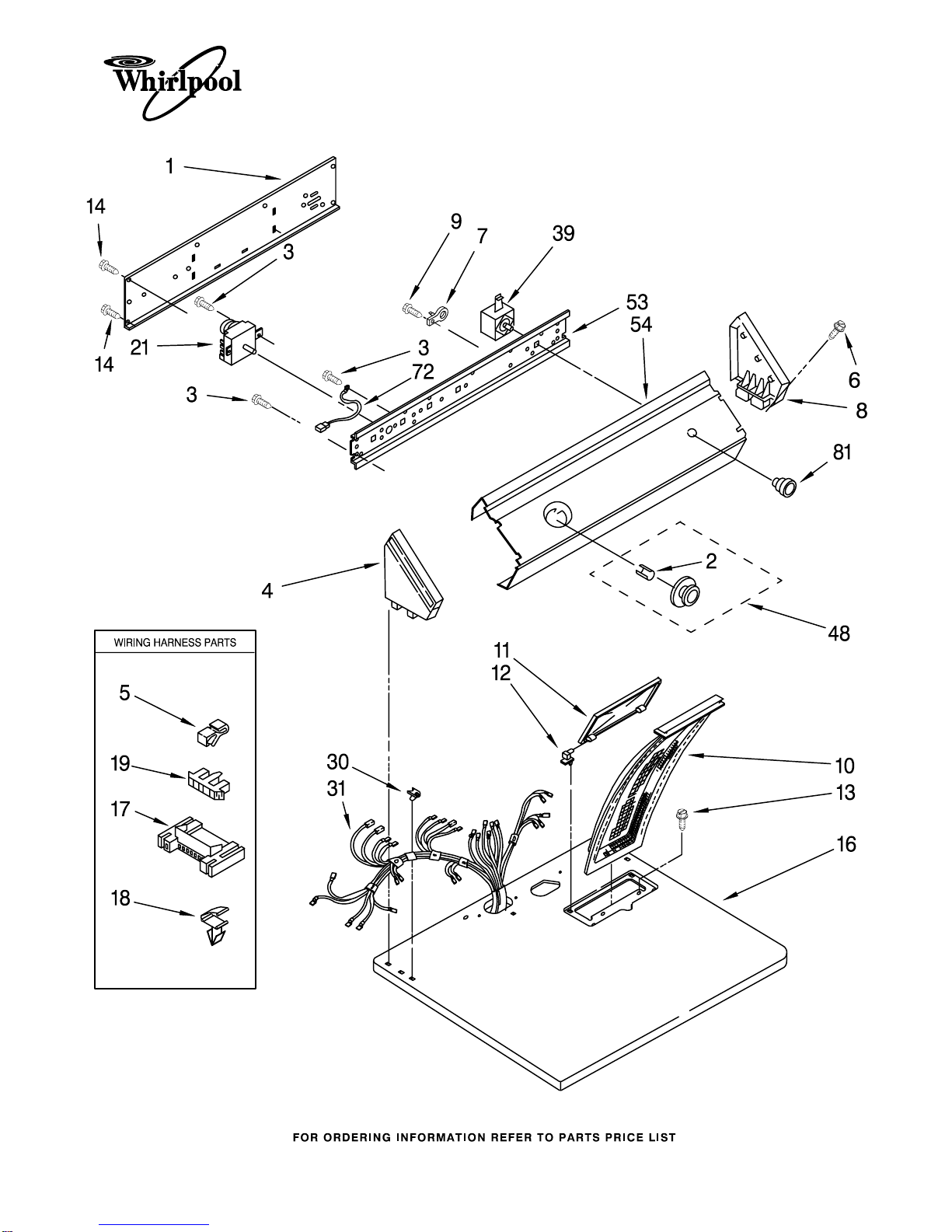

TOP AND CONSOLE PARTS

For Model: LET5624DQ1

(Designer White)

12−95 Litho in U.S.A. (tpm) Part No. 4377567

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Model: LET5624DQ1

(Designer White)

4377567

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 688805 Clip

3 3390646 Screw,

8−18 x 5/16

4 3358528 Cap, End (L.H.)

5 689180 Clip, Retainer

6 388326 Screw, Console

7 3388706 Resistor

8 3358513 Cap, End (R.H.)

9 3390647 Screw, 8−18 x 1/2

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 693995 Screw, Hex Head

16 Top

3396022 White

17 3395683 Connector,

Housing

18 3394427 Clip, Harness

19 3397269 Connector, Timer

21 3392250 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3399653 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 3396146 Timer Knob

Assembly

53 3396293 Bracket, Control

54 3403655 Panel, Control

72 690853 Wire, Ground

81 3396161 Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401092

Guide, Use & Care

LIT3397597

Instructions,

Installation

LIT3401728

Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

CABINET PARTS

For Model: LET5624DQ1

(Designer White)

4377567

CABINET PARTS

For Model: LET5624DQ1

(Designer White)

4377567

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

4 230131 Cable, Door (2)

5 3396795 Cover, Terminal

Block

6 694091 Screw

7 3396807 Panel, Rear

8 339493 Screw

9 688160 Screw, 8−15 x 1/2

10 347207 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

13 693995 Screw, Rear Panel

Mounting

14 337186 Spring, Door

15 660975 Plug

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 343641 Screw,

10−16 x 1/2

18 Cabinet

3399580 White

(Includes Illus.

Nos. 5, 7, 16, 29,

41 and 57)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel Assembly

337464 White

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 238456 Hinge, Door (R.H.)

238460 Hinge, Door (L.H.)

29 3394083 Clip, Front

Panel (2)

33 696144 Strike, Door

35 695953 Door, Rear

36 Door Front

348737 White

37 Handle, Door

690270 White

38 349462 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

42 337182 Guide, Cable(L.H.)

337183 Guide, Cable(R.H.)

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3390734 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

BULKHEAD PARTS

For Model: LET5624DQ1

(Designer White)

4377567

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 3400800 Screw, 8−18 x 3/4

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3392123 Seal, Blower

Shaft

17 3398064 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 660039 Thermostat,

150 F / 66C

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
