Whirlpool 240-VOLT ELECTRIC DRYER Manual de usuario

A Note to You ....................2

Dryer Safety........................3

Installation

Instructions ........................5

Parts and Features ..........23

Using Your Dryer ............24

Starting your dryer........…24

End of cycle signal...........25

Loading ............................25

Selecting the right cycle

and setting……............….25

Caring for Your

Dryer ................................28

Troubleshooting ..............30

Assistance or Service ....32

Warranty ..........................36

Call the Consumer Assistance Center

with questions or comments:

1-800-253-1301

3977625

240-Volt

Compact

Electric

Dryer

3977625v09c27 4/1/99 4:45 PM Page 1

A Note to You

Thank you for buying a WHIRLPOOL®appliance.

The Whirlpool Brand is committed to designing quality products that consistently perform

for you to make your life easier. To ensure that you enjoy years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information about how to

operate and maintain your appliance properly and safely. Please read it carefully.

Also, complete and mail the Ownership Registration Card provided with your appliance.

The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial

number. You can find this information on

the model and serial number label (see

the diagram on the “Parts and Features”

page for the location of the label).

Please also record the purchase date of

your appliance and your dealer's name,

address, and telephone number.

Keep this book and the sales slip together in a safe place fo

future reference.

Model Number________________________

Serial Number ________________________

Purchase Date________________________

Dealer Name ________________________

Dealer Address ______________________

Dealer Phone ________________________

1-800-253-1301

Our Consumer Assistance Center

number is toll free.

To find detailed product information, the location of the nearest Whirlpool dealer or designated

servicer, to purchase an accessory item, or register your appliance on-line, please visit our

Web site at www.whirlpool.com

3977625v09c27 4/1/99 4:45 PM Page 2

Dryer Safety

You will be killed or seriously injured

if you don’t follow instructions.

You can be killed or seriously injured

if you don’t follow instructions.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appli-

ance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word “DANGER” or “WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of

injury, and tell you what can happen if the instructions are not followed.

3977625v09c27 4/1/99 4:45 PM Page 3

DRYER SAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to

persons when using the dryer, follow basic precautions, including

the following:

•Read all instructions before

using the dryer.

• Do not place items exposed to

cooking oils in your dryer. Items

contaminated with cooking oils

may contribute to a chemical

reaction that could cause a load

to catch fire.

•Do not dry articles that have

been previously cleaned in,

washed in, soaked in, or spotted

with gasoline, dry-cleaning

solvents, other flammable, or

explosive substances as they

give off vapors that could ignite

or explode.

•Do not allow children to play on

or in the dryer. Close supervision

of children is necessary when

the dryer is used near children.

•Before the dryer is removed from

service or discarded, remove the

door to the drying compartment.

•Do not reach into the dryer if the

drum is moving.

•Do not install or store the dryer

where it will be exposed to the

weather.

•Do not tamper with controls.

•Do not repair or replace any

part of the dryer or attempt any

servicing unless specifically

recommended in this Owner

’

Manual or in published user-repair

instructions that you understand

and have the skills to carry out.

•Do not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer

of the fabric softener or product.

•Do not use heat to dry articles

containing foam rubber or similarly

textured rubber-like materials.

•Clean lint screen before or after

each load.

•Keep area around the exhaust

opening and adjacent surrounding

areas free from the accumulation

of lint, dust, and dirt.

•The interior of the dryer and

exhaust vent should be cleaned

periodically by qualified service

personnel.

•See Installation Instructions for

grounding requirements.

SAVE THESE INSTRUCTIONS

IMPORTANT: Observe all governing codes and ordinances.

3977625v09c27 4/1/99 4:45 PM Page 4

Installation Instructions

Read the “Dryer Safety” section of your dryer’s Use and Care guide, and completely read

these installation instructions before beginning installation.

Before starting installation

•Check location where dryer will be

in-stalled. Proper installation is your

responsibility. The dryer must not be

installed or stored in an area where it will

be exposed to water and/or weather.

Make sure you have everything necessary

for correct installation.

•Grounded electrical supply is required.

See “Electrical requirements.”

•Four-inch metal exhaust vent is

required. See “Exhaust requirements.”

•Check code requirements: Some codes

do not permit or limit installation of clothes

dryers in garages, closets, mobile homes,

or sleeping quarters. Contact your local

building inspector.

•Protection from the weather: Proper

operation of dryer cycles requires

temperatures above 45°F, or the dryer

may not shut off when automatic cycles

are used.

➤

wWARNING

Explosion Hazard

Keep flammable materials and vapors,

such as gasoline, away from dryer.

Place dryer at least 18 inches (46 cm)

above the floor for a garage

installation.

Failure to do so can result in death,

explosion, or fire.

•Support: Floor must be sturdy enough to

support a total weight of 115 pounds

(includes dryer and load weight).

•Location: Must be large enough to fully

open dryer door. See “Recessed area and

closet installation” for minimum spacing

requirements.

•Level floor: 1-in maximum slope under

entire dryer.

NOTE: Observe all governing codes and

ordinances.

203⁄4"

31"

237⁄8"

3977625v09c27 4/1/99 4:45 PM Page 5

How to install your dryer

Now that you’ve unpacked your dryer, check

to be sure you have removed the parts bag

from the drum. Remove the tape that holds

the drum to the cabinet. Move the drum by

hand to make certain all tape has been

removed. Next, wipe the interior of the drum

thoroughly with a damp cloth before using

the dryer.

Installation

To install your dryer, you will need the tools

shown. All the parts you need are packed in

the appliance. When you take them out,

place them on a cloth so you won’t lose

them.

Parts supplied with the dryer:

1 Cycle and temperature control (timer)

knob

1 Push to Start button

4 Leveling legs

Adjustable

wrench Level Flashlight

(optional)

1⁄4-inch

nut driver

#2 Phillips

head

screwdriver

Wire

stripper Duct

tape Flat-head

screwdriver

INSTALLATION INSTRUCTIONS

3977625v09c27 4/1/99 4:45 PM Page 6

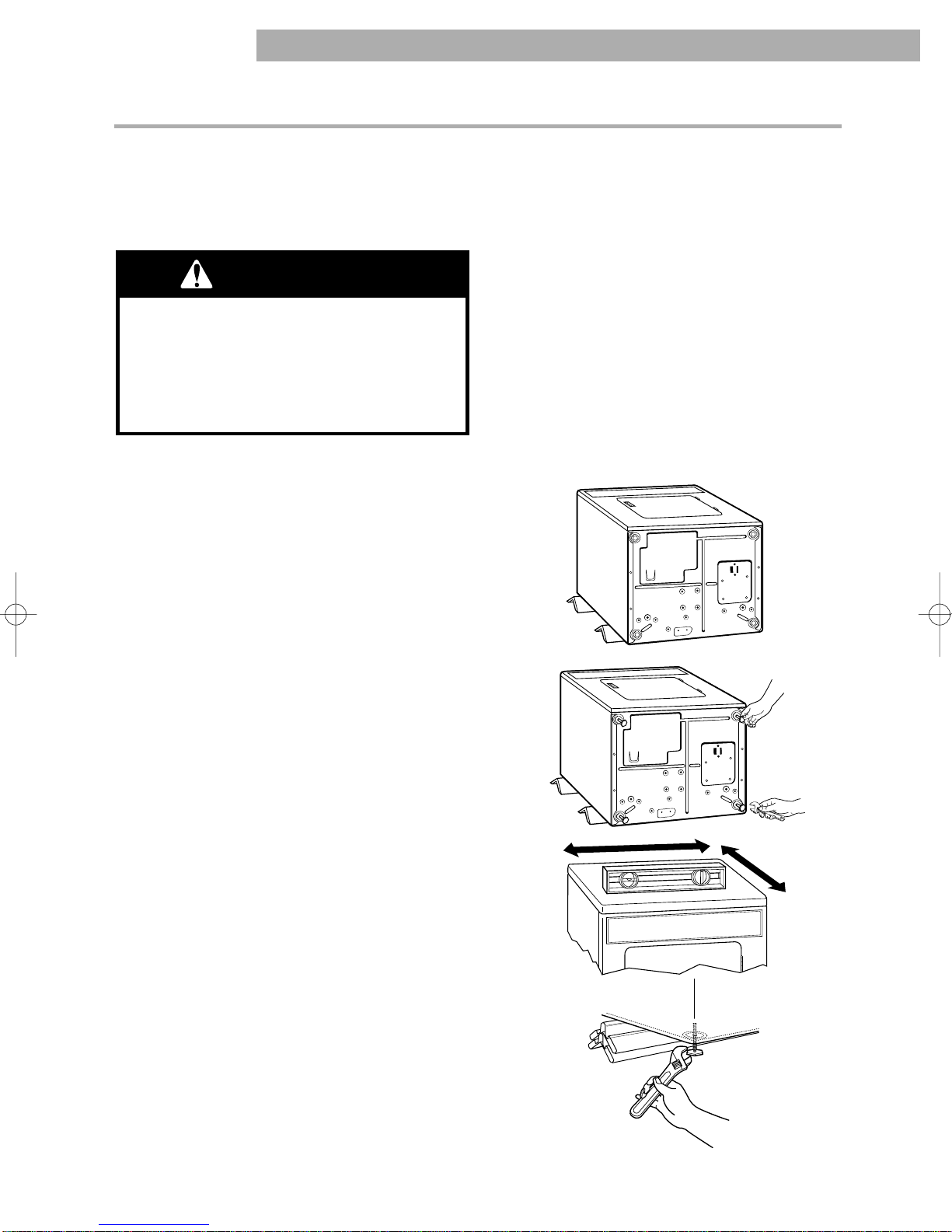

1. Take two of the cardboard corners from

the carton. Place them on the floor in back

of the dryer.

2. Firmly grasp the body of the dryer. Gently

lay dryer on the cardboard corners.

3. Start to screw the legs into the holes by

hand. Use a wrench to finish turning the

legs. They should stick out about 1 inch.

4. Now stand the dryer up and move it close

to its final location. Leave enough room to

connect the exhaust vent.

5. Check levelness of dryer by placing a level

on top of the dryer, first side-to-side; then

front-to-back.

6. If dryer is not level, prop the dryer up

using two stacked cardboard corner posts.

Use a wrench to adjust the legs up or

down.

NOTE: It may be necessary to level the

dryer again after it is moved into its final

position.

WARNING

Excessive Weight Hazard

Use two or more people to move and

install dryer.

Failure to do so can result in back or

other injury.

Installing the leveling legs

Leveling your dryer correctly will reduce

operating noise and provide improved drying

performance.

To install leveling legs:

INSTALLATION INSTRUCTIONS

3977625v09c27 4/1/99 4:45 PM Page 7

INSTALLATION INSTRUCTIONS

Electrical Requirements

A three-wire or four-wire, single phase

120/240-volt, 60-Hz., AC-only, electrical

supply is required on a separate 30-ampere

circuit, fused on both sides of the line. A

time-delay fuse or circuit breaker is

recommended.

This dryer is manufactured with the 3-wire,

frame-grounding conductor connected to the

NEUTRAL (center) of the wiring harness of

the terminal block. Do not have a fuse in the

neutral or grounding circuit. A fuse in the

neutral or grounding circuit could result in an

electrical shock.

Use a 4-conductor cord when the dryer is

installed in a mobile home or an area where

local codes do not permit grounding through

the neutral.

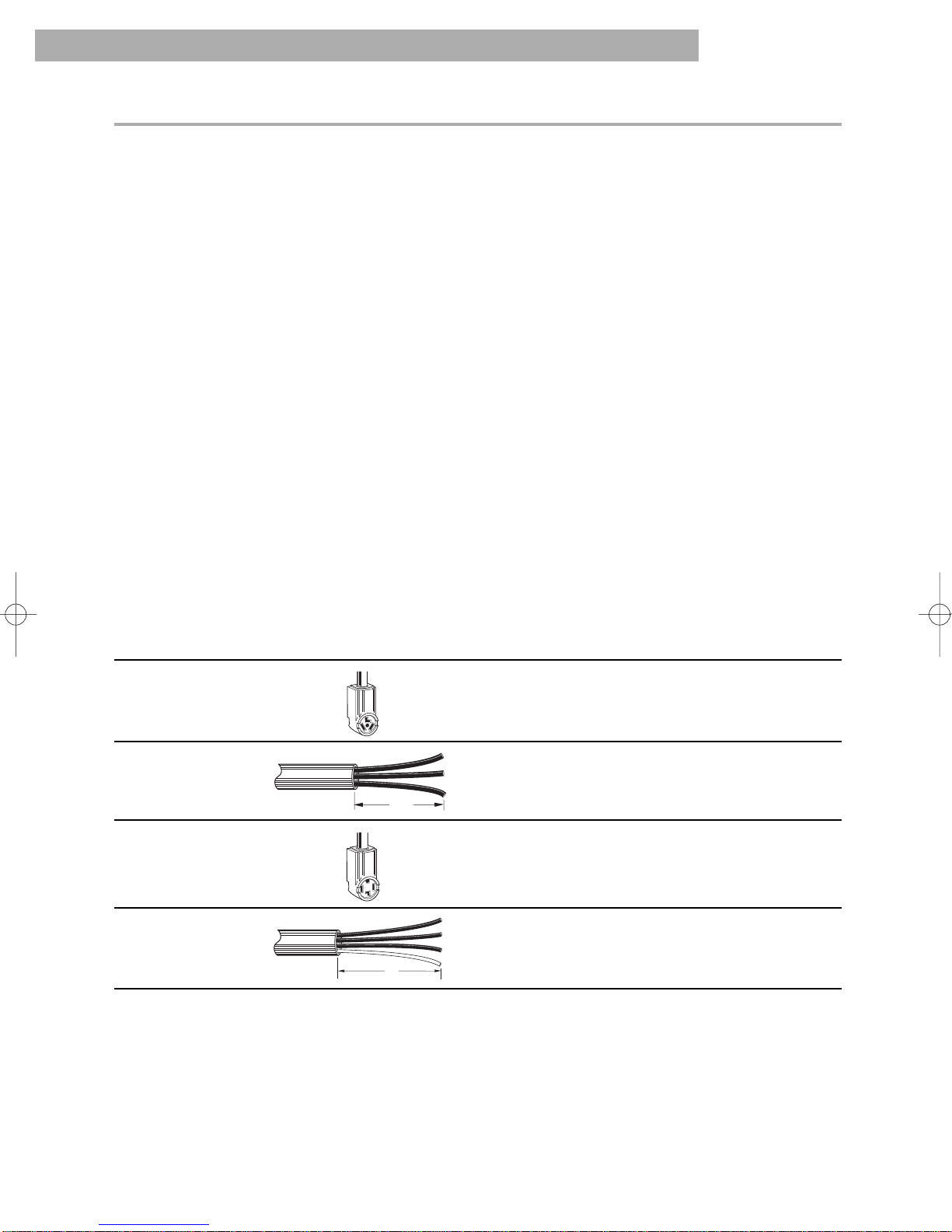

If Your Home Has:

3-wire electrical

receptacle

(NEMA Type 10-30R)

3-wire direct

4-wire electrical

receptacle

(NEMA Type 14-30R)

4-wire direct

A U.L.-listed, 120/240-volt

minimum, 30-amp., dryer

power supply cord.*

A fused disconnect or

circuit breaker box.*

A U.L.-listed, 120/240-volt

minimum, 30-amp., dryer

power supply cord.

A fused disconnect or

circuit breaker box.

And You Will Be

Connecting To:

31/2"

Electrical Connection Options

*If local codes do not permit the connection of a frame-grounding conductor to the neutral wire, see the

instructions for “Alternate Connection”.

Go To

Page:

3977625v09c27 4/1/99 4:45 PM Page 8

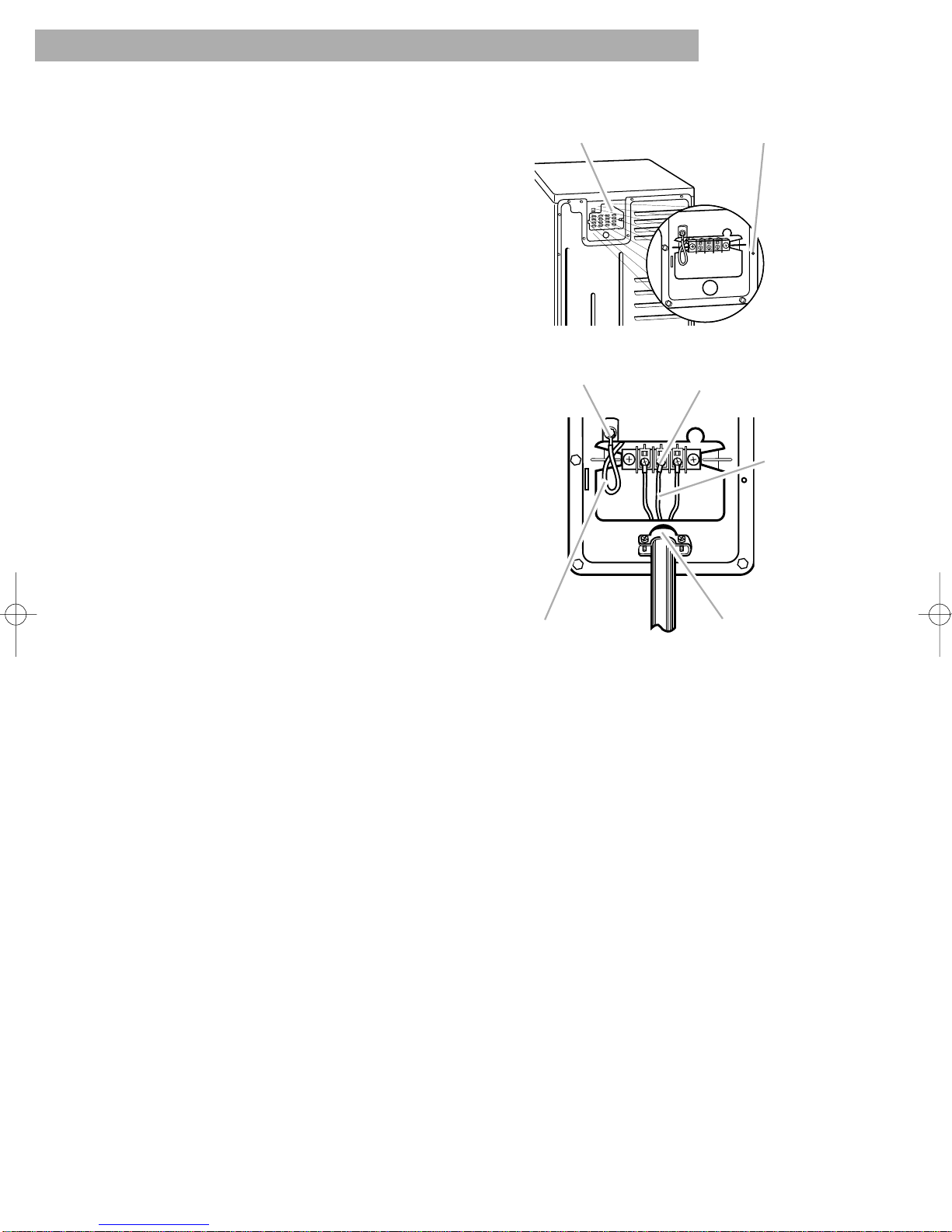

Three-Wire Electrical Connection to Receptacle

•Do not use an extension cord with

this dryer.

•Do not connect plug end of power supply

cord into a live receptacle before

connecting power supply cord to dryer

terminal block.

Local codes may permit the use of a U.L.-

listed, 120/240-volt minimum, 30-ampere,

dryer power supply cord kit (pigtail). Power

supply cord should be type SRD or SRDT

and be at least four feet long. The wires that

connect to the dryer must end with ring

terminals or spade terminals with upturned

ends.

NEUTRAL This blade connected

to this conductor

NEUTRAL

(white or center)

3⁄4", U.L.-listed,

strain relief

Spade terminals

with upturned ends

Ring

terminals

•The power supply cord must have three,

No.-10 copper wires to match a three-wire

receptacle of NEMA Type 10-30R.

INSTALLATION INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The power

supply cord must be plugged into an

appropriate outlet that is properly installed

and grounded in accordance with all local

codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result

in a risk of electric shock.

Check with a qualified electrician or

serviceman if you are in doubt as to

whether the appliance is properly

grounded. Do not modify the plug on the

power supply cord. If it will not fit the

outlet, have a proper outlet installed.

SAVE THESE INSTRUCTIONS

Three-wire

receptacle (NEMA

Type 10-30R)

wWARNING

Fire Hazard

Use a new UL approved 30 ampere

power supply cord.

Use a UL approved strain relief.

Disconnect power before making

electrical connections.

Connect neutral wire (white or center

wire) to center terminal (silver).

Ground wire (green or bare wire) must

be connected to green ground

connector.

Connect remaining 2 supply wires to

remaining 2 terminals (gold).

Securely tighten all electrical

connections.

Failure to do so can result in death,

fire, or electrical shock.

3977625v09c27 4/1/99 4:45 PM Page 9

1. Disconnect power.

2. Remove hold-down screw and terminal

block cover.

3. Attach a 3⁄4-inch, U.L.-listed, strain relief to

the hole below terminal block opening.

Strain relief should have a tight fit with

dryer cabinet and be in a horizontal

position. Put the power supply cord

through the strain relief.

4. Loosen or remove terminal block screws.

Connect the neutral wire (white or center)

of power supply cord under the center

screw of the terminal block.

5. Connect the other two wires to outer

terminal block screws. Tighten all terminal

block screws firmly.

6. Tighten the strain relief screws.

7.Insert tab of terminal block cover into slot

of the dryer rear panel. Secure cover with

hold-down screw.

NOTE: If local codes do not permit the

connection of a frame-grounding conductor

to the neutral wire, see the instructions for

“Alternate Connection” later in this section.

Neutral ground-

ing wire

(green/yellow)

3⁄4 ", U.L.-listed,

strain relief

Neutral

wire

(white)

Center silver-colored

terminal block screw

External ground

connector

3-Wire Connection with

Frame-Grounding Conductor

INSTALLATION INSTRUCTIONS

Terminal block cover Hold-down screw

3977625v09c27 4/1/99 4:45 PM Page 10

Otros manuales para 240-VOLT ELECTRIC DRYER

Tabla de contenidos

Otros manuales de Secadora de Whirlpool

Whirlpool

Whirlpool WGD9450WL Manual de usuario

Whirlpool

Whirlpool HybridCare Manual de usuario

Whirlpool

Whirlpool Duet YGEW9200LQ0 Manual de usuario

Whirlpool

Whirlpool W10259188B - SP Manual de usuario

Whirlpool

Whirlpool HybridCare WED99HEDW Manual de usuario

Whirlpool

Whirlpool GGN2000H Manual de usuario

Whirlpool

Whirlpool LE9800XS Manual de usuario

Whirlpool

Whirlpool 3979173 Manual de usuario

Whirlpool

Whirlpool CGM2745FQ Manual de usuario

Whirlpool

Whirlpool LEQ8000JQ Manual de usuario

Whirlpool

Whirlpool WED95HEDW Manual de usuario

Whirlpool

Whirlpool WGD5900SB0 Manual de usuario

Whirlpool

Whirlpool Cabrio WGD6200S Manual de lista de piezas

Whirlpool

Whirlpool Cabrio W10150626A Manual de usuario

Whirlpool

Whirlpool LE9200XW Manual de usuario

Whirlpool

Whirlpool WCD3090JW Manual de usuario

Whirlpool

Whirlpool GEW9868KT Manual de usuario

Whirlpool

Whirlpool W10726005A Manual de usuario

Whirlpool

Whirlpool w10097013a Manual de usuario

Whirlpool

Whirlpool GEQ8811PW0 Manual de usuario

Whirlpool

Whirlpool LE5770XW Manual de usuario

Whirlpool

Whirlpool HWFB9002GW Guía de instalación

Whirlpool

Whirlpool WGD9600TA1 Manual de usuario

Whirlpool

Whirlpool cabrio WED6200S Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
