Whirlpool AWZ 3303 Manual de usuario

CONTENTS

QUICK REFERENCE GUIDE

PROGRAMME CHART

PREPARING THE LAUNDRY

SELECTING A PROGRAMME AND OPTIONS

STARTING AND COMPLETING A PROGRAMME

CHANGING A PROGRAMME

INTERRUPTING A PROGRAMME

DAILY MAINTENANCE AND CLEANING

INSTRUCTIONS FOR USE

BOOKLET

BEFORE USING THE DRYER / CONNECTIONS PAGE 10

ELECTRICAL CONNECTION PAGE 11

PRECAUTIONS AND GENERAL

RECOMMENDATIONS PAGE 12

DESCRIPTION OF THE DRYER PAGE 13

VENT CONNECTION PAGE 14

DOOR REVERSIBILITY PAGE 15

TROUBLESHOOTING GUIDE / AFTER-SALES SERVICE PAGE 16

BEFORE USING THE DRYER / CONNECTIONS

1. Removing the packaging and check

•After unpacking, make sure that the dryer is

undamaged. If in doubt, do not use the dryer.

Contact After-Sales Service or your local retailer.

•Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children, as

they are potentially dangerous.

2. Electrical Connections

•Electrical connections must be carried out by a

qualified technician in compliance with the

manufacturer’s instructions and current standard

safety regulations.

•Electrical connection must comply with local

Electricity Board regulations.

•Voltage information, power consumption and the

required fuse protection is shown on the rating

plate mounted at the rear of the dryer.

•The manufacturer cannot accept any liability for

personal injury or damage to property resulting

from failure to adhere to these instructions.

•The dryer must be earthed as prescribed by law.

•Do not use extension leads or multiple adaptors.

•Before any maintenance on the dryer disconnect it

from the mains supply.

•Do not operate the dryer if it has been damaged

during transport. Contact one of our After-Sales

Service technicians.

•Mainscablereplacementisonlytobecarriedoutby

After-Sales Service.

•After installation access to the mainsplug has to be

guaranteed, or the all-pole disconnection has to be

possible with a switch.

3. Installation

•Do not install your dryer where it can be subject

to extreme conditions, such as: poor ventilation,

temperatures around freezing (or above 35°C).

•Removetheprotectivefoilfromthecontrol panel.

•Take care not to install the dryer on a deep-pile

carpet.

Stability:

When installing the dryer always carefully level the

dryer adjusting the two feet and check the correct

levelling with a spirit level.

To built in the dryer

•For security reasons do not remove the

worktop.

•Connect the dryer to an external ventilation

systeminorder toprevent steam fromdamaging

your furniture during the years.

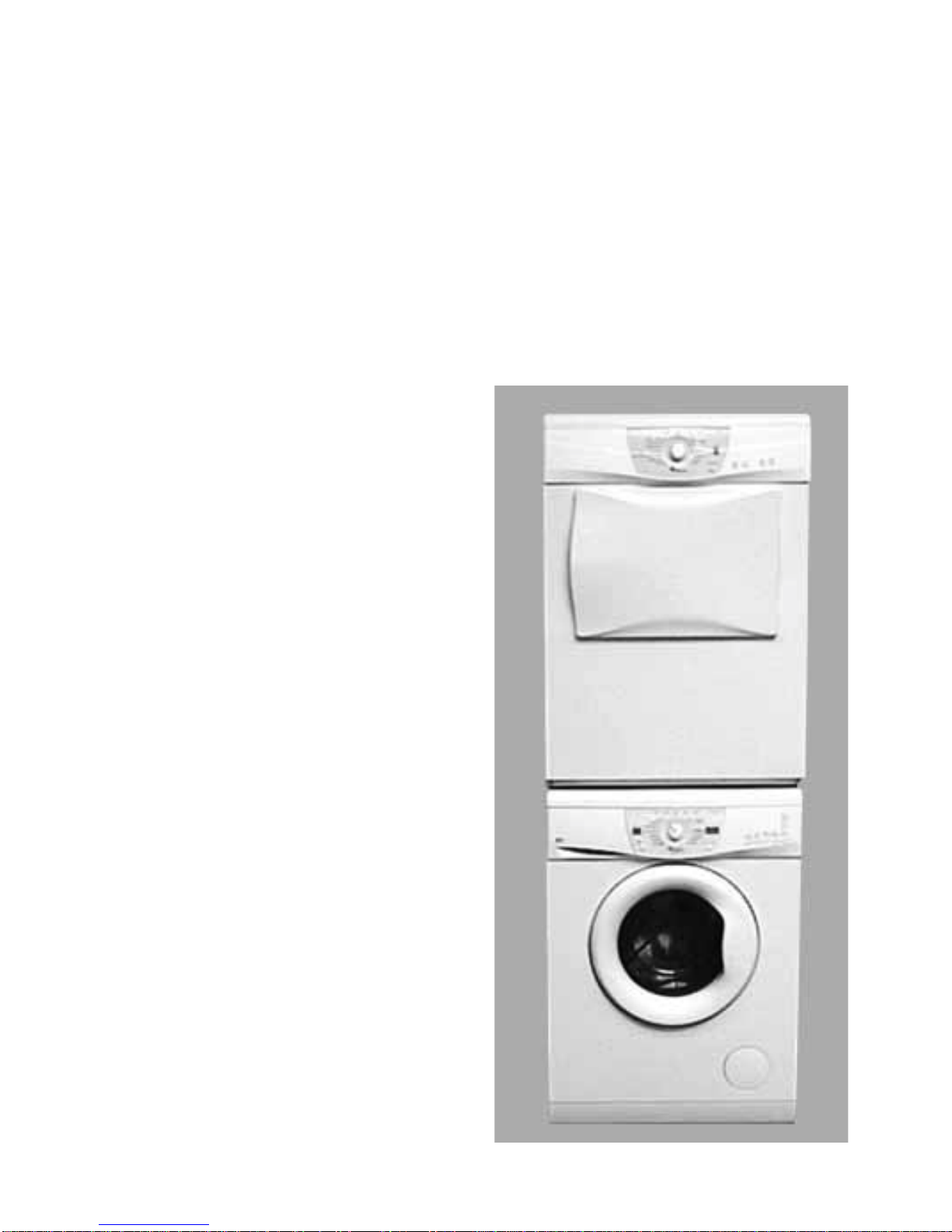

Stacking kit

Your dryer can be stacked on top of your front

loadingwashingmachine. Thetypeofstackingkitis

stated in the Instruction for use of your washing

machine or pls. contact your dealer or our After

Sales Service.

Minimum housing dimensions:

Width: 600 mm

Height: 850 mm

Depth: 560 mm

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp

fused plug, to change a fuse in this type of plug use an A.S.T.A.

approved fuse to BS 1362 type and proceed as follows:

1.Remove the fuse cover (A) and fuse (B).

2.Fit replacement 13A fuse into fuse cover.

3.Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse

cover is lost the plug must not be used until a correct replacement is

fitted.

Correctreplacementare identifiedbythecolour insert or the colour

embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical

store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently

apply, but a third type of plug and socket is also used, the

2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact

Whirlpool Service for further instruction. Please do not attempt to

change plug yourself. This procedure needs to be carried out by a

qualified Whirlpool technician in compliance with the manufactures

instructions and current standard safety regulations.

PRECAUTIONS AND GENERAL

RECOMMENDATIONS

1. Packing

The packing box may be fully recycled as

confirmed by the recycling symbol.

2. Energy saving tips

•Always dry a full load: depending on the type of

laundry and the programme/drying time.

•By preference use the maximum spin speed

allowed by your washing machine, since draining

the water mechanically requires less energy.

•Do not overdry the laundry.

•Clean the lint filter after every drying cycle.

•Place your dryer in a room with a temperature

between 15° C and 20° C. In case of higher

temperature ventilate the room.

•Always select the correct programme/drying time

for the load in order to obtain the desired drying

results.

•Select the gentle option only with small loads.

•When drying cotton, for example: dry iron dry and

cupboard dry loads together. Start with the iron dry

programme/drying time setting, remove the

laundrytobeironedattheendofthat cycleanddry

the remainder of the load on the cupboard dry

setting.

3. Disposing of packaging and old appliances.

The dryer is built from reusable materials. The

dryer must be disposed of in compliance with local

waste disposal regulations.

•Before scrapping, cut off the power cable so that

the dryer cannot be connected to the mains.

4. Child safety:

Children must not be allowed to play with the

dryer.

5. General recommendations:

•Always set the programme/time selector knob to

the “0” position after use. This prevents the dryer

from being switched on accidentally.

•Before cleaning or carrying out maintenance,

switch off the dryer and disconnect it from the

mains supply.

•To clean the outside of the dryer, use a neutral

detergent and a damp cloth.

•Do not use abrasive detergents.

Clean the lint filter at the end of every drying

cycle:

1. Open the door.

2. Pull the filter upwards.

3. Remove lint using a soft brush or your fingertips.

•Push the filter firmly back into place.

•Wipe away lint from the door seal and the door

using a damp cloth.

•If the lint filter mesh is clogged, clean it with water

and a soft brush.

•Ifnecessary,thepowercablemay be replaced with

an identical one obtained from our After-Sales

Service. The power cable must only bereplaced by

a qualified technician.

EC Declaration of Conformity

•This dryer has been designed, constructed and

distributed in compliance with the safety

requirements of EC Directives:

•73/23/EEC Low Voltage Directive

•89/336/EEC EMC Directive

•93/68/EEC CE Marking Directive.

•The dryer must be used in the household for the

described uses.

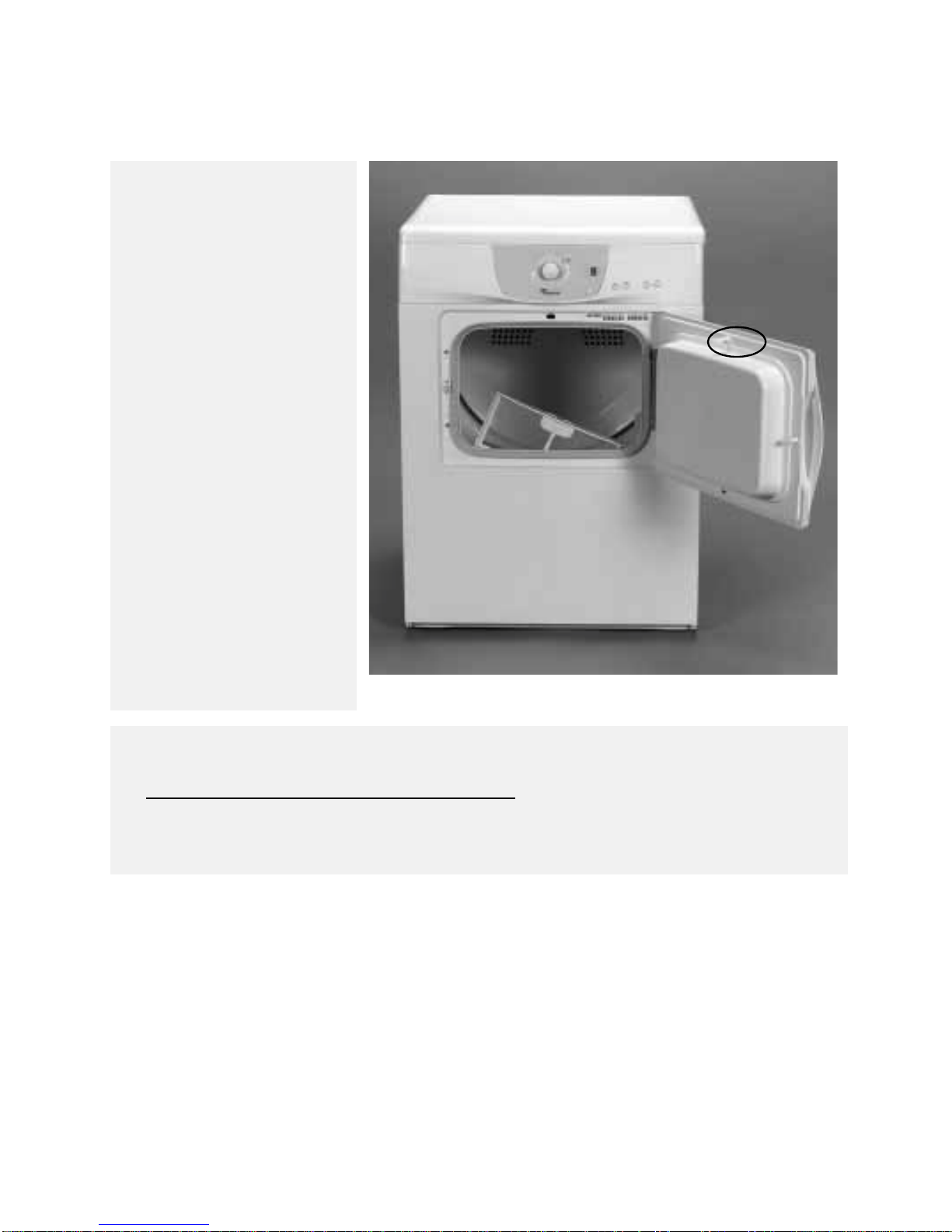

DESCRIPTION OF THE DRYER

A. Work top

B. Contact pin

C. Door

To open the door:

pull the handle

To close the door:

push gently until closed.

D. Filter

Reminder - Maintenance and Cleaning

Clean the lint filter at the end of every drying cycle:

Open the door.

Pull the filter upwards.

Remove lint using a soft brush or your fingertips.

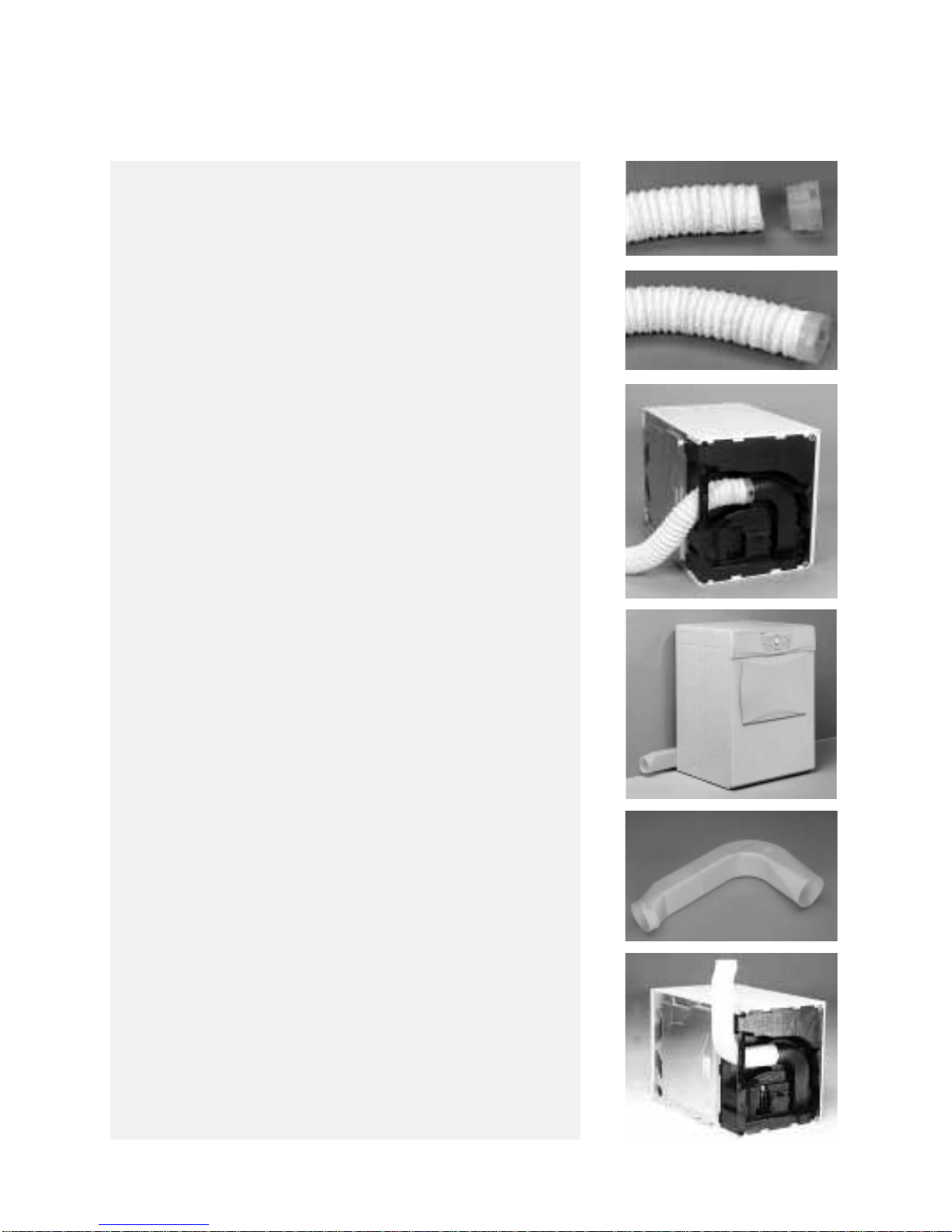

VENT CONNECTION

Normally the hose and adaptor are not supplied; the accessory AMH

577 kit, available at your dealer or our After Sales Service, should be

used.

Installing the vent hose

A. Place a towel or the packing material on the right-hand side next

to the dryer.

B. Place the dryer on its right-hand side (seen from the front) on the

towel or the packing material.

C. Pushtheadapterintothehose(seeillustration).Attachtheairvent

hose adapter to the connection located under the dryer and lock

it by means of the foreseen lugs.

Venting outside

•Without kinking it, lead the vent hose outside (inside diameter 10

cm, maximum length with two bends 3 m).

•Ensurethatthevent hosedoesnotsagwhenstacking thedryeron

a washing machine. It should only be placed horizontally or

upwards.

•Donotconnecttoventilationsystemsprotectedbyflynets.These

can become clogged and cause malfunctioning of the dryer.

•Do not connect the air vent hose to a chimney or to a mechanical

ventilation extractor duct.

•Donotconnectthe venthosetotheheatingsystem.Only connect

the hose to ventilation systems insulated against humidity.

•Pleaseprovideadequateventilationtoavoidthe backflowofgases

into the room from appliances burning other fuels, including open

fires.

Dryer operation without vent hose

•Only use the dryer in a large, well-ventilated room.

•Keep the room free of dust and lint.

A minimum distance of 10 cm between rear of appliance and the wall

must be observed.

Dryer placed close to the wall; venting to the left or right

Install the dryer by using the bi-directional kit AMH 869, available at

your dealer, should be used.

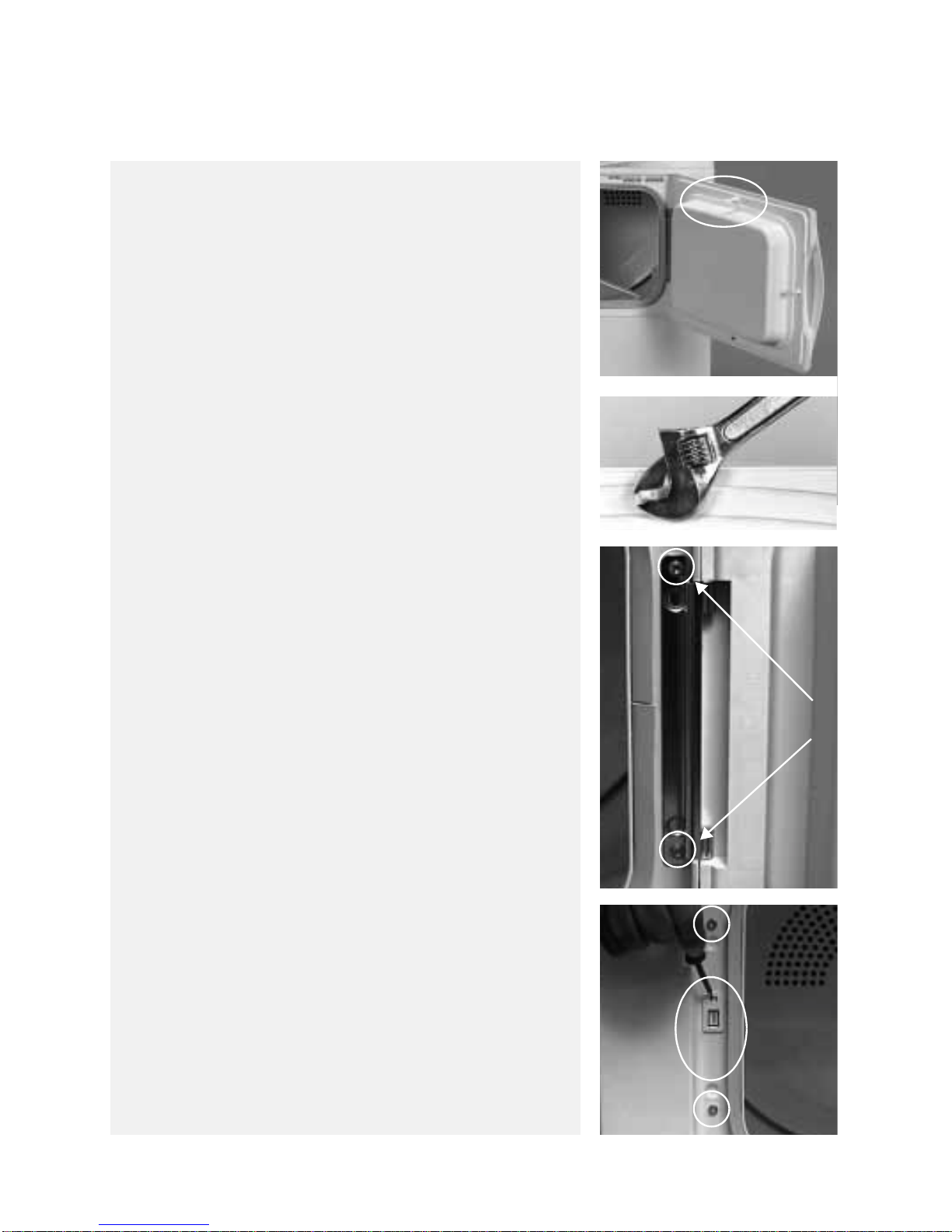

DOOR REVERSIBILITY

Door Reversibility

A. Unplug the dryer.

B. Open the door.

C. Using a spanner, turn the contact pin on the inside of the door

(top) through 90° and remove it.

D. Remove the 2 door hinge screws, followed by the door.

E. Unscrew the 2 screws above and below the door lock system.

F. Removing the door lock: using a screwdriver, press down on the

small rib in the upper opening and extract the door lock by pulling

it towards you.

G. Reverse the door:

H. Fasten the door on the desired side using the 2 screws.

I. Insert the door lock system on the opposite side and lock it

securely.

J. Fix the 2 screws above and below the door lock system.

K. Replace the contact pin in the inside of the door (top).

TROUBLESHOOTING GUIDE / AFTER-SALES

SERVICE

Troubleshooting Guide

If a fault occurs, before contacting our After-

Sales Service, make the following checks to

try and remedy the problem:

Drying takes too long / laundry is not dry

enough:

•Was the correct programme selected?

•Was the inserted laundry too wet (Washing

machine spin speed less than 800 rpm)?

•Is the lint filter dirty (filter indicator lamp on)?

•Does “END” and “Anti-Crease” LED’s are lights

up?-Thedryingcycleisterminated,thelaundrycan

be taken out.

The dryer does not operate:

(following a power failure and/or

interruption to the mains supply, always

press the Start button).

•Is the plug properly inserted into the mains

electricity socket?

•Is there a power failure?

•Has the fuse blown?

•Is the door well closed?

•Has the programme been selected?

•Has the start delay option been selected?

•Has the Start/Pause button been pressed?

Lint filter indicator lamp light on:

•Is the lint filter clean?

•Is the vent hose blocked?

After-Sales Service

If, after carrying out the above checks the

malfunction persists or appears again, turn

the dryer off and call our After-Sales Service

(refer to guarantee).

Please specify:

•The nature of the fault.

•The dryer type and model.

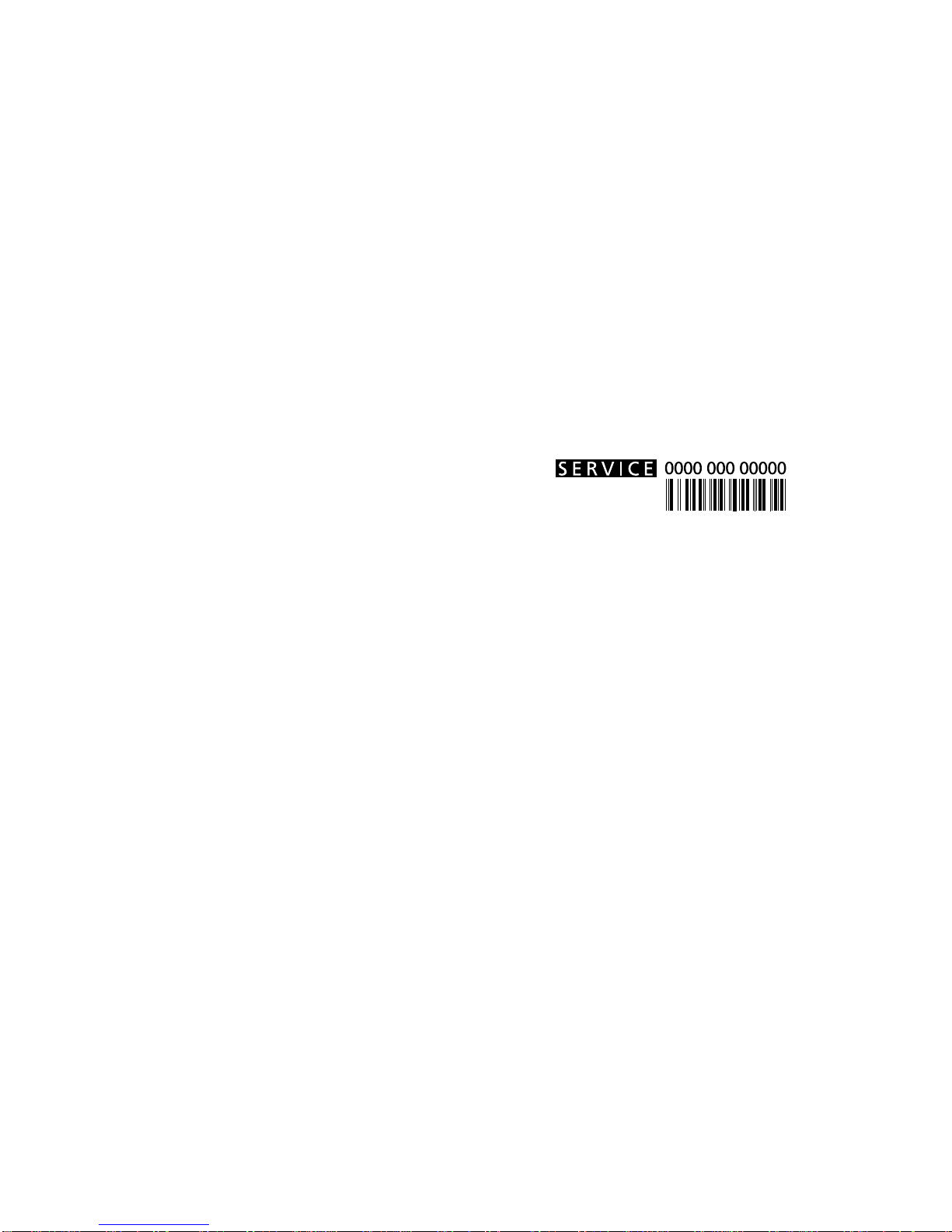

•The service code (the number after the word

Service on the adhesive rating plate) on the right-

hand side when the door is open.

•Your full address and phone number.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Whirlpool

Whirlpool

Whirlpool AWG 367 Manual de usuario

Whirlpool

Whirlpool LE3300XPWO Manual de usuario

Whirlpool

Whirlpool 3XLER5435HQ2 Manual de usuario

Whirlpool

Whirlpool W10151580A Manual de usuario

Whirlpool

Whirlpool WGD9400SW1 Manual de usuario

Whirlpool

Whirlpool 4KWED4750 Manual de usuario

Whirlpool

Whirlpool 1W10287573A Manual de usuario

Whirlpool

Whirlpool WED7500VW Manual de usuario

Whirlpool

Whirlpool Maytag W11416805 Manual de usuario

Whirlpool

Whirlpool WED4800BQ Manual de usuario

Whirlpool

Whirlpool 3401083 Manual de usuario

Whirlpool

Whirlpool XCEM2765 Manual de usuario

Whirlpool

Whirlpool 7MWED1800EM Manual de usuario

Whirlpool

Whirlpool 8TCEM2760KQ0 Manual de usuario

Whirlpool

Whirlpool WGD9500TC1 Manual de usuario

Whirlpool

Whirlpool WCD3090JW Manual de usuario

Whirlpool

Whirlpool Duet sport YWED8410SW2 Manual de usuario

Whirlpool

Whirlpool WED7990X Manual de lista de piezas

Whirlpool

Whirlpool YGEW9250SU0 Manual de usuario

Whirlpool

Whirlpool WED9400SB0 Manual de usuario

Whirlpool

Whirlpool YWED94HEAC Manual de usuario

Whirlpool

Whirlpool Maytag NED7500VM0 Manual de usuario

Whirlpool

Whirlpool LE6150XS Manual de usuario

Whirlpool

Whirlpool LGQ8000JQ1 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
