Whalen WMFP48EC-18 Manual de usuario

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Date 2017-06-16 Rev. 0001-A Factory:

FOCIDI

55" Media Fireplace

Stock # WMFP48EC-18

ADULT ASSEMBLY REQUIRED

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the

store where it was purchased. Please call our customer service number and have your instructions

and parts list ready to provide the model name, part name or factory number:

866-942-5362

Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday

Or visit our web site 24 hours a day, 7 days a week for product assistance at

www.whalenstyle.com

Or e-mail your request to parts@whalenfurniture.com

LOT NUMBER:

DATE PURCHASED: / /

MANUFACTURER: Whalen Furniture Manufacturing

CATALOG: 55" Media Fireplace

MODEL #: WMFP48EC-18

MADE IN CHINA

How to adjust the European adjustable hinges on doors

Shipping may cause doors to become out of alignment. If you find that the doors need to be

adjusted slightly, turn the appropriate screw as illustrated below.

1. TO ADJUST THE DOOR FORWARD OR

BACKWARD.

2. TO ADJUST THE DOOR TO RIGHT OR

TO LEFT.

3. TO ADJUST THE DOOR UP OR DOWN.

MAXIMUM RECOMMENDED WEIGHT LOADS

MAXIMUM LOAD 50 lb. (22.7 kg)

FITS UP TO MOST 55” FLAT PANEL TVs

MAXIMUM LOAD 135 lb. (61.3 kg)

PLACE TV BEHIND THE STOPPER

THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT

PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.

NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO

AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE

TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT

OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS

OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL

OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

IMPORTANT

Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-

abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.

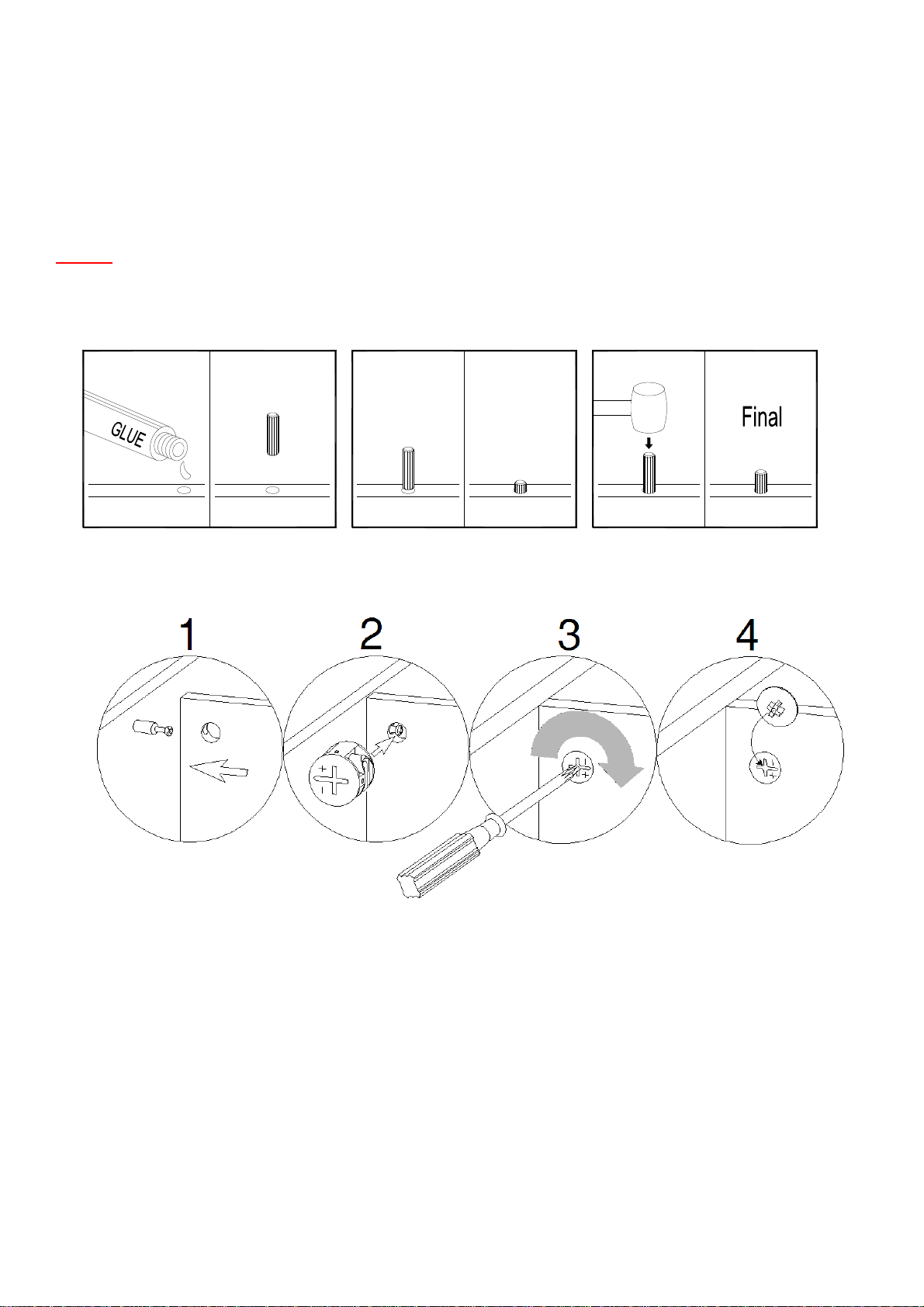

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED

OFF WITH DAMP CLOTH.

Insert Dowel at least half way by tapping lightly with a rubber mallet IF NECESSARY.

CAM LOCK SYSTEM OPERATION

HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS

1. Screw Cam Bolt into the pre-drilled small holes on panel. Connect both panels together; making sure Cam

Bolt goes into pre-drilled hole on the end of panel with Cam Lock.

2. Insert Cam Lock into pre-drilled large hole on panel. Make sure arrow on Cam Lock is pointed toward

Cam Bolt.

3. Once Cam Bolt is connected inside Cam Lock, take a Phillips screwdriver and tighten Cam Lock

clockwise.

4. Plug Cam Cap into the cross slot of the Cam Locks to conceal the cam.

You are now ready to assemble the KD unit.

1 2 43

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

A- Top Panel (Qty. 1) B- Bottom Panel (Qty. 1)

C- Left Side Panel (Qty. 1)

D- Left Partition Panel (Qty. 1) E- Left Middle Stile (Qty. 1) F- Right Side Panel (Qty. 1)

G- Right Partition Panel (Qty. 1) H- Right Middle Stile (Qty. 1) I- Fixed Shelf (Qty. 1)

J- Middle Crossbar (Qty. 1) K- Bottom Front Molding (Qty. 1) L- Bottom Back Stretcher (Qty. 1)

M- Left Door (Qty. 1) N- Right Door (Qty. 1) O- Middle Back Panel (Qty. 1)

P- Side Back Panel (Qty. 2) Q- Adjustable Shelf (Qty. 4) R- Stop Rail (Qty. 1)

Parts and Hardware List

Please read completely through the instructions and verify that all listed parts and hardware are present

before beginning assembly.

Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1)

(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel

(Qty. 27+1 extra) (Qty. 27+1 extra) (Qty. 32+1 extra)

(4) M4 x 38 mm Screw (5) M4 x 50 mm Screw (6) M3 x 15 mm Flat Head Screw

(Qty. 6+1 extra) (Qty. 4+1 extra) (Qty. 12+1 extra)

(7) M3.5 x 15 mm Washer Head Screw (8) Shelf Support (9) Straight Metal Bracket

(Qty. 32+1 extra) (Qty. 16+1 extra) (Qty. 2)

(10) Angle Metal Bracket (Qty. 2) (11) Floor Leveler (Qty. 2) (12) Cam Lock Cover (Qty. 8+1 extra)

(13) Handle and Back Plate (Qty. 2) (14) Handle Bolt (Qty. 4) (15) Rubber Bumper (Qty. 4+1 extra)

Glue (Qty. 1) Touch-up Pen (Qty. 1) Tipping Restraint Hardware Kit (2)

(Included in plastic bag)

Tools required: Phillips screwdriver and hammer (not provided).

Assembly Instructions

1. Unpack the unit and confirm that you have all the hardware and required parts listed. Assembly the unit

on a carpeted floor or the empty carton to avoid any scratch.

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), the Bottom

Panel (B), the Middle Crossbar (J) and the Side Panels (C and F).

Cam Bolt

(23 used in this step)

②

Assembly Instructions

3. Securely screw the Cam Bolts (2) into the designated small holes on the Left Partition Panel (D) using a

Phillips screwdriver.

4. Attach the Left Middle Stile (E) to the Left Partition Panel (D) with two 30 mm Wood Dowels (3) and

three 38 mm Screws (4).

M8 x 30 mm Wood Dowel

(2 used in this step)

③

Cam Bolt

(2 used in this step)

②

M4 x 38 mm Screw

(3 used in this step)

④

Assembly Instructions

5. Securely screw the Cam Bolts (2) into the designated small holes on the Right Partition Panel (G) using

a Phillips screwdriver.

6. Attach the Right Middle Stile (H) to the Right Partition Panel (G) with two 30 mm Wood Dowels (3)

and three 38 mm Screws (4).

M8 x 30 mm Wood Dowel

(2 used in this step)

③

Cam Bolt

(2 used in this step)

②

M4 x 32 mm Screw

(3 used in this step)

④

Assembly Instructions

7. Attach the Middle Crossbar (J) to the Fixed Shelf (I) with two 30 mm Wood Dowels (3) and three Cam

Locks (1) (Refer to page 3 on Cam Lock system operation supplement).

Wood Dowel

(2 used in this step)

③

Cam Lock

(3 used in this step)

①

Assembly Instructions

8. Attach the Fixed Shelf (I) between the Partition Panels (D and G) with four 30 mm Wood Dowels (3)

and four Cam Locks (1).

Wood Dowel

(4 used in this step)

③

Cam Lock

(4 used in this step)

①
