QUESTIONS?

If you have questions, or if there

are missing or damaged parts,

please call direct to our toll-free

Customer Hot Line. The trained

technicians on our Customer Hot

Line will provide immediate

assistance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE WESLO¨ECLIPSE II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

1. Read all instructions in this manual before

using the ECLIPSE II.

2. It is the responsibility of the owner to

ensure that all users of the ECLIPSE II are

adequately informed of all precautions.

3. Place the ECLIPSE II on a level surface, with

a mat beneath it to protect the floor or

carpet. Keep the ECLIPSE II indoors, away

from moisture and dust.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the ECLIPSE II at all times.

6. The ECLIPSE II should not be used by

persons weighing more than 250 pounds.

7. Wear appropriate exercise clothing when

using the ECLIPSE II. Always wear athletic

shoes for foot protection.

8. Always hold the handlebars when mounting,

dismounting, and using the ECLIPSE II. Step

onto and off the pedal that is in the lowest

position when mounting and dismounting.

9. When you stop exercising, allow the pedals

to slowly come to a stop.

10. Keep your back straight when using the

ECLIPSE II. Do not arch your back.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

12. The ECLIPSE II is intended for in-home use

only. Do not use it in any commercial, rental,

or institutional setting.

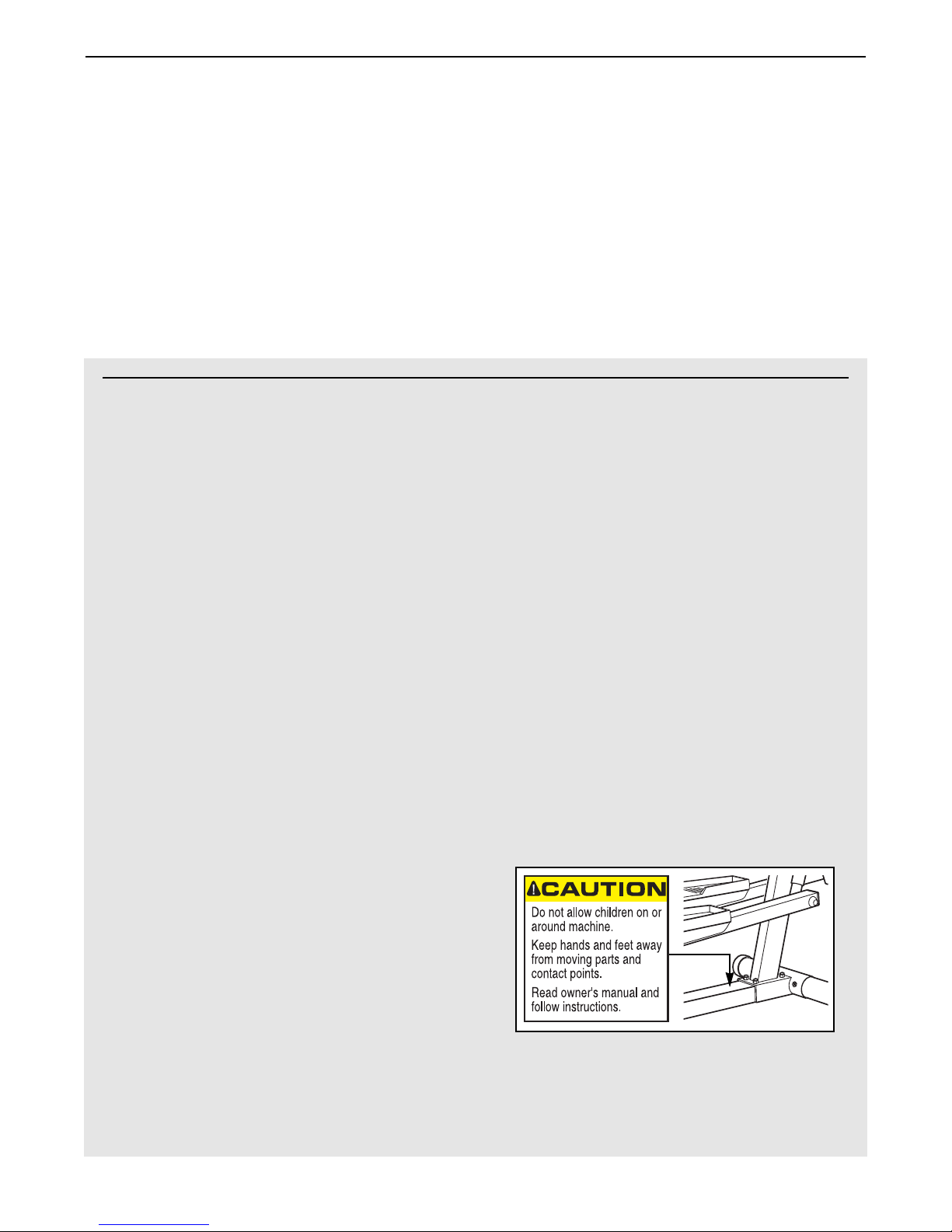

13. The decal shown below is found on the

ECLIPSE II. If the decal is missing, or if it is

not legible, call toll-free 1-800-999-3756 to

order a free replacement decal. Apply the

decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is espe-

cially important for persons over the age of 35 or persons with pre-existing health problems. Read

all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the WESLO¨ECLIPSE II.

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary WESLO¨

ECLIPSE II elliptical exerciser. The ECLIPSE II is an

incredibly smooth exerciser that moves your feet in a

natural elliptical path, minimizing the impact on your

knees and ankles. And the unique ECLIPSE II features

adjustable resistance and motivational electronics to

help you get the most from your exercise. Welcome to

a whole new world of natural, elliptical-motion exercise

from WESLO.

For your benefit, read this manual carefully before

you use the ECLIPSE II. If you have additional ques-

tions, please call our Customer Service Department

toll-free at 1-800-999-3756, Monday through Friday, 6

a.m. until 6 p.m. Mountain Time (excluding holidays).

To help us assist you, please note the product model

number and serial number before calling. The model

number is WLEL45071. The serial number can be

found on a decal attached to the ECLIPSE II (see the

front cover of this manual for the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Resistance Knob

Upright

FRONT

BACK RIGHT SIDE

Pedal

Handlebar

Lock Pin

Extension Tube

Side Shield

Pedal Leg Base

Console

Water Bottle Holder

(Bottle is not included)

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in

assembly. The number in parenthesis below each part

is the key number of the part, from the PART LIST on

page 14. The number after the dash indicates the

quantity needed for assembly. Note: Some small

parts may have been pre-attached for shipping. If

a part is not in the parts bag, check to see if it has

been pre-attached.

M10 Nylon Locknut (54)Ñ8

5/8Ó Axle Cap (43)Ñ2

1/2" Nylon Locknut (9)Ñ2

Pedal Bolt (8)Ñ2

Bushing (39)Ñ8

Handlebar Spacer (46)Ñ2

M10 x 75mm Carriage Bolt (66)Ð4

M10 x 68mm Bolt (67)Ð4

M4 x 12mm Screw (28)Ñ2

M4 x 16mm Screw (42)Ñ7

M4 x 18mm Screw (69)Ñ4

1. Hold one of the Stabilizers (68) against the saddle on

the front of the Base (1). Make sure that the Stabilizer

is turned so the square holes are facing away from the

saddle. Attach the Stabilizer with two M10 x 75mm

Carriage Bolts (66) and two M10 Nylon Locknuts (54).

Attach the other Stabilizer to the saddle on the back of

the Base (not shown).

2. While another person holds the Upright (2), gently

pull the Extension Wire (49) and the Resistance

Cable (33) up through the Upright until there is no

slack between the Upright and the Base (1).

Insert the four M10 x 68mm Bolts (67) up through the

Base (1). Slide the Upright (2) onto the Bolts. Be

careful to avoid pinching the Extension Wire (49)

and the Resistance Cable (33). Tighten an M10

Nylon Locknut (54) onto each Bolt.

ASSEMBLY

Assembly requires two persons. Place all parts of the WESLO¨ECLIPSE II in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires a phillips screwdriver , two adjustable wrenches , and a

rubber mallet .

3. Identify the Left Handlebar (6) and the Left Pedal Leg

(3) (there are stickers on the Handlebars and Pedal

Legs for identification).

Slide the Left Handlebar (6) onto the left Extension

Tube (5). Press the Handlebar Bushing (45) up into

the Left Handlebar. Align one of the three holes in the

Left Handlebar with the hole in the Extension Tube.

Insert the Left Lock Pin (37) into the holes, make sure

the Left Lock Pin is in the position shown in drawing

3a, and attach a Spring Clip (38) to the Left Lock Pin.

Attach a Pedal (29) to the Left Pedal Leg (3) with

three M4 x 16mm Screws (42).

Repeat this step to attach the Right Handlebar, right

Extension Tube, and Right Pedal Leg (not shown).

6. Plug the Extension Wire (49) into the socket in the

back of the Console (52). Feed the wire down into the

Upright (2). Attach the Console (52) to the Upright with

four M4 x 18mm Screws (69). Be careful to avoid

pinching the wire.

The Console (52) requires two ÒAAÓ batteries (not

included). Alkaline batteries are recommended.

To install batteries, first slide up the Battery Cover (60)

and carefully remove the battery clip from the Console

(52). Insert two batteries into the battery clip as shown.

Make sure that the negative ends of the batteries

(marked ÒÐÓ) are touching the springs in the

battery clip. Replace the battery clip and close the

Battery Cover.

5. Tighten the three M4 x 16mm Screws (42) on each

side of the Side Shield (27).

Press two Bushings (39) into the Left Pedal Leg (3) as

shown. Insert a Pedal Bolt (8) into the Pedal Leg.

Tighten the Pedal Bolt into the left Crank Arm (10).

Tighten a 1/2Ó Nylon Locknut (9) onto the Pedal Bolt. If

the these parts are not tight the product may be

damaged.

Repeat this step to attach the Right Pedal Leg (not

shown).

4. Slide a Handlebar Spacer (46) onto the left axle on the

Upright (2). Make sure that the open side of the

Handlebar Spacer is facing the Upright. Make sure that

there are two Bushings (39) in the Left Handlebar.

Slide the Left Handlebar onto the left axle on the

Upright (2). Tap a 5/8Ó Axle Cap (43) onto the axle.

Repeat this step to attach the Right Handlebar (not

shown).

Feed the Resistance Cable (33) up into the Upright (2)

to form a loop as shown. Insert the tab on the Cable

Cover (53) into the indicated slot in the Upright. Attach

the Cable Cover with an M4 x 16mm Screw (42).

39 42

Slot

Loop

Batteries

Battery

Clip

7. Make sure that all parts of the ECLIPSE II are properly tightened. To protect the floor or carpet from

damage, place a mat under the ECLIPSE II.

HOW TO USE THE WESLO¨ECLIPSE II

HOW TO EXERCISE ON THE WESLO¨ECLIPSE II

To mount the ECLIPSE II, hold the handlebars and

step onto the pedal that is in the lowest position.

Next, step onto the other pedal. Push the pedals until

they begin to move with a continuous motion. Note:

The crank can turn in either direction; it is recom-

mended that you turn the crank in the direction

shown below; however, to give variety to your

exercise, you may choose to turn the crank in the

opposite direction.

To dismount the ECLIPSE II, allow the pedals to

slowly come to a stop. CAUTION: The ECLIPSE II

does not have a freewheel; the pedals will contin-

ue to move until the flywheel stops. When the

pedals are stationary, step off the highest pedal first.

Then, step off the lowest pedal.

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS

As you exercise,

you can adjust

the resistance of

the pedals with

the resistance

knob mounted on

the upright. To

increase the

resistance, turn

the knob

clockwise; to

decrease the

resistance, turn

the knob counterclockwise.

HOW TO ADJUST THE HANDLEBARS

To further add variety to your exercise, the handlebars

and extension tubes can be adjusted to any of three

positions.

Hold the right pedal leg. Remove the spring clip and

lock pin from the right handlebar. Slide the extension

tube up or down until the hole in the extension tube is

aligned with a different hole in the handlebar. Reinsert

the lock pin into the handlebar and the extension

tube, position as shown in the inset drawing, then

reattach the spring clip. Next, adjust the position of

the left handlebar and extension tube. Make sure that

the lock pins are inserted into the same holes in both

handlebars. CAUTION: If the spring clips are not

attached to the lock pins, the lock pins could slip

out during use, resulting in injury to the user.

Pedal

Crank

Resistance Knob

Handlebar

Spring Clip

Extension

Tube

Pedal Leg

Lock Pin

Holes

Lock

DIAGRAM OF THE CONSOLE

Note: If there is a thin sheet of clear plastic

on the face of the console, remove it.

DESCRIPTION OF THE CONSOLE

The innovative console offers a manual mode and

three pacer programs. The pacer programs are

designed to help you achieve your exercise goals by

pacing your exercise. The programs include a stamina-

building Interval program, an Aerobic program, and a

Fat Burn program. The console also features six moni-

tor modes that provide continuous exercise feedback.

HOW THE PACER PROGRAMS OPERATE

When you use a

pacer program,

two columns of

bars will appear in

the display. The

left column will

show a target

pace; the right

column will show

your actual pace.

The target pace will change periodically during the

program; as the target pace changes, simply adjust

your pace to keep both columns at the same height.

Important: The target pace is a goal pace. Your

actual pace may be slower than the target pace,

especially during the first few months of your

exercise program. Be sure to exercise at a pace

that is comfortable for you.

The graphs on the left side of the console show how

the target pace will change during each program (see

the drawing above). Each graph is divided into ten

columns, and each column represents a two-minute

time period. The bars in each column show what the

target pace will be during that two-minute period. For

example, in the first column of the Interval graph, there

is one bar. This shows that during the first two minutes

of the Interval program, the target pace will be 40

repetitions (strides) per minute (see the scale at the

right end of the graph). In the second column, there

are five bars. This shows that during the second two-

minute period, the target pace will be 80 strides per

minute. Each pacer program is twenty minutes long.

DESCRIPTION OF THE MONITOR MODES

The six monitor modes provide continuous exercise

feedback. The modes are described below.

¥ Reps per minute (REPS/MIN)ÑThis mode shows

your pace, in repetitions (strides) per minute.

¥ TimeÑIf you select one of the three pacer programs,

this mode will count down the time remaining in the

program. If you select the manual mode, this mode

will count up the length of time you have exercised.

Note: If you stop exercising for ten seconds or

longer, the time mode will pause.

Target Pace Actual Pace

¥ DistanceÑThis mode shows the total number of

repetitions (strides) you have completed, up to 999.

The display will then reset to zero and continue

counting.

¥ Fat calories (FAT CALS)ÑThis mode shows the

approximate number of fat calories you have

burned. (See BURNING FAT on page 12 for an

explanation of fat calories.)

¥ Calories (CALS)ÑThis mode shows the approxi-

mate number of calories you have burned. (This

number includes both fat calories and carbohydrate

calories.)

¥ ScanÑThis mode displays the calories, fat calories,

reps per minute, time, and distance modes, for five

seconds each, in a repeating cycle.

STEP-BY-STEP CONSOLE OPERATION

Before the console can be operated, two ÒAAÓ bat-

teries must be installed. (See assembly step 6 on

page 6 for installation instructions.) Follow the steps

below to operate the console.

Turn on the power

To turn on the

power, press the

on/reset button

or simply begin

exercising on the

ECLIPSE II.

When the power is turned on, the entire display

will appear for two seconds. The console will then

be ready for use. Note: If batteries were just

installed, the power will already be on.

Select one of the three pacer programs or the

manual mode

To select one of

the pacer

programs,

repeatedly press

the program but-

ton. The program

indicator will

show which

program you

have selected. To

select the manual mode, press the program

button until the program indicator disappears.

The programs will be selected in the following

order: program 1 (Interval), program 2 (Aerobic),

program 3 (Fat Burn), and the manual mode.

Begin your workout

If you selected

the manual

mode, go to step

4. If you selected

one of the pacer

programs, two

columns of bars

will appear in the

display. The left

column will show

one bar, showing that the target pace is 40 strides

per minute. The right column will show your actual

pace. Adjust your pace until only one bar appears

in the right column. As the program progresses,

the target pace will change periodically; as the

target pace changes, adjust your pace to keep

both columns at the same height. Important: The

target pace is a goal pace. Your actual pace

may be slower than the target pace, especially

during the first few months of your exercise

program. Be sure to exercise at a pace that is

comfortable for you.

Follow your progress with the monitor modes

When the power

is turned on, the

scan mode will

automatically be

selected. One

mode indicator

will show that the

scan mode is

selected, and a

flashing mode

indicator will show which mode is currently

displayed. Note: If you select a different mode, you

can select the scan mode again by repeatedly

pressing the mode button.

If desired, you can select the reps per minute,

time, distance, fat calories, or calories mode for

full-time display. To select one of these modes,

repeatedly press the mode button. The mode

indicators will show which mode is selected.

(Make sure that the scan mode is not selected.)

If desired, the display can be reset by pressing

the on/reset button.

Turn off the power

To turn off the power, simply wait for about

four minutes. If the pedals are not moved and

the console buttons are not pressed for four

minutes, the power will turn off automatically.

Program Indicator

Target Pace Actual Pace

Mode Indicators

MAINTENANCE

CONSOLE TROUBLE-SHOOTING

If the console does not function properly, the batteries

should be replaced. To replace the batteries, see

assembly step 6 on page 6. In addition, make sure

that the console wire is connected to the extension

wire. See assembly step 6 on page 6.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. To adjust the reed

switch, the Side Shield (27) must first be removed.

Remove the Crank Cover (62) and the 5/16Ó x 3/4Ó

Tap Screw (18) from the left Crank Arm (10). Slide the

left Crank Arm off the Crank Shaft (11). Remove the

right Crank Arm (not shown) in the same way.

Remove the three M4 x 16mm Screws (42) from each

side of the Side Shield (27).

Hold the Side Shield (27) near the back and pull it

apart slightly until the Side Shield can be lifted off the

ends of the Crank Shaft (11). Remove the Side Shield.

Do not pull the Side Shield apart at the top or the

seam may be broken.

Next, locate the

Reed Switch (48).

Turn the Pulley

(19) until the

Magnet (55) is

aligned with the

Reed Switch.

Loosen, but do

not remove, the

M4 x 12mm

Screw (51). Slide

the Reed Switch

slightly toward or away from the Magnet. Make sure

that the Magnet will not hit the Reed Switch. Retighten

the Screw. Turn the Pulley (19) for a moment. Repeat

until the console displays correct feedback. When the

Reed Switch is correctly adjusted, reattach the Side

Shield and the Crank Arms.

HOW TO ADJUST THE RESISTANCE STRAP

If the pedals do not have enough resistance, even

when the resistance knob is turned to the maximum

setting, the Resistance Strap (31) may need to be

adjusted. To adjust the Resistance Strap, the side

shield must first be removed. Refer to the instructions

at the left to remove the side shield.

Turn the resistance knob to the lowest setting. (See

HOW TO ADJUST THE RESISTANCE OF THE

PEDALS on page 5.) Grip the end of the Resistance

Strap (31) and

pull it away from

the rest of the

Strap. Next, pull

the end of the

Strap up to

remove any

slack. Then press

the end of the

Strap against the

rest of the Strap

as shown. Turn

the Pulley (19) for

a moment to make sure that there is not too much

resistance. When the Resistance Strap is properly

adjusted, reattach the Side Shield and the Crank

Arms.

Back

Top

Tabla de contenidos

Otros manuales de Entrenador elíptico de Weslo

Weslo

Weslo WLEL28020 Manual de usuario

Weslo

Weslo WLIVEL14718.0 Manual de usuario

Weslo

Weslo Momentum 4.0 Elliptical Manual de usuario

Weslo

Weslo Momentum6.2 Elliptical Manual de usuario

Weslo

Weslo EasyFit WLIVEL63110.0 Manual de usuario

Weslo

Weslo Momentum 615 Elliptical Manual de operación y mantenimiento

Weslo

Weslo Momentum Ct5.8 Elliptical Manual de usuario

Weslo

Weslo MOMENTUM CT 5.0 Manual de usuario

Weslo

Weslo MOMENTUM 700 Manual de usuario

Weslo

Weslo WLEVEL28010 Manual de usuario

Weslo

Weslo Momentum 220X WLEL2006.0 Manual de usuario

Weslo

Weslo Elliptical Glider 2.0 Manual de usuario

Weslo

Weslo Momentum5.0 Elliptical Guía del usuario

Weslo

Weslo Momentum 635 Elliptical Manual de usuario

Weslo

Weslo MOMENTUM 730 ELLIPTICAL EXERCISER... Manual de usuario

Weslo

Weslo Momentum 410 Elliptical Manual de usuario

Weslo

Weslo Eclipse 2 WLEMEL45071 Manual de usuario

Weslo

Weslo WLEL29040 Manual de usuario

Weslo

Weslo Momentum 750 Manual de usuario

Weslo

Weslo MOMENTUM G4.1 Manual de usuario

Weslo

Weslo WLEVEL71710.0 Manual de usuario

Weslo

Weslo Momentum 410 Elliptical Guía del usuario

Weslo

Weslo Momentum 405 Elliptical Manual del sistema

Weslo

Weslo Elliptical Glider 2.0 Manual de operación y mantenimiento

Manuales populares de Entrenador elíptico de otras marcas

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario

Reebok

Reebok 1000 Zx Elliptical Manual de usuario
