Volt VAL-1004-BBZ Manual de usuario

VOLT®Low Voltage Landscape Lighting

Soft Splash LED Wall Wash light

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Soft Splash LED Wall Wash light Package Contents

Product Dimensions

Important: Please Read Before Installation

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet

(3.05M) or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm)

7. If additional lengths of low voltage cable is required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

SAVE THESE INSTRUCTIONS

A. (1) Luminaire

www.voltlighting.com customersupport@voltlighting.com • 813.978.3700

4.25”

B. (1) Stake

Install Stake

Determine desired location for mounting

luminaire. Hammer stake into ground until

ange of stake is ush to grade. To avoid

damage to stake, place a board on top of stake

while hammering.

NOTE: If ground is hard and stake is difcult to

install, make a crosscut in ground using a at

shovel.

Board

Stake

Soil

Ground

Parts Required

A. (1) Bipin Lamp

4”

INSTALLATION INSTRUCTIONS

www.voltlighting.com customersupport@voltlighting.com • 813.978.3700

VOLT®Soft Splash LED Wall Wash light

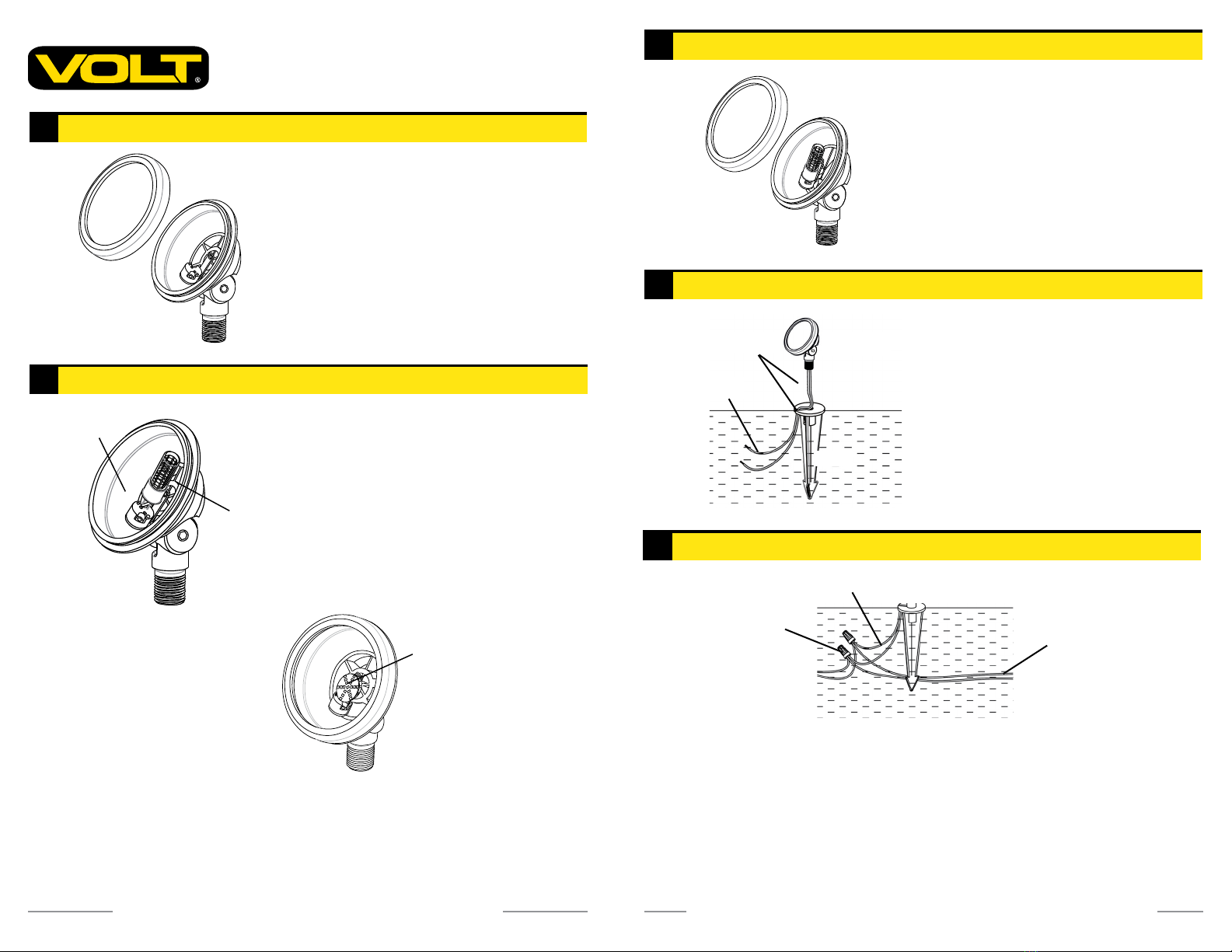

Remove Threaded Top

Install Lamp

Unscrew the threaded top and

remove it from the luminaire.

Insert lamp with correct wattage and

type marked on luminaire label.

CAUTION: Do not exceed maximum

wattage marked on luminaire label.

NOTE: DO NOT touch lamp with

bare hands. Use soft cloth to handle

lamp.

NOTE: “Wafer” bi-pin LED lamp also can

be used for this luminaire.

Luminaire

Lamp

“Wafer” Bi-pin

LED Lamp

Threaded Top

Socket

Thread the threaded top back onto

the luminaire and hand tighten until

snug.

Clear away area in ground at

wireway slot in top of stake. Align

the wireway slots on base and stake.

Lay luminaire pigtail into wireway

slots and screw luminaire into stake.

Tighten until snug to secure base.

Install Threaded Top

Install Luminaire to Stake

Luminaire

Stake

Pigtail

Wireway Slot

Wire Connection

Strip two leads from luminaire pigtail. Using two wire connectors (not

provided), connect leads from luminaire to main low voltage supply

cable leads.

Pigtail

Main Low Voltage

Supply Cable

Wire Connectors

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Soft Splash LED Wall Wash light

Install/Replace Lamp

Please reverse Step 6 - Step 3 to expose the Lamp and replace it with

correct wattage and type marked on luminaire label. Reinstall Diffuser.

IMPORTANT: Lamp must be protected from moisture and dust at all times.

Always re-install diffuser when moved.

is-val-1004-ver1.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
