VMP ER-1 Manual de usuario

VIDEO MOUNT PRODUCTS

Instruction Sheet For:

ER-1, ER-148, ER-184

For more information, please contact us at:

345 Log Canoe Circle, Stevensville, Maryland 21666

Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615

www.videomount.com

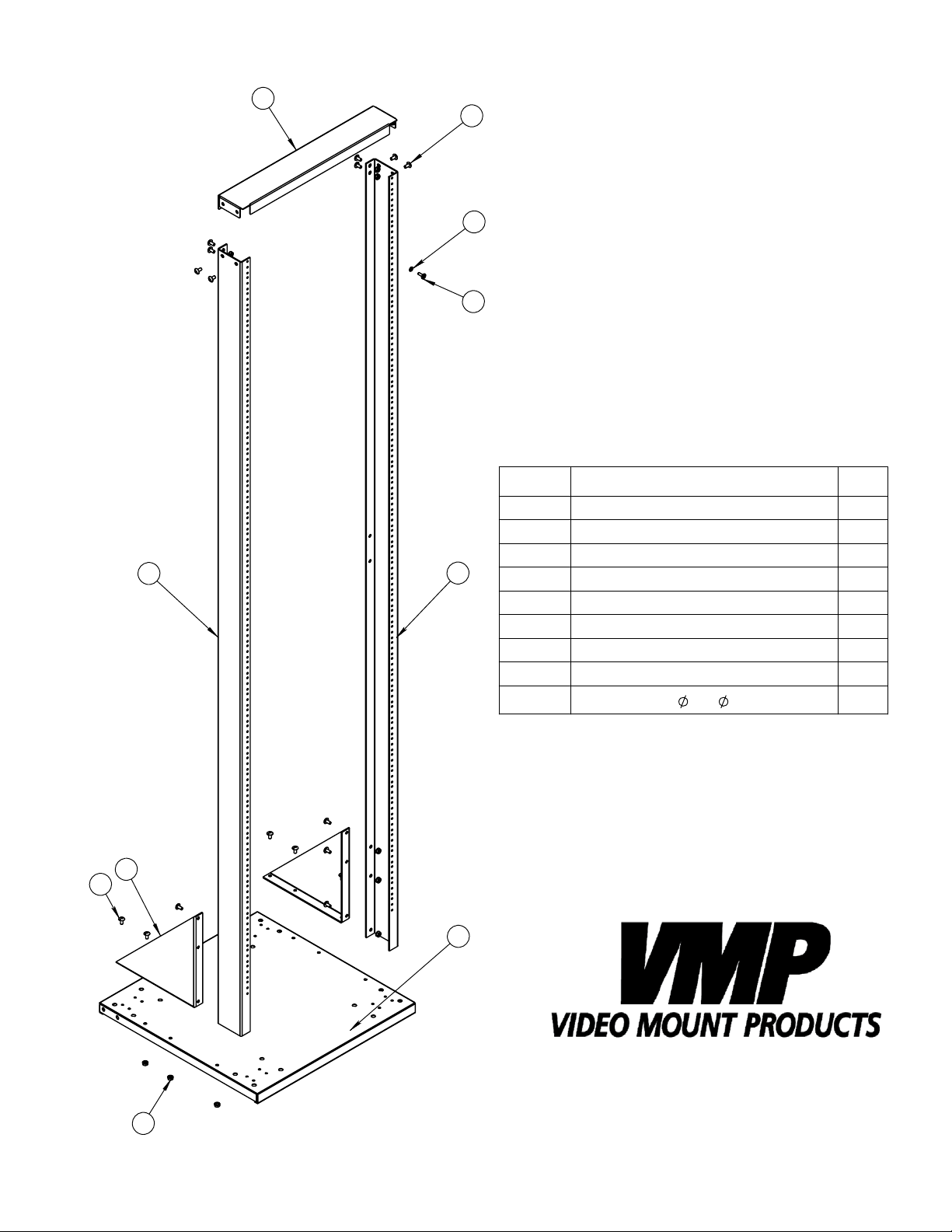

ER-1

3

1B

5

24

7 6

8

1A

ITEM

NO.

DESCRIPTION

QTY.

1A

Left Support

1

1B

Right Support

1

2

Plate

1

3

Support Plate

1

4

Triangle Plate

2

5

Screw #10 -

32UNC

32

6

Screw 1/4" -

20UNC*L1/2"

20

7

Nut 1/4" -

20UNC

16

8

Plastic Washer

32

4

5

1A

1B

2

3

6

7

6

8

*** ER-148 ***

NO. Part Name QTY.

1A Left Support 1

1B Right Support 1

2 Base Plate 1

3 Top Plate 1

4 Triangle Plate 2

5 Screw 10#-32UNFx5/8" 32

6 Cross Screw 1/4"-20UNCx1/2" 16

7 Nut 1/4"-20UNC 12

8 Plastic Washer 4.6x 11.2xT0.8 32

7

1A 1B

6

4B

7

8

3

5

9

*** ER-184 ***

NO. PART NAME QTY.

1A Left Support 1

1B Right Support 1

3 Base Plate 1

4B Top Plate 1

5 Triangle Plate 2

6 Screw 10#-32UNFx1/2'' 32

7 Cross Screw 1/4"-20UNCx1/2" 20

8 Nut 1/4"-20UNC 16

9 Plastic Washer 4.6x 11.2xT0.8 32

Step 1

Before starting lay out all parts to your mount and match them to

the parts list provided. Verify that you have all your parts before at-

tempting to assemble the mount.

Note: For the example images the ER-184 is shown.

Step 2

Attach the triangle plates for ER-1 and ER-148, for ER-184 to

the base plate for ER-1 and ER-148, for ER-184 using ¼” – 20

screws for ER-1 and ER-148, for ER-184 and nuts for ER-1

and ER-148, for ER-184.

Step 3

Attach the left and right supports to the triangle plates

for ER-1 and ER-148, for ER-184 using ¼” – 20 screws for

ER-1 and ER-148, for ER-184 and nuts for ER-1 and ER-148,

for ER-184.

Step 4

Attach the support plate for ER-1 and ER-148, for ER-184 to

the left and right supports using ¼” – 20 screws for ER-1

and ER-148, for ER-184 and nuts for ER-1 and ER-148, for

ER-184.

Please verify that all nuts and screws are securely tightened.

Step 2: Attaching the triangle plates

Step 3 : Attaching the left and

right supports

2

3

WARNING: The installer of these products must verify that the mount-

ing surface, ceiling or wall, will safely support the combined weight

of all attached equipment and hardware. Video Mount roducts will

not be held liable for the improper use or installation of its products.

Enjoy Your Mount!

7

4

6

5

Step 4 : Attaching the support plate

1A

5

6

4

8

3

VIDEO MOUNT PRODUCTS

7

1B

7

87

4B

1A 1B

7

68

7
