Vivotek FD8135H Manual de usuario

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

720P HD • P-Iris • WDR Pro

All specications are subject to change without notice.

P/N:625016800G Rev. 1.0

FD8135H Fixed Dome

Network Camera

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN - 3

English

Software CD

FD8135H Alignment Sticker

T10 Torx Screwdriver/ Screws /

Plastic Anchors / AV Cable

Package Contents

Quick Installation Guide /

Warranty Card

EN - 4

Physical Description

1 23 74 5 86

Ethernet

Micro SD Card

Audio InAV Out

Reset

Int. NTSC

PAL

Ext.

Camera Front View

Camera Rear View

Light Sensor

Lens

Built-in

Microphone

PIR Sensor

Black Cover

IR LEDs

(18 units, effective up to 15m)

Reserved

Focus Assist

Button

General IO Terminal

Block

1. AC24V_2

2. AC24V_1

3. DI 3+

4. DI 2+

5. DI 1+

6. DI- (GND)

7. DO-

8. DO+ (+12V)

Microphone In

(pink)

Audio/Video Out

(green)

Jumpers

Microphone Video Output

internal

external

NTSC

60Hz

PAL

50Hz

1 2

Reset Button

Micro SD/

SDHC Card

Slot

10/100BaseT

Ethernet

The max. output load from

pins #7 and 8 is 50mA.

NOTE:

EN - 5

English

Hardware Installation

Remove the black cover as shown below so that you can ne-tune the focus and zoom the

camera later when the cabling is done.

41 5m

Before installing your camera,

make sure the built-in PIR (Passive

Infrared Sensor) can be directed

toward the area of interest, where

possible intrusion may occur. (The

sensitivity of PIR sensor depends

on the object size and temperature

differences between the object and

the background environment.)

Dome Cover Bottom of the

Camera

Tilt Ajustment

Screw

Focus Ctrl

Zoom Ctrl

Top View Side View

EN - 6

General Connection (without PoE)

Network Deployment

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

1. If you have external DI devices, make the connection from general I/O terminal block.

2. Ethernet, power, and other cables are user-supplied.

3. Connect the AC cables from the terminal block as an alternate power source. The IO

cables are user-supplied.

1. Attach the alignment sticker to the ceilling/wall.

2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall.

3. The Network Camera can be mounted with the cable routed through the ceiling/wall or

from the side. If you want to feed the cable through the ceiling/wall, drill a cable hole A

as shown in the above picture.

4. Hammer the supplied plastic anchors into the holes.

5. Align the two holes on each side of the camera base with the two plastic anchors on the

ceilling/wall, insert the supplied screws to corresponding holes and secure them with a

screwdriver.

Wall Mount

Ceiling Mount

Ethernet

Switch

Pin1 & 2 AC 24V

Pin #1 & 2 AC 24V as alternate power are for

indoor use only

NOTE:

EN - 7

English

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Power over Ethernet (PoE)

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a

single Ethernet cable. Follow the below illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

Non-PoE Switch

PoE Power Injector

(optional)

PoE Switch

1. This equipment is only to be connected to

PoE networks without routing to outside

plants.

2. For PoE input connections, use only UL

listed I.T.E. with PoE output.

NOTE:

EN - 8

0002D107258A

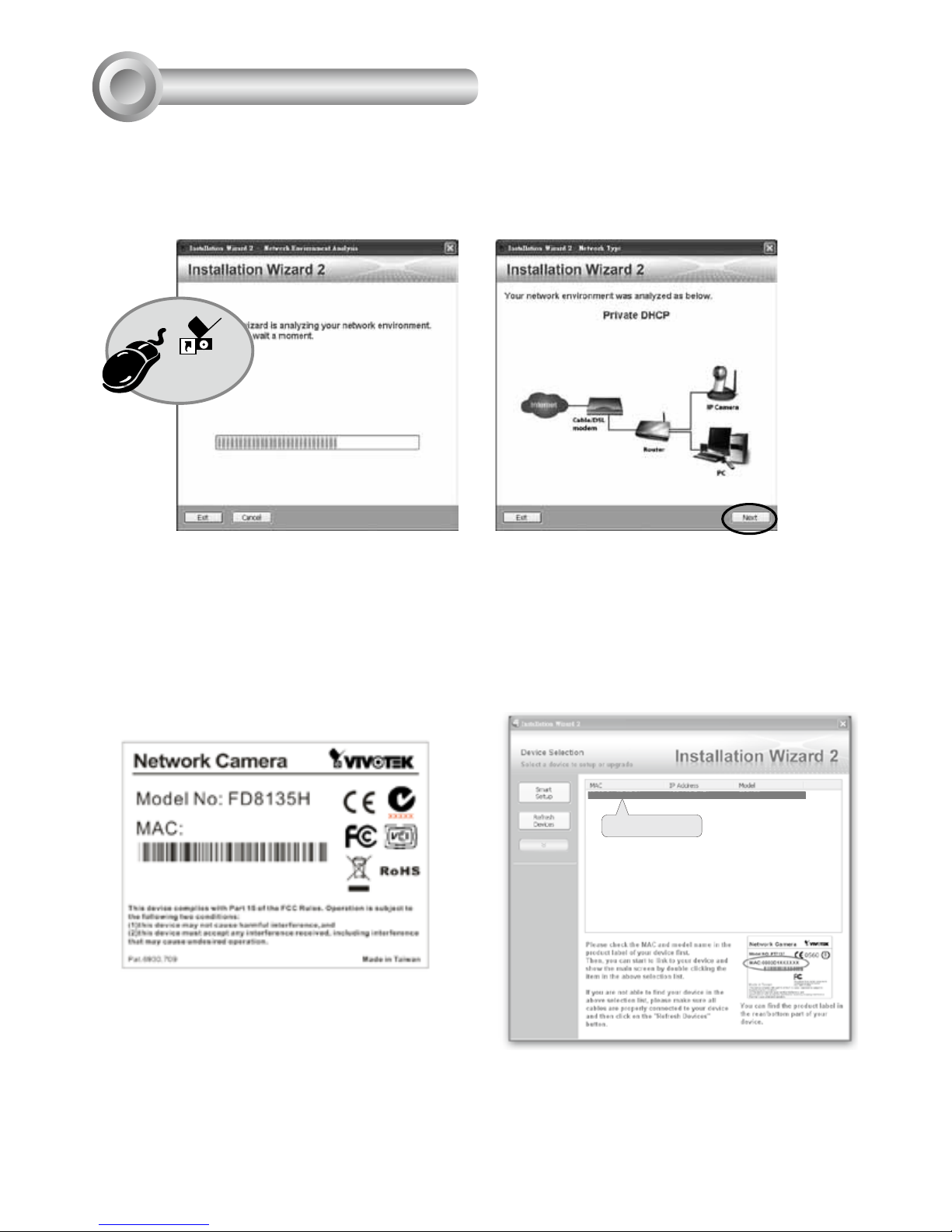

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

0002D107258A

00-02-D1-07-25-8A 192.168.5.151 FD8135H

Installation

Wizard 2

Assigning an IP Address

EN - 9

English

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-

channel recording software from the software CD in a deployment consisting of multiple

cameras. For its installation details, please refer to its related documents.
