IP Surveillance

User’s Manual

VIVOTEK Fixed Dome & PTZ Series

Wall-mount Bracket

Using AM-214 wall-mount bracket

and compatible accessories

Rev. 1.1

Compatible VIVOTEK Cameras

AM-214 Wall-mount Bracket

Fixed Dome series FD8133, FD8134, FD8133V, FD8134V, FD8161, FD7132,

FD7131, FD8162, FD8135H, FD8362E, FD8362, FD8372,

FD8335H, FD8361, FD8361L, FD8131

PTZ series PZ7111, PZ7112, PZ7121, PZ7122, PZ7131, PZ7132,

PZ7151, PZ7152, PZ81x1W, PZ81x1

You may also refer to VIVOTEK's website for the list of supported models. Support for other models can

be available through time.

English

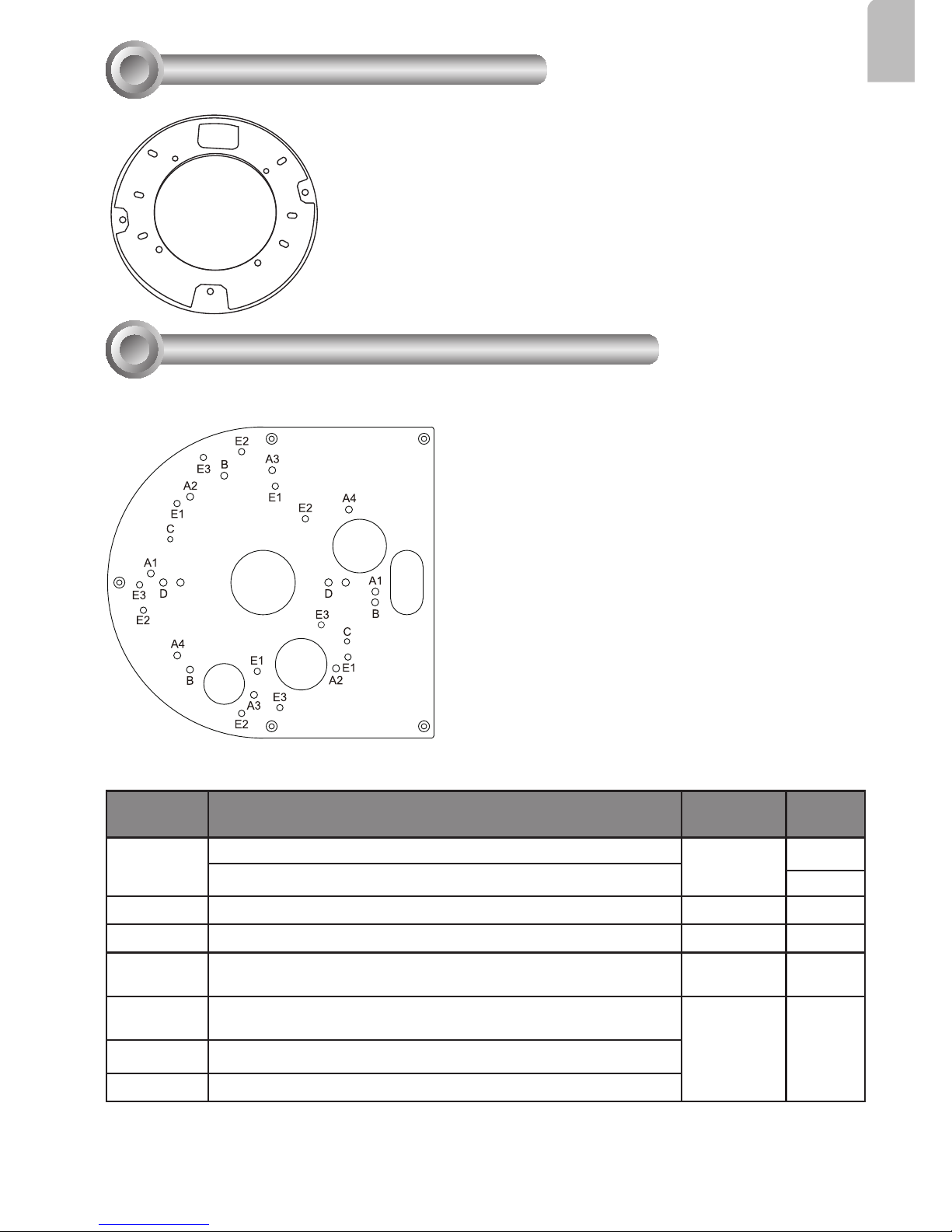

Accessories

Adaptor ring for FD8162

Installation

III

Above are the locations of different groups of mounting holes for matching different

cameras:

Hole Type Applicable Cameras Screw No. of

screws

AFD8161 / FD7132 / FD7131 M4X15 2

FD8162 / FD8135H 4

BFD8133V / FD8134V M4X8XD6 3

CFD8133 / FD8134 / FD8131 M3X6 2

DPZ7111 / PZ7112 / PZ7121 / PZ7122 / PZ7131 /

PZ7132 / PZ7151 / PZ7152 / PZ81x1W / PZ81x1 M3X4 2

E1 FD8335H / FD8361 / FD8361L / FD8362 / FD8362E /

FD8372

M4X15 4

E2 FD8361 (cables routed to the side of the bracket)

E3 FD8361 (cables routed to the side of the bracket)

For cabling and conguration details with each network camera, please refer to their

documentation.

Mounting Hole Denitions

Refer to the table below for the description of the included screws:

Screw Description Quantity Applies to

M4X15 Phillips pan head 4 A holes

M3X4 Phillips pan head

(black)

2 D holes for PZ

and PT series

M4X8XD6 Phillips pan

head

3 B holes

M4X25XD9 Phillips pan

head

4 Securing the

bracket to wall

M3x6 Phillips pan head 2 C holes

Plastic anchors 4 Securing the

bracket to wall

NOTE:

1. It is presumed that this wall-mount bracket is installed with a hole drilled on the wall for

routing power lines, DI/DO, and Ethernet cables.

2. Route cables before you secure the wall-mount bracket to a wall.

3. For details on the cable connections with each camera, please refer to their Quick

Installation Guide.

English

Below is a general, sample procedure using a wall mount bracket:

1. Locate the position where you want to install the wall mount bracket and camera. Drill

holes on the wall for securing the bracket and for routing the cables.

2. Secure the bracket by hammering anchors into the wall and then fasten screws through

the four mounting holes on the bracket.

3. Route power lines and other cables through the wall and the bracket.

4. Align the camera's mounting holes with the B holes. Secure the camera to the wall

mount bracket as shown below.

M4X8XD6 Screws

Aligned with B holes

Route cables through here

IMPORTANT!

Wall Mount Installation - FD8134V

The screws and mounting surface must be

able to support a weight of 4 kg.

5. Proceed with initial setup such as enabling network access, focus tuning, or zooming.

When done, secure the outer dome cover.

NOTE:

Use the correct type of screws when installing cameras to

the mounting cap. Refer to page 3 for the screw type.

English

M3X6 Screws

Below is a sample procedure using wall mount bracket and an FD8134:

1. Determine a hard surface wall location, and use the four mounting holes on the wall

mount bracket to mark the positions where holes will be drilled to secure the bracket.

Wall Mount Installation - FD8134

2. Drill holes on the wall for passing cables and for securing the wall mount bracket.

3. Secure the bracket by hammering anchors into the wall and then fasten screws.

4. Route power lines and other cables through the bracket and wall.

5. Secure camera to the wall mount bracket using the C holes and M3x6 screws.

6. Proceed with initial setup such as enabling network access, focus tuning, or zooming.

When done, secure the outer dome cover.

Below is a sample procedure using wall mount bracket and an FD8162:

1. Determine a hard surface wall location, and use the four mounting holes on the bracket

to mark the positions where holes will be drilled to secure the bracket.

Wall Mount Installation - FD8162

M4X15

A* holes

Camera Lens Orientation

2. Drill holes on the wall for securing the bracket and for routing cables.

3. Route cables through the wall and bracket.

4. Secure the wall mount bracket to the wall using the included screws and plastic

anchors.

5. Rotate the adaptor ring to match the camera lens orientation your prefer, e.g., to the

front or to the left. Secure the adaptor ring to bracket using the M4X15 screws to the A2

and A4 holes on the bracket.

English

6. Secure the camera to the adaptor ring using the included screws.

7. Connect power lines and cables to the camera.

8. Proceed with initial setup such as enabling network access, focus tuning, or zooming.

When done, secure the outer dome cover.

Below is a general, sample procedure for installing a PZ pr PT series camera with the wall

mount bracket:

1. Detach the mount panel by loosening 5 screws from the wall mount bracket.

Wall mount

bracket

Wall Mount Installation - PZ7151 (and Applies to All PZ Series)

2. Secure the camera from the inner side of the mount panel by driving M3 screws to the

bottom of camera.

3. Locate the position where you want to install the wall mount bracket. Drill holes on the

wall for securing the bracket and for routing cables.

4. Route power lines and other cables through the wall and the bracket.

5. Secure the wall mount bracket to the wall using the included fasteners and screws.

6. Attach the camera and the mount panel to the wall mount bracket using the 5 screws

you previously removed.

7. Connect power lines and cables, and you may now begin the initial connection and

conguration.

M3X4

NOTE:

Use the correct type of screws when installing cameras to

the mounting cap. Refer to page 3 for the screw type.
