Vivotek FE8171V Manual de usuario

P/N: 625015100G Ver.1.0

FE8171V

3MP‧360° Panoramic View‧Vandal-proof

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, Taiwan | T: +886-2-82455282 | F: +886-2-82455532 | E: [email protected]

EN - 1

English

Contact your distributor in the event of

occurrence.

Warning Before Installation

Power off the Network Camera

as soon as smoke or unusual

odors are detected.

Do not place the Network

Camera on unsteady surfaces.

Do not insert sharp or tiny

objects into the Network

Camera.

Refer to your user's manual

for the operating temperature.

Do not touch the Network

Camera during a lightning

storm.

Do not drop the Network

Camera.

EN - 2

Package Contents

FE8171V Mounting Plate / Screwdriver

Alignment Stickers Screws / Moisture Absorber /

Double-sided Tape / Rubber Seal

Plug / Rubber Washer

Quick Installation Guide /

Warranty Card

Software CD

Power & I/O Cables DC Power Adapter

For Mounting Plate For Camera Base

EN - 3

English

Physical Description

Inner View

Pin Header (J7)

Spring Contacts

(A)

Lens

Contacts for Internal Microphone

(B)

Pin Header (J6)

Ethernet 10/100 RJ45 Socket

Align (B) to (A) when

attaching the dome

cover

MicroSD/SDHC/SDXC Card Slot

Reset Button

EN - 4

Network Camera

Model No: FE8171V

MAC: 0002D1XXXXXX

Pat. 6,930,709

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Made in Taiwan

Outer View

Built-in Microphone

IP66-rated

Vandal-proof

Dome Cover

IMPORTANT!

Record the MAC address

under the camera base before

installing the camera.

EN - 5

English

Hardware Installation

Dome Cover Retainer

Rubber Stopper on

the hole for Power &

IO Cables

Tamper-proof Screw

Rubber Seal Plug

on the hole for RJ45

Ethernet Cable

Connect the supplied power

& IO cables if your switch

does not support PoE.

First, use the supplied screwdriver to loose the four screws and detach the dome cover from the

camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.

EN - 6

RJ45 Cable Dimension (unit: mm)

Assembling Steps

2. Strip part of the sheath from the Ethernet

cable.

1. Drill a hole on the rubber seal plug and

insert an Ethernet cable through the open-

ing.

3. You will need an RJ45 crimping tool to

attach the Ethernet wires to a connec-

tor. When done, connect the cable to the

camera’s Ethernet RJ45 socket.

Recommended cable gauge: 24AWG (0.51 mm)

Connecting RJ45 Ethernet Cable

Connecting DC Power Cable

Rubber Seal

Plug

44. Remove the original black seal plug from the camera base. Then

feed the Ethernet cable from the bottom of the camera and through

the hole. Attach the rubber seal plug for water proong.

1. Remove the rubber stopper from the camera base.

2. Add the supplied rubber washer to the cable as shown in the picture.

3. Feed the cable from the bottom of the camera and tighten the plastic base for waterproong.

o: white/orange stripe

O: orange solid

g: white/green stripe

B: blue solid

b: white/blue stripe

G: green solid

br: white/brown stripe

BR: brown solid

EN - 7

English

Ceiling/Wall Mount without Mounting Plate

(Choose this mounting type if you would like to feed the cables form the bottom

of the camera)

NOTE:

Arrange the cables neatly to avoid

getting in the way when the dome

cover is attached.

Pin Header (J7)

Pin Header (J6)

123

1. Attach the supplied alignment sticker for camera base to the ceiling/wall.

2. Using the three circles on the sticker, drill three pilot holes into the ceiling. Then hammer the

three supplied plastic anchors into the holes.

3. Drill a cable hole on the ceiling/wall, and feed the cables through the hole.

4. Connect the Ethernet cable to the socket.

5. Connect the two white pin header connectors to the J6 and J7 connectors.

6. Secure the camera base to the ceiling/wall with three supplied screws.

7. You will nd a moisture absorber attached to the camera. Replace the moisture absorber includ-

ed in the camera with the one shipped within the accessory bag.

8. Attach the dome cover.

9. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely in-

stalled.

EN - 8

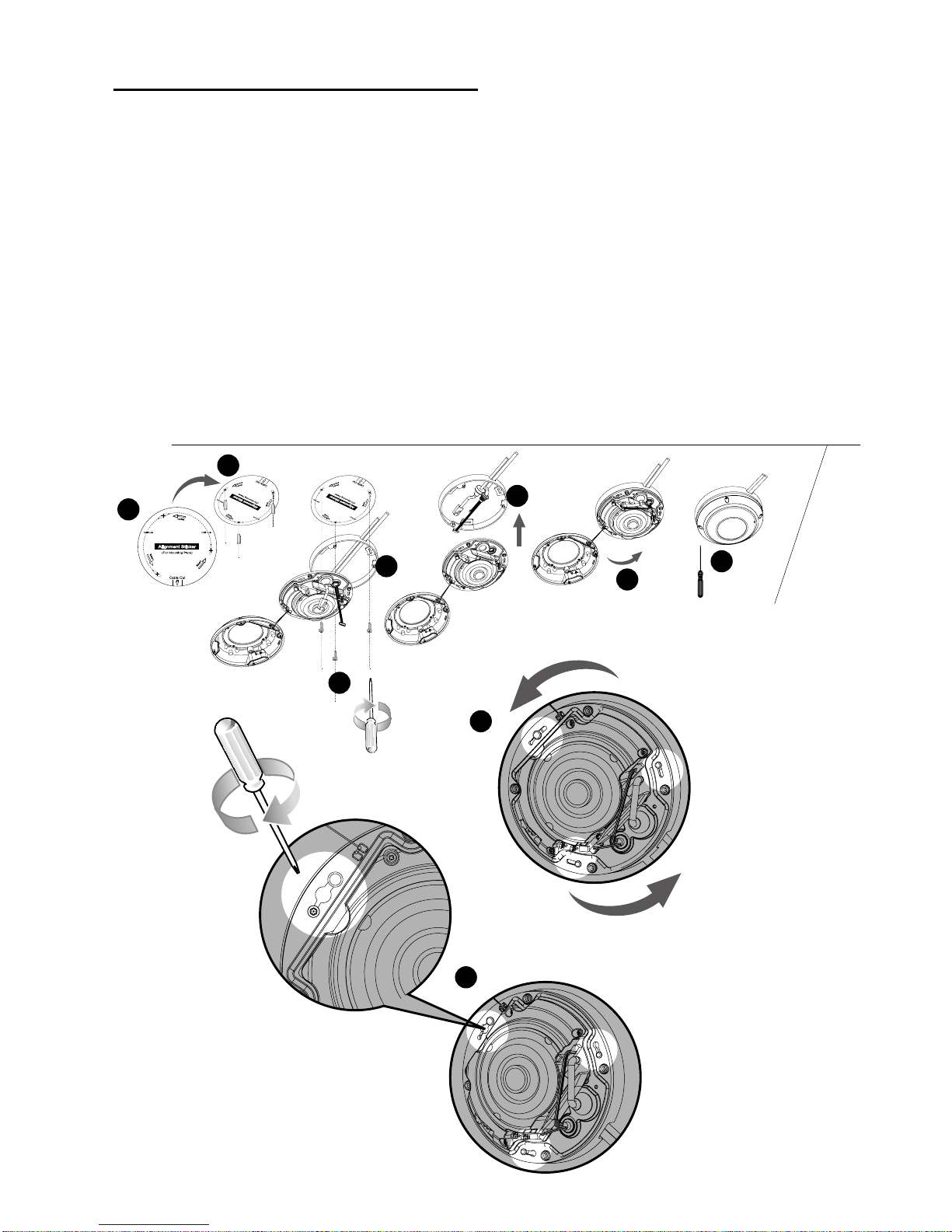

Ceiling/Wall Mount with Mounting Plate

(Choose this mounting type if you would like to feed the cables form the side)

7-1

7-2

1. Attach the supplied alignment sticker for the supplied mounting plate to the ceiling/wall.

2. Using the three circles on the sticker, drill three holes into the ceiling. Then hammer the three

supplied plastic anchors into the holes.

3. Arrange and feed the cables through the side of the mounting plate.

4. Secure the mounting plate to the ceiling/wall with three supplied screws.

5. Connect the Ethernet cable to the socket.

6. Connect two white pin header connectors to the J6 and J7 connectors.

7. Attach the camera base to the mounting plate and turn counter-clockwise as shown below

(Figure 7-1). Then secure the supplied screws to x the camera base.

8. You will nd a moisture absorber attached to the camera. Replace the moisture absorber with

the one shipped within the accessory bag.

9. Attach the dome cover.

10. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely

installed.

EN - 9

English

1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network

camera is directly connected to PC.

2. Connect the power cable from the Network Camera to a power outlet.

3. If you have external devices such as sensors and alarms, make the connection from the general

I/O terminal block.

General Connection (without PoE)

Network Deployment

+3V3

GND

POWER C

OLLIS

ION

LINK

RECEI VE

PART I TI O N

12345

General I/O Terminal Block

Power Cord Socket (Black)

Microphone In (Pink)

Audio Out (Green)

+3V3: Power, 3.3V DC

DO: Digital Output

D I: Digital Input

GND: Ground
