Vivotek FD8162 Manual de usuario
P/N:625014500G Ver.1.0
Copyright 2011 VIVOTEK INC. All rights reserved.
c
FD8162
2 MP
•
PIR
•
Focus Assist
EN - 1
English
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Contact your distributor in the event of
occurrence.
Keep the Network Camera away
from water. If the Network Camera
becomes wet, power off immediately.
Do not place the Network Camera
around heat sources, such as a
television or oven.
Refer to your user's manual for the
operating temperature.
Keep the Network Camera away from
direct sunlight.
Do not place the Network Camera in
high humidity environments.
Contact your distributor in the event of
occurrence.
Warning Before Installation
EN - 2
Do not place the Network Camera on
unsteady surfaces.
Do not touch the Network Camera
during a lightning storm.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
EN - 3
English
Software CD
FD8162 Alignment Sticker
T10 Torx Screwdriver/ Screws /
Plastic Anchors
Package Contents
1
Quick Installation Guide /
Warranty Card DC Power Adapter (Optional)
EN - 4
Physical Description
2
123 74 5 86
Ethernet
Micro SD Card
Audio InAV Out
Reset
Int. NTSC
PAL
Ext.
Camera Front View
Camera Rear View
Light Sensor
Lens
Built-in
Microphone PIR Sensor
Black Cover
IR LEDs
(18 units, effective up to 15m)
Reserved
(18 units, effective up to 15m)
(18 units, effective up to 15m)
(18 units, effective up to 15m)
(18 units, effective up to 15m)
Focus Assist
Button
General IO
Terminal Block
1. DC 12V-
2. DC 12V+
3. AC 24V_2
4. AC 24V_1
5. DI- (GND)
6. DI+
7. DO-
8. DO+ (+12V)
1. DC 12V-
2. DC 12V+
3. AC 24V_2
4. AC 24V_1
5. DI- (GND)
6. DI+
7. DO-
8. DO+ (+12V)
Audio In
Audio/Video Out
Audio/Video Out
Jumpers
Microphone Video Output
internal
external
NTSC
60Hz
PAL
50Hz
internal
external
60Hz
PAL
1 2
Audio In
Audio/Video Out
PAL
Audio/Video Out
Audio/Video Out
PAL
Audio/Video Out
Audio/Video Out
Audio/Video Out
NTSC
NTSC
Reset
NTSC
Reset Button
Micro SD/
SDHC Card
Slot
NTSC
Reset
NTSC
Slot
Int.
NTSC
Video Output
Int.
NTSC
Reset
Int.
NTSC
Reset
Reset
Reset
Reset Button
Reset Button
Reset Button
Reset
Reset
10/100BaseT
Ethernet
Audio In
Audio In
10/100BaseT
Audio In
10/100BaseT
EN - 5
English
Hardware Installation
3
Use the included T10 Torx screwdriver to loosen screws on the sides of dome cover to
remove it. You should then jot down the MAC address printed on the bottom of the camera.
Remove the black cover as shown below so that you can ne-tune the focus and zoom the
camera later when the cabling is done.
50
50
5m
41
41 5m
Before installing your camera,
make sure the built-in PIR (Passive
Infrared Sensor) can be directed
toward the area of interest, where
possible intrusion may occur. (The
sensitivity of PIR sensor depends
on the object size and temperature
differences between the object and
the background environment.)
Dome Cover
Dome Cover
Bottom of the
Camera
Tilt Ajustment
Screw
Focus Ctrl
Zoom Ctrl
Top View Side View
EN - 6
General Connection (without PoE)
Network Deployment
4
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
1. If you have external DI devices, make the connection from general I/O terminal block.
2. Ethernet, power, and other cables are user-supplied. Use a Category 5 Cross Cable
when Network Camera is directly connected to PC.
3. Connect either the DC or AC pins from the terminal block to a power outlet.
1. Attach the alignment sticker to the ceilling/wall.
2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall.
3. The Network Camera can be mounted with the cable routed through the ceiling/wall or
from the side. If you want to feed the cable through the ceiling/wall, drill a cable hole A
as shown in the above picture.
4. Hammer the supplied plastic anchors into the holes.
5. Align the two holes on each side of the camera base with the two plastic anchors on the
ceilling/wall, insert the supplied screws to corresponding holes and secure them with a
screwdriver.
Wall Mount
Ceiling Mount
Ethernet
Switch
Pin1 & 2 DC 12V
Black
Red
Pin3 & 4 AC 24V
EN - 7
English
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
Power over Ethernet (PoE)
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a
single Ethernet cable. Follow the below illustration to connect the Network Camera to a
PoE-enabled switch via Ethernet cable.
Non-PoE Switch
PoE Power Injector
(optional)
PoE Switch
EN - 8
0002D107258A
1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network is
analyzed, please click on the “Next” button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
0002D107258A
00-02-D1-07-25-8A 192.168.5.151 FD8162
Installation
Wizard 2
Assigning an IP Address
5
EN - 9
English
For further setup, please refer to the user's manual on the software CD.
Ready to Use
6

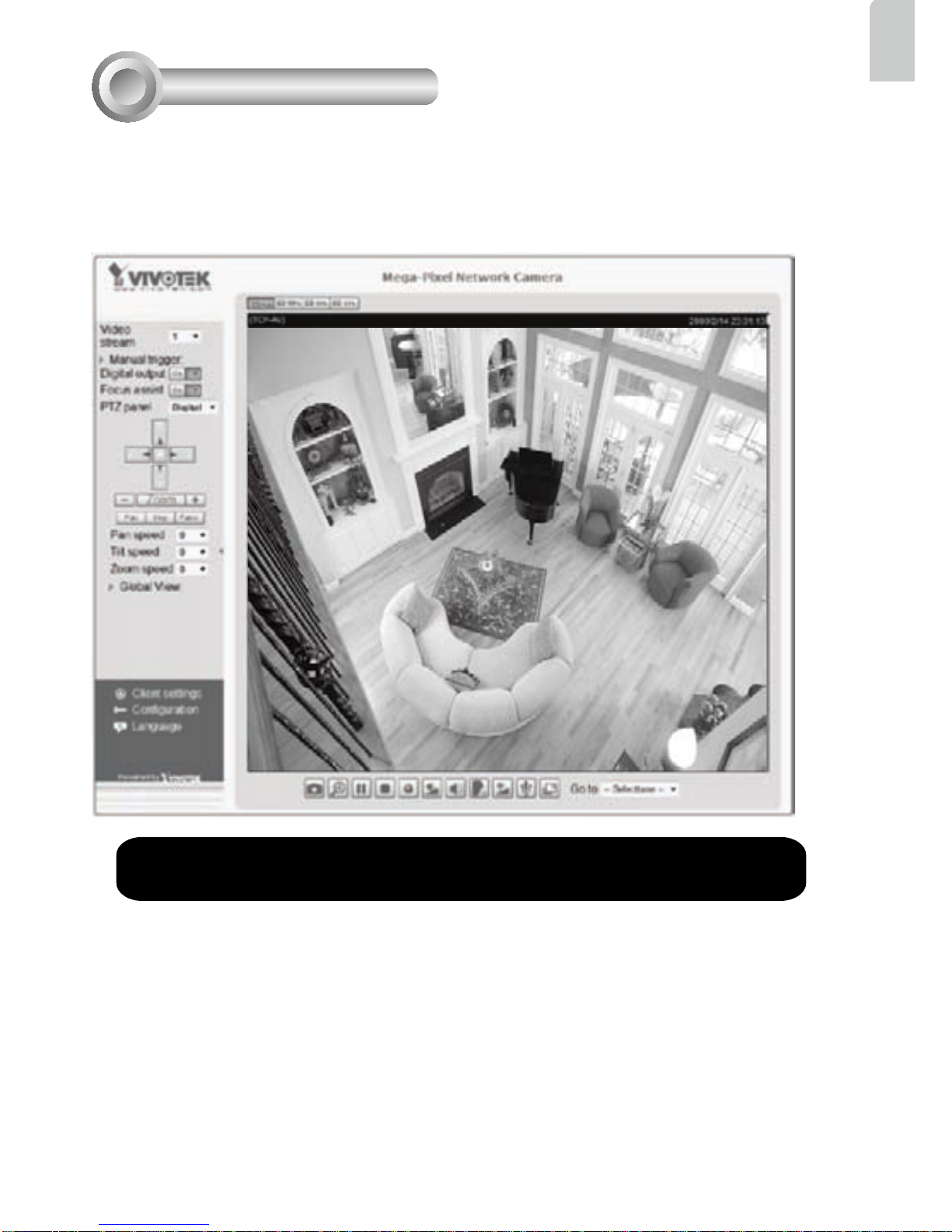

1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-
channel recording software from the software CD in a deployment consisting of multiple
cameras. For its installation details, please refer to its related documents.
