Vivotek FD8151V Manual de usuario

Keep the Network Camera away from water.

If the Network Camera becomes wet, power

off immediately.

Power off the Network Camera as soon as

smoke or unusual odors are detected.

Do not place the Network Camera in high

humidity environments.

Warning Before Installation

Do not insert sharp or tiny objects into the

Network Camera.

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera during a

lightning storm.

Screws

FD8151V

Quick Installation Guide /

Warranty Card

Software CD

Package Contents

NOTE:

All cables are user-supplied. Use a CAT5 standard UTP

or better quality cable. In order to pass the Ethernet cable

through the routing path, the maximum cable diameter al-

lowed is 5.2mm.

Focus Adjustment Tool

Anti-tamper Screwdriver

Alignment Sticker

EN - 2

Outer View

Physical Description

Leave the slide cover in place if you route cables through the

bottom and then through a hole on the ceiling or wall.

DI+ DI-

Max. is 40V.

Slide cover

Digital input

Lens

Tilt retention

screw

Reset button

Screw slot

Inner View

RJ-45 Socket

Side View

MicroSD/SDHC

card slot

Internal

microphone

IR LEDs

EN - 3

English

Hardware Installation

Removing the Dome Cover

1. Unscrew the anit-tamper screws using the

included screwdriver.

2. Remove the dome cover.

3. Remove the slide cover if you want to route

cables from the side of camera instead of a

hole on the ceiling or wall.

0002D10766AD

FD8151V-F2

1. Record the MAC address before installing

the camera.

IMPORTANT:

1. It is recommended to use an Ethernet cable that

comes without the strain relief boot. You can

remove the boot if your cable comes with one.

Strain relief boot

NOTE:



type of lens mounted on your camera. The

applicable lens can be:

F2: 2.4mm; F4: 4mm; F8: 8mm. The shorter

the focal length, the wider the view.

2. As shown below, you may also route cable from

the side.

EN - 4

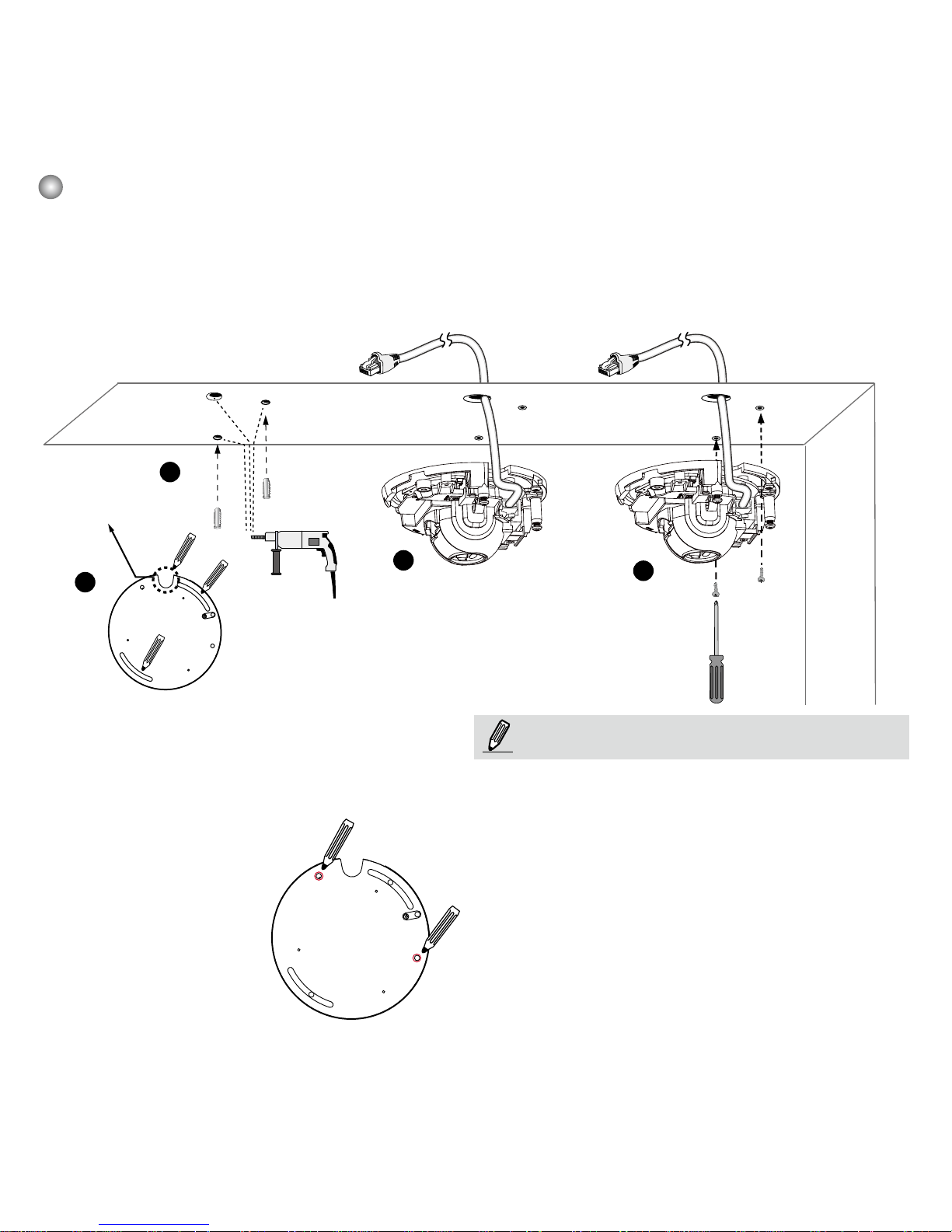

Mounting the Network Camera - Ceiling or Wall Mount

1. Use the alignment sticker as a template to mark where holes will be drilled on the ceiling. Drill two

holes into the ceiling; and hammer in the plastic anchors.

2. Drill another hole if you want to route cables through the ceiling or wall.

3. Connect and route an Ethernet cable through the ceililng or wall.

4. Temporarily attach the Network Camera to the ceiling using two included screws.

NOTE:

1. Do not completely tighten the mounting screws

in the screw slots yet. You may need to turn the

camera left or right for a best shooting direction

later.

2. The camera can only be powered by PoE. There

is no DC or AC input connector.

Routing hole

position

5. After tuning the camera's shooting direction

and tilt angle, you can remove the camera and

drill another 2 holes to the ceiling for better

support. For vandal-proof applications, you can

secure the camera

using all 4 mounting holes.

EN - 5

English

Network Deployment

Power over Ethernet (PoE)

OLLIS

ION

LINK

ION

12345

PoE Switch

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet

cable. Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable.

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

OLLIS

ION

LINK

ION

12345

PoE Power Injector

(optional)

Non-PoE Switch

EN - 6

Assigning an IP Address

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is analyzed,

please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the

same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC address that

matches the one printed on the camera label or the S/N number on the package box label to open a

browser management session with the Network Camera.

For further setup, please refer to the user's manual

on the software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras. For its

installation details, please refer to its related documents.

EN - 7

English

1. There is a tilt retention screw near the

lens module. Use a #0, #1, or #2 Phillips

screwdriver to loosen the screw. Use the lens

adjustment tool to carefully change the tilt

angle.

3. Tighten the tilt retention screw and the

camera's mounting screws after you change

the horizontal shooting direction. If you have

concerns for vandalism, remove the camera

and drill 2 more mounting holes for better

support as previously mentioned.

25°

60°

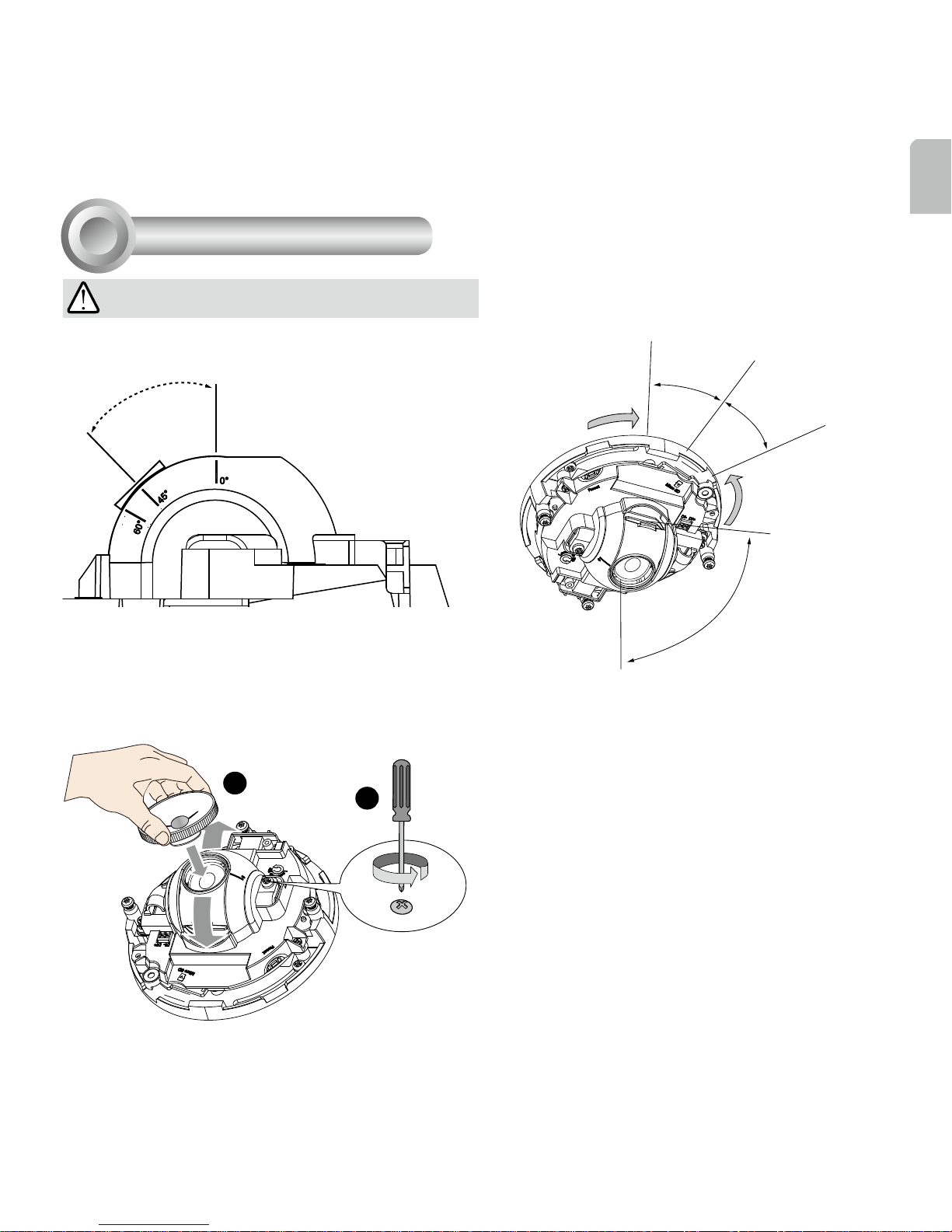

Adjusting the Lens

2. You may also tune the camera's horizontal

orientation by turning it along its curved screw

slots.

For the F2 lens: the max. tilt angle is 45°.

For other lens: the max. tilt angle is 60°.

IMPORTANT:

EN - 8

5. Use a piece of clean cotton cloth to hold and install the

dome cover.

6. Install dome cover by fastening the 3 anti-tamper

screws.

4. With a live video feed, you can place the included focus

adjustment tool carefully on the lens, and use it to turn

the lens clockwise or counter-clockwise to adjust to the

best image focus.

You may try tuning the focus slightly closer due to the

concern that focus might be changed when the dome

cover is installed.
