Vivo STAND-V002T Manual de usuario

   

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-  

 

phillips screwdriver

 

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

 (x2)  (x1)

 (x1)

 (x1)  (x1)

(x2) ! (x1) " (x5) # (x3)

-  (x8)

M5x12

-  (x8)

M4x12

- -$%&&'' ()&%& '

 (x2) * (x1)

4mm

 (x1)

6mm

 (x1)

3mm

- + (x8)

-  (x8)

M5x16

-   (x8)

 (x2)

+ (x1)

, (x1)

-   (x8)

M4x16

)-. %

% /

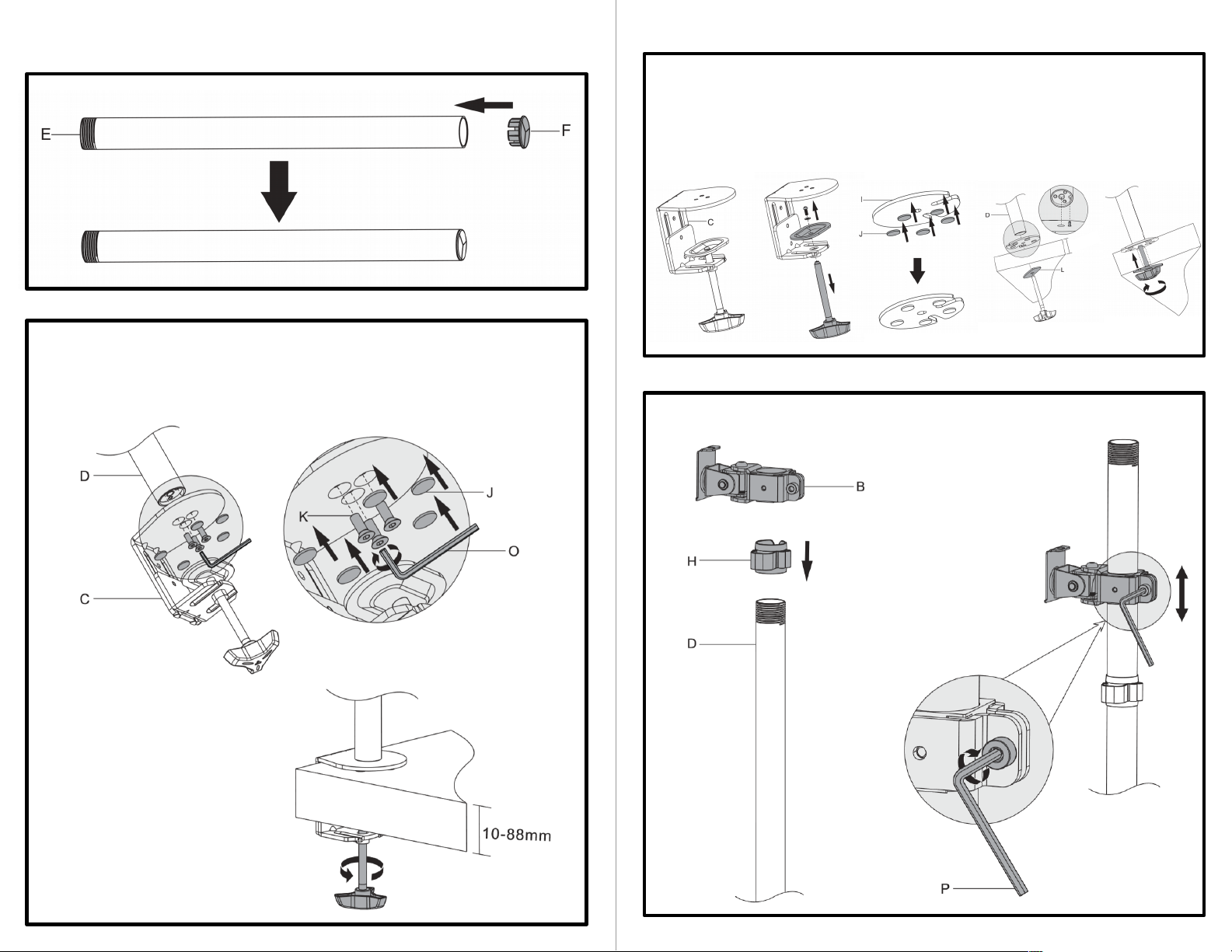

Attach cap (F) to top of pole (E).

% 

Stick rubber pads (J) to the underside of clamp (C). Attach pole (D) to

clamp (C) using bolt (K). Tighten using 4mm allen key (O). Attach

clamp (C) to desktop.

*%  01 )%

%  23

*%  )) 

For grommet hole mounting, remove screw in top of bolt on clamp

(C). Stick rubber pads (J) to bottom of grommet base (I). Attach metal

plate (L) to bolt and run through grommet hole into grommet base (I)

and thread into pole (D) as shown in diagram.

% 4

Slide cable management clip (H) and bracket (B) onto pole (D) and

tighten using 6mm allen key (P).

10-7mm

% 5 23

% 6

If bolts are too long, spacer (M-F) may be required.

Slide VESA plates (A) into brackets (B) and secure using thumb screws

(M) as shown in diagram.

% 7

Adjust tension in monitor

bracket with 6mm allen key (P).

% 8

% 5

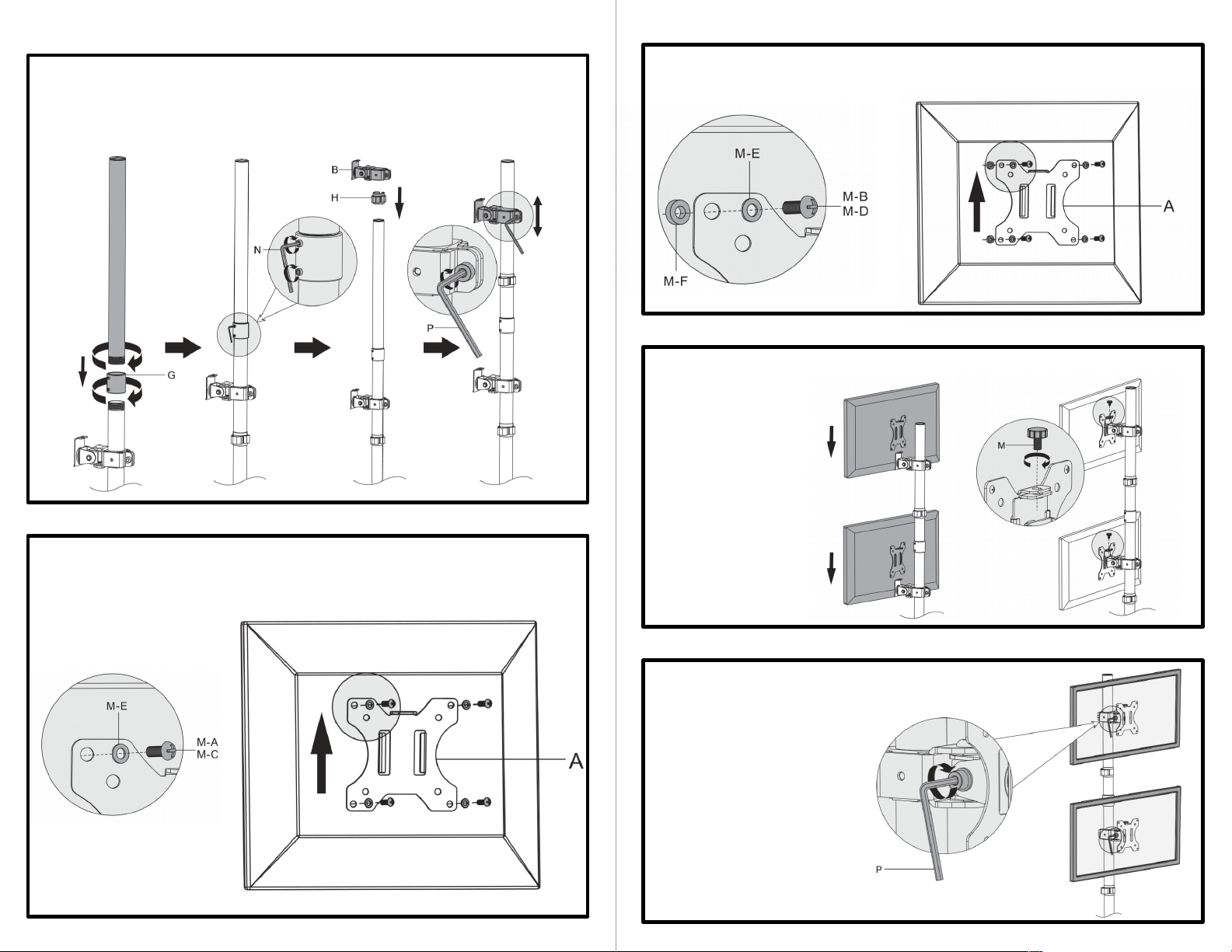

Attach pole (E) to pole (D) using pole connector (G). Tighten grub

screws in pole connector using 3mm allen key (N). Slide cable

management clip (H) and bracket (B) onto pole (E) and tighten using

6mm allen key (P).

Attach VESA plates (A) to back of monitors using bolts (M-A, M-C) and

washers (M-E).

5

M-B

M-D

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

9. :

  

Last updated: 04/30/18

% ;

Run cables through cable management clips (H).

% <

Store allen keys (N,O,P) in cable

management clips (H) for future

adjustments.

=  
