Vivo MOUNT V Flat Ceiling MountC55B Manual de usuario

T Fla Ceilin Moun

Instruction Manual

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-Model MOUNT C55B

Tool Required

phillips screwdriver

Packae Conen

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

A (x4)

M8x70

B (x3)

M8x50

C (x3)

M8x50

D (x2)

M10

E (x4)

D Washer

F (x8)

D8 Washer

(x4)

Mx1

H (x4)

M8x1

I (x2)

M10x20

J (x2)

Bracket

K (x4)

Mx50

L (x1)

T Plate

M (x1)

Extensi n P le

O (x1)

M untin" Bracket

P (x1)

Ceilin" Plate

N (x1)

Main P le

Q (x4)

M10x50

- -hp//vivo u.com/produc/moun vc55b

Sep 3

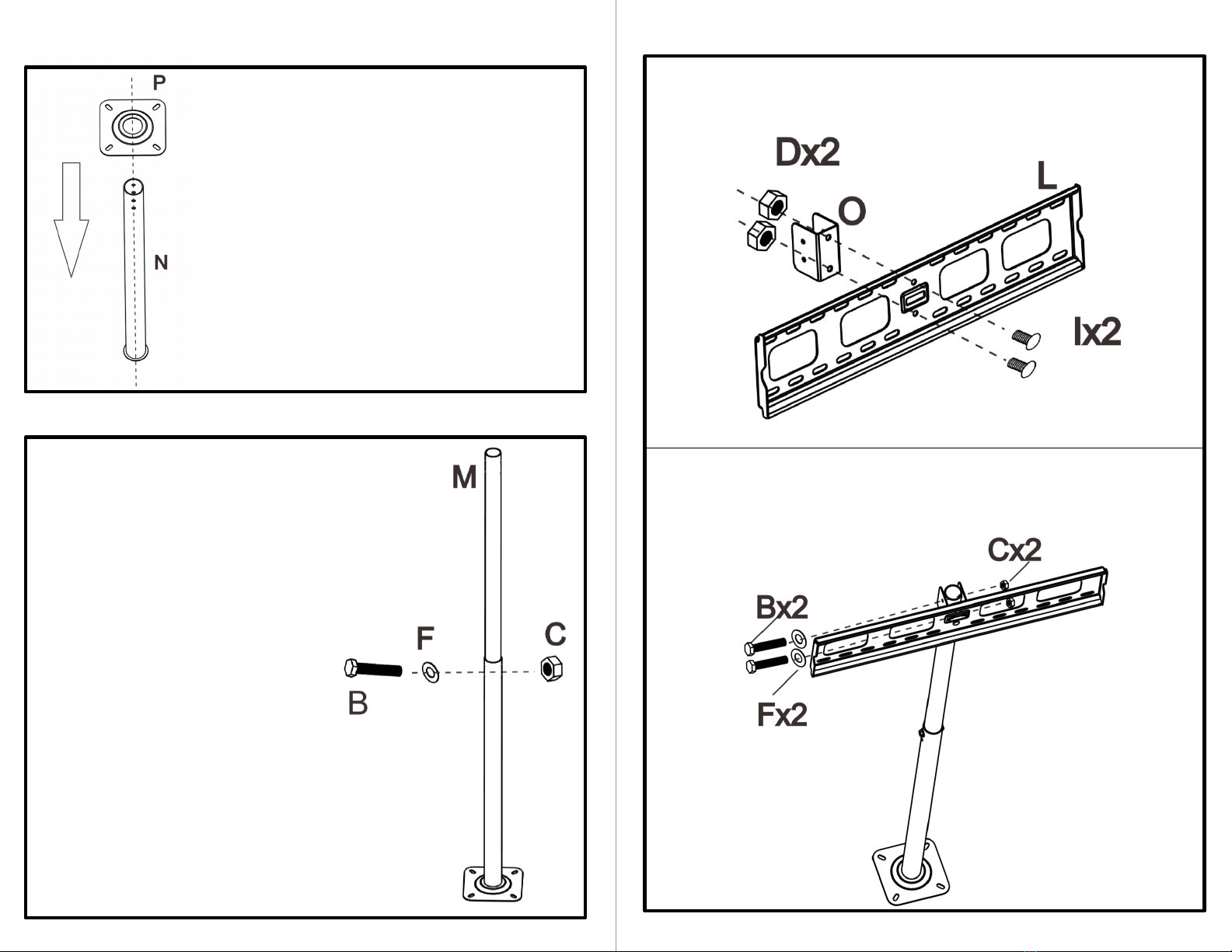

Assemble the TV Plate (L) to the mounting bracket (O) using carriage

bolts (I) and nuts (D).

Secure the assembled TV Plate (L) to the assembled pole (M, N)

using bolts (B), washers (F), and nuts (C).

Aembl0 Sep

Sep 1

Sep 2

Slide ceiling plate (P) onto the

main pole (N).

Assemble the extension pole

(M) to the main pole (N) using

bolt (B), washer (F), and nut (C).

Sep 5

Secure the brackets (J) to TV using screws (G) or

Screws (H) and D6 washers (E) or D8 washers (F).

Sep 4

Use Ceiling Plate (P) to mark drilling locations on ceiling. Drill 0mm

(2”) deep holes using a 10mm (3/8) drill bit and press M10x 0

anchors (Q) into holes. Attach assembled pole with plate to ceiling

using M6x 0 screws (A).

NOTE: The included hardware is only intended for use with concrete

ceilings, and may not support the mount and TV safely if used with

other materials.

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safe0 Warnin

Conac u a

Last updated: 06/06/18

Sep 6

Hang the TV using brackets (J) and tighten the safety

screw (K).
