Vivo MOUNT-POLE4A Manual de usuario

Pole Mount TV Arm

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pole4a

SKU: MOUNT-POLE4A

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

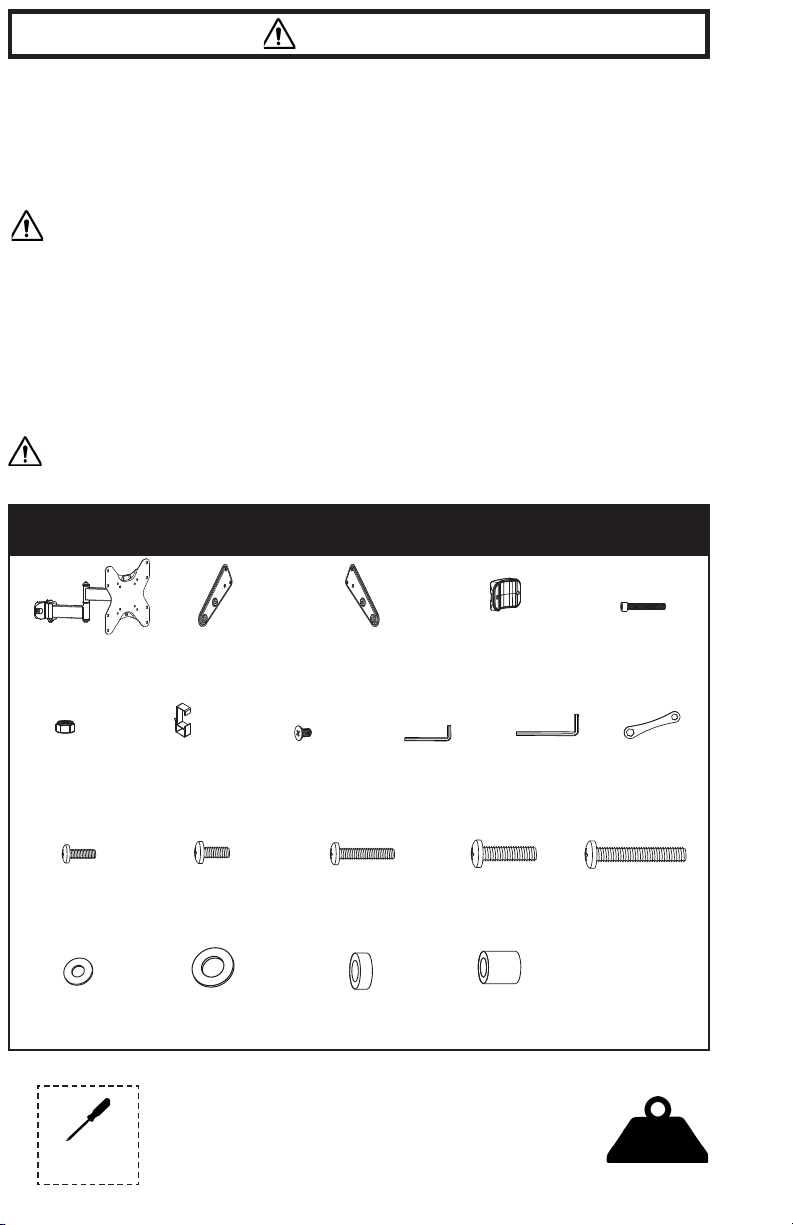

PACKAGE CONTENTS

WARNING!

Phillips

Screwdriver

A (x1)

VESA Plate

with Arm

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

H (x8)

Bracket Bolt

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

I(x1)

4mm Allen

Wrench

J(x1)

6mm Allen

Wrench

M-I (x8)

Spacer

M-G (x4)

D8 Washer

M-F (x4)

D5 Washer

55lbs

(25kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

M-A (x4)

M5x14

M-B (x4)

M6x14

M-C (x4)

M6x30

M-D (x4)

M8x30

M-E (x4)

M8x50

M-H (x8)

Spacer

TOOLS NEEDED

B(x2)

Le Bracket

C(x2)

Right Bracket

D(x1)

Clamp

E(x2)

Clamp Bolt

F (x2)

Nut

G (x1)

Cable Clip

K(x1)

Wrench

ASSEMBLY STEPS

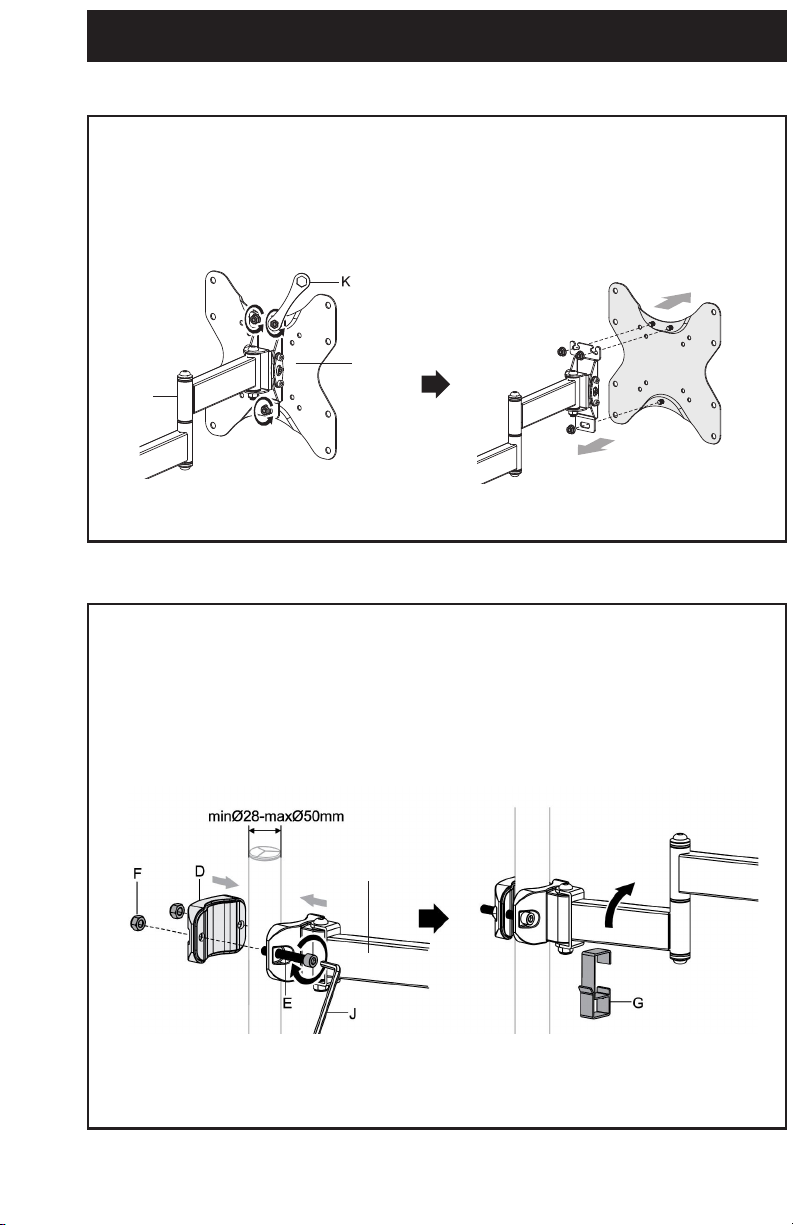

STEP 1

Remove the nuts that hold the mounting bracket arm (A2) to the VESA plate (A1) using the wrench

(K) Keep these aside for re-attaching the brackets. Remove the mounting bracket arm from the

VESA plate.

STEP 2

Attached the mounting bracket arm (A2) around a compatible pole to the clamp (D) using the allen

wrench (J), clamp bolts (E), and nuts (F) as shown below.

NOTE: These are NOT the nuts removed in STEP 1.

Clip on the cable management clip (G) to arm.

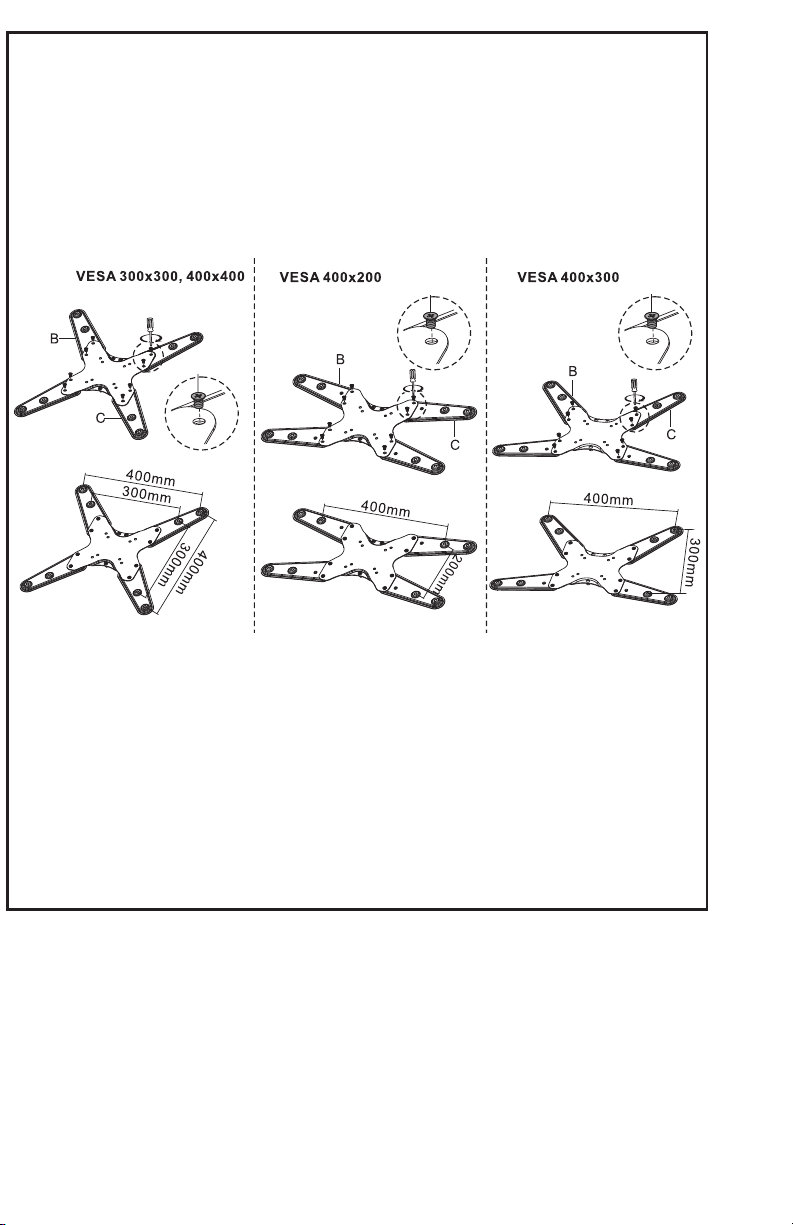

STEP 3

Determine the vesa pattern you are needing and follow the corresponding bracket orientation. Attach

the le and right brackets (B, C) using a screwdriver and the bracket bolts (H).

STEP 4

STEP 5

Determine the correct length screws and spacer combination for your TV. Attach the VESA bracket

assembly to the TV using that combination.

Attach the TV and VESA assembly to the mounting bracket A2 using the nuts removed in

STEP 1 and the wrench (K).

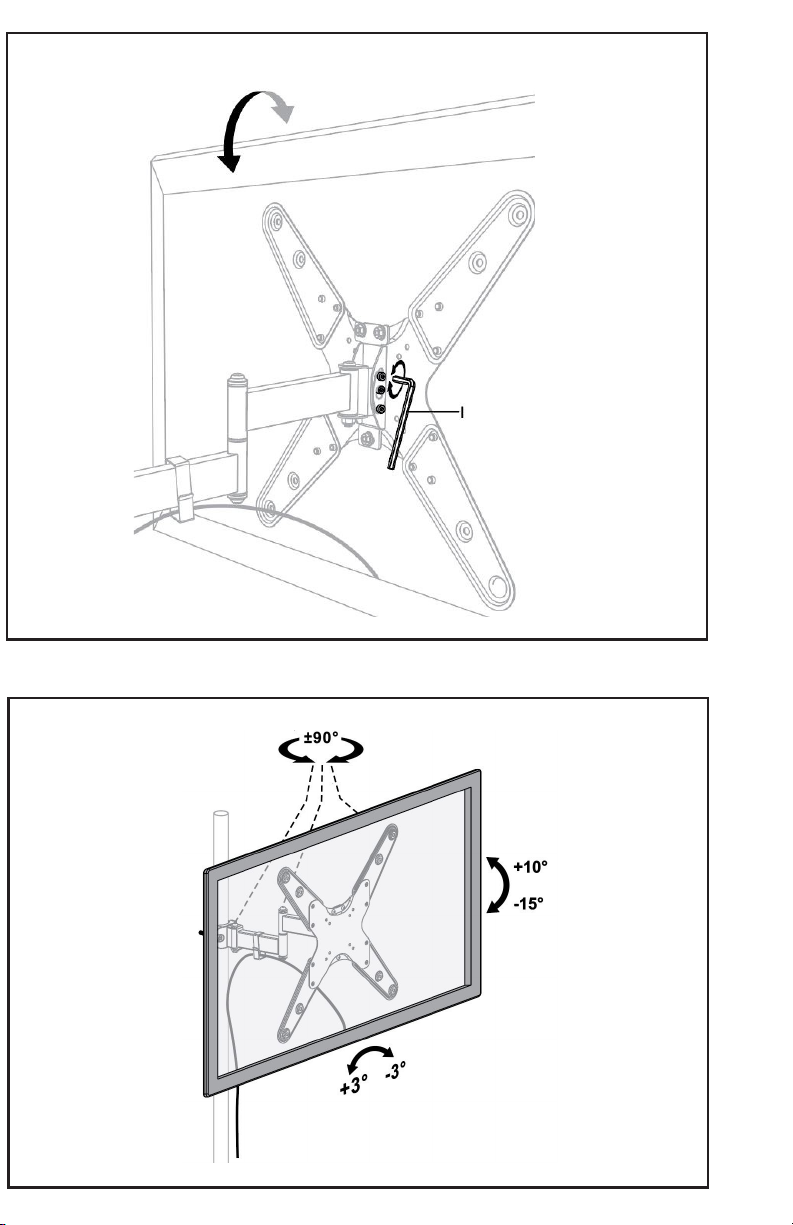

STEP 6

Adjust as Desired

Use the allen wrench (I) to loosen and tighten the tilt joint adjustment bolts as shown below.

LAST UPDATED: 09/10/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
