Vivo STAND-V002P Manual de usuario

Dua Monito Stand

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-Mode STAND V002P

Too Requied

phillips screwdriver

Package Content

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

A (x1)

C (x1)

D (x2) E (x1)

F (x1)

3mm

G (x1)

5mm

(x1)

6mm

-M C (x4)

-M A (x4)

M4x12

- M ! (x4)

M5x12

- -http//vivo u.com/poduct/tand v002p

! (x1)

Aemb) Step

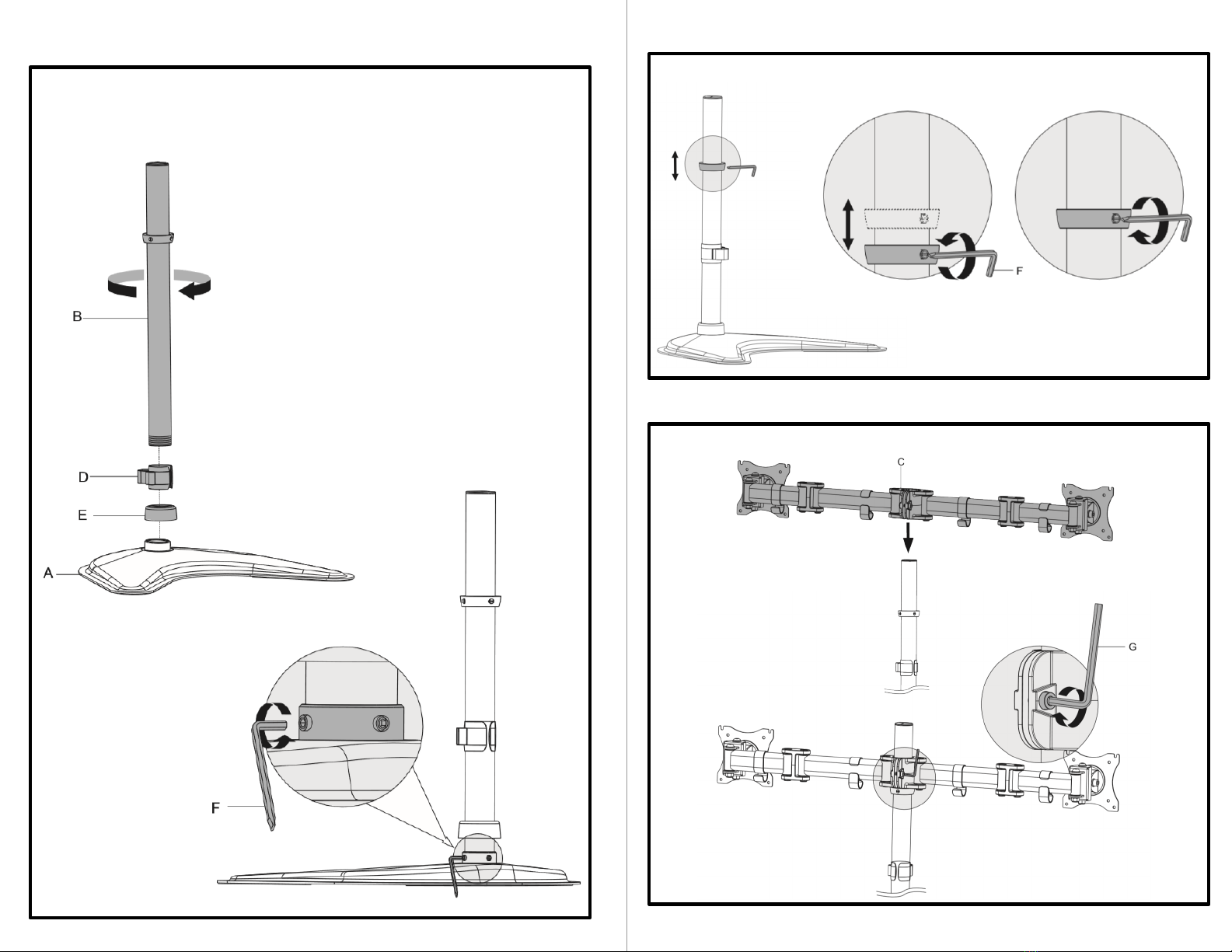

Step 1

Slide cable management clip (D) and base cover (E) on to bottom of

pole (B). Thread pole onto base (A). Tighten grub screws in bottom of

base (A) using 3mm allen key (F).

Step 2

Step 3

Slide arm (C) over top of pole and tighten using mm allen key (G).

Adjust bracket supporter using 3mm allen key (F).

Step 4

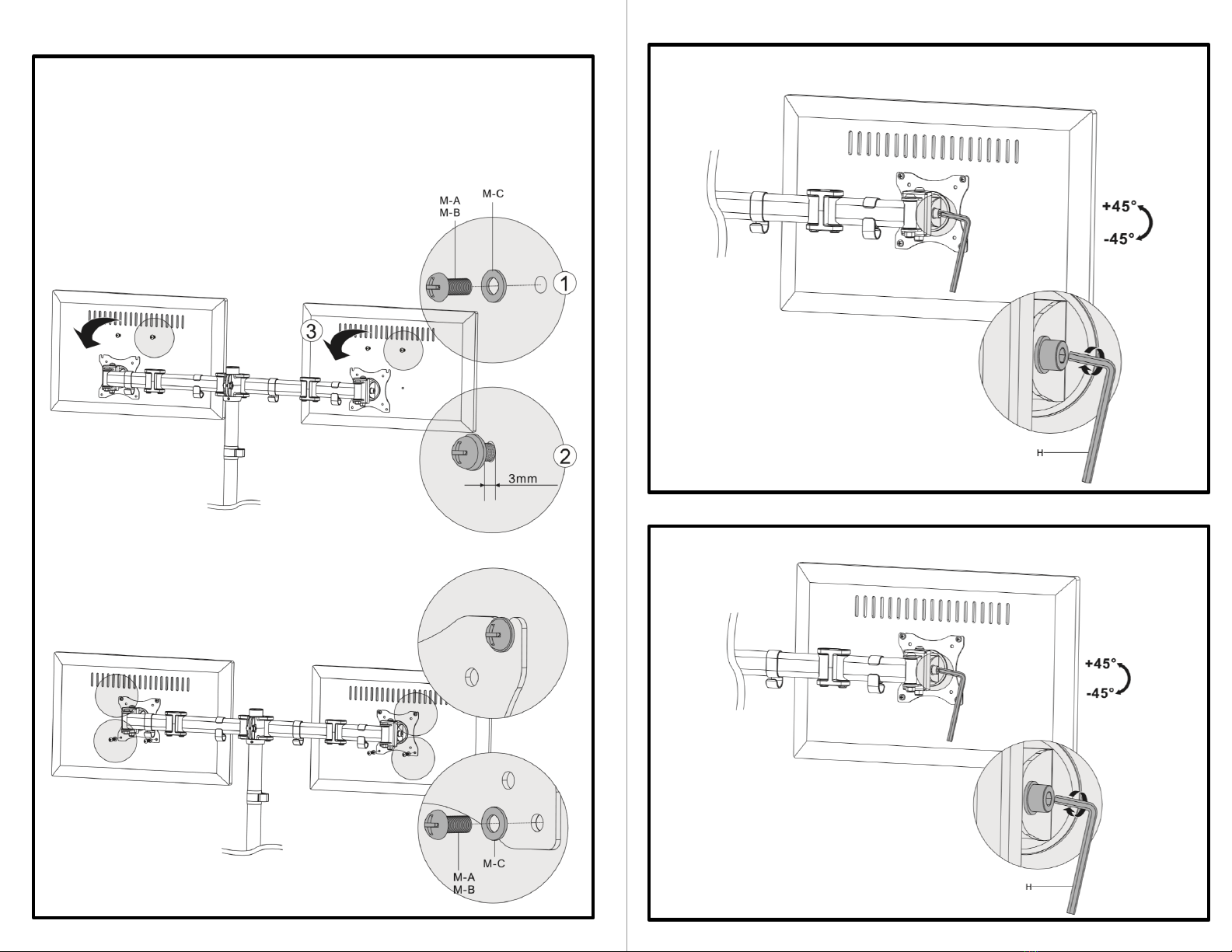

Attach two bolts (M-A or M-B) and washers (M-C) to top mounting

holes of monitor, making sure to leave 3mm of threads exposed.

Align bolts (M-A, M-B) in VESA plate. Secure using two more bolts (M-

A or M-B) and washers (M-C) in the bottom two holes. Tighten all four

bolts using phillips screwdriver.

Step 5

Step 6

Adjust tension in monitor bracket with 6mm allen key (H) as shown

in diagram.

Store allen keys (H, G) in cable management clip (D) for future

adjustment.

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

Safet) Waning

Contact u at

Last updated: 04/30/18

Step 7

Do not move monitors past center point of gravity. This could result in

tipping.

Adjust monitor height using mm allen key (G) as shown in diagram.

Step 8
