Vivo STAND-V102BB Manual de usuario
Pneumatic Arm Dual Monitor Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v102bb
SKU: STAND-V102BB
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2 3
ASSEMBLY STEPS
STEP 1
OPTION A: Clamp Installation
Turn screw on top of base (A) using 6mm Allen wrench (I) counter-clockwise to lower clamp. Place on
edge of table and tighten clamp.
PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
Phillips
Screwdriver
A (x1)
Base
B(x2)
Lower Arm
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
E(x1)
Cable Clip
F (x1)
Support Plate
G(x1)
Grommet Bolt
H (x1)
3mm Allen
Wrench
I (x1)
6mm Allen
Wrench
OPTION B: Grommet Base Installation
Remove bolt (A2) and clamp (A3) from
base (A1) using 6mm Allen wrench
(I). Insert grommet bolt (G) into base.
Position the base over the desk cable
grommet hole. Hold the support plate
(F) underneath the desk. Tighten the
grommet bolt into the support plate
using the 6mm Allen wrench (I).
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M-A (x8)
M4x12
M-B (x8)
M5x12
M-C (x8)
D5 Washer
C(x2)
Spring Arm
D(x2)
VESA Plate
17.6lbs
(8 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
4 5

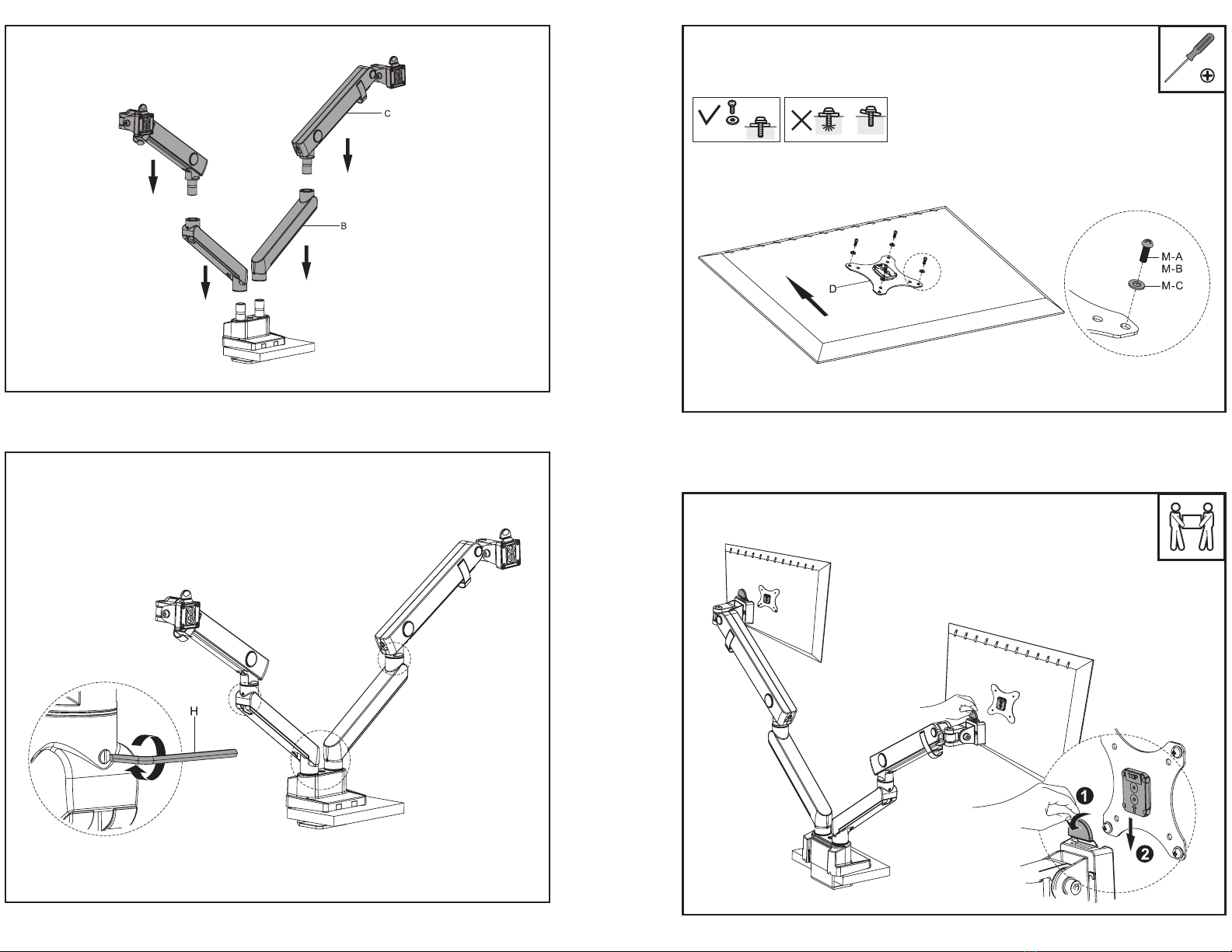

STEP 2
Place lower arms (B) onto base and spring arms (C) onto lower arms.
STEP 4
Install the VESA plates (D) to monitor using M4x12 bolts (M-A) or M5x12 bolts
(M-B) with washers (M-C), making sure the arrow in back is pointing up.
STEP 5
STEP 3
Turn screws on front and back of lower arms using 3mm Allen wrench (H) to secure arms.
Pull back the release lever on the support bracket, then place the monitors with VESA
plates into the support.
TV
TV
TV
6 7

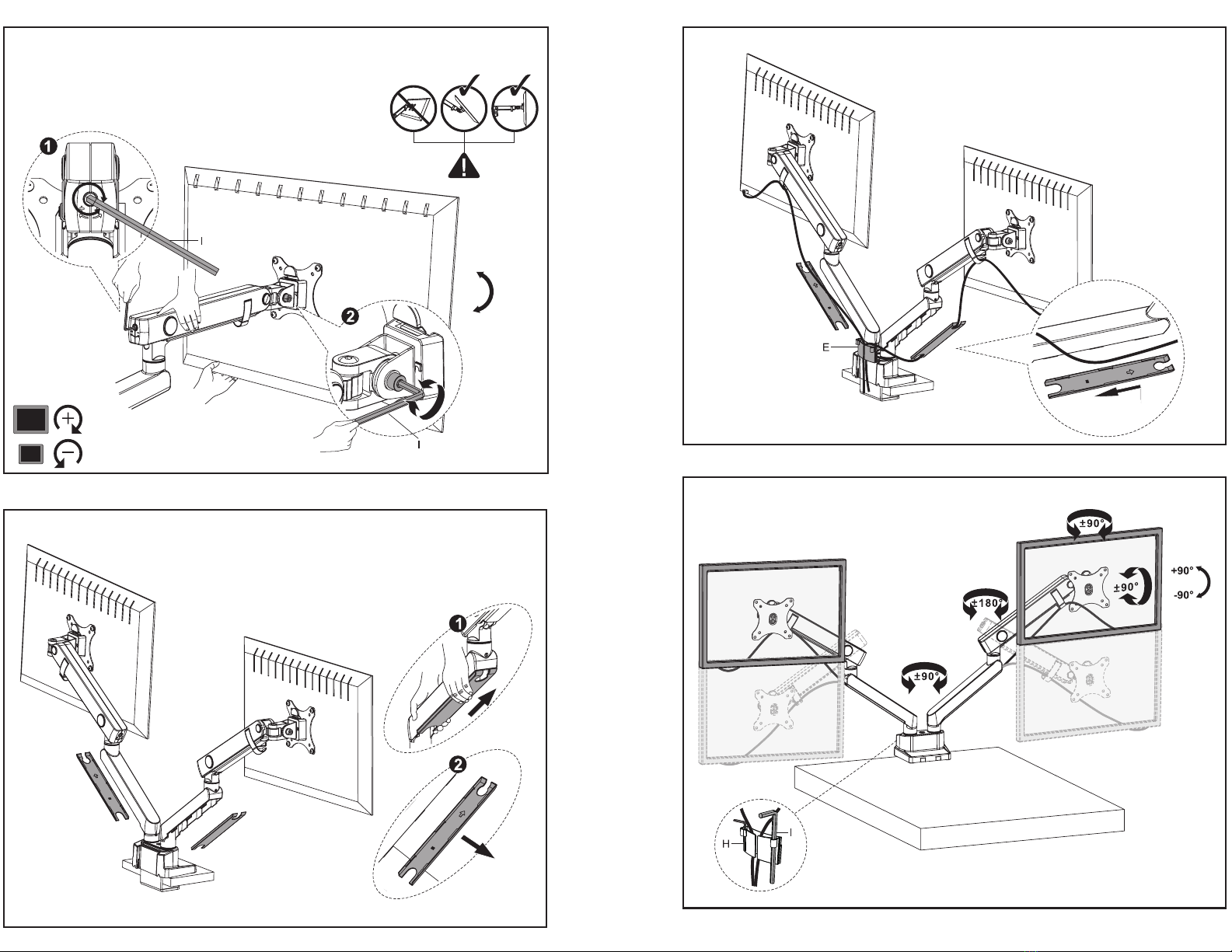

STEP 6 STEP 8
Install cable clip (E) to base. Organize cables, then reinstall cable cover to lower arms.
Adjust as Desired
If needed, adjust spring arms to support the monitors using the 6mm Allen wrench (I). Turn the
screw in back of each arm clockwise to increase support, and counter-clockwise to decrease. Adjust
the tilt joints to tighten or loosen tilt support.
STEP 7
Slide cable cover on lower arm forward to remove.
LAST UPDATED: 04/15/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
