Vivo MOUNT-KB08SW Manual de usuario

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-kb08s

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

Under Desk Keyboard Tray with

Swinging Height Adjustment

SKU: MOUNT-KB08S/SW

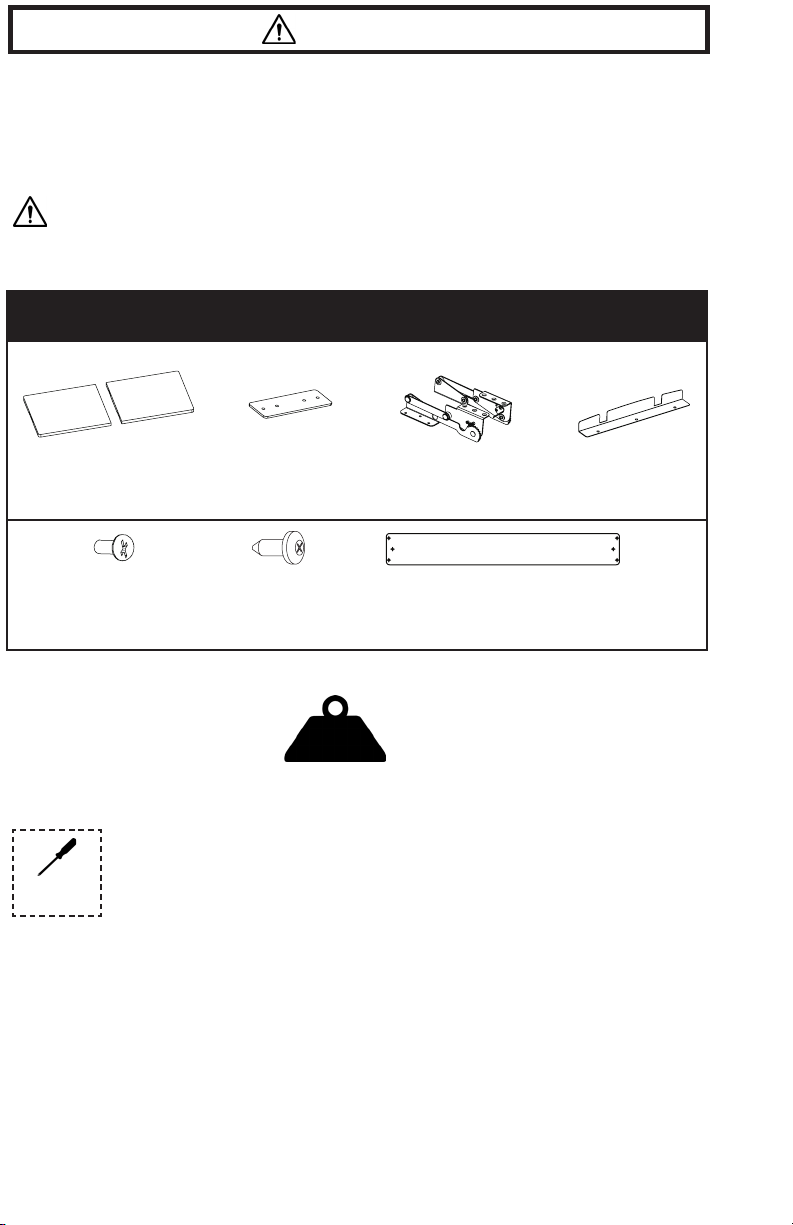

PACKAGE CONTENTS

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please contact our product support team at 309-278-5303 or [email protected]om for further assistance.

Check carefully to make sure there are no missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this

manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper

mounting, incorrect assembly or inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A(x1)

Keyboard

Tray Set

NOTE: 2 Extra screws have been included of each

TOOLS NEEDED

B(x2)

Connecting Plate

C(x2)

Height Adjustable

Bracket Set

D(x1)

Keyboard

STop

T-A (x1)

Mounting Template

S-A (x18)

M5x12mm Screw

S-B (x8)

M5x14mm Screw

ASSEMBLY STEPS

STEP 1

Assemble Keyboard Tray Set (A) by placing Connecting Plates (B) into the insets on underneathside of

Tray. Secure with M5x12mm Screws (S-A) and a Phillips screwdriver.

STEP 2

Install Keyboard Stop (D) onto assembled Keyboard Tray using M5x12mm Screws (S-A) and a Phillips

screwdriver.

S-A

STEP 3

Secure Height Adjustable Bracket Set (C) to the sides of Keyboard Tray (A) using M5x12mm

Screws (S-A) and a Phillips screwdriver.

S-A

STEP 4

Unfold the Adjustable Brackets (C) by pressing down on the levers and pulling the

top bracket up. Make sure the brackets are adjusted to the same level for installation.

STEP 5

Drill 3/8” (10mm) deep holes using a 1/8” (3mm) drill bit. Mount keyboard tray assembly using

M5x14mm Screws (S-B) and a Phillips screwdriver.

Hold Mounting Template (T-A) to the underside of desk, 0.5” (12mm) from the edge and mark hole

locations.

S-B

Desktop

T-A

0.5”/12mm from desk edge

Underside of Desk

ASSEMBLY COMPLETE

Keyboard tray is now ready for use.

Desktop

LAST UPDATED: 08/07/2023

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
