Vivo MOUNT-SF01M Manual de usuario
Black Over/Under VESA Monitor Shelf
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-sf01m
SKU: MOUNT-SF01M
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
ASSEMBLY STEPS
STEP 1
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Remove and set aside the Extension Plates from the VESA Bracket Set (B) using the Closed Wrench (T-A).
11lbs
(5kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
A (x1)
Shelf
B (x1)
VESA Bracket Set
T-A (x1)
Closed Wrench
T-B (x1)
Bubble Level
S-B(x2)
M6 Nut
S-A (x2)
M6 Carrige Bolt
M-C (x4)
M4 Spacer
M-A (x4)
M4x12 Screw
M-B (x4)
M4x30 Screw
B
T-A
Some hardware may not be used
3

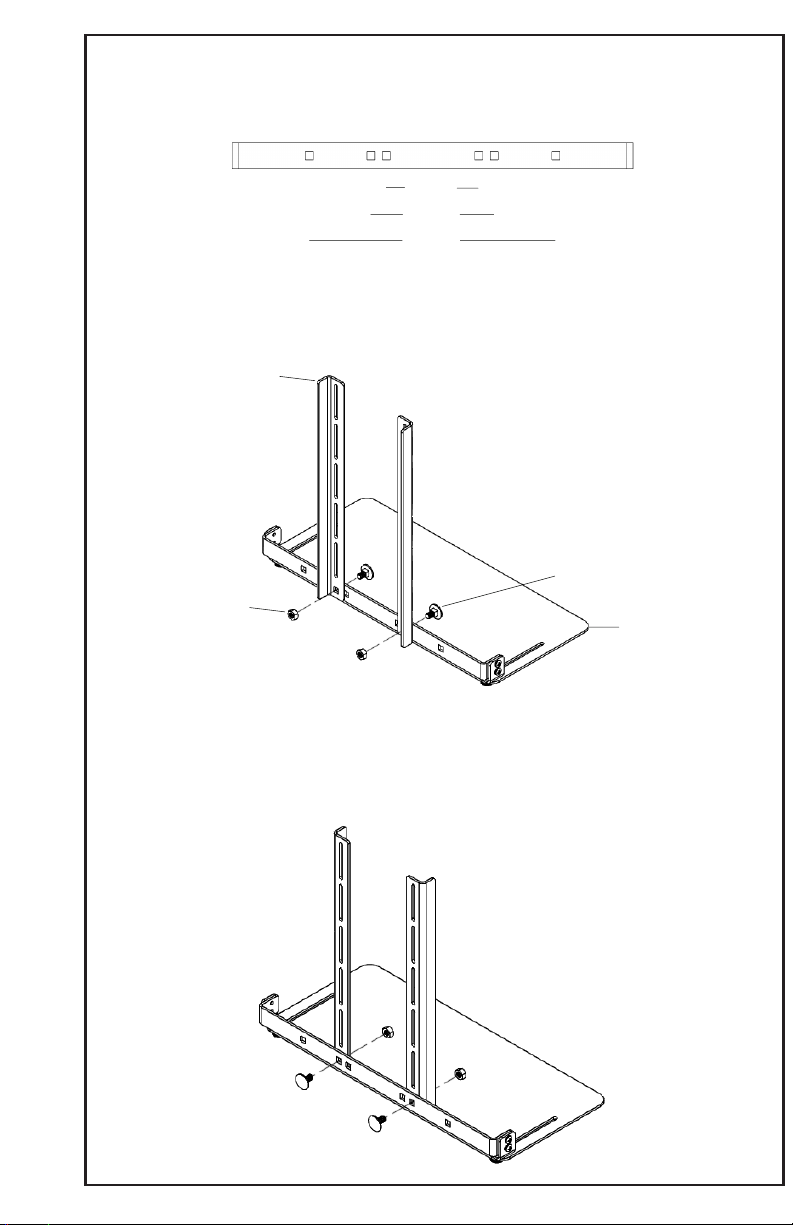

Attach the VESA Bracket Set (B) to the Shelf (A) using M6 Carrige Bolts (S-A) and M6 Nuts (S-B).
Tighten with the Closed Wrench (T-A).
NOTE: The attachment location will depend on your monitors VESA pattern and mounting
orientation. This mount is compatible with 75mm, 100mm, and 200mm wide VESA pattrerns.
STEP 2
75mm
100mm
200mm
S-B
S-A
B
A
Option B: Over Monitor Mounting
Option A: Under Monitor Mounting
4
Determine if the extension plates are needed by aligning the VESA brackets with the VESA pattern
on the back of the monitor and positioning the shelf in desired orientation. If all four VESA holes are
within the slots then extension brakcets are not needed
STEP 3
Extension plates
are needed
Does not need
extension plates
5
If extension plates are needed, reattach the extension plates to the VESA Bracket Set (B) using the M4
nuts that were set aside earlier. Tighten with the Closed Wrench (T-A).
STEP 4
OPTION A: Under Monitor Mounting
Attach VESA Bracket Set (B) using M4x12 Screws (M-A) and a phillips screwdriver. If needed, use
M4x30 Screws (M-B) and M4 Spacers (M-C) to oset monitor.
STEP 5
OPTION A: Under Monitor Mounting OPTION B: Over Monitor Mounting
Example with only VESA Brackets Example with VESA Brackets,
Extension Plates, and VESA Plate
M4 Nut
Extension Plate
M-A
B
Optional VESA plate
6

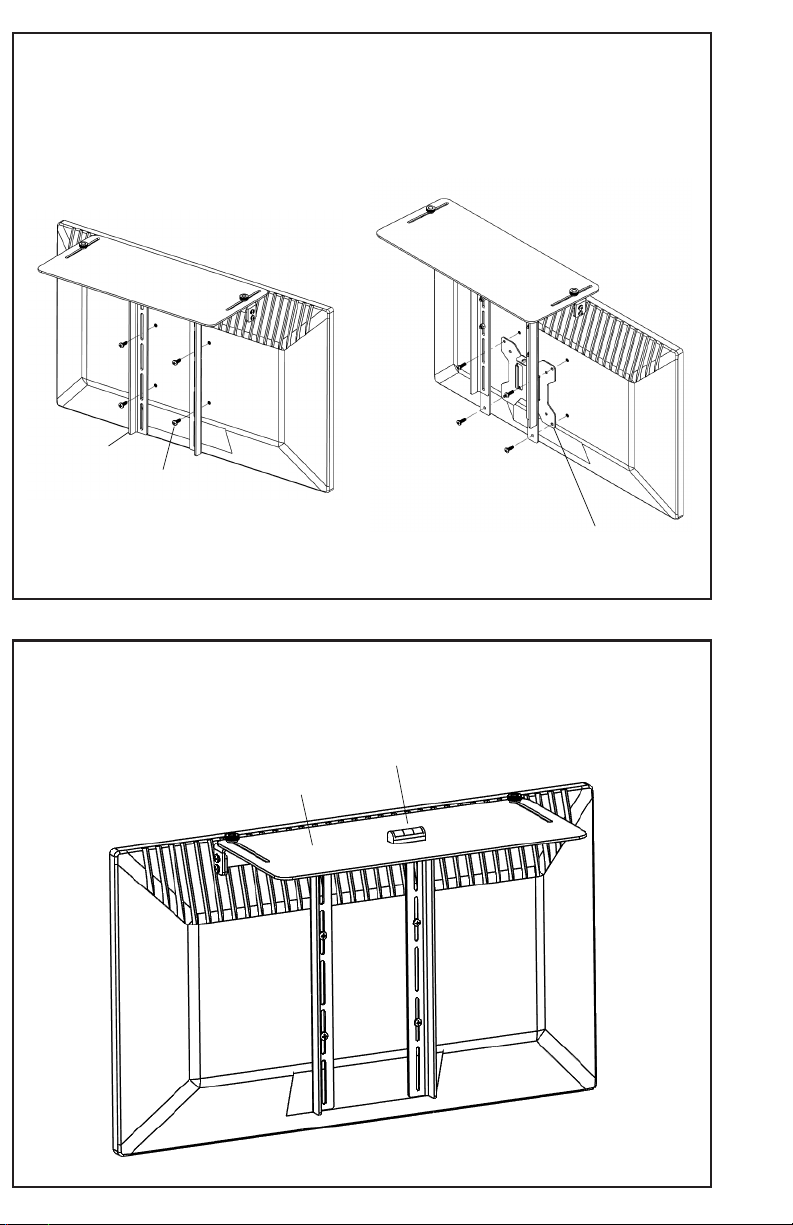

OPTION B: Over Monitor Mounting
Attach VESA Bracket Set (B) using M4x12 Screws (M-A) and a phillips screwdriver. If needed, use
M4x30 Screws (M-B) and M4 Spacers (M-C) to oset monitor.
STEP 5 (Cont.)
Use Bubble Level (T-B) if needed to level Shelf (A). Loosen VESA screws and independently adjust
each VESA bracket to level out the shelf then retighten screws.
STEP 6
Example with only VESA Brackets Example with VESA Brackets,
Extension Plates, and VESA Plate
M-A
B
Optional VESA plate
T-B
A
7
Loosen tilt screws to adjust the angle of the shelf and retighten with a phillips screwdriver. To adjust
shelf location, loosen both thumbscrews and slide the shelf along the slots and retighten.
STEP 7
Tilt Screws
Thumbscrew
LAST UPDATED: 07/01/2021
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
