Vivo MOUNT-PC01 Manual de usuario
Black Under Desk and Wall PC Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-pc01
SKU: MOUNT-PC01
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

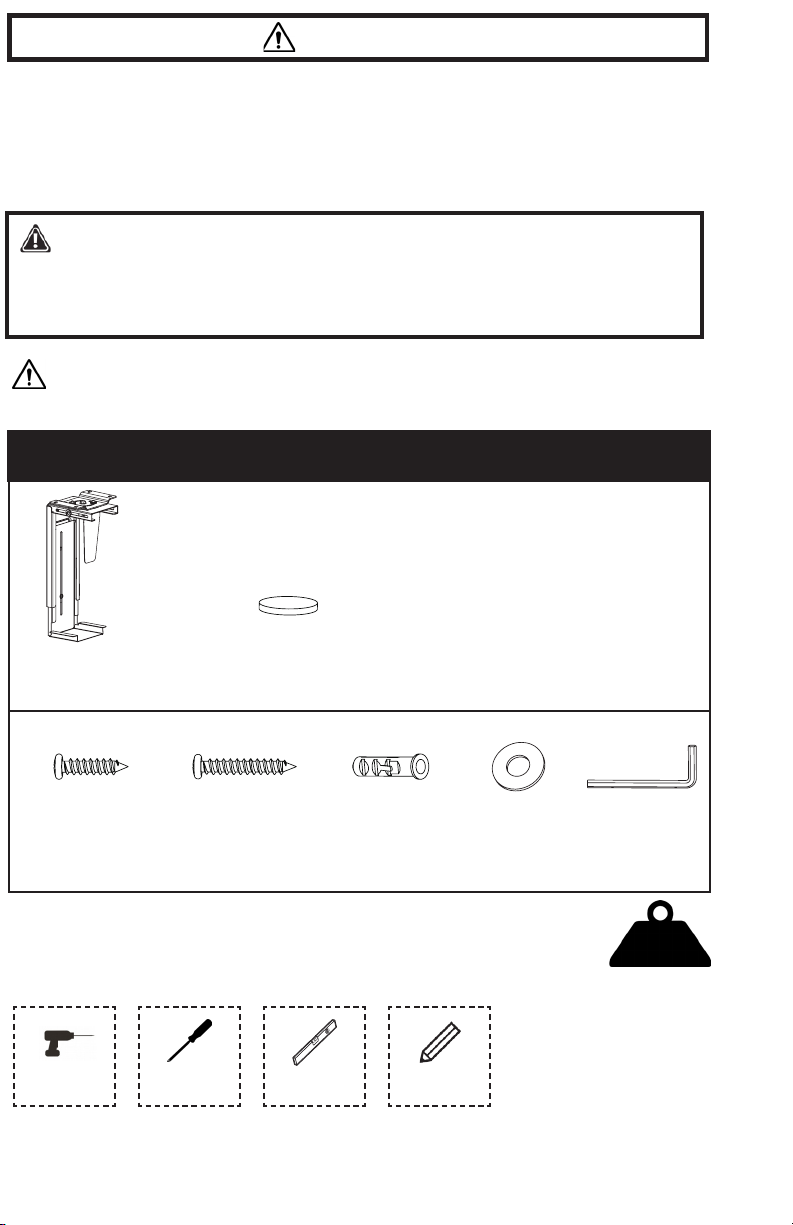

PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
A (x1)
Mount
M-A (x4)
ST4.8x16mm Screw
M-B (x4)
ST4.8x38mm Screw
M-C (x4)
Concrete Anchor
B (x12)
Pad
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
Drill
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M-D (x4)
Washer
T-A (x1)
4mm Allen Wrench
Level
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Pencil
Phillips
Screwdriver
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,
email at [email protected]om, or call us at 309-278-5303.
3
ASSEMBLY STEPS

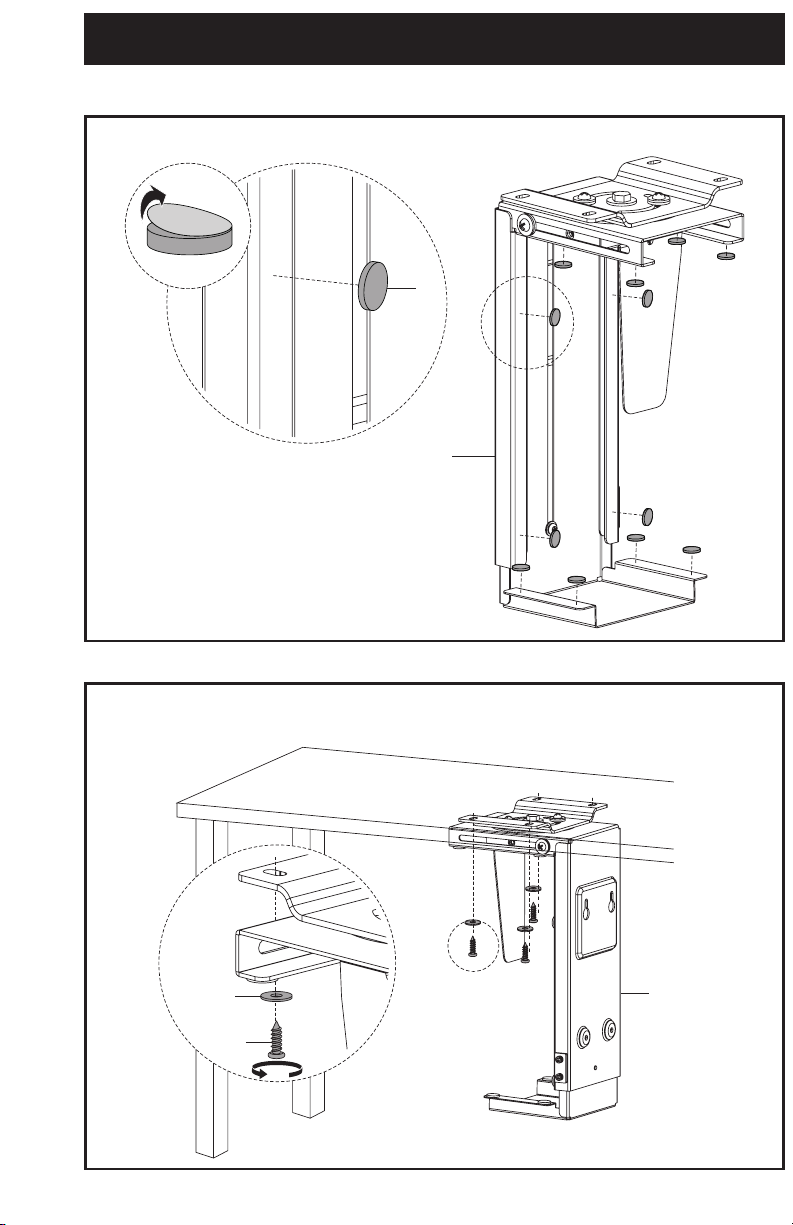

STEP 1
Apply Pads (B) to top, bottom, and side of Mount (A) as shown.
STEP 2A-1
OPTION A: Under Desk Installation
Secure Mount (A) to bottom of desk using ST4.8x16mm Screws (M-A) and Washers (M-D).
B
A
A
M-A
M-D
4

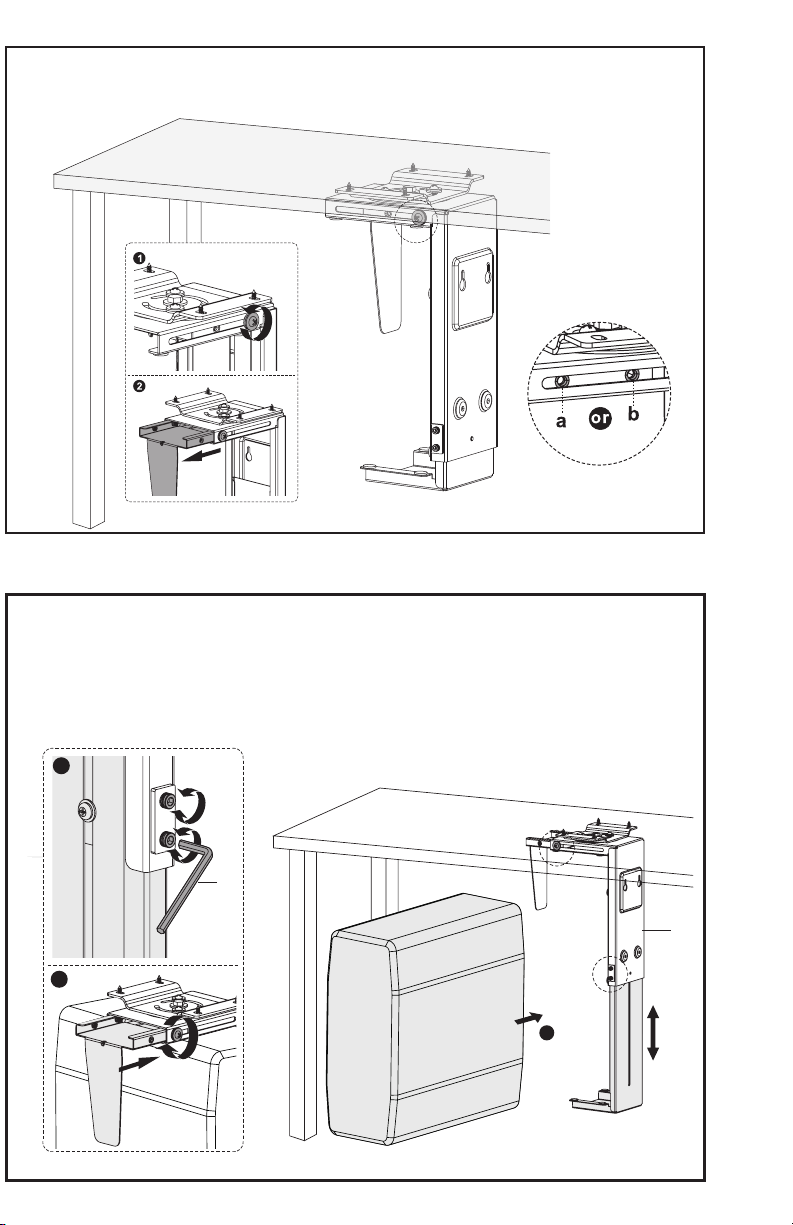

OPTION A: Under Desk Installation
Loosen set screws for lower support using 4mm Allen wrench (T-A) and slide the support down. Place
PC tower on Mount (A), slide bottom support up until Mount (A) is t vertically to PC, and tighten set
screws using 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten screws
using a Phillips screwdriver.
STEP 2A-2
OPTION A: Under Desk Installation
Loosen two screws on top of Mount (A) (one on each side) and slide side support bracket out to
maximum width. The screws can be removed to adjust the side support bracket to one of two
positions, a or b.
STEP 2A-3
1
3
1
2
T-A
A
5

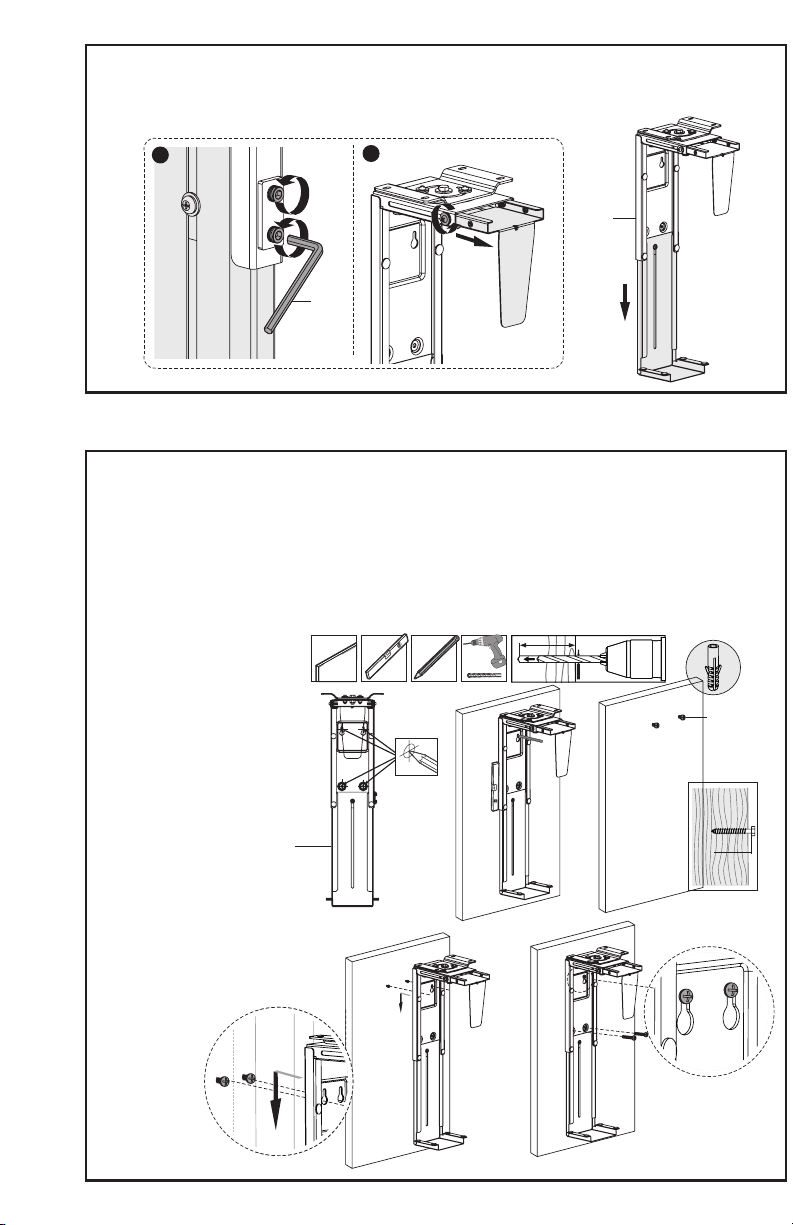

STEP 2B-1
OPTION B: Wood Wall Installation
Loosen two screws on top of Mount (A) (one on each side) and slide side support bracket out to
maximum width. Loosen set screws for lower support using 5mm Allen Wrench (T-A) and slide the
support down.
STEP 2B-2A
3mm
XX
ø3 5m
ø1 /8"
.
()
m
15mm
0.6”()
15mm
0.6”()
OPTION B: Wood Wall Installation
For solid wood wall, place Mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm) drill
bit, drill holes 0.67” (15mm) deep. Insert two ST4.8x16mm Screws (M-A) into top holes, leaving a 3mm
of thread exposed. Hang Mount (A) over screws and insert two more ST4.8x16mm Screws (M-A) into
lower holes. Tighten screws with a Phillips screwdriver.
If wall has a wood stud frame, use a stud nder to locate the stud, then place Mount (A) against wall and
mark drilling locations for top and bottom holes on only one side of the mount. Using a 1/8” (3.5mm)
drill bit, drill holes 1.2” (35mm) deep. Insert a ST4.8x38mm Screw (M-B) into top hole, leaving 3mm of
thread exposed.
Hang Mount (A) over
screw and insert another
ST4.8x38mm Screw (M-B) into
lower hole. Tighten screws
with a Phillips screwdriver.
12
T-A
A
M-A
A
6

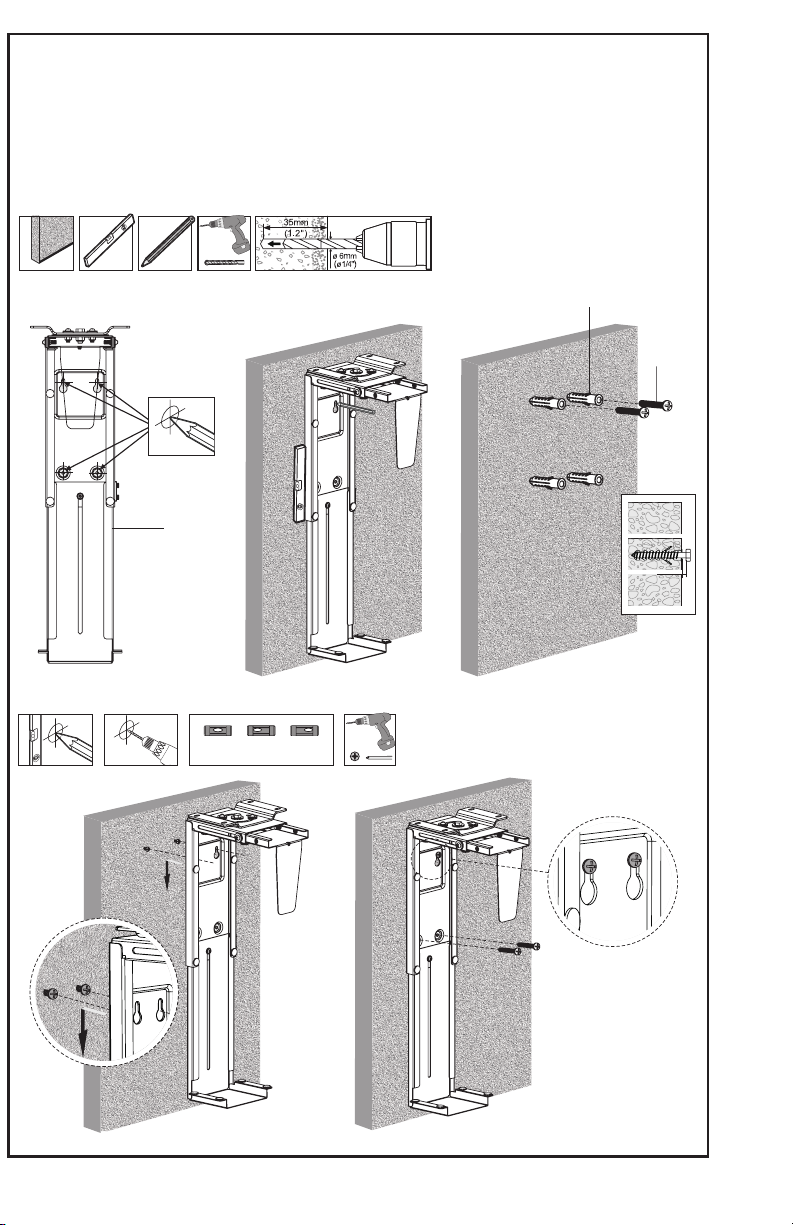

STEP 2B-2B
O
N
uu
√
3m m
OPTION C: Concrete Wall Installation
For concrete wall installation, place Mount (A) against the wall and mark locations with a pencil. Drill
1.2” (35mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert Concrete Anchors (M-C)
into holes, and insert two ST4.8x38mm Screws (M-B) into top holes, leaving 3mm if thread exposed.
Hang Mount (A) over two screws in the wall. Secure with two additional ST4.8x38mm Screws (M-B), and
tighten screws with a Phillips screwdriver.
A
M-B
M-C
7

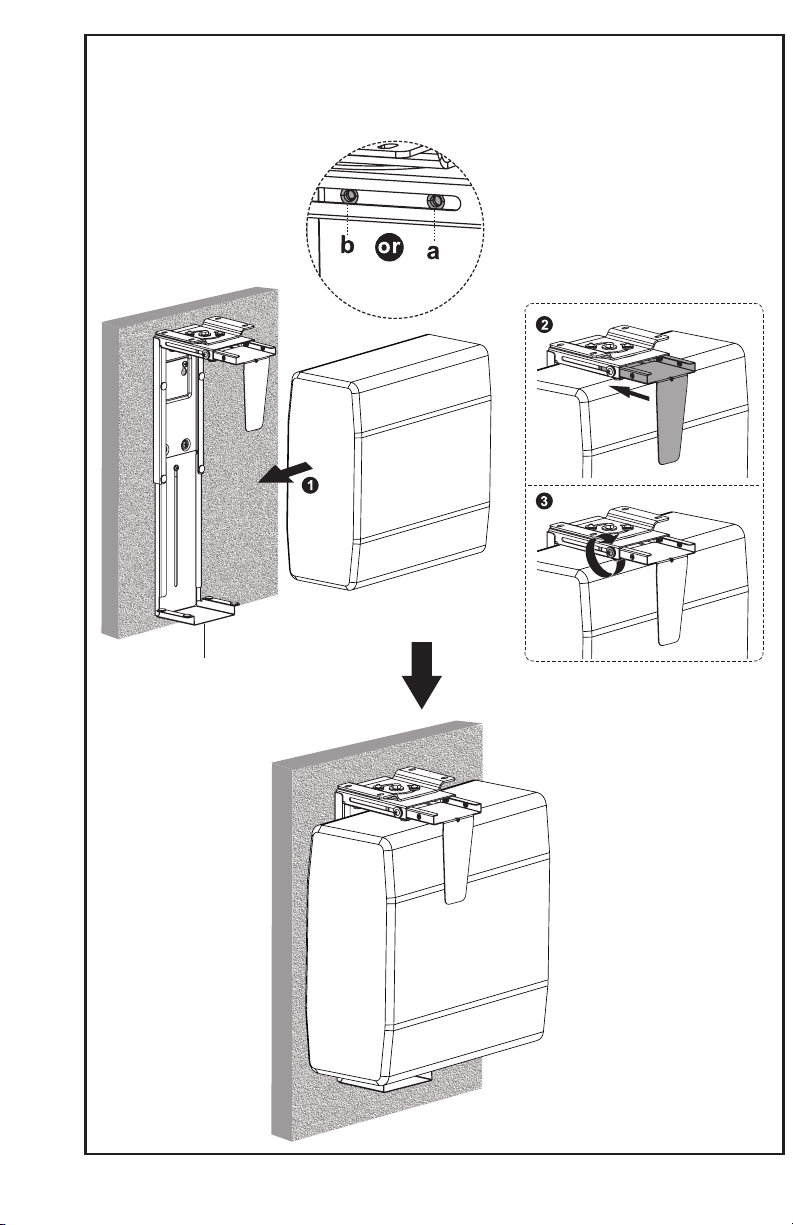

STEP 2B-3
O
OPTION C: Concrete Wall Installation
Place PC tower on Mount (A), slide bottom support up until mount is t vertically to PC, and tighten
set screws using 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten screws
using a Phillips screwdriver. The screws can be removed to adjust the side support bracket to one of
two positions, a or b.
1
3
A
LAST UPDATED: 06/17/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
