Vitek VTC-THB8R2 Manual de usuario

VITEK

VTC-THB8R2

VTC-THT8R2

FEATURES

• 1/2.5” 8 MegaPixel [4K] Progressive Scan CMOS image sensor

• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS

• 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color

• Supports OSD Menu

• 2.8mm Fixed Iris Lens

• 1 Matrix IR with up to 100’ IR Range (VTC-THB8R2,

VTC-THT8R2)

•16 SMD IR LEDs with up to 65’ Range (VTD-THD8R2)

• Digital Wide Dynamic Range D-WDR

• True Mechanical Day/Night function by ICR

• XD-DNR Noise Reduction

• Supsports Control over COAX (CoC)

• IP67 Weather Resistance (+IK10 on VTD-THD8R2)

• Over 1500’ HD Video Transmission (Depending on cable

characteristics and integrity)

• VTC-THB82: Optional J Box TJB08

• VTC-THT8R2: Optional J Boxes VT-TJB01, TJB08,

Wall Mount VT-TWMT-3

• VTD-THD8R2: Optional J Box VT-TJB03A, Wall Mount

VT-TWMT-3, In-ceiling Semi Flush Mount VT-TFMT-S

• 12VDC Operation

• 3-year Warranty

VTD-THD8R2

Transcendent 8.0 Megapixel [4K] Indoor/Outdoor

4-in-1 Fixed Lens Cameras

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of atypical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user tothe presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude toconstitute a risk of electrical shock.

VTC-THB8R2 Components

Overview

Screws

Drill Template

Camera

User Manual

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power

12VDC

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Monitor

Video

Lens

Sun Shield

Mount Lock

Mount Base

BNC Video Output

Output Mode Switch

Power Cable

This series supports AHD/TVI/CVI/CVBS video output.

The video output can be changed by pressing and holding the button in the

video switch cable for 5 seconds (the default video output is TVI video

output). Before switching video outputs, please remove the cover of the

video switch cable.

Video Output Mode Switch:

Installation

Before you begin, please make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base. then secure the

mounting base to the ceiling or wall with screws.

Loosen the mount lock to adjust the Pan and Tilt of the camera, then

tighten the mount lock to secure the viewing angle adjustments.

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

VTC-THT8R2 Components

Camera

Manual

Screws

Hex Wrench

Mounting Plate

Rubber Plug

Lens

Lock Screws

BNC Video Output

Output Mode Switch

Power Cable

Monitor

Video

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Power

12VDC

This series supports AHD/TVI/CVI/CVBS video output.

The video output can be changed by pressing and holding the button in the

video switch cable for 5 seconds (the default video output is TVI video

output). Before switching video outputs, please remove the cover of the

video switch cable.

Video Output Mode Switch:

Overview

Installation

Before you begin, please make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and

connect the power & video

cables, then secure the

mounting base to the ceiling

or wall with screws.

3. Loosen the lock screws, then

adjust the camera to obtain

the optimium viewing angle.

Confirm the correct viewing

angle with a monitor. Next

insert the rubber plug.

4. Tighten the lock screws to secure the viewing angle adjustments.

Rubber Plug

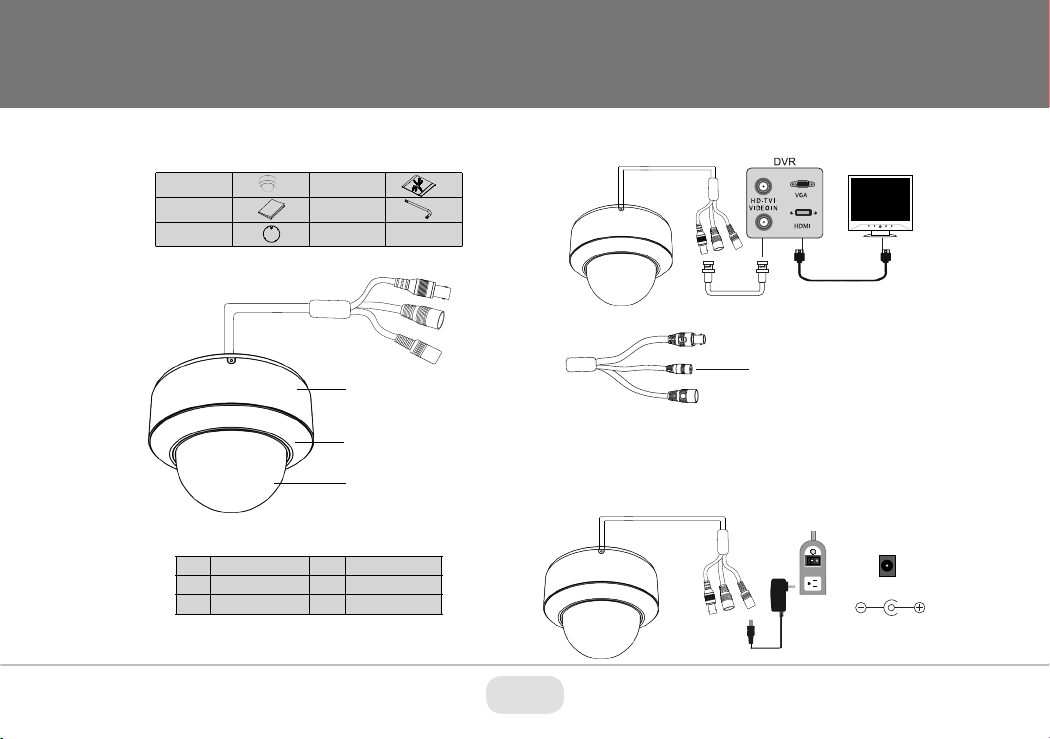

VTD-THD8R2 Components

Overview

Camera

Manual

Drill Template

Screws

Allen Key

Mounting Base

Dome Cover

Output Mode Switch

Power Cable

Monitor

Video

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Power

12VDC

BNC Video Output

Trim Ring

This series supports TVI/AHD/CVI/CVBS video output. Before switching

video outputs, please remove the cover of the video switch cable.

The video output can be changed by pressing and holding the button in

the video switch cable for 5 seconds.

Video Output Mode Switch:

Video Switch Cable

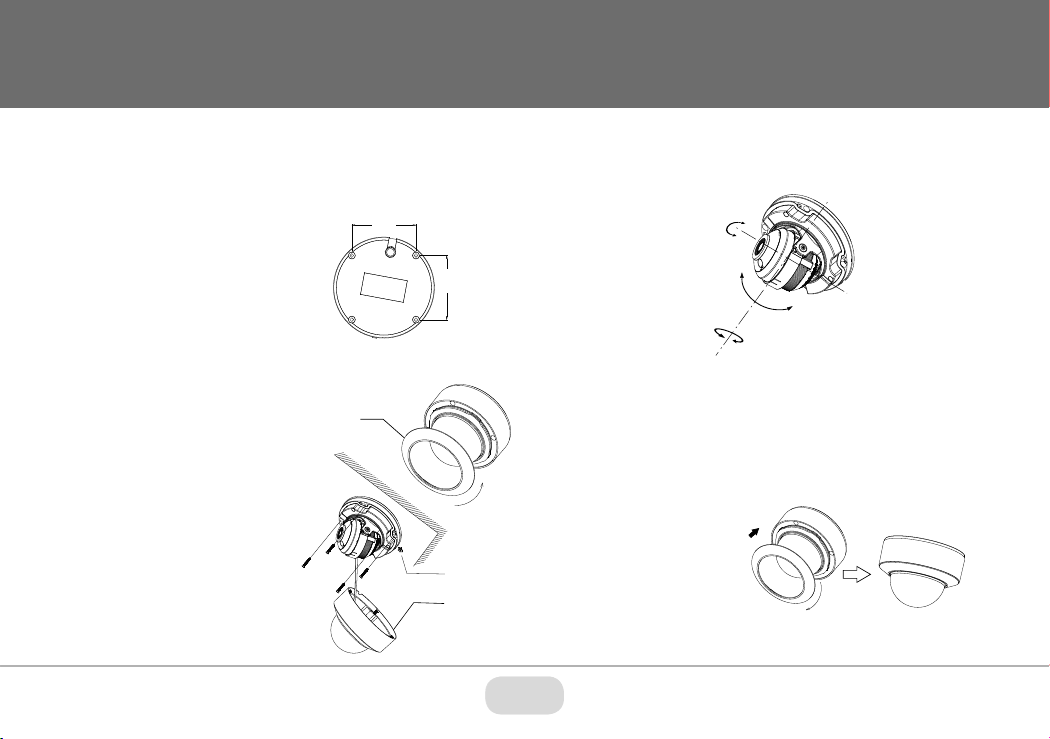

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base. then secure the

mounting base to the ceiling

or wall with screws.

2. *Unscrew the trim ring by turning it

counter-clockwise. This will enable the

removal of the lower dome.

4. Adjust the Three-axis camer bracket to obtain the optimium

viewing angle.

74.3

(mm)

INCHES

2.92

Trim ring

Rubber Plug

Lower dome

Rotation 0°~355°

Pan 0°~355°

Tilt 0°~67°

5. Install the dome bubble on

the camera with the screws,

then replace the trim ring

by turning it clockwise.

Finally, carefully remove the

protective film to complete the

installation.

Camera OSD Menu

The Transcendent 4-in1 camera series must be connected to a DVR

which supports HD-TVI/AHD video signal input and COC protocol to

access the OSD setup menu. Different DVRs manufacturers may have

different modes of menu operation.

You can select the menu by clicking (U) or (D) key on the

direction area. Click (L) or (R) key to select the menu on the

left. The menu with arrow icon which means it has sub-menu. You

can select the menu and click the Enter Button to enter the

sub-menu. to return to previous screen, arrow down to Return and

click Enter Button. To Exit menu arrow down to Exit and click Enter

Button.

You will see the following interface by clicking the PTZ button.

The Following image will pop-up when you left click once on the

image when using Different DVR manufacturers.

Click on the OSD tab and then click on the camera menu

button.

Detailed Specifications VTC-THT8R2 VTC-THB8R2

Image Sensor

Signal System

Effective Pixels

Resolution

Video Output

Frame Rate

Lens

Day/Night

Min. IIIumination

IR LEDs

IR Distance

S/N Ratio

WDR

Other Features

Digital Noise Reduction (DNR)

White Balance

BLC

Control over COAX (COC)

Transmission Distance

Power Input

Power Consumption (12VDC)

Resistance Rating

Operation Conditions

Weight

Dimensions

1/2.5” 8.0 Megapixel Progressive Scan CMOS Sensor

PAL/NTSC

3840 x 2160

HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H

HD-TVI / AHD / CVI / CVBS (Selectable)

8MP@15fps / 5MP@20fps / 4MP@30fps

2.8mm - Fixed

True Day/Night by ICR

Color: 0.01 [email protected], AGC ON / B/W: 0 lux (with IR ON)

Up to 100’

≥52dB (AGC Off)

XD-DNR (3D-DNR / 2D-DNR)

Auto (AWB)

YES

Up to 1500’ (Depending on cable characteristics & integrity)

12VDC

IP67

-4°~122° / 10%~90% Humidity

15.52 oz. / 0.97 lbs. / 440g

6.6 x 2.93” (167.5 x 74.5mm)

1 Matrix

16.58 oz. / 1.04 lbs. / 470g

Ф4.25 x 3.75” (Ф108 x 95.7mm)

Digital Wide Dynamic Range (D-WDR)

Saturation, Sharpness, Contrast, Image Setting, Smart IR

VTD-THD8R2

4.69” x 3.47” (119mm × 88mm) Dia x H

+IK10

20.81 oz. / 1.30 lbs. / 590g

Up to 100’

1 Matrix

Up to 65’

16 SMD IR LEDs

IR Off: 150mA / IR On: 350mA IR Off: 150mA / IR On: 350mAIR Off: 150mA / IR On: 350mA

Otros manuales para VTC-THB8R2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vitek

Vitek

Vitek VTD-MV-VN Manual de usuario

Vitek

Vitek VTD-B72 Manual de usuario

Vitek

Vitek VTD-MH2910 Manual de usuario

Vitek

Vitek Mighty Series Manual de usuario

Vitek

Vitek VTC-TNB4RMA4B Manual de usuario

Vitek

Vitek VTD-TTD30R2V Manual de usuario

Vitek

Vitek VT-TPTZ10HR-5N Manual de usuario

Vitek

Vitek VTC-IRM5H-2713 Manual de usuario

Vitek

Vitek Transcendent Series Manual de usuario

Vitek

Vitek VTC-IRE40/3516 Manual de usuario

Vitek

Vitek VTC-C770/WDR Manual de usuario

Vitek

Vitek VTD-M30 Manual de usuario

Vitek

Vitek VT-IR1B/12 Manual de usuario

Vitek

Vitek VT-PIRC2H Manual de usuario

Vitek

Vitek TRANSCENDENT VTC-TNB8FADW-2 Manual de usuario

Vitek

Vitek Transcendent VTD-TND3RFE Manual de usuario

Vitek

Vitek VTC-IRX36/3895 Manual de usuario

Vitek

Vitek VT-PTZ10 Manual de usuario

Vitek

Vitek VT-TPTZ10HR-4N Manual de usuario

Vitek

Vitek VTC-C2BMS2 Manual de usuario

Vitek

Vitek Transcendent VTC-TNT8RFEA-2 Manual de usuario

Vitek

Vitek VTC-TNT5RMEA Manual de usuario

Vitek

Vitek TRANSCENDENT VT-TPTZ10HRF-2T Manual de usuario

Vitek

Vitek VTC-C594DN Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
