Vitek VT-TPTZ10HRC-5N Manual de usuario

VITEK

VITEK

VT-TPTZ10HR-5N

VT-TPTZ18HR-5N

5.0 MegaPixel H.265 IP PTZ

Cameras w/IR LED Illumination

QUICK START GUIDE

FEATURES

• 1/3” 5.0 MegaPixel CMOS Sensor

• 2592x1944 @ 15fps / 2592x1520 @ 22fps

• H.265/H.264/MJPEG Triple Streaming

• True Day/Night by IR Cut Filter

• Built-in 5mm to 50mm Lens offering 10x Optical Zoom

(VT-TPTZ10HR Models) / Built-in 4.8mm to 84mm Lens offering

18x Optical Zoom (VT-TPTZ18HR-5N)

• 6 Integrated IR LEDs with up to 165’ IR Range (VT-TPTZ10HR

Models) / 10 Integrated IR LEDs with up to 500’ IR Range

(VT-TPTZ18HR-5N)

• DigitalNoise Reduction

• 220 Presets programmed with view direction, zoom, BLC, etc

• Max manual speed 480°/sec

• 360°continuous rotation

• 16:9 Video format

• Double layer metal body construction with IP66 Weather Resistance

• Includes Wall Mount Bracket & Power Supply

• ONVIF Compliant

• 12VDC Operation

• 3 Year Warranty

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

VT-TPTZ10HR-5N VT-TPTZ10HRF-5N

VT-TPTZ10HRC-5N

VT-TPTZ18HR-5N

2 3

Package Contents

Dimensions

1. IP IR Speed dome

2. Wall mount bracket

3. Power supply

4. Screws kits

5. User manual

VT-TPTZ10HR-5N Dimensions:

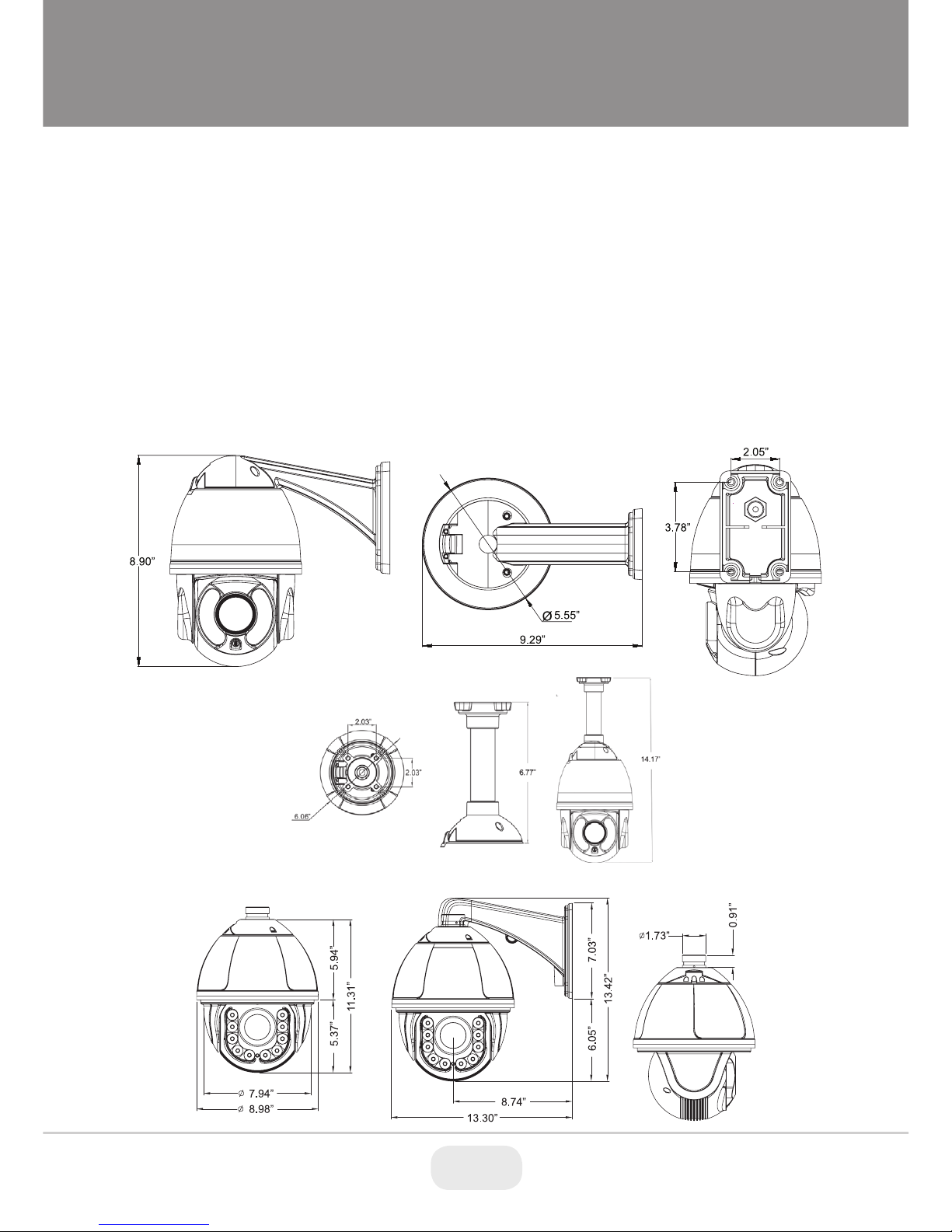

VT-TPTZ18HR-5N Dimensions:

3

Installation

* The installation point must be able to support at least 4 times the

weight of the fully assembled dome camera.

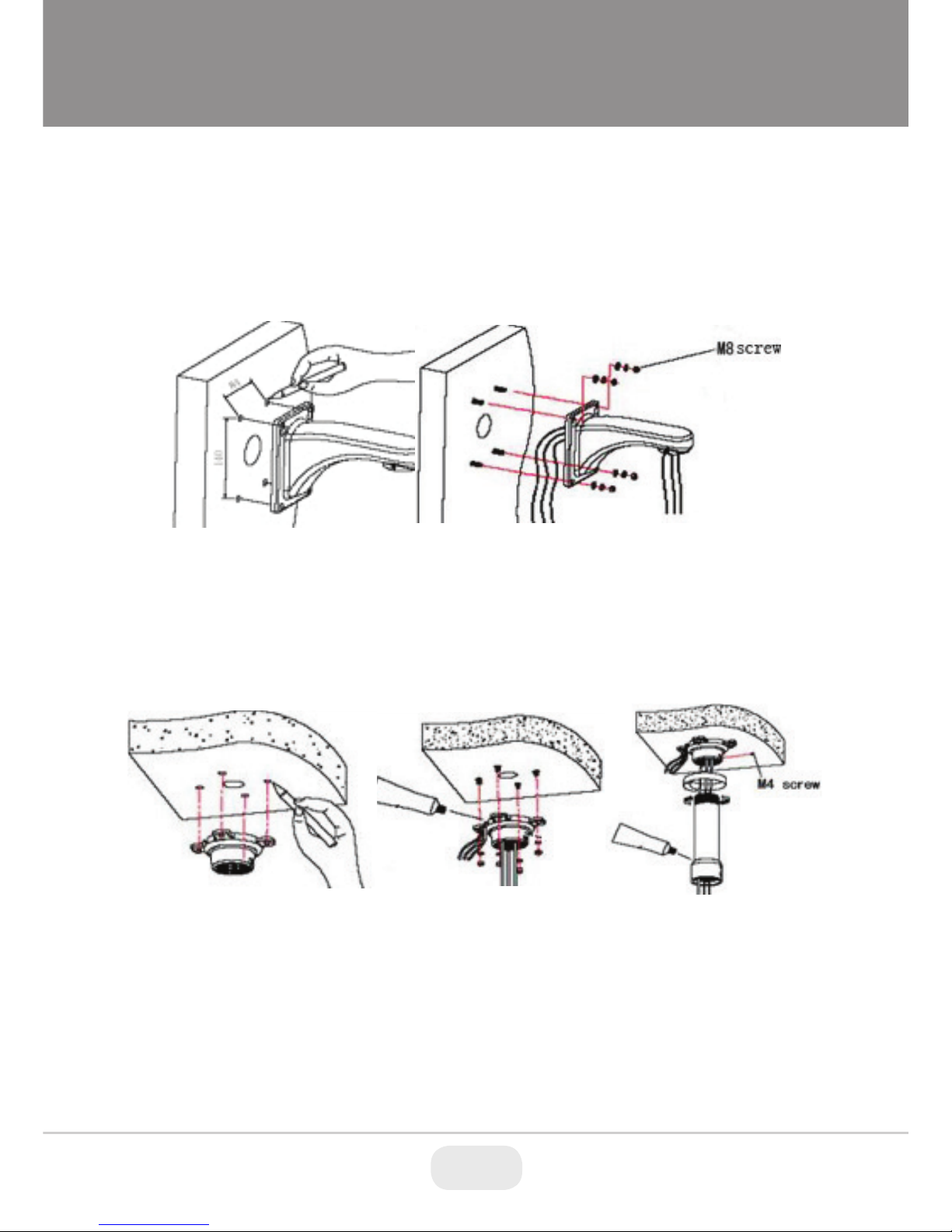

Attach the wall bracket to the wall using the included M8 Screws, then

feed the cables through it.

Wall Mount Installation

Use the installation holes in the base of the ceiling mount as a pattern,

then install using the M6 bolts.

Ceiling Mount Installation

Note: If the dome is used in the outdoor or damp conditions, it’s

strongly recommended to seal the threads of the mount with silicone

gel.

4 5

Setup & Configuration

1. With a computer running Windows 7 or above install IP Wizard

2. With computer connected to the same network that the IP PTZ is

connected too, run IP wizard.

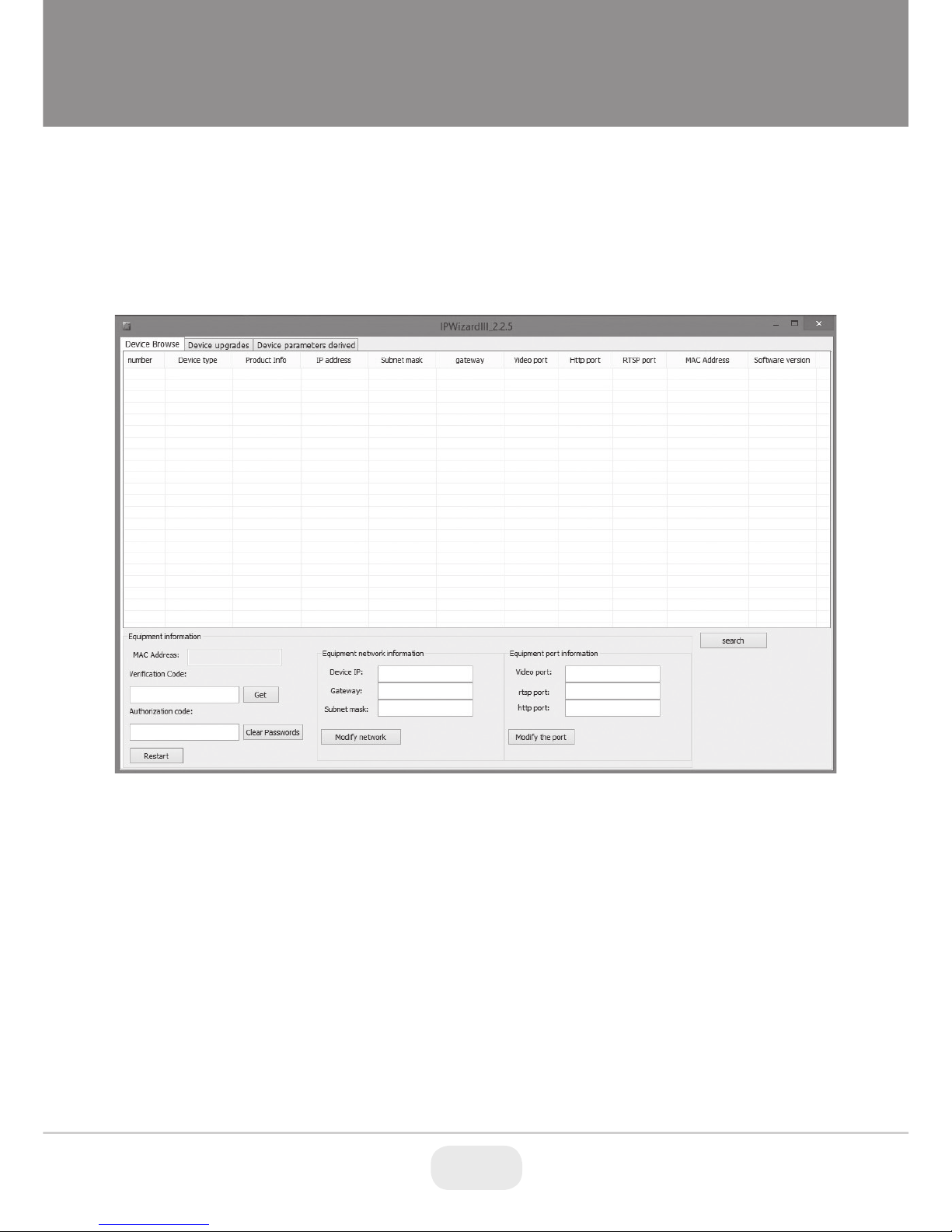

3. After IP Wizard is opened click on Search

4. IP Wizard will find all Transcendent IP PTZ cameras on the network

5

6. Once camera is highlighted you can change the IP address or ports

by making changes and then clicking on “Modify”

7. Once changes are completed double click on the IP camera you want

to connect too. IE will open and direct you to the login screen of the

camera.

8. Default User name and Password are admin/admin

Setup & Configuration

6 7

9. After logging into camera click on “Browse” for live view or “Settings”

for detailed programming

Setup & Configuration

7

Setup & Configuration

5. Once camera(‘s) are found highlight the camera that needs to be

changed

8

Setup & Configuration
