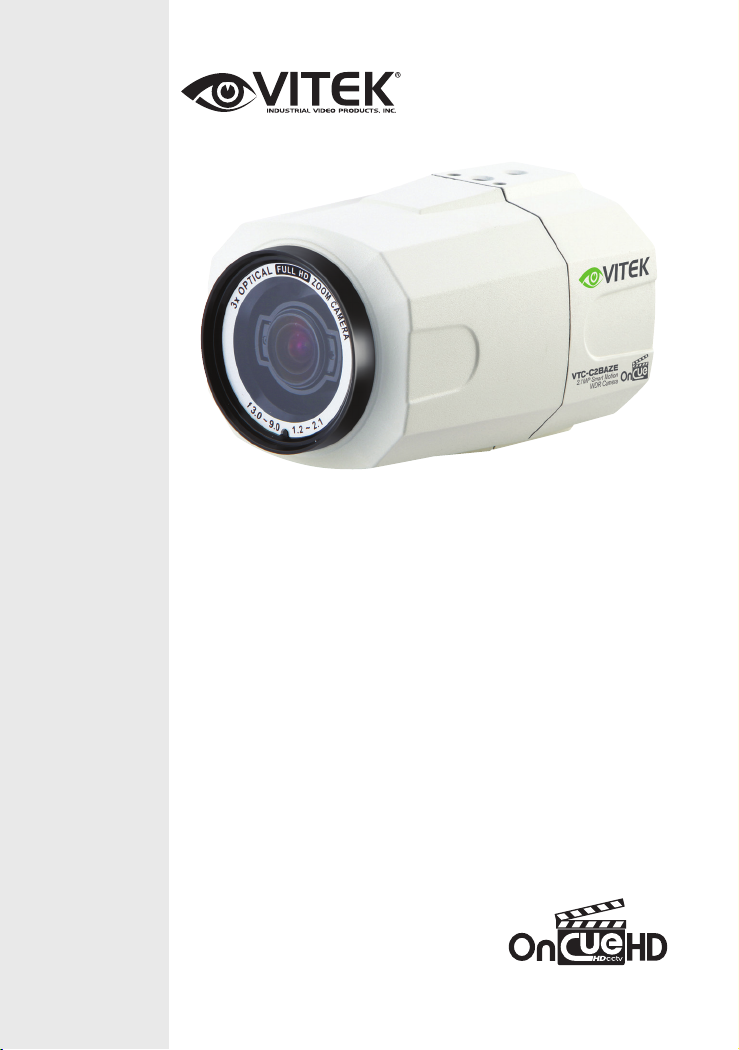

Vitek VTC-C2BAZE Manual de usuario

VITEK

FEATURES

• 1/3” 2.1 MegaPixel Progressive Scan CMOS

• 2.1 MegaPixel With full 1080p/720p Output

• Up to 30fps live view @ 1920x1080 (1080p)

• MegaPixel IR Corrected 3-9mm (VTC-C2BAZE39) / 9-22mm (VTC-

C2BAZE922) Motorized Auto Focus and Zoom

• Extended long reach HD Solution

• Mechanical IR Cut Filter (True Day/Night)

• 16:9 Video format

• On-board Intelligence (OBI Technology) delivers Auto-Focus-Zoom by

tracking motion, then optically zooming in to that area of the frame

• Fully programmable advanced WDR

• Advanced OSD Functions: Motion Activated Pointing Zoom, Defog, Smart

Dynamic IR, BLC/HLC, Motion Deblur, Pixel Defect Compensation, Title Set,

Mirror, Flip, Lens Refresh, Lens Initialize, Home Position, DSS

• Up to 1000’ HD Transmission Range (Depending on cable characteristics and

integrity)

• 12VDC / 24VAC Dual Voltage Operation

VTC-C2BAZE

2.1MP HD-SDI / EX-SDI

Auto-Focus-Zoom Camera

2 3

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electrical shock.

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help

comprehension and may differ from actual video of the camera.

• Avoid installing in areas where shock or vibration may occur.

• Pay attention to safety when running the connection cables and

make sure that the cables are not subject to heavy loads, kinks,

moisture or damage.

• Never open the device (no user serviceable parts inside). The

warranty becomes void if repairs are undertaken by

unauthorized persons.

• Maintenance and repair have to be carried out only by authorized

service centers.

• Use only a mild detergent to clean the housing.

• The camera should never be operated beyond the technical

specifications. This can lead to damaging the device and void

the warranty.

• The camera should never be operated in water.

4 5

Contents

Safety Precaution

p.02~03

Contents

p.04

Features

Package Includes

p.05~06

Dimensions

p.07

Part Names

p.08

Installation Instructions

p.09

Operating Instructions

p.10~26

Specifications

p.27

OnCue VT-HDOCE Series

p.28

Limited Product Warranty

p.29

Features

Key Features

• Full HD, 2Mega Pixel, EX-SDI CAMERA, 1920x1080(30p/25p)

• Extended long reach HD Solution

• Real time True WDR (Wide Dynamic Range) / 30fps

• Improved noise reduction with the enhanced 3DNR

• VTC-C2BAZE39: f=3~9mm, F1.2~F2.1 Day & Night Motorized Auto

Focus and Zoom lens (Optical 3x / Digital 32x)

• VTC-C2BAZE922: f=9~22mm, F1.6~F2.3 Day & Night Motorized Auto

Focus and Zoom lens (Optical 2.4x / Digital 32x)

• Dual ICR Switch

• Focusing Status Indicator on Screen

- ★(Blue) Focusing in process

- ★(White) Focusing Completed

• Various Zooming Technologies

- Smart Motion Zoom (Automatic zoom in/out when motion is detected)

- Pointing Zoom which enables the zooming of any area within the FOV

- Preset Zoom up to 4 presets

• Home Position setting

• Motion Detection, Privacy Mask, Defog, Sens-up(x32), BLC/HLC,

D-Zoom, H/V/HV Flip, Motion Deblur, Pixel Defect Compensation,

Lens Refresh, Lens Initialize

• ID / TITLE / ZOOM RATIO DISPLAY

• Enhanced Sensitivity by DSS technology

• EX-SDI or HD-SDI switchable

• Top performance at low light sensitivity (Sens-up On)

• OSD menu & Video sub-out for easy installation & maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Remote control via RS-485 (Pelco-D/P)

• Firmware update via RS-485

• Anti-Scratch hard coated Window

6 7

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accept infrared light

• With 24VAC/12VDC dual power design,

- Offers the flexibility of installation

- Ensures the reliability

This camera realizes the natural and crisp image as you see the scene in front of

you by adopting Auto Focus Full HD(1920x1080p) camera module.

Features

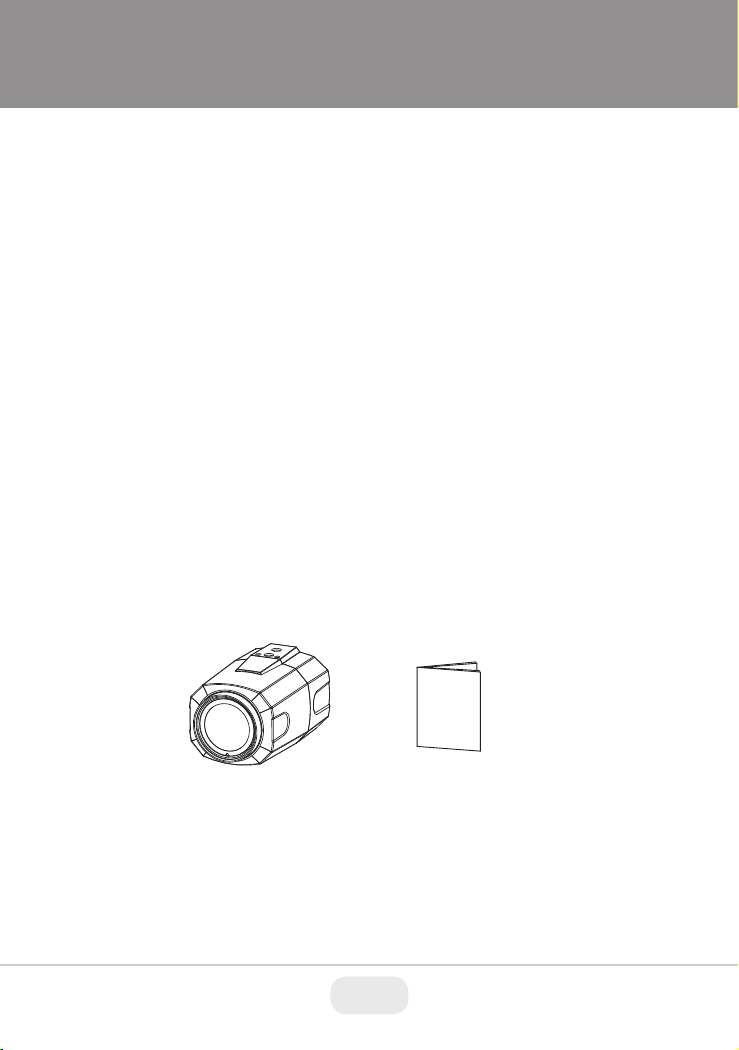

Package Includes

Zoom Box Camera Operating Instruction

Dimensions

(unit : mm)

• Extreme care should be taken NOT to scratch the window on front of lens.

• Care should be taken that the cable is NOT damaged, kinked or exposed in

a hazardous area.

• Do not point the camera lens directly at the sun or a spot light.

CAUTION

4.45

Ø2.13

4.92

2.83

2.99

8 9

Part Names

Front Case

Window

Rear Case

Mount Holes

(Top / Bottom)

REAR VIEW

① OSD Control Joy stick

② Power input terminal

(24VAC/12VDC)

③ RS-485 / IR connector

④HD-SDI/EX-SDI output connector

⑤ Power LED

⑥ CVBS output connector

⑦ Video format Switch

④

③

①

⑤

⑦

⑥

②

Installation Instructions

• The camera has a 1/4” thread insert on top and bottom for mounting

the camera to a wall or ceiling with a corresponding mount.

Installation and commissioning Instructions

• Make sure the power is removed before installation.

• After all connections are properly finished, follow this order for applying power.

first connect the low voltage wires to the camera, then plug the AC/DC adapter

to AC outlet to avoid damage..

Power Supply Connection

Camera can work with either 24VAC or 12VDC, dual voltage power.

Primary and secondary grounds are completely isolated to avoid possible

ground-loop problems.

10 11

Operating Instructions

Using OSD Controller

Setup menu can be accessed and controlled by OSD control joy stick on the rear

of the camera unit.

Five commands are available with the joy stick.

The design of OSD could be different according to the Model.

Description of the joystick operation

1) SET Key (●) : Access to the menu or enter the setting.

To enter the main menu, press the Set Key down for about 1.5 seconds.

2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move

the cursor up or down.

3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu.

Used to adjust the desired menu selection and to move the cursor left

or right.

4) denotes a long press down for about 2 seconds

Description of the ZOOM & FOCUS* adjustment

1) ▲ : Zoom In

2) ▼ : Zoom Out

3) ◄ : Focus Near

4) ► : Focus Far

(*) Works only when OSD Menu is inactive.
