Viewpro Z30TE Manual de usuario

User Manual

Z30TE 30x Zoom EO + Spotlight Illumination

Night Vision

Object Tracking Gimbal Camera

User Manual

Standard Version

标准版快拆版

Viewport Version

For more details please scan the QR code

or visit our website:

www.viewprotech.com

Disclaimer and Warning

Legends

1.1 Introduction

1.Product Introduction

Important NoteWarning

Z30TE is a high-precision 3-axis gimbal integrated with a SONY 30x

optical zoom Starlight camera, target tracking, LED Illumination

night vision. When the external GPS and time input, the OSD can

display angle, zoom times, photographing and video status and

tracking frame, also can select to turn off the OSD. Z30TE has

geotagging function. GPS coordinate and shooting time can be

saved in image file, OSD can display GPS and real-time as well.

When the LED spotlight turned on, EO camera zooms, the LED

illumination camera also zooms synchronously. It can locate the

targets easily and confirm their location in dark night environment.

The 3 axis gimbal can achieve stabilization in yaw, roll and pitch.

The integrated design of damping system and gimbal can greatly

reduce mechanical vibration.

Z30TE is widely used in night surveillance, search and law enforce-

ment, and other industrial applications.

Congratulations on purchasing your new Viewpro product. Please

read this entire document carefully. Failure to read or follow instruc-

tions and warnings in this document may result in damage to your

Viewpro product. Disassemble the gimbal camera by user is not

permitted, as which may cause the camera does not work normally.

Viewpro accepts no liability for damage, injury or any legal responsi-

bility incurred directly or indirectly from the use of this project. The

user shall observe safe and lawful practices including, but no limited

to, those set forth in the manual.

1.2 In the Box

A. Standard Version

B. Viewport Version

Gimbal Camera

x 1 pc

USB to TTL Cable

x 1 pc

Power Cable

x 1 pc

Gimbal Camera

x 1 pc

USB to TTL Cable

x 1 pc

M3 Screw

x 8 pcs

Copper Cylinder

x 4 pcs

Copper Cylinder

x 4 pcs

Power Cable

x 1 pc

PWM Control Cable

x 1 pc

M3 Screw

x 8 pcs

2.1 Overview

TTL / S.BUS Control

Cable x 1 pc

TTL Connect Cable

x 3 pcs

Ethernet Cable x 1 pc

Viewport

Control Box Back Side

(Standard Version)

(Viewport Version)

[13]

[14]

[12]

[11]

2. Installation Instruction

[3]

[2]

[5]

[1]

[9]

[7]

[10]

[4]

]

[8]

2.2.1 Control Box Printing (Standard Version)

[1] Control box

[2] Upper damping board

[3] Lower damping board

[5] FHD zoom camera

[6] Damping ball

[7] Yaw axis motor

[8] TF card slot

[9] Roll axis motor

[10] Pitch axis motor

[11] 3-6S power interface

[12] Micro HDMI interface

[14] Viewport unlock button

[13] Ethernet interface

[4] LED illumination camera

PITCH

Yellow Jumper Cap

GND

YAW

MODE

ZOOM

FOCUS

PIC/REC

MULTI

USB

5V output

GND

123

Please ensure that there isn’t any obstacle while the

motor rotating.

Please remove the obstacle immediately if gimbal

camera is blocked during rotation.

Caution! Laser radiation, don't stare at laser light with

naked eye, in case any harm.

The input voltage cannot be higher than 6S.

The pin insertion interface cannot be connected with

power supply.

The yellow jumper cap cannot be removed

Front Side

2.2.2 Control Box Printing (Viewport Version)

Left Side

Right Side

PITCH

YAW

MODE

ZOOM

FOCUS/PPM

PIC/REC

MULTI

GND

CVBS

3S-6S

GND

POWER PWM

GND

CANL

CANH

DC5V

GND

S.BUS

TTX

GND

RXD

TXD

RX-

RX+

TX-

TX+

ETHERNET UART & S.BUS CAN

Unit: mm

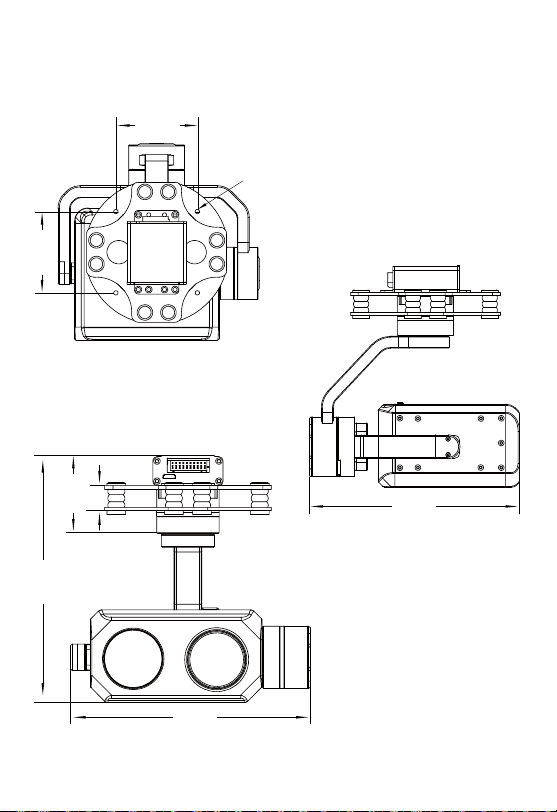

2.3 Device Dimensions (Standard Version)

4-φ3.5

153.9

150.2

62.2

158.7

50.7

Unit: mm

2.3 Device Dimensions (Viewport Version)

Control Box

4-φ3.1

153.9

150.2

164.4

56.4 41.6

41.6

2.4 Install Mounting Part

(1) Find out the arrow on the gimbal which indicating the yaw

heading of the payload (i.e. the lens direction when the camera

power on), and synchronize with the direction specified by the UAV.

(2) Fix one end of the copper cylinder on the screw hole of lower

damping board, and use M3 screw to fasten it.

(3) According to the provided screw hole dimension you can make

suitable mounting holes on the UAV mounting board, and fixes the

other end of the copper cylinder on the mounting board of the UAV

(Viewport version is the same).

Front

2.5 Viewport Release Instruction

1. Make sure the two white stripes indicated in above picture are

aligned with each other. (If the stripes are not aligned to each other,

please pinch the connector part and turn it to left manually)
