Viewpro X30TM Manual de usuario
30x Zoom Laser Ranger Object Tracking Gimbal Camera
Images are for reference only, please subject to the actual product.
User manual
X30TM
Compatible with DJI M200/M210/M210RTK
X30TM High-precision Camera
1. Camera introduction......................................................................................1
2. Camera description........................................................................................1
3. Mechanics@Electronic characteristics........................................................2
4. Application description.................................................................................2
5. Specification................................................................................................9
Contents
Gimbal Introduction
Camera Introduction
Camera Description
!Please make sure that the motor is not stopped by any object during
the rotation, if the gimbal is blocked during rotation, please remove
the obstruction immediately.
[1] DJI Skyport
[2] Pan motor
[4] Tilt motor
[3] Roll motor
[6] EO camera
[5] IR laser rangefinder
1
X30TM is a high-precision professional 3-axis gimbal which features high stability,
small size, light weight and low power consumption. The 3-axis gimbal based on
FOC motor control technology, adopts high-precision encoder in each motor. It can
be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it
can fullfill many powerful functions, such as: photos or videos with 30 times optical
zoom, object tracking, laser rangefinder and so on. The speed of X30TM gimbal is
adjustable, LOW speed mode for tele end, the control will be more accurate; Fast
speed mode for wide end, which makes the gimbal control sensitive and quick.
Also the one-key to center function will allow the gimbal return to initial position
automatically and rapidly. You can input a degree in APP Payload Setting and get
the gimbal attitude angles exactly.
Mechanics@Electronic Characteristics
Input voltage
Dynamic current
Size
3S~ 4S
450mA@12V
L135.5*W135*H120mm
Idle current
Working
environment temp
Weight
330mA@12V
-20℃~ +80℃
835g
Pitch/Tilt: Pitch angle range of action : ±90
Roll: Roll angle range of action : ±85°
Yaw/Pan: Yaw angle range of action : ±360°
Vibration angle: Pitch/Roll: ±0.02°, Yaw: ±0.03°
Application Description

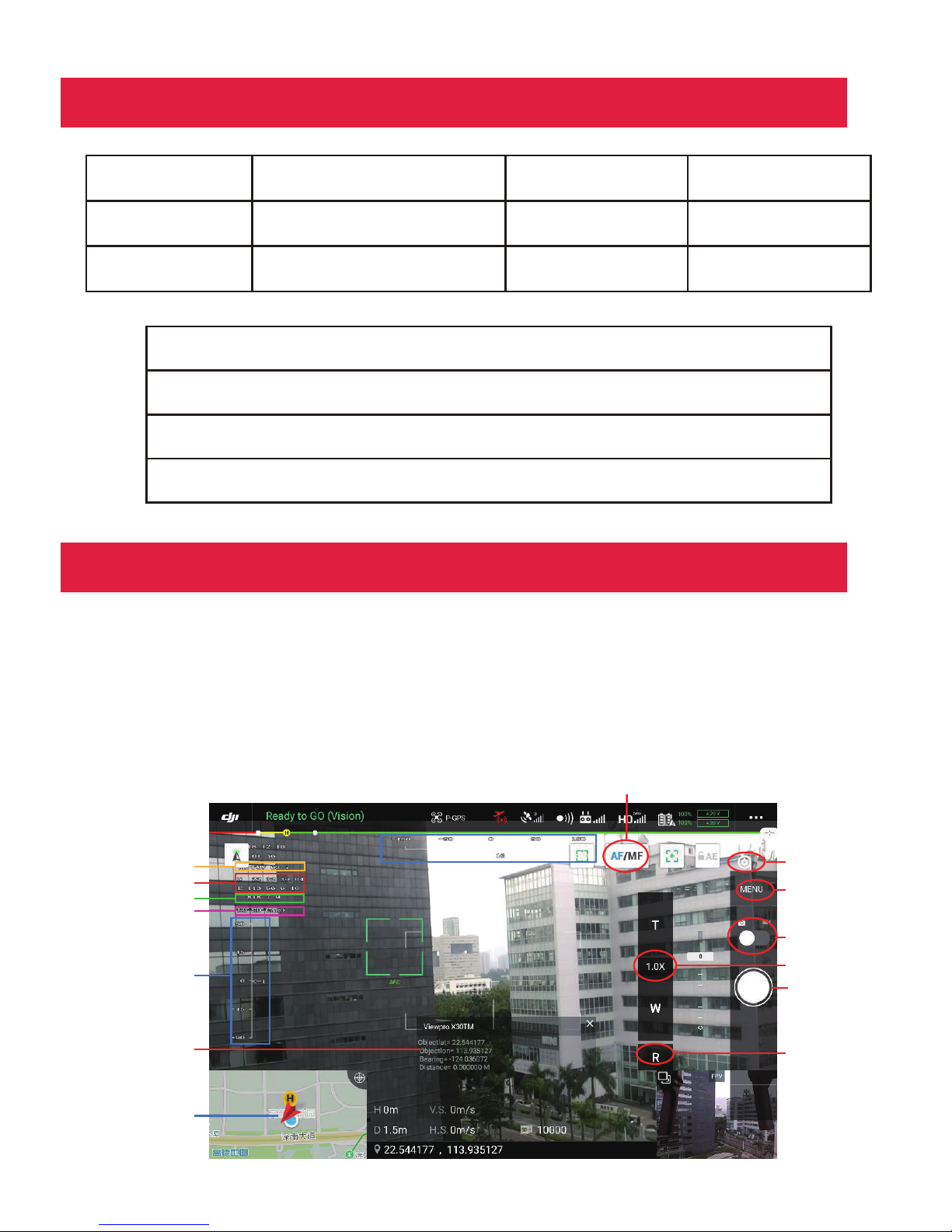

After mounting X30TM on DJI drone and connecting with remote control, you can operate the gimbal
camera via APP DJI Pilot. The gimbal attitude angels (tilt and pan) can be controlled by DJI remote
control. Control method please refer to DJI related user manual.
DJI Pilot
1. Menu instruction
GPS co-ordinate
Object distance
Payload
Settings
Camera
Settings
Return to
1.0x zoom
Picture and
record switch
Real-time Data
Gimbal attitude
angles
UAV direction
Auto / Manual focus
FOV / Zoom times
Record status
Zoom times
Shutter button
2
1.2 Payload Settings:
1.1 Camera settings - Photo mode settings:
You can choose single shot, burst mode or interval mode.
3
Gimbal Speed:
Gimbal speed is adjustable. When it’s 0%, the speed will be adjust automatically, quick speed
for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be
low even in wide end. The high the percentage is, the quicker the speed will be.
OSD Options:
You can DIY you on-screen-display (OSD). Choose Hide All, then you can choose to display
the items you want only.
4
OSD Type Options:
You can choose to display FOV (Field of View) or Zoom times, GPS co-ordinate of UAV or
the object.
Hide All:
Digital Zoom Options:
The EO camera of X30TM has 6 times digital zoom. Press T continually will get digital zoom
automatically after 30x full optical zoom. Or choose digital zoom from Payload settings directly.
The zoom times number will become blue when it’s in digital zoom status.
5
Camera Settings:
Choose defog or flip the screen when necessary.
6
2.1 Night vision
With a great low illumination, X30TM can perforance very well even in a dark
environment. Switch to night mode to have a better images.
2. Main functions instruction
7
Gimbal Pitch / Yaw Angle Settings:
Input the pitch / yaw angle degrees to get exact attitude angles directly.
2.2 Object tracking
Start tracking: Enable tracking function, then single touch on the screen to pick tracking object.
Stop tracking：Payload Settings --CANCEL TRACKING
*Note: the gimbal will follow the object automatically after object is choen, to control the gimbal
manually please cancel tracking first.
2.3 Laser rangefinder
X30TM build-in infrared (IR) laser rangefinder, can resolve the geo graphic position and
distance of the object automatically after GPS signal is synced from the UAV. The target is
the object in the middle point of the screen. When the object distance is less than 5 meters
or bigger than 1500 meters, the distance will show 0.
8
