Viewpro X30TL Manual de usuario

30x Zoom IR Laser Night Vision Object Tracking Gimbal Camera

Images are for reference only, please subject to the actual product.

User manual

X30TL

Compatible with DJI M200/M210/M210RTK and V2 series

X30TL High-precision Camera

1. Camera introduction.........................................................................................1

2. Camera description..........................................................................................1

3. Mechanics@Electronic characteristics.............................................................2

4. Application description......................................................................................2

5. Specification....................................................................................................10

Contents

Gimbal Introduction

Camera Introduction

Camera Description

!Please make sure that the motor is not stopped by any object during

the rotation, if the gimbal is blocked during rotation, please remove

the obstruction immediately.

[1] DJI Skyport

[2] Pan motor

[4] Tilt motor

[3] Roll motor

[6] EO camera

[5] IR laser light

Caution! Laser radiation, don't stare at laser light with naked eye, In case

any harm.

X30TL is a 3-axis high stabilized gimbal with a 30x optical zoom camera and a 500

meters laser supplement. The 3-axis gimbal based on FOC motor control technology,

adopts pinpoint-precision encoder in each motor. It’ s developed based on DJI PSDK,

comptible with DJI drones M200 / M210 / M210RTK. Controlled by APP “DJI Pilot” it

can fulfill many powerful functions, such as: shoots or records with 30 times optical

zoom, object tracking, IR laser night vision and so on. Moreover, the laser supplement

supports people to observe even at pitch night, engineering for night surveillance and

search. All parameters have been perfectly set, you just need to install the gimbal

camera to UAV, then ready to fly.

Mechanics@Electronic Characteristics

Input voltage

Dynamic current

Size

3S~ 4S

1000mA@12V

178*160*153mm

Idle current

Working

environment temp

Weight

800mA@12V

-40℃~ +60℃

770g

Pitch/Tilt: Pitch angle range of action : ±90

Roll: Roll angle range of action : ±85°

Yaw/Pan: Yaw angle range of action : ±360°

Vibration angle: Pitch/Roll: ±0.02°, Yaw: ±0.03°

Application Description

After mounting X30TL on DJI drone and connecting with remote control, you can operate the gimbal

camera via APP DJI Pilot. The gimbal attitude angels (tilt and pan) can be controlled by DJI remote

control. Control method please refer to DJI related user manual.

DJI Pilot

1. Menu instruction

GPS co-ordinate

UAV height

Payload

Settings

Camera

Settings

Return to

1.0x zoom

Picture and

record switch

Real-time Data

Gimbal attitude

angles

UAV direction

Auto Focus / Manual change IR light spot size

FOV / Zoom times

Record status

Zoom times

Shutter button

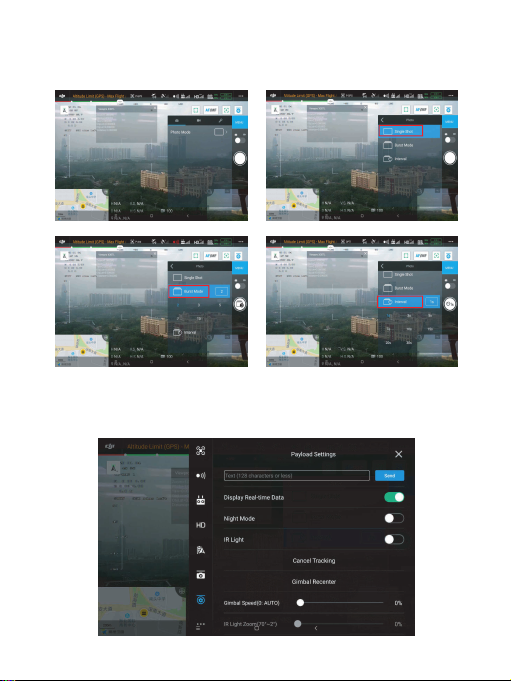

1.2 Payload Settings:

1.1 Camera settings-Photo mode settings:

You can choose single shot, burst mode or interval mode.

Gimbal Speed:

Gimbal speed is adjustable. When it’s 0%, the speed will be adjust automatically, quick speed

for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be

low even in wide end. The high the percentage is, the quicker the speed will be.

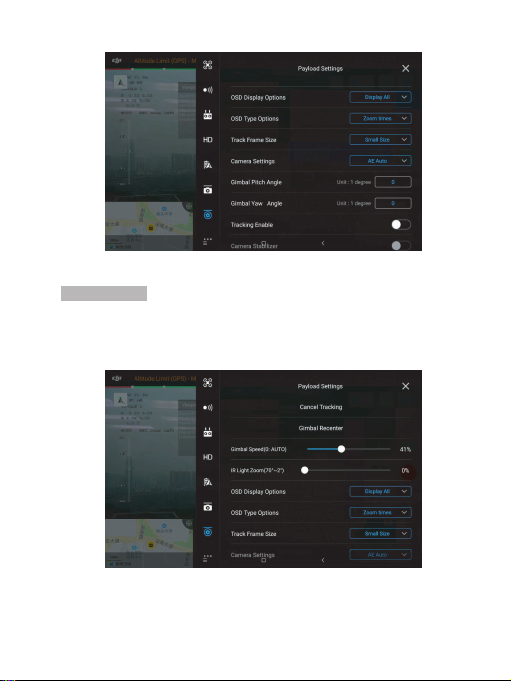

OSD Display Options:

You can DIY you on-screen-display (OSD). Choose Hide All, then you can choose to display

the items you want only.

Hide All:

OSDType Options:

You can choose to display FOV (Field of View) or Zoom times on the OSD, GPS co-ordinate

of UAV or the object (estimate).

Digital Zoom Options:

The EO camera of X30TL has 12 times digital zoom. Press T continually will get digital zoom

automatically after 30x full optical zoom. The zoom times number will become blue when it’s

in digital zoom status.

Track Frame Size:

The object tracking pixels size can be chosen, Small Size, Middle Size, Big Size and

AUTO Select. Choose according to the target object size. The more accurate size, the

better tracking performance.

Camera Settings:

The camera provides more options to adapt various applications better. Choose defog on to have

better penetrability view in fog environment. Select flip on when you mount the gimbal camera

upset down.

Select Shutter Priority (stablization priority) or AE Auto (Auto Exposure, picture quality priority)

according to your application. For Shutter priority, you have 2 options. 1/30 is quicker than 1/60.

Click Shutter Priority first, then choose 1/30 or 1/60 to enable this fuction.

Gimbal Pitch / Yaw Angle Settings:

Input the pitch / yaw angle degrees to get exact attitude angles directly.
