Viessmann VITOSOLIC 100 Manual de usuario

Operating instructions

for the system user

VIESMANN

Control unit for solar thermal systems

VITOSOLIC 100

5592 612 GB 4/2009 Please keep safe.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These operating instructions are

designed for system users.

This appliance is not designed to be

used by persons (including children) with

limited physical, sensory or mental

capacities, or lacking experience and/or

knowledge, unless they are supervised

by a person responsible for their safety,

or have received instructions from such

a person as to how to use the appli-

ance.

!Please note

Children should be supervised.

Ensure that children never play

with the appliance.

Danger

Incorrect work on the system can

lead to life-threatening acci-

dents.

Work on electrical equipment

must only be carried out by a

qualified electrician.

In case of fire

Danger

Fire creates the risk of burning

and explosions.

■ Shut down the system.

■ Use a tested fire extinguisher,

class ABC.

Ancillary components, spare and

wearing parts

!Please note

Components that are not tested

with the system may lead to sys-

tem damage, or may affect its

functions.

Installation or replacement work

must only be carried out by quali-

fied personnel.

Safety instructions

For your safety

5592 612 GB

The commissioning and matching up of

the control unit to local conditions and

the structural characteristics of the build-

ing plus the instruction of the user in

operating the system must be carried out

by your heating contractor.

Introductory information

Commissioning

5592 612 GB

Controls

KOL

°C

AOK key; to confirm your selection

or adjustment

BSymbols line

To terminate a value adjustment

in progress

/ Cursor keys

To scroll through the menu

/ Cursor keys

To adjust values

To change from the scanning level

to the setting level

To the right, underneath the symbols line

on the display, you will see which keys

you can operate to make adjustments

and scans.

Symbols on the display

These symbols are not always dis-

played, but appear subject to the system

operating condition.

Operation

5592 612 GB

Symbol Permanent display Flashing

Fully functioning system —

ÂRelay 1 ON

(solar circuit pump)

—

ÃRelay 2 ON —

ÈSet DHW temperature

reached

Collector cooling function,

return cooling enabled

ÇFrost protection active Failed to reach minimum col-

lector temperature

¨— Emergency collector shut-

down (collector limit tempera-

ture reached) or cylinder

emergency stop active

¨+ÄSensor fault:

Ä ¨

¨+ÆManual mode:

Æ ¨

SET Parameters can be changed Change parameter with /

Operation

Operation (cont.)

5592 612 GB

With keys / , you can scan the follow-

ing actual values, subject to the system

equipment level:

■

Note

The flashing sensor symbol in the sys-

tem diagram shows the position of the

actual temperature.

KOL – Collector temperature in °C

(standard display)

■TSPU – DHW temperature in °C

■S3 – Thermostat temperature in °C,

temperature at any additional sensor

connected

■n1% – Speed of the solar circuit pump

■n2% – Operating state of the actuator

connected to relay output R2

■hP1 – Hours run of the appliance con-

nected to relay output 1

■hP2 – Hours run of the appliance con-

nected to relay output 2

■kWh – Energy in kWh, if a heat meter

is active

■MWh – Energy in MWh, if a heat meter

is active

Note

Add the values for MWh and kWh

together.

Resetting the hours run and the

energy volume

Whilst this value is displayed, press the

following keys:

1. OK "SET" flashes; value 0 is dis-

played.

2. OK to confirm.

Scanning options

Displaying actual values

5592 612 GB

Cause Remedy

The solar control unit MCB has respon-

ded.

Contact your local heating contractor.

Power failure After power has been restored following

a failure, the solar control unit returns into

operation automatically.

The power distribution MCB (main

domestic MCB) has responded.

Check the MCB and notify your heating

contractor, if necessary.

Collector limit temperature or maximum

cylinder temperature has been reached.

Wait until the respective temperature has

fallen below the relevant limit.

The solar control unit is in manual mode.

The display shows "Æ", and "¨"

flashes.

Select "Auto":

1. Press , until "ANL" is shown.

2. Press , until "HND 1" or "HND 2" is

shown.

3. Press OK until "SET" flashes.

4. Press until "Auto" is shown.

5. Press OK to confirm.

6. Press ; the collector temperature

will then be shown.

There is no DHW available

Cause Remedy

The solar control unit is faulty. Contact your local heating contractor.

Collector temperature too high; safety

shutdown through the solar control unit.

Wait until the collector temperature has

fallen.

The set cylinder temperature is set too

low.

Contact your local heating contractor.

Solar circuit pump faulty. Contact your local heating contractor.

The DHW cylinder is not reheated:

The operating and time program is incor-

rectly set at the boiler control unit.

Enable DHW heating.

Operating instructions of the boiler

control unit

What to do if...

The solar thermal system does not start

5592 612 GB

Cause Remedy

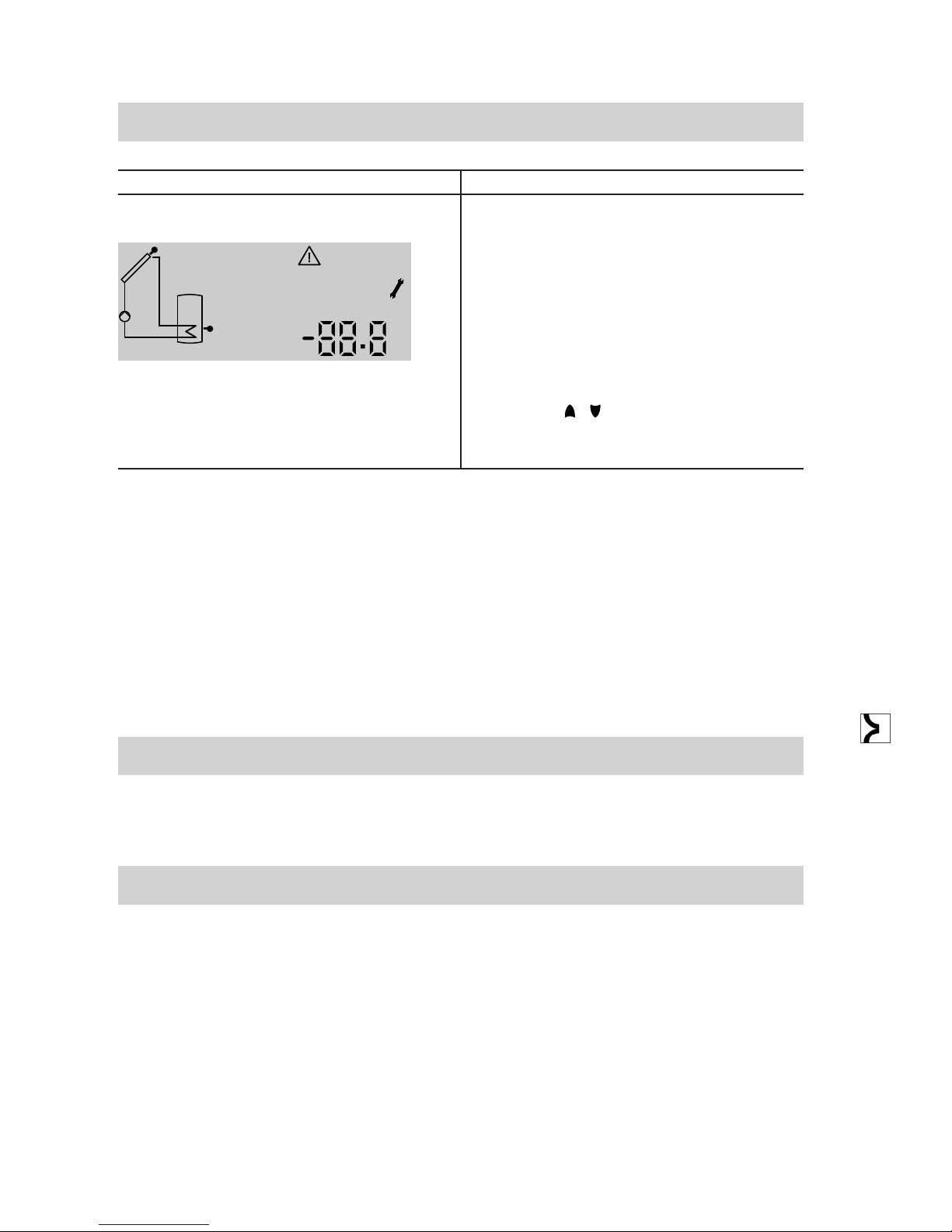

Example, sensor fault

KOL

°C

The sensor symbol in the system diagram

flashes quickly.

¨ flashes.

Check the fault code and notify your local

heating contractor.

In the example, the collector temperature

sensor has a short circuit.

–88.8 Sensor short circuit

888.8 Sensor lead break

Note

You can check additional sensors

with / .

What to do if...

The display illumination flashes

Applicability

Applicable for the Vitosolic 100, type SD1

Part no. 7418 199

Your contact

Contact your local contractor if you have any questions regarding the maintenance

and repair of your system. You may, for example, find local contractors on the internet

under www.viessmann.com.

Viessmann Limited

Hortonwood 30, Telford

Shropshire, TF1 7YP, GB

Telephone: +44 1952 675000

Fax: +44 1952 675040

E-mail: [email protected]

Viessmann Werke GmbH&Co KG

D-35107 Allendorf

Telephone: +49 6452 70-0

Fax: +49 6452 70-2780

www.viessmann.com

5592 612 GB Subject to technical modifications.

Printed on environmentally friendly,

chlorine-free bleached paper
