Vicon Roughneck Pro V2002D-PTZ Manual de usuario

V2002D-PTZ User’s Manual

User Guide

Roughneck® Pro V2002D-PTZ

Outdoor Vandal PTZ Dome Camera

XX320-00-00

Vicon Industries Inc. does not warrant that the functions contained in this equipment will

meet your requirements or that the operation will be entirely error free or perform precisely as

described in the documentation. This system has not been designed to be used in

life-critical situations and must not be used for this purpose.

Document Number: 8009-8320-00-00 Product specifications subject to change without notice.

Vicon Industries Inc.

Tel: 631-952-2288) Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266)

UK: 44/(0) 1489-566300

www.vicon-security.com

V2002D-PTZ User’s Manual

Table of Content

Connection .................................................................................................................................................................................................. 1

Live View....................................................................................................................................................................................................... 7

Playback .................................................................................................................................................................................................... 10

Configuration........................................................................................................................................................................................... 13

1. Encode.................................................................................................................................................. 13

2. Image....................................................................................................................................................17

3. Video ....................................................................................................................................................22

4. Network ...............................................................................................................................................26

5. System..................................................................................................................................................40

6. Account ................................................................................................................................................ 48

7. Event Source ........................................................................................................................................ 51

8. Video Analytics.....................................................................................................................................61

9. Event Setting ........................................................................................................................................ 74

10. PTZ Settings.......................................................................................................................................... 83

V2002D-PTZ User’s Manual

WARNING

⚫This camera operates at 24 VAC/48 VDC/PoE (IEEE 802.3bt Class 6).

⚫Installation and service should be performed only by qualified and experienced technicians and comply

with all local codes and rules to maintain your warranty.

⚫We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which

is not depicted within this documentation.

⚫To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.

⚫Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and

wipe with a dry soft cloth.

⚫Do not apply benzene or thinner to the camera, which may cause the surface to be melted or lens fogged.

⚫Avoid aligning the lens with extremely bright objects (e.g., light fixtures) for long periods of time.

⚫Although this camera is waterproof and suitable for both indoor and outdoor usages, please do not sink

the camera into water. Contact your dealer in case of sunk.

⚫Avoid operating or storing the camera in the following locations:

Extremely humid, dusty, or hot/cold environments (recommended operating temperature:

-40° F to +140° F/-40° C to +60° C)

Close to sources of powerful radio or TV transmitters

Close to fluorescent lamps or objects with reflections

Under unstable or flickering light sources

Get Started

This quick guide is designed as a reference for installation of the camera. For additional information on the

camera’s features, functions, and detailed explanation of the web interface controls, refer to User’s Manual

for details. Please read this quick guide thoroughly and save it for future use before attempting to install the

camera. From this guide you will get:

⚫Product Overview: The physical parts, features and dimensions of the camera.

Installation and Connection: The instructions on installation and wires connection for the camera.

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product

(applicable in the European Union and other European countries with separate collection

systems). This product should be disposed of, at the end of its useful life, as per applicable

local laws, regulations, and procedures.

V2002D-PTZ User’s Manual

FCC Compliance Statement

Information to the user: This unit has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause undesired

operation. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation.

If this unit does cause harmful interference to radio or television reception, which can be determined by turning the

unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

⚫Reorient or relocate the receiving antenna.

⚫Increase the separation between the unit and receiver.

⚫Connect the unit to an outlet on a circuit different from that to which the receiver is connected.

⚫Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the unit.

CE Statement

Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation. The manufacturer declares that the unit supplied with this guide is

compliant with the essential protection requirements of EMC directive and General Product Safety

Directive GPSD conforming to requirements of standards EN55022 for emission, EN 50130-4 for immunity, EN 300 and

EN 328 for WIFI.

The camera Is IP66 and IK7 rated. It also meets regulations required to be NDAA, GSA schedule and TAA approved.

V2002D-PTZ User’s Manual

Introduction

Refer to the Quick Guide for the V2002D-PTZ for instructions for installing the PTZ dome camera.

Connection

Default IP Address

Since this is a network-based camera, an IP address must be assigned. The camera’s default IP

address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in

"Network Settings." If DHCP is not available, the camera will use APIPA (link-local address); IPv4 link-

local addresses are assigned from address block 169.254.0.0/16 (169.254.0.0 through 169.254.255.255).

Connecting from a Computer & Viewing Preparation

Connecting from a Computer

Make sure the camera and your computer are in the same subnet.

Check whether the network available between the camera and the computer by executing ping the

default IP address. To do this, simply start a command prompt (Windows: from the “Start Menu”, select

“Program”. Then select “Accessories” and choose “Command Prompt”), and type “Ping and then type

your IP address. If the message “Reply from…” appears, it means the connection is available.

Start a browser e.g., Internet Explorer and enter IP address. A login window as shown below should

pop up. In the window, enter the default user name: ADMIN; it is required to change the password

when you login for the first time for added security, which requires at least 8 characters including 1

uppercase letter, 1 special character, alphanumeric characters to log in.

Further administration on the unit can be found in "Configuration."

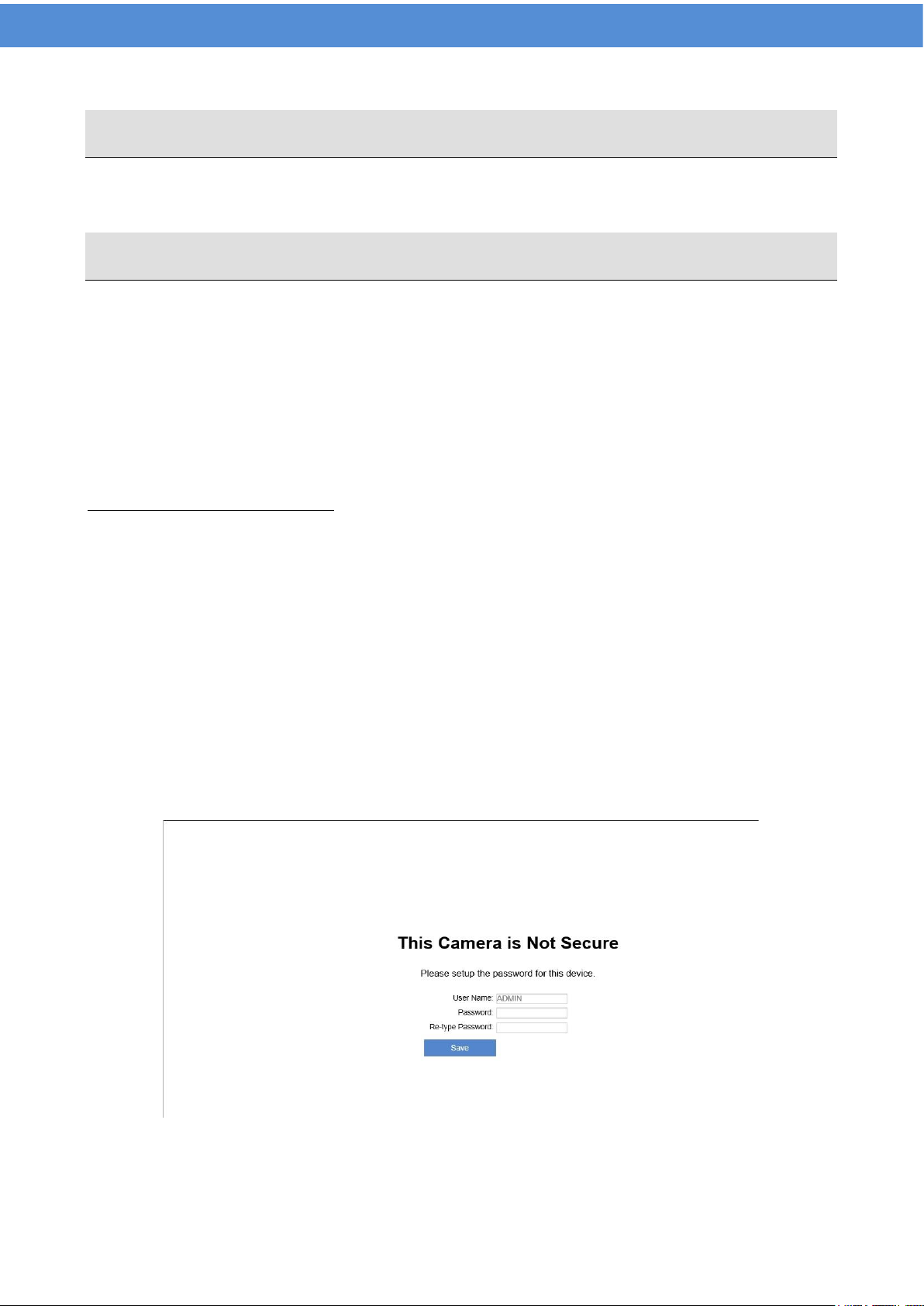

Figure: Login Window

V2002D-PTZ User’s Manual

Viewing Preparation

Images of the unit can be viewed through various browsers. Before viewing, follow these steps to

enable the display.

Enable Cookies as instructions below.

In Internet Explorer, click Internet Options on the Tools menu.

On the Privacy tab, move the settings slider to Low or Accept All Cookies.

Click OK.

When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select

Connect tab, click LAN button, and set proxy server.

Change Security in Internet options as instructions below.

On tool menu, click Internet Options.

Press the Security tab.

If the camera operates inside of the intranet, click the Intranet icon.

If the camera operates outside of the intranet, click the Internet icon.

Click Custom Level. This will open the Security Settings –Internet Zone screen.

Figure: Security Settings 1/4

V2002D-PTZ User’s Manual

Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows.

【Download signed ActiveX controls】→Prompt (recommended)

【Download unsigned ActiveX controls】→Prompt

【Initialize and script ActiveX not marked as safe for scripting】→Prompt

Figure: Security Settings 2/4

【Automatic prompting for ActiveX controls】→Enable

Figure: Security Settings 3/4

V2002D-PTZ User’s Manual

【Run ActiveX controls and plug-ins】→Enable

【Script ActiveX controls marked safe for scripting*】→Enable

Figure: Security Settings 4/4

Press OK to save the settings.

Close all the browser windows and restart the browser. This will allow the new settings taking effect.

Type your setting IP address into the browser.

Then you should be able to see the camera image screen.

V2002D-PTZ User’s Manual

IP Toolbox

IP Toolbox is a utility program that helps users to locate the camera(s) in local area network that

computer is connected to. Please note that IP Toolbox works only in Microsoft Windows XP, Microsoft

Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed

below.

1. Download the IP Toolbox’s folder to local computer. The latest IP Toolbox can be found on Vicon’s

website Camera Software Download page, vicon-security.com

2. Double click on IP Toolbox.exe in the IP Toolbox’s folder, and the IP Toolbox window should pop

out as below.

Figure: IP Toolbox

3. The window lists information of camera(s) in operation at the present time. Click one of the cameras

in the list for which you want to configure the network settings.

4. Configure the following settings as needed.

User Name & Password: Before performing any operation to any listed camera, please enter username

and password for the selected camera, and then click “Verify” for authentication purposes.

Camera Name: Enter a descriptive name for the camera.

Network Settings: If you have a DHCP server on your network to assign IP addresses to network

devices, enable the “dhcp” option from dropdown menu of IP MODE. Otherwise, select “manual” to

manually enter the values for IP Address, Subnet Mask, Gateway and HTTP Port fields.

Click “Save” to enable the settings. Click “Cancel” to discard the settings.

5. Press “View” button; the designated browser page of the selected camera will pop out. Please

input the corresponding User Name & Password to log in to the specific page of camera.

6. Press “Refresh” button; all the cameras currently connected to the network will appear on the

list.

7. Press “Initialize” button; there are three options, Software default, Hardware default, and

Reboot camera, for user to perform the factory default or reboot the camera. After clicking the

preferred item, the warning message will appear. Please confirm again before you perform the

selected function.

8. The “Filter” button on the upper-right corner allows user to perform filtering search, which means

V2002D-PTZ User’s Manual

you can input certain keywords into the field nearby and also narrow down the range by selecting

the criteria from the dropdown menu for a target search on cameras connected.

9. Press “Auto Set IP Address” button to automatically give each camera an IP address from a

predefined range and connected to predefined network internet controller.

10. Click “FW Upgrade” button to upgrade the firmware of selected camera. A pop up window like

the image below will show up.

Figure: IP Toolbox FW Upgrade

Follow the steps below to complete firmware upgrade:

Click or to add or remove camera to be upgraded (only verified cameras will be shown on

this list).

Select a camera or click “Select All” button to select a camera or all the cameras on the firmware

upgrade list, respectively.

Click “Add” or “Cancel” button to confirm the selected cameras for upgrade or to cancel the selection,

respectively.

Enter the path for the desired firmware (.tar) or click ; then follow the instructions to find and upload

the .tar file.

When the process is complete, click again to return to the list of all cameras located in the local

network.

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vicon

Vicon

Vicon SVFT-MSH23C Manual de usuario

Vicon

Vicon Cruiser SN663V Manual de usuario

Vicon

Vicon Surveyor MKII Series XX282-00-01 Manual de usuario

Vicon

Vicon V660B-312IR Instrucciones de funcionamiento

Vicon

Vicon V661V-Series Instrucciones de funcionamiento

Vicon

Vicon Roughneck AI V2008B-W310LPR Manual de usuario

Vicon

Vicon S2000-MSH-HHB Surveyor 2000 Manual de usuario

Vicon

Vicon Cruiser SN673V-B Manual de usuario

Vicon

Vicon Surveyor 282-20-02 Series Manual de usuario

Vicon

Vicon V960D-N312 Manual de instrucciones

Vicon

Vicon Roughneck V2000D-PTZ Manual de usuario

Vicon

Vicon SURVEYOR4A Manual de usuario

Vicon

Vicon V3FCD SERIES Manual de usuario

Vicon

Vicon XX247-10-01 Manual de usuario

Vicon

Vicon rouchneck V910V5 Manual de usuario

Vicon

Vicon IX4000AL Manual de usuario

Vicon

Vicon Roughnec V922D Series Manual de usuario

Vicon

Vicon VC367DSP Manual de usuario

Vicon

Vicon V940B Manual de usuario

Vicon

Vicon V920B-A Series Manual de usuario

Vicon

Vicon V962B-IR922M Manual de usuario

Vicon

Vicon CE102B Manual de usuario

Vicon

Vicon Cruiser SN663V-A Manual de usuario

Vicon

Vicon Cruiser SN663V-B-EX Instrucciones de funcionamiento

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
