VERIZON 7500 WIRELESS
ROUTER/MODEM
Verizon High Speed Internet
for Business
STATIC IP
SET UP
GUIDE
SETTING UP YOUR NEW STATIC IP CONNECTION
AND IP ADDRESS(ES)
This Static IP Set Up Guide will instruct you how to set up your new static IP
connection and and multiple IP addresses (if applicable). Static IP addresses
have a dedicated connection to the Internet.
STEPS TO SET UP YOUR STATIC IP ADDRESS(ES)
1. First make sure you have received a Service Activation Email from
Verizon that states your Verizon High Speed Internet for Business
service is activated at your location, billing has started and lists the
Static IP address(es) you ordered:
• IP Address Quantity
• Starting IP Address
If you ordered more than one IP address, your IP addresses will run
sequentially beginning with the starting IP address shown above.
• Subnet Mask
• Default Gateway Address
• Primary DNS
• Secondary DNS
Verizon High Speed Internet for Business Service will not work until
you have been notified by Verizon that your service is activated.
2. Connect your new Verizon HSI 7500 wireless modem router to your
computer following the “Quick Start Guide” in the box with the
modem router.
3. Follow the instructions in this Static IP Set Up Guide that will help
you configure your Static IP address into your operating system
and troubleshoot if necessary.
After you set up your Static IP address(es), open your browser and go to
business.verizon.net to learn about the Verizon Small Business Center,
Verizon email, web hosting and where to get additional Verizon High
Speed Internet for Business support.
1
Verizon High Speed Internet for Business
2
SETTING UP YOUR VERIZON HIGH
SPEED INTERNET FOR BUSINESS
STATIC IP CONNECTION
Single Static IP Configuration ............PAGES 3-11
Multiple Static IPs Configuration ......PAGES 12-23
Operating System Configuration ......PAGES 24-7
WINDOWS®XP............................................PAGES 24-28
WINDOWS VISTA®......................................PAGES 29-32
MAC®OS X (10.4)........................................PAGES 33-34
MAC®OS X (10.5)........................................PAGES 35-37
Troubleshooting: ..................................PAGE 38
If the Connection is not working
SECTION
1
NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500
SECTION
2
SECTION
3
SECTION
4
3
Configuring Your Verizon 7500 Wireless
Modem Router with a Single IP
Step 1 - Login: To get to the Verizon Wireless interface,
enter in the browser address line: http://192.168.1.1
After you have clicked “OK” in the secure screen, the Detect WAN
Click on Detect Configuration to continue.
Click on detect configuration to continue.
Configuration page is displayed during a first time login.
Verizon High Speed Internet for Business
SECTION
1
admin
password
4

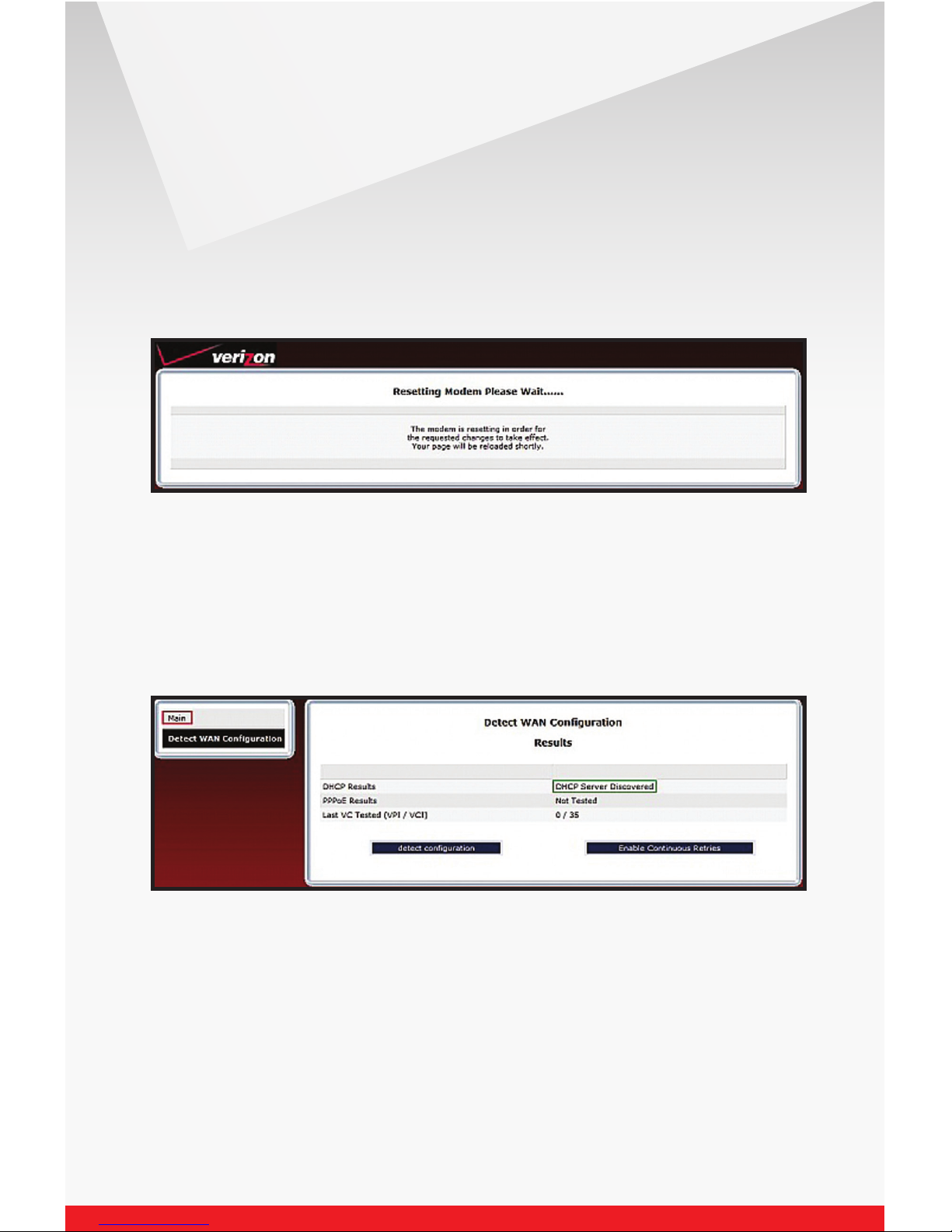

During detection the modem will reset numerous times. Be sure to keep
an eye on the DSL light status to know when the modem has obtained
sync and is ready to continue.
When the modem has completed detection (or even if detection fails),
wait for the DSL light to go solid and then click on the Main link in the
left navigation menu.
NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500
Single Static IP
5

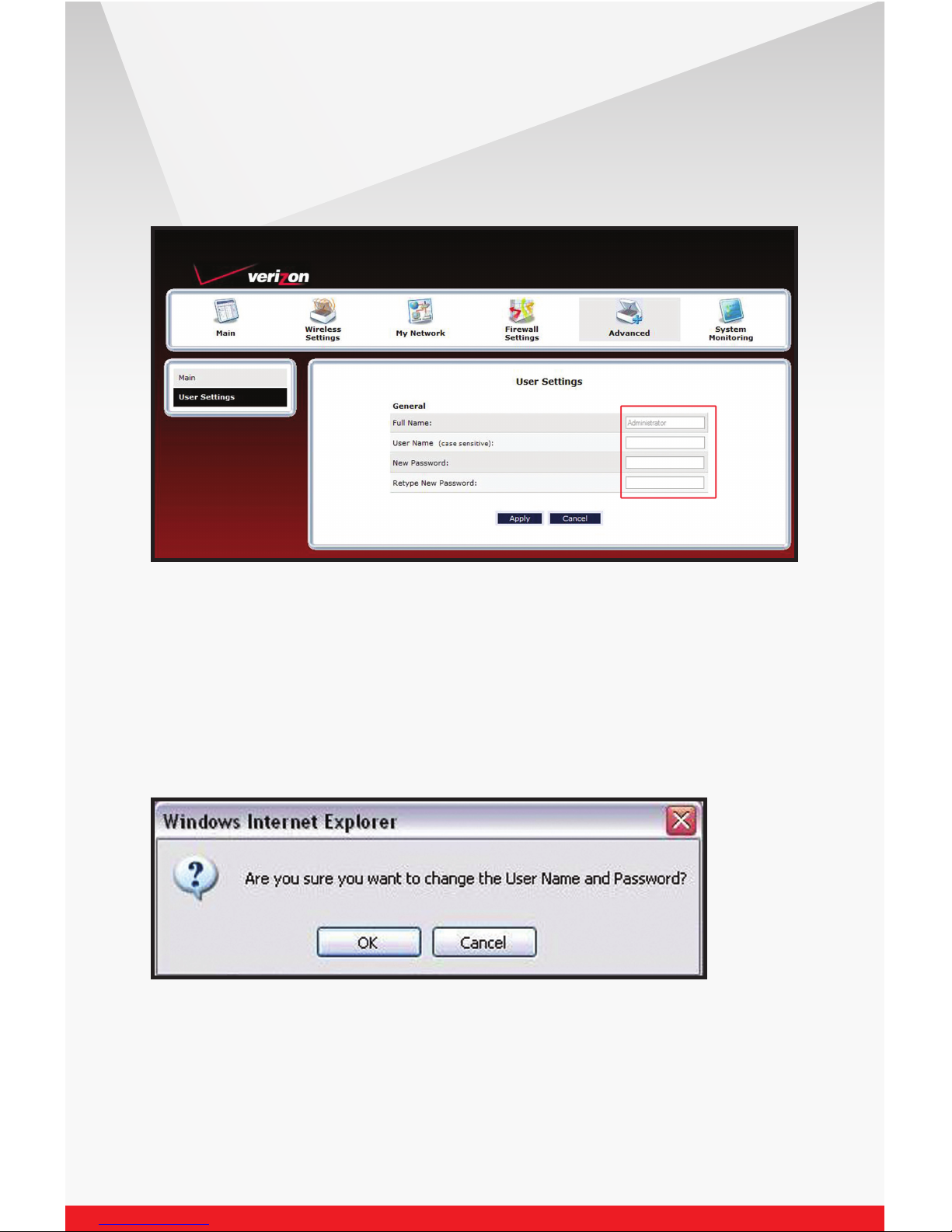

Since this is the first login, a prompt is displayed to change the factory
default User Name and password.
Verizon High Speed Internet for Business
This is the user name/password setting for the GUI interface. For the
User Name, type “admin” or the name of your choice. Next, type a
password (Be sure to write down your User Name and password and
store it in a safe place for future use). Do not use the word “password”
on this login screen. After clicking “Apply”, then “OK” in the pop-up
screen, you will be taken to the Main screen.
Note: Creating a User Name and password and the detection of WAN
settings is only required on the first login to the modem. Future logins
will not require these steps except when the gateway has been set to
factory default settings.
6

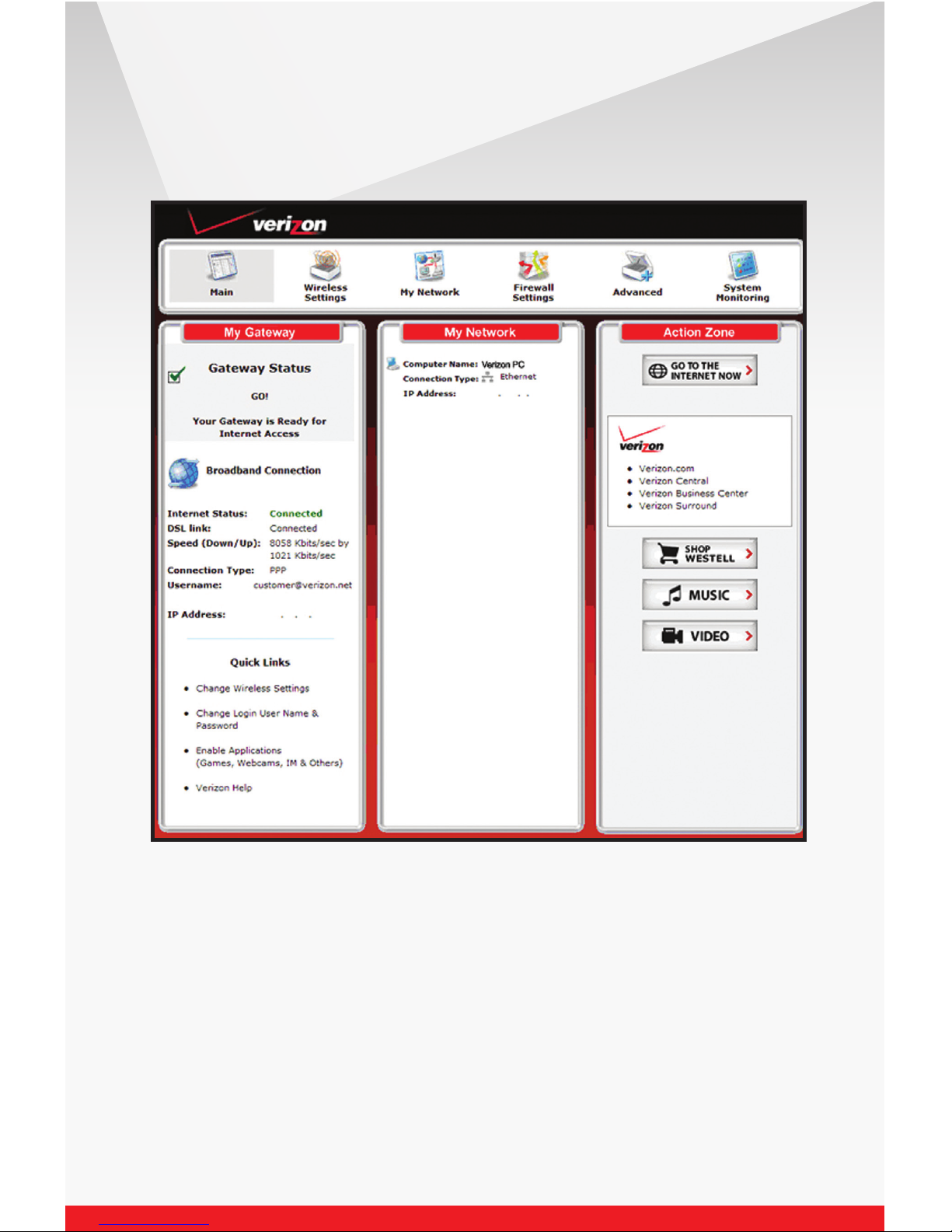

From the MAIN screen, Gateway Status:
NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500
Single Static IP
7

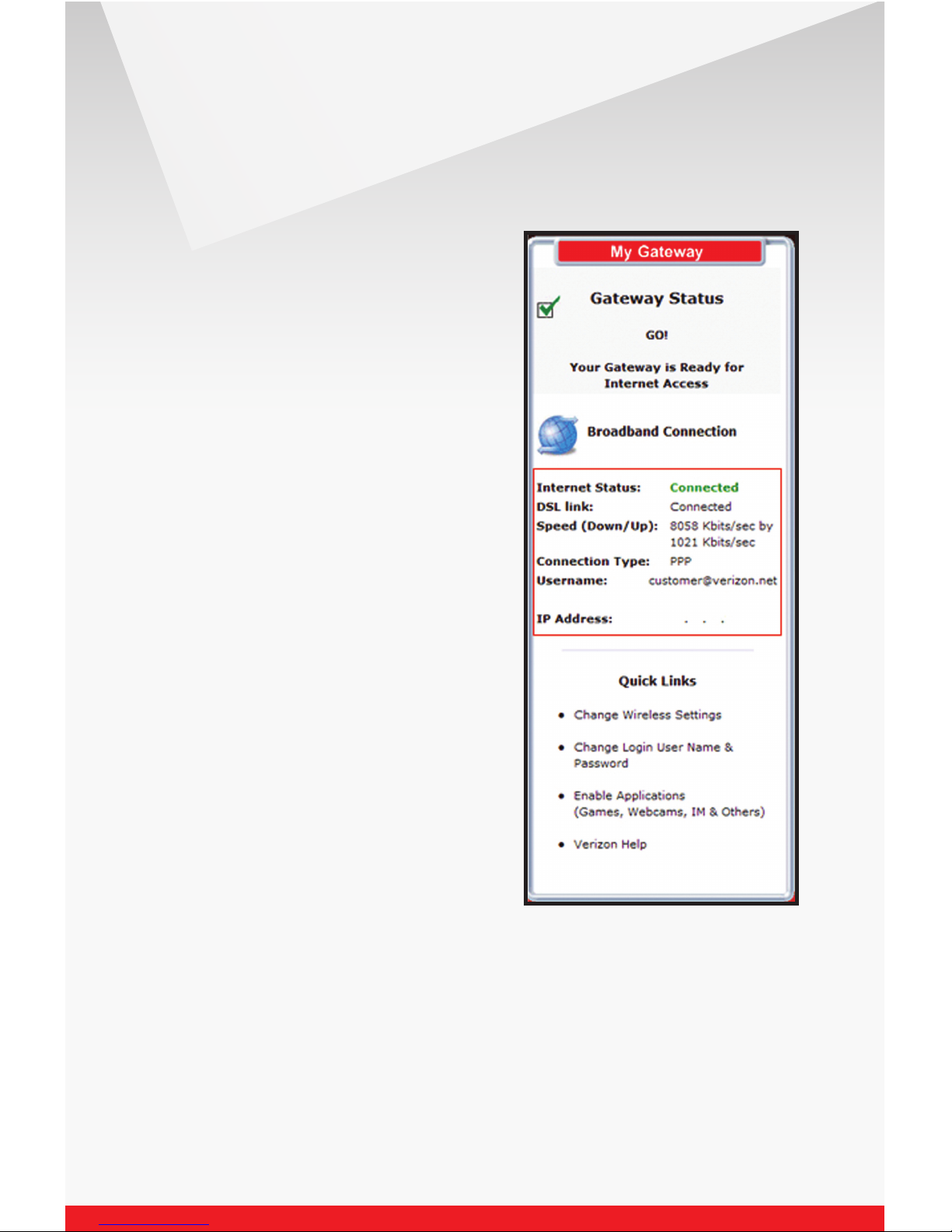

In the My Gateway panel of the
Main page, view the DSL link field.
If the status reads Not Connected,
you do not have a DSL link.
However, if DSL Link field displays
Connected and the Speed
(Down/Up) field displays numeric
values, a DSL link has been
established. Notice the Connection
Type, Username and IP Address.
In this example, the Connection
Type is "PPP" (PPPoE).
Verizon High Speed Internet for Business
8
NEED HELP? Call The Verizon Online Business Center at 1.888.649.9500

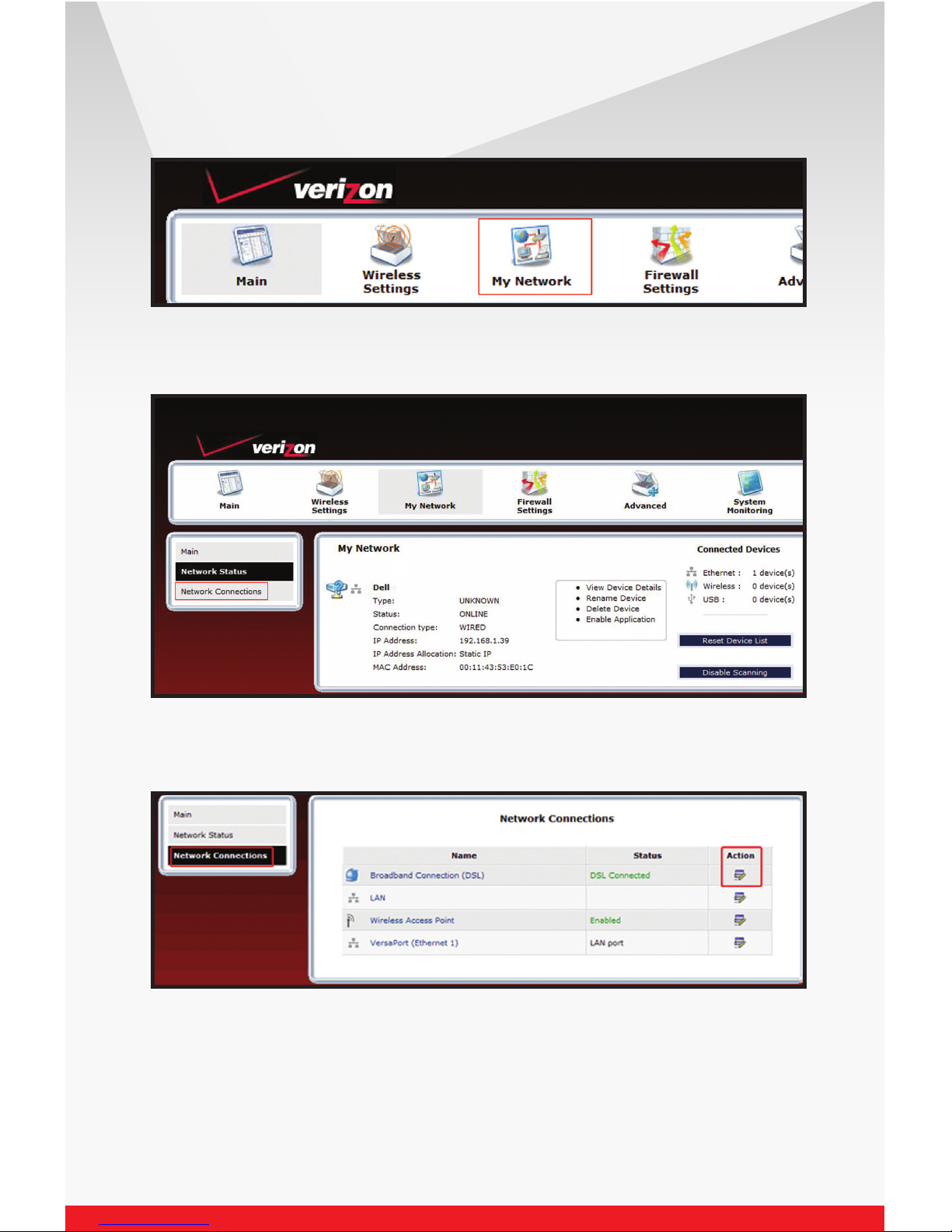

Click on My Network.
The My Network page is displayed. Click on Network Connections.
This will bring you to the Network Connections screen.
Click on Action. This will bring you to the Advance DSL Connection
screen.
Single Static IP
9

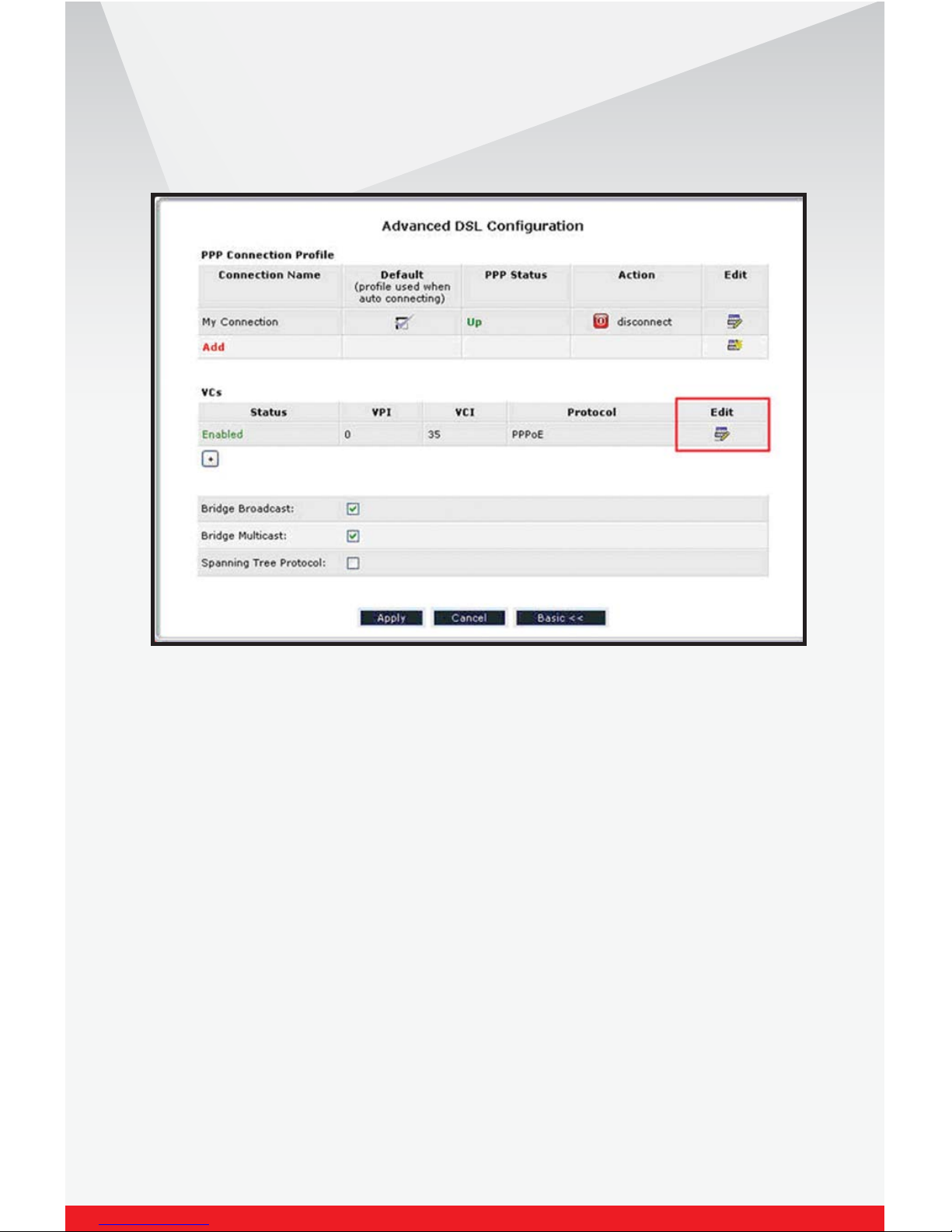

Click on Edit in the VCs section.
Verizon High Speed Internet for Business
