Verizon SMART CUBE Manual de usuario
Customer Care:
(877) 477-4874www.vanguardprotexglobal.com/verizon-directory
For ALL videos and guides, visit our directory:
QUICK START GUIDE
SMART CUBE
TABLE OF CONTENTS
Smart Cube
EnCore Installation
IR Keyfob Troubleshooting
Spare Parts
1-2
3
4
5
1
Rev.08/26/2021
SMART CUBE
EnCore
Back to Table of Contents
VP-1397W

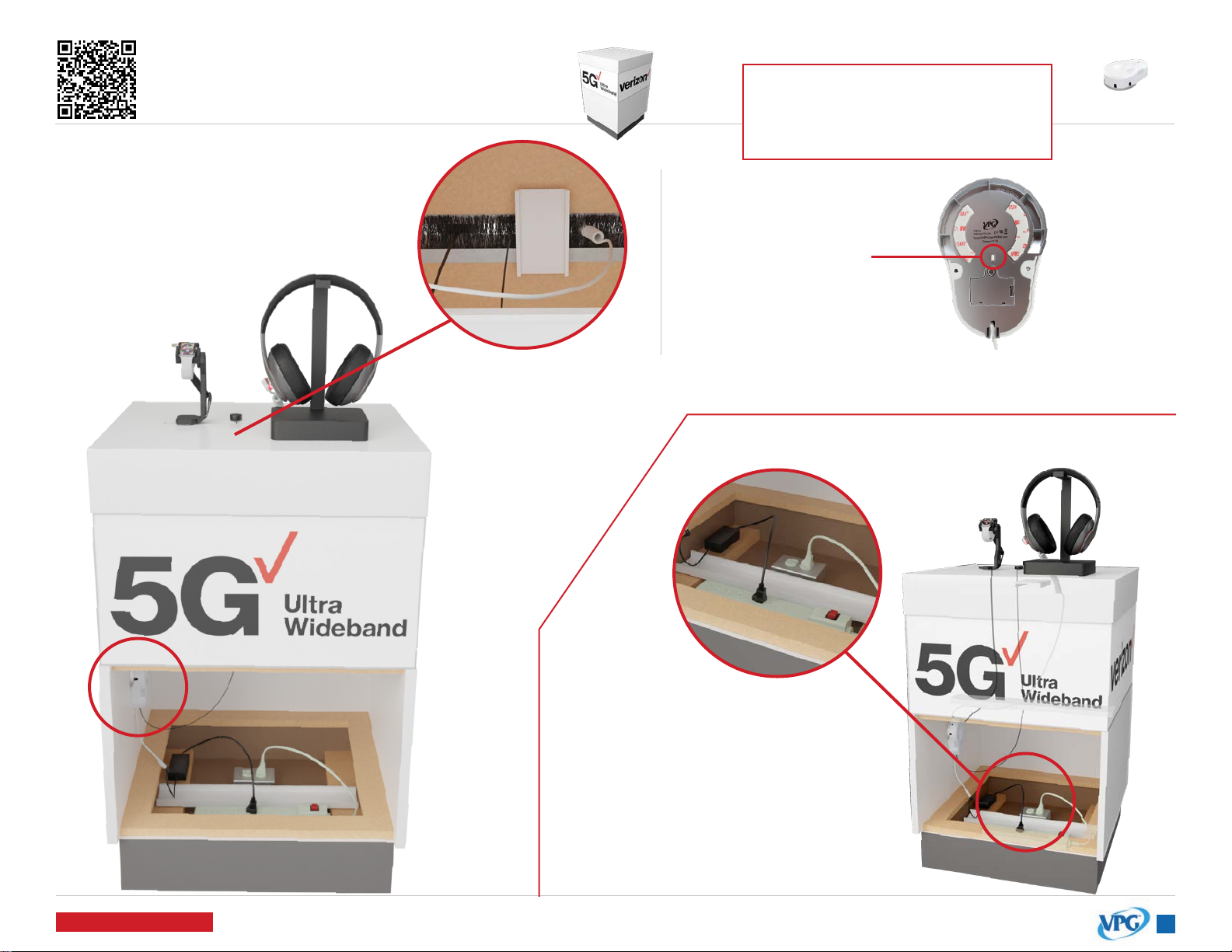

The EnCore alarms are to be
placed inside the front panel on
the side walls of the Smart Cube.
EnCore - Accessory Security
Power Supply
Underside View
How to Remove Access Panel
Find the xture side with the hand-
grip on the bottom. Lift and pull the
panel to remove from the xture.
EnCore
Bottom View
Ensure the tamper
switch is depressed
prior to securing the
EnCore in place.
The power cable routes behind
the shelf and plugs into the power
supply behind the panel at the
bottom of the xture.
2
Rev.08/26/2021
SMART CUBE
EnCore
X-Sensor
VP-1350WXL
Type-C
VP-1439W
Micro USB
VP-1349WXL
IR Extender
KF-1102
Back to Table of Contents
VP-1397W

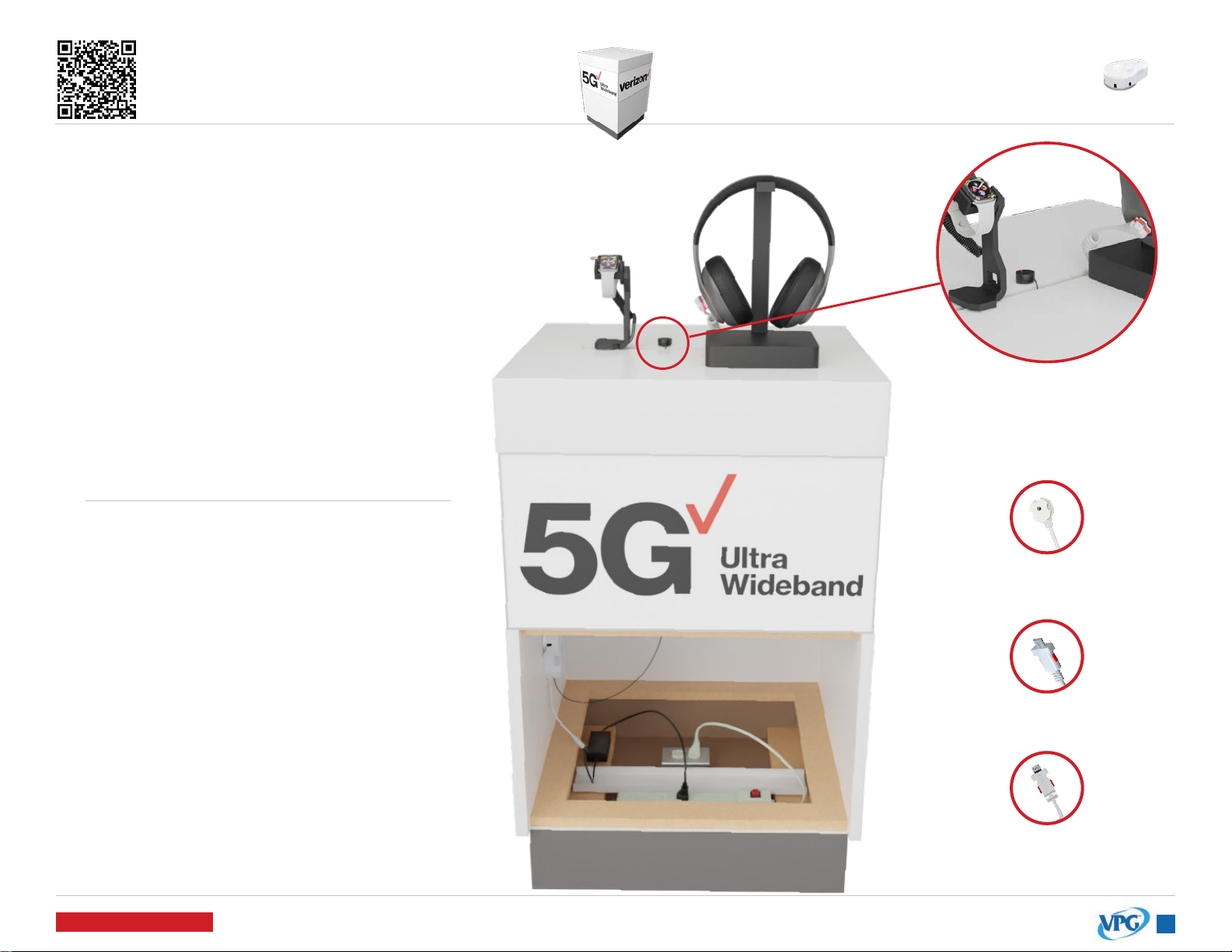

Sensors - Accessory Security
Sensors can route from the EnCore, up
through the slot.
Micro-USB, Type-C, and X-Sensors feed up
through the xture and plug in or adhere to
products.
Up to 5 sensors are used with the EnCore.
Typically, you will not use all 5.
The IR extender cable is used to extend the
EnCore receiver.
Feed the cable up through the xture slot and
adhere the dome to the top shelf close to the
edge of the slot.
When it’s plugged in, you will see a green light
illuminated on the dome.
To arm and disarm the EnCore alarm, point the
IR keyfob at the dome.
IR Extender Cable (KF-1102) - Accessory Security
3
Rev.08/26/2021
EnCore
Installation
123
5 64
click or scan QR code
for installation video
Back to Table of Contents
123
5 64
IMPORTANT: The code must match the
switches inside the IR Keyfob.
Remove the cover of the EnCore
(VP-1397) with the V-T900 security
driver or V-900-T Allen wrench.
Set the security
code by changing
the DIP switch
inside the EnCore. Clean the xture
surface. Then,
adhere the EnCore
to the xture. Hold
in place for 30
seconds.
Plug the
appropriate VPG
accessory sensors
into the Encore.
Remove the 3M
adhesive liner.
V-T900
V-900-T
KF-1102
V-37
KF-1106
VP-1397W
VP-1439W
VP-1349WXL
VP-1350WXL
or
or
or
Switch #8 changes
the sensor LEDs to red.
Reinstall the EnCore cover.
Plug the IR Receiver cable into the
back port of the EnCore.
Thread the sensor cables through the
xture. Install the sensors to the products.
Point the IR Keyfob at the IR
Reciever and press the red
lock button to arm the EnCore
Plug the V-37 power supply into the
EnCore’s power connector
Tools & Parts Needed
VP-1524C
VP-1626
or
or
Adhere the IR dome close
to the edge of the xture
slot. The IR Receiver will
accept the keyfob’s IR
signal for the EnCore.
4
Rev.08/26/2021
IR KEYFOB (KF-1106)
Troubleshooting
Back to Table of Contents
Arming and Disarming
Use the red “lock” button to arm
the system, and the green “unlock”
button to disarm the system.
IMPORTANT: Ensure the button pads
are not installed upside down.
Disarm
Arm
DIP Switches
Check to see if the
alarm’s DIP switches
match by opening the
IR keyfob. Compare
the DIP switch settings
inside the keyfob with
the alarm you are
arming or disarming.
Pictured to the right is
the EnCore.
Note: CR338s do not have to have
matching DIP switch settings in order
for the keyfob to arm and disarm those
systems.
IR Emission
Ensure you hold the keyfob in
the proper orientation.
The IR signal emits from the front
and front underside of the fob.
Point the keyfob at the IR lens on
the product.
Battery Life
Battery life varies depending on keyfob usage. In most use
cases, the keyfob battery (CR2032) can last at least 1 year.
Battery Check
To check if the battery is dead, cup your
hand around the keyfob, or go into a dark
room. Hold down one of the buttons and look
for a strobing red LED through the blue plastic
as shown.
IMPORTANT: Do NOT hold down the buttons
when attempting to arm or disarm. After
holding a button down for 5 seconds, the key
is programmed to stop emitting the IR signal
to avoid draining the battery. You must wait
10 seconds for it to reset.
Range
You must be within 6”-12” of the IR receiver.
5
Rev.08/26/2021
SPARE PARTS
Maintenance
Back to Table of Contents
Alarm
EnCore
VP-1397W
Sensors
USB-C PAS Sensor
VP-1439W Micro USB PAS Sensor
VP-1349WXL X-Sensor
VP-1350WXL Slim Wearable Sensor
VP-1626
Tools 1/8” Allen Security
Screwdriver
V-T900 Allen Security Wrench
V-900-T
Adhesives
EnCore Adhesive
AD-139-20 X-Sensor Adhesive
AD-131-50
Misc.
IR Receiver
KF-1102 IR Keyfob
KF-1106 X-Sensor Flex Cover
VP-1524C Power Supply
V-39 Supply Bag
VPG Bank Bag
