Valor MFCS05 Manual de usuario

The application of this kit does not affect the venting

capabilities or method of preparation of the MF28 heater

as described in the MF28 heater installation manual.

To complete the installation of this kit you

need the following items:

• MF28 Madrona Engine

• MFCS05 Madrona Modern Stove

MFCS05—Madrona Modern

Stove Casing, including

Barrier Screen

MF28—Madrona Engine

Complete Stove

4006571-05

Note: This kit must be

installed or serviced by a

qualified installer, service

agency or gas supplier. These

instructions are to be used

in conjunction with the main

installation instructions

for the above listed heater

model.

MFCS05 Madrona Modern Stove Casing

Approved for use with Valor heater models MF28 only

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the hot

viewing glass is provided with this appliance and must be

installed for the protection of children and other at-risk

individuals.

INSTALLER: Leave this

manual with the appliance.

CONSUMER: Retain this

manual for future reference.

INSTALLATION MANUAL

Madrona

Overview (MF28 sold separately)

Tips

• Wear gloves or ensure to manipulate the cast iron

pieces with clean hands to avoid any stain.

• Remove the MF28 window and all items inside the

appliance before installing to lighten it.

Basic Installation Sequence

A. Convert vent outlet if necessary.

B. Assemble front engine brackets to side panels.

C. Assemble rear panel to engine.

D. Assemble right side panel to engine.

E. Assemble lower bracket to engine.

F. Assemble pipe bracket to left side panel.

G. Assemble left side panel to engine.

H. Install heat shield to engine.

I. Install fan (blower) if used.

J. Place appliance in final position.

K. Place cast top panel on engine.

L. Rear outlet only: Install cast vent cover.

Top outlet only: Install vent collar.

M. Level appliance with leveling screws.

N. Install gas pipe to gas valve.

O. Install gas pipe clamp to pipe bracket.

P. Vent and gas fit heater.

Q. Install inlay panels.

R. Install access door.

S. Install fuel bed, check appliance and complete

installation as per instructions supplied with engine.

T. Install barrier screen on back of front

U. Hook front and barrier screen.

Kits Contents

MFCS05 Madrona Modern Stove

CARTON 1 (MFCS05-1AW, 1PW or 1BK)

• Right Side Assembly

• Left side assembly

CARTON 2 (MFCS05-2)

• Cast front

• Cast top panel

• Cast vent cover

CARTON 3 (MFCS05-3AW, 3PW or 3BK)

• Access door

• Vent collar

• Lower bracket

• Heat shield

• Rear panel

• LH front engine bracket

• RH front engine bracket

• Inlay panels (2)

• Barrier screen

• Pipe bracket

• Hardware pack

Lower

bracket

Rear panel

Inlay

panel

Pipe

bracket

Inlay

panel

RH Front

engine

bracket

Front

engine

bracket

Cast front

Barrier screen

Cast top panel

Heat shield

Vent collar

Cast vent cover

Access

door

LH side

assembly

RH side

assembly

2 [52]

minimum

31-7/8 [809]

26-1/4 [667]

26-11/16 [678] 14-3/4 [374]

16-1/4 [413]

16-15/16 [430]

4-5/8 [118]

1 [26]

minimum

10 [254]

27-1/4 [691]

inches [mm]

Suggested gas line

access point through wall.

Route to avoid optional fan.

Pipe supplied

with engine

(see engine

manual)

Gas line access

point 10 [254]

Gas line connection point

3/8” NPT FEMALE at valve

Gas line

connection

point

Sidewall

Mantel

Ø 6-5/8”

venting

Ø 6-5/8”

venting

Centre of vent

Hinged control

access door

Minimum 61-1/8” (1553 mm)

Front surface

of stove

Minimum

18-1/4”

(464 mm)

Minimum 43-1/4” (1091 mm)

Minimum

12-7/8”

(327 mm)

90°

Zero clearance

Front View Top ViewRight Side View

Corner Dimensions

Alcove Clearances

31-1/4” [794 mm] minimum

26” [660 mm]

maximum

42” [1067 mm] minimum

Dimensions & Clearances to Combustibles

Casting Tolerances

Due to the nature of cast iron and concrete, dimen-

sional consistency may vary from one unit to the next

and some variation in surface finish and flat-ness is

to be expected. We have done our best to control

and make allowance for this; however some variation

is inevitable.

Floor Requirements

When the appliance is installed directly on carpeting,

tile or other combustible material other than wood

flooring, the appliance shall be installed on a metal or

wood panel extending the full width and depth of the

appliance.

Mobile Home Floor Fixing

The Madrona stove must be fixed to the floor

through the floor when used in a mobile home.

Mantel Requirements

The Madrona stove may be installed with a

combustible mantel provided clearances are

maintained as indicated above. Be aware that

although safe, some combustible materials and

finishes at the listed clearances may, over time,

discolor, warp, or show cracks. Care should be taken

when choosing materials—consult your fireplace

dealer.

Mantel / shelf clearances

Mantel

Depth ‘A’

0–1

[0–26]

2–5

[51–127]

6–18

[152–457]

19–24

[483–610]

Mantel

Height ‘B’

[864]

[914]

[965]

[1067]

inches [mm]

Rear Stove Panel

6. Unpack the appliance.

7. Remove the window from the appliance and the

content that is stored inside the appliance.

8. Pull out the engine and rest it carefully on the

ground. From the bottom of the packaging take the

pads on which the engine was sitting and lay them

on the floor. Put the engine back on those pads.

9. If you need to convert from a top outlet to a rear

outlet, do it now.

10. On the rear corners of the engine, on each side,

back up 3 screws.

11. Fit the stove casing’s rear panel to the back of

the engine sliding it under the backed up screws.

Secure the panel tightening the screws.

Installation

Front Engine Brackets

1. Unpack the stove casing.

2. Locate the right hand front engine bracket.

3. On the right hand panel, install the engine bracket.

The bracket’s hook goes at the top of the side panel.

4. Secure to the side panel with two nuts and steel

washers.

5. Repeat for the other side panel.

Front

Top Rear

Hook

Right Side Stove Panel

12. Lay the right hand

side stove panel on

the floor. Identify the

front and the rear of

the panel.

13. Lay the engine on

its side and drop it

down on the side

panel, fitting the

slots of the engine’s

rear panel on the

studs and lining up

the top hole of the

engine with the hole

of the side panel’s

bracket.

14. Secure the engine to the side panel with a washer

and nut on the studs at the rear and at the top

front.

15. Identify the front and rear of the lower bracket:

“U” shaped fixing points towards the front.

Lower bracket

Front

“U”shaped

fixing point

“U”shaped

fixing point

Rear

16. Insert the lower bracket between the engine side

supports over the studs. Secure the right side with a

washer and nut.

Left Side Stove Panel

17. Place the left side panel on the floor, internal face

up, and secure the pipe support bracket to the

panel with a bolt provided.

18. Place the left side

panel on top of the

engine ensuring

the panel’s studs at

the rear and at the

bottom front slide

into the engine’s

slots.

19. Secure the side panel

to the engine with a

washer and nut on

the studs at the rear

and at the top front.

23. Place the stove in its final position.

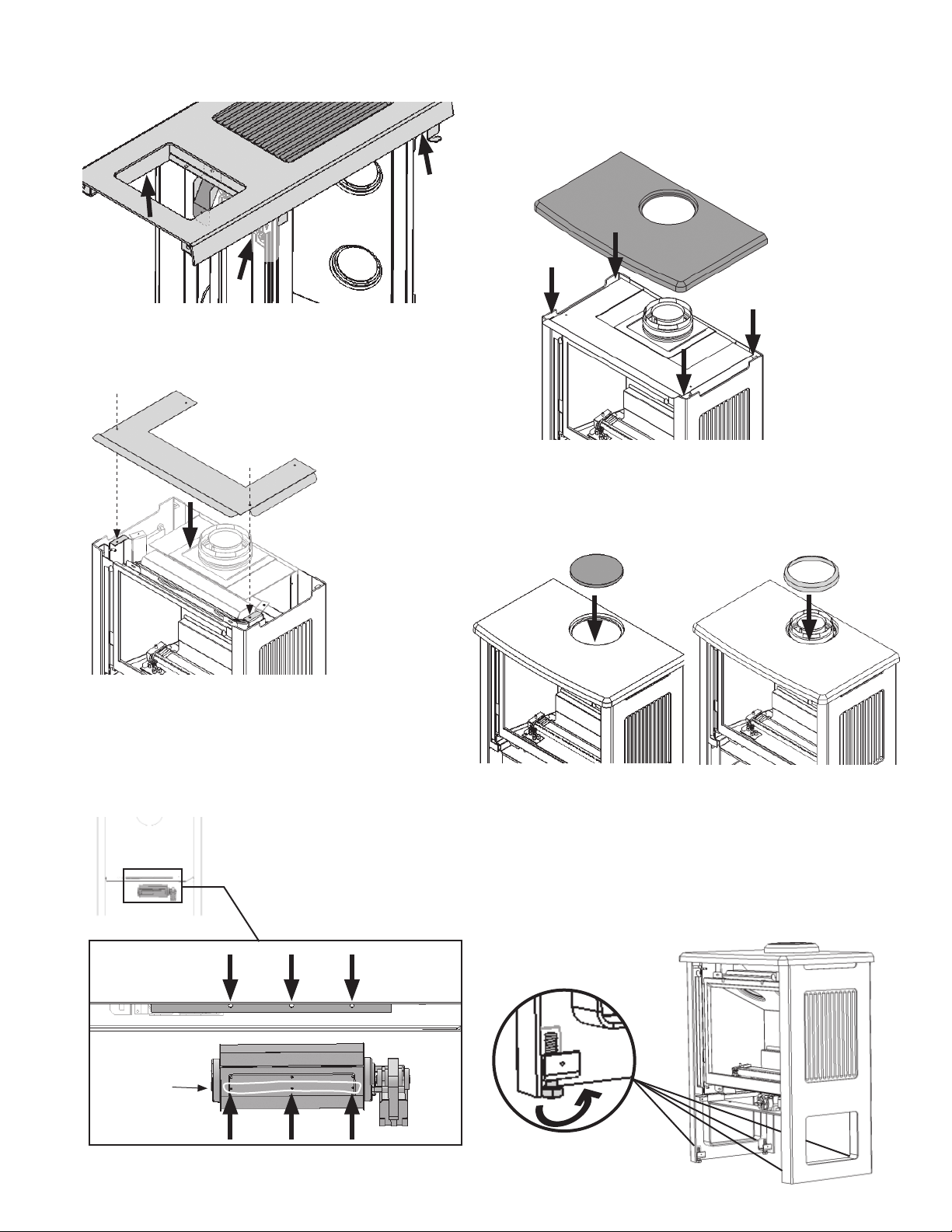

Top Panel and Vent Collar

24. Install the top cast panel on the stove locating its

“feet” within the casting sides.

25. Rear outlet only: Fit the cast cover into the opening

of the top panel.

Top outlet only: Place the vent collar on top of the

outlet to be fitted over the vent pipe when installed.

Inlay Panels, Gas Supply Pipe and Access Door

26. Level the stove unscrewing the levelling bolts at the

four lower corners of the stove if necessary.

Note: If you are installing the stove in a mobile

home, remove the levelling bolts and use the holes

to secure the stove to the floor.

20. Secure the bottom front of the engine and lower

bracket to the side panel stud.

21. Lift the partially assembled stove upright and place

the heat shield on top of the stove and secure it

with 2 screws at the front.

Optional Fan

22. If this installation requires the optional fan, install it

now at the back of the heater. Using the lower set

of fixing holes on the fan will ensure more space to

handle the receiver in front of the fireplace.

See 555CFK—Circulating

Fan Kit manual for com-

plete installation details.

Rear outlet Top outlet

Lower set of

fixing holes

Rear view

27. Connect the gas supply pipe to the gas valve as

shown below. Note that the pipe travels below the

pipe bracket attached to the stove left side.

28. Secure the gas pipe with the clamp and screw

provided with the engine’s hardware pack.

29. Connect the gas supply and install venting system.

30. Install the inlay panels at the bottom of each side

panel. The bottom is held in place by magnets.

Secure the top rear of the inlay with a screw.

Front view Lower bracket

(transparent for clarity)

Optional fan (if installed)

Pipe bracket

Front view

Detail—viewed

from underside

Lower bracket

(transparent for clarity)

Pipe bracket

Pipe clamp

31. Place the access door and secure it as well as the

front of the inlay panel to the assembly with two

washers and a screw. Do not tighten the screw all

the way to allow access door rotation.

The access door opens and closes hinging on the

screw at each end.

To close the door, rotate it upward and push it

straight away from you. When closed, the tab at

each end of the door goes underneath the lower

support bracket to hold it from falling open.

To open de door, pull it straight towards you then

rotate it downward.

Tab goes under

lower bracket

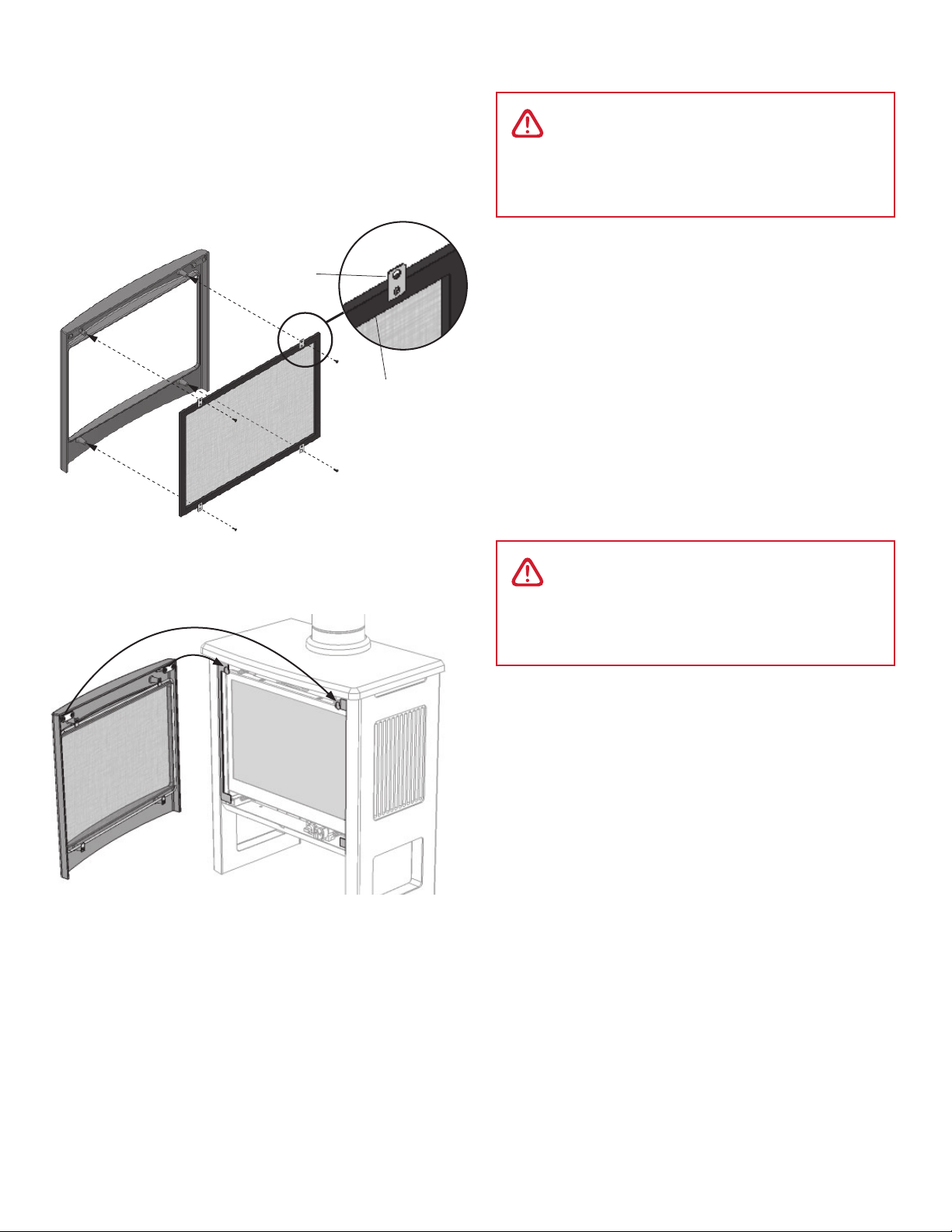

Cast Front and Barrier Screen

32. Finish the installation of the engine: fuel bed,

window, perform all checks and adjustments.

33. Install the screen to the back of the cast front with

4 screws. Orient the screen so its tabs are at the

back. When secured, the screen frame touches the

rear of the cast front and its smooth side is visible.

34. Hook the cast front already fitted with the barrier

screen to the engine’s top hooks.

Tab at

back of

screen

Smooth

frame visible

at the back

Maintenance

Cast iron and stove body

Dust down the surface regularly with a soft brush and

occasionally follow up with a wipe over with a wet cloth.

Barrier screen

Remove the front and barrier screen by unhooking the

front. Dust down using a brush.

If the barrier becomes damaged, the barrier shall

be replaced with the manufacturer’s barrier for this

appliance.

Window and fireplace

See the Owner’s Information section in the Madrona

MF28 fireplace Owner’s Manual for instructions on

cleaning the window and fuel bed.

WARNING

DO NOT TOUCH THE STOVE WHILE IT

IS HOT! Let the stove cool first before

cleaning it.

WARNING

FOR SAFETY PURPOSE, ensure the barrier

screen is always on the stove front after

maintenance if it has been removed.

Repair Parts List

MFCS05—Madrona Modern Stove

Description Part Numbers

Pewter

(PW) Almond

White (AW) Black (BK)

1 Spun vent collar 4006568AZ 4006568AZ 4006568AZ

2 Vent cast iron cover 4006296AZ 4006296AZ 4006296AZ

3 Cast iron top panel 4006049AZ 4006049AZ 4006049AZ

4 Heat shield 4006061 4006061 4006061

5 Rear panel 4006077AZ 4006077AZ 4006077AZ

6 LH side assembly 4006073PW 4006073AW 4006073CH

7 LH front engine bracket 4006057 4006057 4006057

8 Inlay (2) 4006143PW 4006143AW 4006143CH

9 RH side assembly 4006075PW 4006075AW 4006075CH

10 RH front engine bracket 4006058 4006058 4006058

11 Lower bracket 4006067 4006067 4006067

12 Access door 4006060AZ 4006060AZ 4006060AZ

13 Barrier screen 4007217 4007217 4007217

14 Cast iron front 4006046 4006046 4006046

#8-32x1/2” pan h screws (4) 4001885 4001885 4001885

1/4” - 20 hex steel nut (12) 4006290 4006290 4006290

1/4” spring steel washer (12) 4006292 4006292 4006292

15 Pipe bracket—Modern stove 4007659 4007659 4007659

Designed and Manufactured by / for Miles Industries Ltd.

190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1

Tel. 604-984-3496 Fax 604-984-0246

www.valorfireplaces.com

Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.

L’application de ce kit n’affecte pas l’évacuation ou les

méthodes de préparation de l’appareil tels que décrits

dans le guide d’installation du foyer Madrona MF28.

Les articles suivants sont requis pour

compléter l’installation du Poêle Madrona

Modern :

• Foyer Madrona MF28

• Poêle Madrona Modern MFCS05MFCS05

Madrona Modern Stove Casier de poêle Madrona

Modern—MFCS05, incluant

le pare-étincelles

Foyer Madrona MF28

Poêle complet

Casier de poêle Madrona Modern MFCS05

Certiﬁé pour usage avec les foyers Valor MF28 seulement

DIRECTIVES D’INSTALLATION

Madrona

Concept (foyer MF28 vendu séparément)

Note : Ce kit doit être

installé ou réparé par un

installateur qualifié, une

agence de service certifiée

ou un fournisseur de gaz.

Ces instructions doivent être

utilisées conjointement avec

les instructions d’installation

du modèle de foyer Valor

indiqué ci-dessus.

VITRE CHAUDE - RISQUE

DE BRÛLURES.

NE TOUCHEZ PAS UNE

VITRE NON REFROIDIE.

NE LAISSEZ JAMAIS UN

ENFANT TOUCHER LA VITRE.

L’écran pare-étincelles fourni avec ce foyer réduit le risque

de brûlure en cas de contact accidentel avec la vitre chaude

et doit être installé pour la protection des enfants et des

personnes à risques.

DANGER

!INSTALLATEUR : Laissez cette

notice avec l’appareil.

CONSOMMATEUR : Conservez

cette notice pour consultation

ultérieure.

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios para chimeneas de Valor

Valor

Valor 546LFB ZC Portrait Ledgeview Front Manual de usuario

Valor

Valor H6 Series Manual de usuario

Valor

Valor 720SWK-M Manual de usuario

Valor

Valor Madrona Manual de usuario

Valor

Valor 1135TSBE Three Sided Trim with Edgemont... Manual de usuario

Valor

Valor President ZC Cast Front 536CXB Instrucciones de funcionamiento y mantenimiento

Valor

Valor G3.5 Series Manual de usuario

Valor

Valor H6 Series Manual de usuario

Valor

Valor PORTRAIT BSK531 Manual de usuario

Valor

Valor LT2 2700K Manual de usuario

Valor

Valor G3 Series Manual de usuario

Valor

Valor H5 1184ECAS Manual de usuario

Valor

Valor PORTRAIT BSK539-549-550 Manual de usuario

Valor

Valor 1775 Manual de usuario

Valor

Valor PORTRAIT BSK541 Manual de usuario

Valor

Valor G3 Series Manual de usuario

Valor

Valor 716EHC Manual de usuario

Valor

Valor G4 791STB Manual de usuario

Valor

Valor 748CTK-VIK Manual de usuario

Valor

Valor Horizon Matte Black Front 672MBF Manual de usuario

Valor

Valor 1045CFV Manual de usuario

Valor

Valor LINEAR SERIES Manual de usuario

Valor

Valor L1 Series Manual de usuario

Valor

Valor Legend G4 Series Manual de usuario

Manuales populares de Accesorios para chimeneas de otras marcas

Exodraft

Exodraft Xzense Manual de usuario

Whalen

Whalen Ruso MNFP62BF23-6 Manual de usuario

Lopi

Lopi Hearthview 864 Manual de usuario

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manual de usuario

EdilKamin

EdilKamin SERBATOIO 250 Guía de inicio rápido

Bronpi

Bronpi KIT-1 Manual de usuario

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manual de usuario

Travis Industries

Travis Industries 33 DVI Manual de usuario

Superior

Superior ASD3628-TI Manual de usuario

pleasant hearth

pleasant hearth OFP28WG Manual de usuario

IHP

IHP Astria Series Manual de usuario

Firegear

Firegear FG-H-2110SS Manual de usuario

Nibe

Nibe Contura C i31 Manual de usuario

kozy heat

kozy heat KZK-052 Manual de usuario

SimpliFire

SimpliFire SF-WM36 Manual de usuario

Bluegrass Living

Bluegrass Living BC18NR Guía de inicio rápido

pleasant hearth

pleasant hearth IRIS SCROLL Manual de usuario

Cooke

Cooke Glass Wind Guard Manual de usuario
