VADDIO RoboSHOT 12E NDI Manual de usuario

Installation Guide for

RoboSHOT 12E NDI and

RoboSHOT30E NDI

High-Performance PTZ Cameras

Document 411-0038-31 Rev. B

November 2020

Vaddio is a brand of Legrand AV Inc.· Phone 800.572.2011 / +1.763.971.4400 · Fax +1.763.971.4464 ·

Email av.vaddio.support@legrand.com · Visit us at www.legrandav.com for firmware updates,

specifications, drawings, manuals, technical support information, and more.

Vaddio is a registered trademark of Legrand AV Inc. NDI®is a registered trademark of NewTek, Inc. All

other brand names or marks are used for identification purposes and are trademarks of their respective

owners. All patents are protected under existing designations. Other patents pending.

Commercial AV Brands Chief | Da-Lite | Middle Atlantic | Projecta | Vaddio

iii

Contents

Overview 1

What's in this Guide 1

Camera Features 1

Unpacking the Camera 2

A Quick Look at the Camera 3

Front of the Camera 3

Back of the Camera 4

Installing the Camera 5

Don’t Void Your Warranty! 5

Before You Start 5

Cabling Notes 6

Functional Check 6

Status Light 7

Video Resolution Setting 7

About Ceiling-Mounted Cameras 7

Installing the Wall Mount 8

Connecting the Camera 9

Installing the Camera 10

Powering Up the Camera 10

Operation, Storage, and Care 11

Compliance and Conformity Statements 12

FCC Part 15 Compliance 12

ICES-003 Compliance 12

European Compliance 13

Photo Credits 14

Index 15

Overview

This guide covers RoboSHOT®NDI®cameras:

nRoboSHOT 12E NDI, North America – 999-99407-000 (black), 999-99407-000W

(white)

nRoboSHOT 12E NDI, Europe/UK – 999-99407-001 (black), 999-99407-001W

(white)

nRoboSHOT 12E NDI, Australia/New Zealand – 999-99407-009 (black), 999-

99407-009W (white)

nRoboSHOT30E NDI, North America – 999-99437-000 (black), 999-99437-000W (white)

nRoboSHOT30E NDI, Europe/UK – 999-99437-001 (black), 999-99437-001W (white)

nRoboSHOT30E NDI, Australia/New Zealand – 999-99437-009 (black), 999-99437-009W (white)

For information about NewTek NDI technology and products, please visit NewTek Inc.'s website:

https://www.newtek.com/ndi/

What's in this Guide

This guide covers:

nUnpacking the camera

nTips for a successful installation

nCamera power-on

Complete product information is available in the Complete Manual for RoboSHOT 12E NDI and

RoboSHOT30E NDIHigh-Performance PTZ Cameras.

Download manuals, dimensional drawings, and other information from www.legrandav.com.

Camera Features

nDeploy directly into an NDI®AV-over-IP environment; no extension or bridging device required

nNative 1080p/60 NDI streaming with ultra-low latency – under 100 msec

nCourtesy HDMI output

nExmor R™ back-lit 1/2.5 type, high-speed, low-noise image sensor

nRoboSHOT30E NDI: 30x zoom with 70° horizontal field of view (wide end)

RoboSHOT 12E NDI:12x zoom with 70.2° horizontal field of view (wide end)

nTri-Synchronous Motion™ simultaneous 3-axis pan/tilt/zoom movement between presets

nSmooth, silent direct-drive motors – ultra-accurate positioning, from 120° per second down to 0.35° per

second

nWeb interface for remote administration and operation, integration-ready Telnet or serial RS-232 control,

presenter-friendly IR remote control

Unpacking the Camera

Make sure you received all the items you expected.

Caution

Always support the camera's base when picking it up. Lifting the camera by its head or mounting

arm will damage it.

RoboSHOT 12E NDI, North America – 999-99407-000 (black), 999-99407-000W (white)

RoboSHOT 12E NDI, Europe/UK – 999-99407-001 (black), 999-99407-001W (white)

RoboSHOT 12E NDI, Australia/New Zealand – 999-99407-009 (black), 999-99407-009W (white)

nRoboSHOT 12E NDI camera (black or white)

nThin Profile Wall Mount with mounting hardware, black or white, depending on camera color

nVaddio IR Remote Commander

nPoE+ mid-span power injector with AC cord set(s)

nQuick-start guide

RoboSHOT30E NDI, North America – 999-99437-000 (black), 999-99437-000W (white)

RoboSHOT30E NDI, Europe/UK – 999-99437-001 (black), 999-99437-001W (white)

RoboSHOT30E NDI, Australia/New Zealand – 999-99437-009 (black), 999-99437-009W (white)

nRoboSHOT30E NDI camera (black or white)

nThin Profile Wall Mount with mounting hardware, black or white, depending on camera color

nVaddio IR Remote Commander

nPoE+ mid-span power injector with AC cord set(s)

nQuick-start guide

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

A Quick Look at the Camera

RoboSHOT NDI cameras are available in black or white.

Front of the Camera

nCamera and Zoom Lens

oRoboSHOT 12E NDI:12x zoom is ideal for classrooms and small to medium sized conference

rooms.

oRoboSHOT30E NDI: 30x zoom delivers superb clarity and detail even in large spaces.

nIR Sensors: Sensors in the front of the camera base receive signals from the remote. Make sure

there's nothing directly in front of the camera base, and point the remote at the camera.

nStatus indicator: The multicolored LED indicates the camera's current state.

nReally Cool Logo Badge (RCLB): Attractive and shiny, with a sophisticated brushed-metal finish.

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

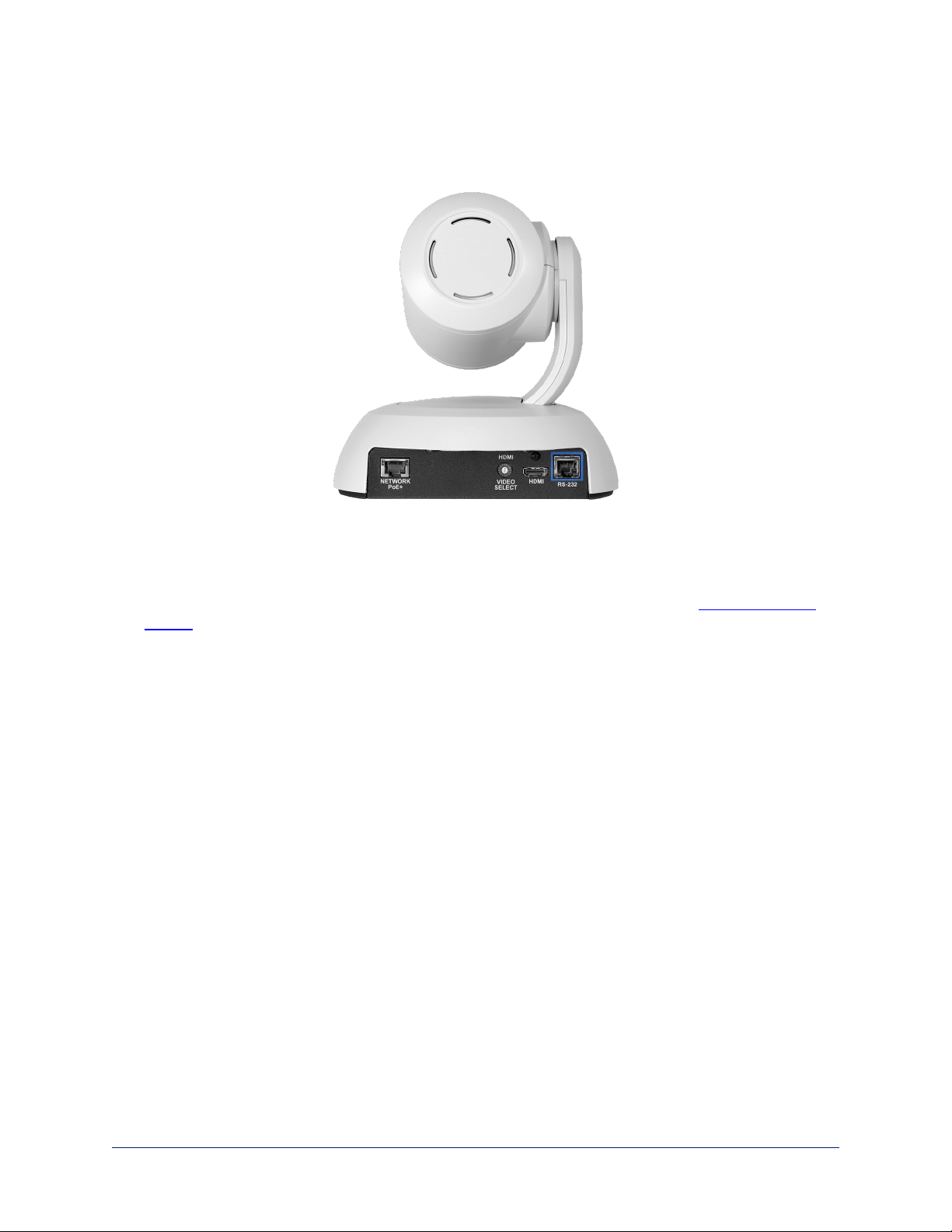

Back of the Camera

The connector panels of the RoboSHOT 12E NDI and RoboSHOT30E NDI cameras are identical.

From left to right:

nNetwork PoE+: RJ-45 connector. Connect to the network via PoE+ injector for power, control, and

video.

nHD Video Select switch: Rotary switch to select the HDMI output resolution. See Video Resolution

Setting.

nHDMI: Courtesy HDMI video output connector.

nRS-232: RJ-45 connector. Typically not used.

Note

Alabel on the bottom of the camera lists the rotary switch settings.

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

Installing the Camera

This section covers:

nSelecting the location for the camera

nPre-installation functional check

nInformation on cables and (if applicable)RS-232 communication

nConnection diagram

nSettings for physical switches (if any)

nInstalling the camera mount

nMounting the camera

And a required safety note here:

Note

PoE type networks connected to this equipment are for intra-building use only and should not be connected

to lines that run outside of the building in which this product is located.

Don’t Void Your Warranty!

Caution

Always support the camera's base when picking it up. Lifting the camera by its head or mounting

arm will damage it.

Caution

This product is for indoor use only. Use an appropriate protective enclosure if installing it outdoors or in a

humid environment. Do not install or operate this product if it has been dropped, damaged, or exposed to

liquids. If any of these things happen, return it to Vaddio for safety and functional testing.

Before You Start

Things to keep in mind when deciding where to install the camera:

nConsider camera viewing angles, lighting conditions, line-of-sight obstructions, and in-wall

obstructions.

nIf the IR Remote Commander will be used, ensure that nothing blocks the IRlens in the camera's base.

nEnsure that the camera body can move freely and will normally point away from the ceiling and lights.

The video image may appear off-level in any of these situations:

nThe mount is not level

nThe mount is not installed on the centerline of the room

nThe back wall of the room is not perpendicular to the centerline of the room

Prepare for a successful installation:

nBe sure you can identify all cables correctly.

nCheck Cat-5 cables for continuity.

nEnsure that the video resolution rotary switch is set appropriately.

nTalk to the network administrator. If installing the camera in a non-DHCPnetwork (one that does not

automatically assign IP addresses), you may need to configure the camera with a static IP address as

directed by the network administrator before connecting it to the network. Work with the network

administrator to determine how to configure the equipment.

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

Cabling Notes

Use Cat-5e or better cable. Cat-6 or Cat-7 cabling allows longer maximum cabling distance, and may

provide better performance in noisier RF or EMF environments. We recommend shielded cabling if the

cables will be coiled, run tightly with other cables, or routed near sources of electromagnetic interference

such as power lines or fluorescent light fixtures. When in doubt, use shielded Cat-6 cable or better.

Caution

When making cables for Vaddio products, do not use pass-through RJ-45 connectors. If

they are crimped incorrectly, they can damage the connectors on the product, cause

intermittent connections, and degrade signal quality. Physical damage to the connectors

will void your warranty.

Intact – Contact fingers will make

reliable contact with the cable

connector

Damaged – Some contact fingers

are bent and will NOT make

reliable contact with the cable

connector

We recommend using high-quality connectors and a high-quality crimping tool.

Caution

Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment

damage and will void the warranty.

Pro Tip

To prevent tragic mishaps, label both ends of every cable.

Functional Check

Before you install the camera, you may want to verify functionality.

1. Connect the camera in its minimum functional configuration.

2. Connect power. The camera moves, the indicator light turns blue, and video is available on the

connected display.

3. If the camera turns on and sends video, continue with the installation.

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

Status Light

The light in the camera's base indicates its current state.

nBlue: Normal operation (blinks once when the camera receives a command from the remote)

nRed: On-air tally (signal provided by external device via serial connection)

nBlinking red: Video is muted (UC color scheme only)

nPurple: In standby mode or booting

nYellow: Firmware update in progress

Caution

Do not remove power or reset the camera while the indicator is yellow, showing a firmware update in

progress. Interrupting a firmware update can make the camera unusable.

Note

By default, the camera's status light is active during normal operation; however, it can be configured to

remain off when the camera is powered up. The camera may be sending video even if the indicator light is

off.

Video Resolution Setting

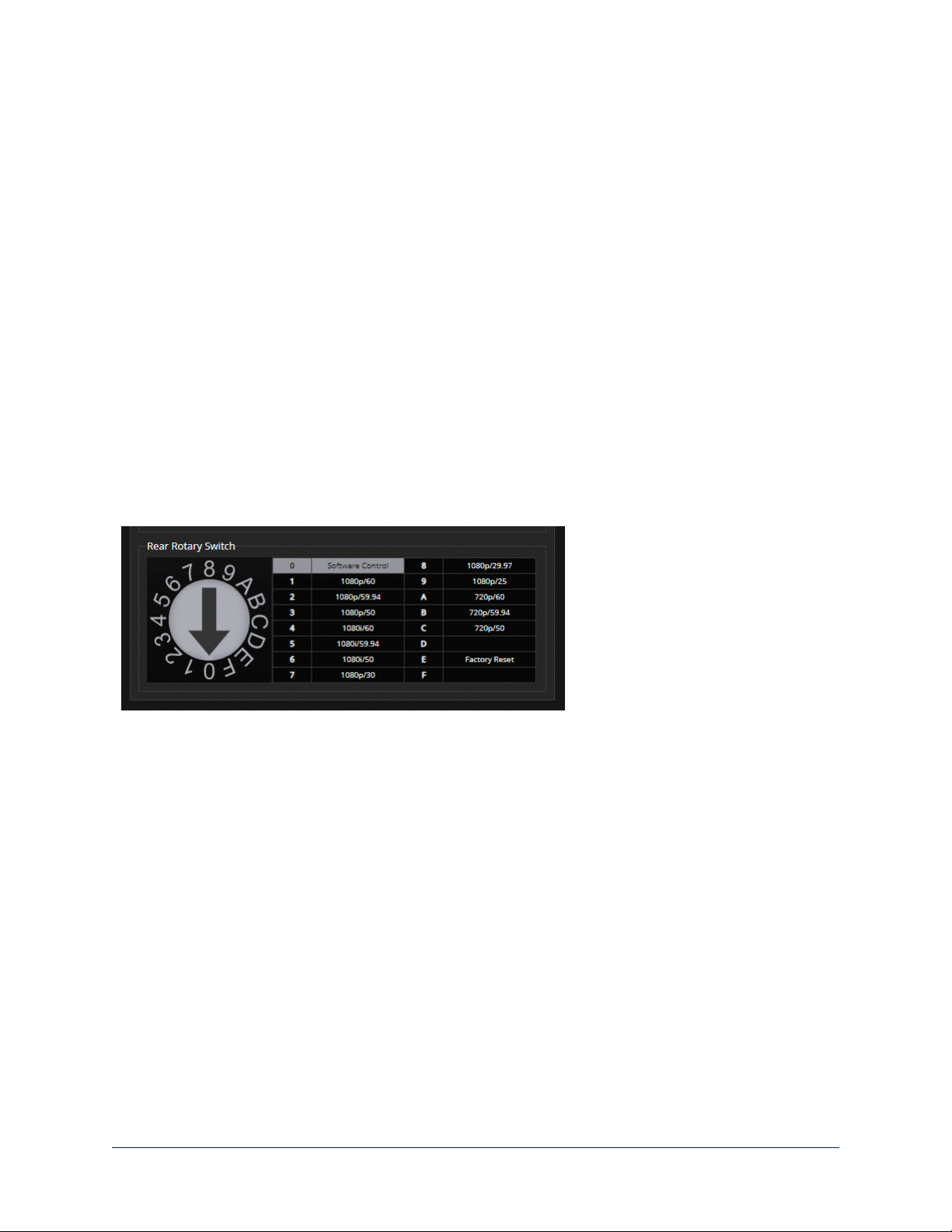

Set the desired video output resolution with the rotary switch before installing the camera.

Position 0 selects software control, which allows you to set the video output resolution in the web interface.

The default resolution for this setting is 1080p/59.94.

About Ceiling-Mounted Cameras

If you use an inverted mount, you will need to use the Image Flip setting to orient the video image correctly

and set the tilt motors to respond appropriately to tilt commands from the remote, web interface, and

connected control devices. After the camera has power, this setting is available to the administrator on the

System page of the web interface, under the DIP Switches tab.

Note

If mounting this camera using the Half-Recessed Ceiling Mount, you will need to power the mount's IR

receiver separately to use the IRremote with the camera. Use Power Extension Module 999-1005-021.

This camera does not supply power to the mount's IR receiver.

Installation Guide for RoboSHOT 12E NDI and RoboSHOT30E NDI High-Performance PTZ Cameras

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de VADDIO

VADDIO

VADDIO CLEARVIEW HD-20SE Manual de usuario

VADDIO

VADDIO ClearVIEW 999-6990-000 Manual de usuario

VADDIO

VADDIO VADDIO/CANON BU Series Manual de usuario

VADDIO

VADDIO RoboSHOT USB Series Manual de usuario

VADDIO

VADDIO Domeview Manual de usuario

VADDIO

VADDIO CeilingVIEW 70 PTZ HideAway Manual de usuario

VADDIO

VADDIO IntelliSHOT Manual de usuario

VADDIO

VADDIO WideSHOT WallVIEW USB Manual de usuario

VADDIO

VADDIO ZoomSHOT 20 QSR Manual de usuario

VADDIO

VADDIO WALLVIEW DVI/HDMI HD-20 Manual de usuario

VADDIO

VADDIO WallVIEW PRO 300 Manual de usuario

VADDIO

VADDIO PowerVIEW HD-22 Manual de usuario

VADDIO

VADDIO RoboSHOT 12 HDMI Manual de usuario

VADDIO

VADDIO Wallview CCU HD-20 HD-SD Manual de usuario

VADDIO

VADDIO RoboSHOT 12 Series Manual de usuario

VADDIO

VADDIO WallVIEW D80 PTZ Manual de usuario

VADDIO

VADDIO WallVIEW HD-USB PRO System Manual de usuario

VADDIO

VADDIO WallVIEW CCU HD-19 Manual de usuario

VADDIO

VADDIO WallVIEW CCU HD-18 HD-SDI Manual de usuario

VADDIO

VADDIO RoboSHOT 12 HD-SDI Manual de usuario

VADDIO

VADDIO CLEARVIEW HD-18 Manual de usuario

VADDIO

VADDIO CLEARVIEW HD-20SE Manual de usuario

VADDIO

VADDIO WallVIEW CCU HD-19 Manual de usuario

VADDIO

VADDIO WALLVIEW PRO HD1 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
