CeilingVIEW 70 PTZ

Integrated, Recessed Installation Pan/Tilt/Zoom Ceiling Camera System

Vaddio’s CeilingVIEW 70 PTZ camera system is designed to

provide system integrators with an easy to install, partially

recessed, in-ceiling camera system (see Figure 1). The system

features a Sony® EVI-D70 PTZ Camera mounted into a shallow

recessed, metal ceiling camera enclosure with ceiling tile support

and is equipped with Vaddio’s EZCamera™ Cabling System which

allows the integrator to use Cat. 5 cabling to run power, video and

camera control.

IR Remote Control or RS-232 can control the camera pan/tilt/zoom

and electronic functions. The VISCA control interface is included to

allow the camera to work with any other VISCA compatible control

device that supports the full range of motion that the camera

supplies. The PowerRite™ power supply regulates the right amount

of power needed for the camera over the Cat. 5 cabling.

Before operating the Vaddio CeilingVIEW 70 PTZ, please read the

entire manual thoroughly. The camera system was designed, built

and tested for use indoors in a suspended acoustic tile ceiling, and

with the provided power supply. The use of a power supply other

than the one provided or outdoor operation has not been tested and

could damage the camera and/or create a potentially unsafe

operating condition.

The information contained in this manual will help you install and

operate your Vaddio CeilingVIEW 70 PTZ. If these instructions are

misplaced, Vaddio keeps copies of Specifications, Installation and

User Guides and most pertinent product drawings for the Vaddio

product line on the website. These documents can be downloaded

from www.vaddio.com free of charge.

SAVE THESE

INSTRUCTIONS

INTENDED USE

INTRODUCTION

Figure 1: Vaddio

CeilingVIEW 70 PTZ

Camera System

partially recessed

into the ceiling

CeilingVIEW 70 PTZ – Document 010-2304-000 Rev. E

Page 2 of 14

Read and understand all instructions before using. Do not operate

the camera if the camera has been dropped or damaged. In this

case, a Vaddio technician must examine the product before

operating. To reduce the risk of electric shock, do not immerse in

water or other liquids and avoid extremely humid conditions.

Carefully remove the device and all of the parts from the packaging.

Unpack and identify the following parts:

•One (1) CeilingVIEW 70 PTZ Camera Module

•One (1) Sony RM-EV100 IR Remote Controller

•One (1) White trim ring with IR sensor attached

•One (1) Vaddio Quick-Connect Box

•One (1) Vaddio PowerRite 15VDC Power Supply

•One (1) AC power cable for Power Supply

•One (1) 12’ (4.57m) S-Video cable

•Two (2) Adjustable ceiling tile support rails

•One (1) RJ-45 to DB9 EZCamera™ Control Adapter

•Mounting Hardware

•Installation and User Guide (010-2304-000 Rev. B)

The CeilingVIEW 70 PTZ is an integrated document/object camera

specifically designed for installation in a suspended acoustic ceiling

tile above a table or work surface or in a position to be used as an

auxiliary PTZ camera. Recommended ceiling heights are between

8 and 12 feet.

•Be sure to check above the ceiling tile where you plan to install

the camera to make sure the area is clear and that there is

enough room for the CeilingVIEW Camera Module and all of its

components.

•Keep in mind that other than viewing straight down, the

CeilingVIEW PTZ has the capability of panning +/-170 degrees

from center.

•The camera may be used with any 2’ tile. The camera module

enclosure and the tile support rails allow for flexibility and

positioning freedom when used with 2'x2' and 2'x4' ceiling tiles.

•For cutting ease, remove the marked ceiling tile and place on a

suitable and safe work surface

UNPACKING

Use only the power supply provided with the CeilingVIEW 70 PTZ

camera system. Use of any unauthorized power supply will void any

and all warranties.

IMPORTANT

SAFEGAURDS

INSTALLATION

Before

Installing

CeilingVIEW 70 PTZ – Document 010-2304-000 Rev. E

Page 3 of 14

Note: If camera is to be controlled as part of a multi camera system, please

refer to the section CHANGING CAMERA DEFAULT SETTINGS located on

Page 6 of this manual.

To mount the CeilingVIEW 70 PTZ:

1) Attach a string or plumb bob to the ceiling tile with a thumbtack.

2) Position the string directly over ample table space or work

surface to allow easy document and object positioning.

3) Using a sharp utility knife, score a 6-3/4" diameter circle into the

front of the tile centered on the string.

4) Carefully cut out the 6-3/4" hole.

5) Place the tile support rail on the backside of the tile and center

over the hole. Carefully place camera in cutout hole from the

back of tile (see Figures 3 and 4) and attach to support rails.

6) Using the supplied thumbscrews and washers, attach the

support rails to the CeilingVIEW 70 PTZ camera (see Figure 4).

Place rail edge between two washers and tighten thumbscrew

securely. Note: The thumbscrew sits on top of the rail, not through

the holes on the rail.

Step by Step

Mounting

Instructions

CAMERA

THUMB SCREW

24" BRACKET

WASHERS

Figure 3:

Side View of

CeilingVIEW 70 PTZ

Camera and back box

For installation

reference, the cutout

area by the IR detector

cable hole cable hole is

to the front of the

camera.

Figure 4:

Side View and Close-up

of Camera module and

support rail attachment.

CeilingVIEW 70 PTZ – Document 010-2304-000 Rev. E

Page 4 of 14

7) The Cat.5 plenum rated cable (not included) is run from the

ceiling location where the camera is to be mounted, to where

the Quick-Connect Box is located (see Figure 5). Both the S-

Video and Composite Video outputs are active.

8) If needed, Cat.5 plenum rated cable(s) may be purchased from

Vaddio to connect your camera to a serial control daisy-chaining

between multiple cameras (see Figure 6).

9) Connections (see Figure 7):

a. Attach the installed Cat.5 cable routed from the

POWER/VIDEO jack on the back of the camera to the

Quick Connect Box.

b. If a RS-232 control cable is to be used, it should be

attached to the RS-232 IN jack (If a second or third

camera is to be used, attach a cable to the RS-232 OUT

jack and route to the next camera.

Cabling the

Camera

S-Video

Output to

Display

Device

Composite

Video

Output to

Dis

Power from

PowerRite Power

Supply

Cat. 5 to/from

POWER/VIDEO

Jack on Camera

Module

Figure 5:

Quick-Connect

Box and

connections

Figure 6:

Daisy Chain Control

Connections between

cameras

(Vaddio Cameras shown,

left to right: CeilingVIEW

70 PTZ, WallVIEW 70 PTZ

and WallVIEW 50i PTZ

HideAway)

RS-232

Control

IN IN INOUT OUT

Figure 7:

RJ-45 Connections on back

of Camera Module

•POWER/VIDEO

•RS-232 IN

•RS-232 OUT (for daisy-

chain control)

Connections

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 5 of 14

10)The camera and ceiling tile should be carefully replaced in the

suspended ceiling at this time.

11)Locate the white trim ring assembly and plug the IR cable into

the IR board connector on the trim ring lip (see Figure 8). Take

care not to pull any more than about 2 inches of cable from the

camera enclosure. The connectors will fit together only one way

with a positive click. (Note: DO NOT hang the trim ring from the

camera by the IR cable) Carefully move trim ring into position on

bottom of ceiling tile while feeding IR cable back into camera

enclosure and secure with the two supplied white screws.

With the Cat.5 cable routed from the POWER/VIDEO jack on the

back of the camera to the Quick Connect Box; connect the supplied

Vaddio PowerRite power supply. The camera will activate and

move to the “HOME” position and the S-Video and Composite Video

signals will be live and viewable.

The Camera can be controlled with the Sony RM-EV100 IR Remote

Controller or through RS-232 using VISCA control protocols.

The Sony RM-EV100 IR Remote Controller controls the following

functions when used with a CeilingVIEW 70 PTZ (see Figure 9). A

fresh set of AA batteries (not included) should be installed in the

provided Sony remote control. To operate, aim remote at camera

and depress desired button.

Finishing Up

Figure 8:

Connecting the IR

sensor on Trim Ring

to the IR cable

Initial

Camera

Power Up

CONTROLLING

THE CAMERA

IR Remote

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 6 of 14

FRONT

IMAGE FLIP IR SELECT

COVER

PLATE

RETAINER

SCREWS

COVER

PLATE

COVER

PLATE OFF

If you are using a control system (i.e. Crestron or AMX), plug the

Cat.5 cable from the RS-232 IN jack on the camera to your control

system using the Cat.5 to DB9 serial adapter supplied by Vaddio. If

you are controlling more than one camera, plug the Cat.5 cable from

the RS-232 OUT jack on the first camera to the RS-232 IN jack on

the second camera. Repeat procedure if third camera is to be used.

Please refer to Figure 10 for this procedure.

•Camera must be disconnected from electrical power.

•Remove the 4 cover plate retainer screws.

•Carefully lift off cover plate while threading the IR cable back through hole.

•Looking between the rear of the EVI-D70 camera body and the interconnect

circuit board; locate the 2 switches (it may be necessary to slightly tilt the

camera assembly to get the best view of the switches).

•The default setting for the image flip function is ON.

•The default setting for IR select is 1. If this to be camera number 2 in a 2

camera system, set this switch to position 2. If this camera is number 3 in a 3

camera system, set switch to position 3.

•Carefully thread the IR cable back through the cover plate and secure plate to

camera enclosure using the 4 retaining screws.

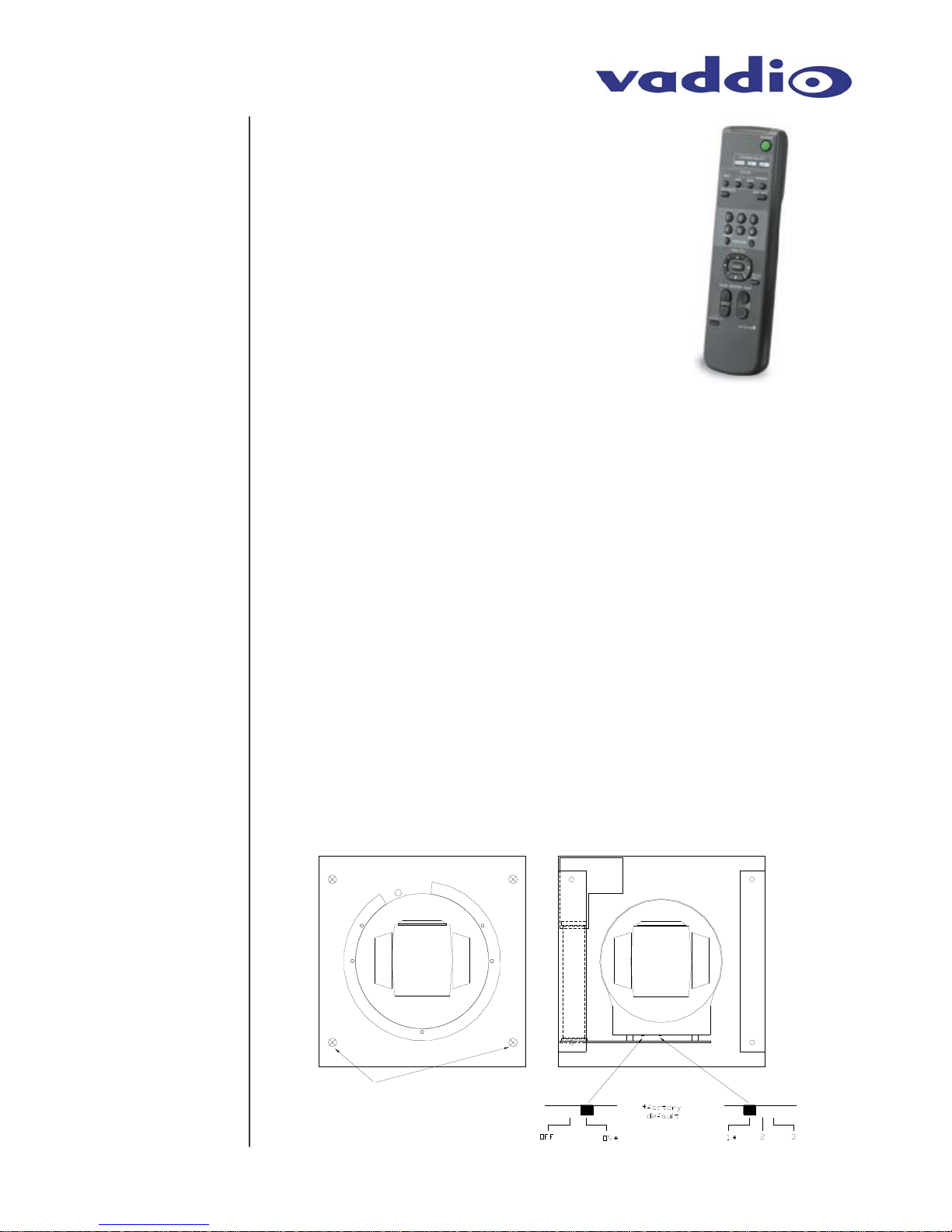

Figure 9:

RM-EV100 IR Remote Controller

•Power on/off

•Camera Select: 1, 2, 3

•Focus: Auto, Manual (Near & Far)

•Zoom: Slow – Tele, Wide

Fast – Tele, Wide

•Data Screen On Screen Display

•Back Light: Back Light Compensation

•Pan-Tilt: Left, Right, Up, Down, Reset

•Home: Home/Centered Position

•Position: Preset, Reset

•Presets: 6 (1 through 6)

•

L/R Direction Set:

Std, Rev

Control

Systems

CHANGING CAMERA

DEFAULT SETTINGS

Figure 10: Cover Plate Removal and default settings access

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 7 of 14

Vaddio supplies this control specification for the CeilingVIEW 70 PTZ camera.

This VISCA control set (as used in Sony EVI cameras) is used in conjunction with

additional Vaddio control commands (see comment section on Table 1) for added

functionality of the camera lift.

Communication Speed: 9600 bps (default)

Start bit: 1

Stop bit: 1

Data bits: 8

Parity: None

The control codes for the CeilingVIEW 70 PTZ are the same codes used with the

EVI-D70 pan/tilt/zoom camera. Vaddio is not translating these codes and does

not add any translation or memory capability to enable use of the EVI-D70 camera

as a main or auxiliary camera with videoconferencing system codecs or the

associated IR remote controllers of the codecs.

For best control results, use the provided RM-EV100 IR Remote Controller or the

VISCA Commands (detailed in Table 1 below) with an external control system.

Table 1: VISCA Command List (Partial)

RS-232

Command Set Command Command Packet* Comments

AddressSet Broadcast 88 30 01 FF Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clear

CommandCancel 8x 2p FF p: Socket No.(=1or2)

On 8x 01 04 00 02 FF Power ON

CAM_Power

Off (Standby) 8x 01 04 00 03 FF Power OFF

Stop 8x 01 04 07 00 FF

Tele(Standard) 8x 01 04 07 02 FF No

Wide(Standard) 8x 01 04 07 03 FF

Tele(Variable) 8x 01 04 07 2p FF p=0（Low）～7（Fast）

Wide(Variable) 8x 01 04 07 3p FF

CAM_Zoom

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

D-Zoom On 8x 01 04 06 02 FF Digital Zoom ON/OFF

CAM_Dzoom

D-Zoom Off 8x 01 04 06 03 FF

Stop 8x 01 04 08 00 FF

Far(Standard) 8x 01 04 08 02 FF

Near(Standard) 8x 01 04 08 03 FF

Far(Variable) 8x 01 04 08 2p FF p=0（Low）～7（High）

Near(Variable) 8x 01 04 08 3p FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

Auto Focus 8x 01 04 38 02 FF AF ON/OFF

Manual Focus 8x 01 04 38 03 FF

CAM_Focus

Auto/Manual 8x 01 04 38 10 FF

RS-232

MMAND LI

Communication

Specification *Communication Example:

For the VISCA Packet “8x 01 04 07 03 FF”

(CAM_Zoom_Wide), “x” corresponds with

the number and order of the camera in the

control chain (daisy chain) where x = 1 for

the first camera, x = 2 for the second

camera, etc…

Control

Disclaimer

Command List

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 8 of 14

Command List

(Continued)

One Push

Trigger 8x 01 04 18 01 FF One Push AF Trigger

Infinity 8x 01 04 18 02 FF Forced Infinity

Near Limit 8x 01 04 28 0p 0q 0r 0s FF pqrs: Focus Near Limit Position

Normal 8x 01 04 58 02 FF AF Sensitivity Norm/Low

AF Sensitivity

Low 8x 01 04 58 03 FF

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s 0t 0u

0v 0w FF

pqrs: Zoom Position

tuvw: Focus Position

Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF Indoor Mode

Outdoor 8x 01 04 35 02 FF Outdoor Mode

One Push WB 8x 01 04 35 03 FF One Push WB Mode

ATW 8x 01 04 35 04 FF Auto Tracing White Mode

Manual 8x 01 04 35 05 FF Manual Control Mode

CAM_WB

One Push Trigger 8x 01 04 10 05 FF One Push WB trigger

Reset 8x 01 04 03 00 FF R Gain Manual setting

Up 8x 01 04 03 02 FF

Down 8x 01 04 03 03 FF

CAM_RGain

Direct 8x 01 04 43 0p 0q 0r 0s FF pqrs: R Gain

Reset 8x 01 04 04 00 FF B Gain Manual setting

Up 8x 01 04 04 02 FF

Down 8x 01 04 04 03 FF

CAM_BGain

Direct 8x 01 04 44 0p 0q 0r 0s FF pqrs: B Gain

Full Auto 8x 01 04 39 00 FF Automatic exposure mode

Manual 8x 01 04 39 03 FF Manual control mode

Shutter Priority 8x 01 04 39 0A FF Shutter priority auto exposure mode

Iris Priority 8x 01 04 39 0B FF Iris priority auto exposure mode

CAM_AE

Bright 8x 01 04 39 0D FF Bright mode (Manual）

Auto 8x 01 04 5A 02 FF AutoSlowShutter ON/OFF

CAM_SlowShutter

Manual 8x 01 04 5A 03 FF

Reset 8x 01 04 0A 00 FF Shutter setting （1/4sec～1/10000sec）

Up 8x 01 04 0A 02 FF

Down 8x 01 04 0A 03 FF

CAM_Shutter

Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

Reset 8x 01 04 0B 00 FF Iris setting

Up 8x 01 04 0B 02 FF

Down 8x 01 04 0B 03 FF

CAM_Iris

Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

Reset 8x 01 04 0C 00 FF Gain setting

CAM_Gain

Up 8x 01 04 0C 02 FF

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 9 of 14

Command List

(Continued)

Down 8x 01 04 0C 03 FF

Direct 8x 01 04 4C 00 00 0p 0q FF pqrs: Gain Position

Reset 8x 01 04 0D 00 FF Bright setting

Up 8x 01 04 0D 02 FF

Down 8x 01 04 0D 03 FF

CAM_Bright

Direct 8x 01 04 4D 00 00 0p 0q FF pqrs: Bright Position

On 8x 01 04 3E 02 FF Exposure Compensation ON/OFF

Off 8x 01 04 3E 03 FF

Reset 8x 01 04 0E 00 FF Exposure Compensation amount setting

Up 8x 01 04 0E 02 FF

Down 8x 01 04 0E 03 FF

CAM_ExpComp

Direct 8x 01 04 4E 00 00 0p 0q FF pqrs: ExpComp Position

On 8x 01 04 33 02 FF Back Light Compensation

CAM_BackLight

Off 8x 01 04 33 03 FF

On 8x 01 04 59 02 FF Setting for AE

Off 8x 01 04 59 03 FF

CAM_SpotAE

Position 8x 01 04 29 0p 0q 0r 0s FF pq: X(0 to F) , rs: Y(0 to F)

Reset 8x 01 04 02 00 FF Aperture Control

Up 8x 01 04 02 02 FF

Down 8x 01 04 02 03 FF

CAM_Aperture

Direct 8x 01 04 42 0p 0q 0r 0s FF pqrs: Aperture Gain

On 8x 01 04 61 02 FF Mirror Image ON/OFF

CAM_LR_Reverse

Off 8x 01 04 61 03 FF

On 8x 01 04 62 02 FF Freeze Picture ON/OFF

CAM_Freeze

Off 8x 01 04 62 03 FF

Off 8x 01 04 63 00 FF Picture Effect setting

Neg.Art 8x 01 04 63 02 FF

CAM_PictureEffect

B&W 8x 01 04 63 04 FF

On 8x 01 04 01 02 FF ICR Mode ON/OFF

CAM_ICR

Off 8x 01 04 01 03 FF

On 8x 01 04 51 02 FF Auto ICR ON/OFF

CAM_AutoICR

Off 8x 01 04 51 03 FF

Reset 8x 01 04 3F 00 pp FF p: Memory number （=0 to 5）

Set 8x 01 04 3F 01 pp FF

CAM_Memory

Recall 8x 01 04 3F 02 pp FF

On 8x 01 04 75 02 FF Mute ON/OFF

Off 8x 01 04 75 03 FF

CAM_Mute

On/Off 8x 01 04 75 10 FF

CAM_Display On 8x 01 04 15 02 FF Display On/Off

CeilingVIEW 70 PTZ - Document 010-2304-000 Rev.E

Page 10 of 14

Command List

(Continued)

(8x 01 06 06 02 FF)

8x 01 04 15 03 FF

Off

(8x 01 06 06 03 FF)

8x 01 04 15 10 FF

On/Off

(8x 01 06 06 10 FF)

Title Set1 8x 01 04 73 00 mm nn pp qq

00 00 00 00 00 00 FF

mm: V-Position, nn H-Position pp: Color, qq:Blink

Title Set2 8x 01 04 73 01 mm nn pp qq

rr ss tt uu vv ww FF mnpqrstuvw: Set of charactors ( 1 to 10)

Title Set3 8x 01 04 73 02 mm nn pp qq

rr ss tt uu vv ww FF mnpqrstuvw: Set of charactors ( 11 to 20)

Title Clear 8x 01 04 74 00 FF Title Set clear

On 8x 01 04 74 02 FF

CAM_Title

Off 8x 01 04 74 03 FF

Title display On/Off

CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID（=0000～FFFF）

On 8x 01 04 6B 02 FF Alarm On/Off

Off 8x 01 04 6B 03 FF

pp: Set the mode(00 -- 0C)

00 Detect the Focus position

(Not update the original data)

01 Detect the Focus position

（Update the original data）

02 Detect the AE level

（Not update the original data)

SetMode 8x 01 04 6C pp FF

03 Detect the AE level

（Update the original data)

SetDayNightLevel 8x 01 04 6D 0p 0p 0p 0q 0q 0q FF Set the AE level of judgment of

Day (ppp) and Night(qqq)

y0 07 04 6B 01 FF Detect level "Low" to "High"

CAM_Alarm

Alarm（Reply）

y0 07 04 6B 00 FF Detect level "High" to "Low"

Up 8x 01 06 01 VV WW 03 01 FF

Down 8x 01 06 01 VV WW 03 02 FF

Left 8x 01 06 01 VV WW 01 03 FF

Right 8x 01 06 01 VV WW 02 03 FF

Up-Left 8x 01 06 01 VV WW 01 01 FF

Up-Right 8x 01 06 01 VV WW 02 01 FF

Down-Left 8x 01 06 01 VV WW 01 02 FF

Down-Right 8x 01 06 01 VV WW 02 02 FF

Stop 8x 01 06 01 VV WW 03 03 FF

Absolute Position 8x 01 06 02 vv WW 0Y 0Y 0Y

0Y 0Z 0Z 0Z 0Z FF

Relative Position 8x 01 06 03 vv WW 0Y 0Y 0Y

0Y 0Z 0Z 0Z 0Z FF

Home 8x 01 06 04 FF

Pan/Tilt Drive

Reset 8x 01 06 05 ff

VV: Pan Speed 01 to 18

WW: Tilt Speed 01 to 17

YYYY: Pan Position F725 to 08DB (center

0000)

ZZZZ: Tilt Position FE70 to 04B0 (Image Flip:

off) (center 0000)

Tilt Position FB50 to 0190 (Image Flip: ON)

(center 0000)

Tabla de contenidos

Otros manuales de Cámara de seguridad de VADDIO

VADDIO

VADDIO RoboSHOT USB Series Manual de usuario

VADDIO

VADDIO RoboSHOT 12E HDBT Manual de usuario

VADDIO

VADDIO CLEARVIEW HD-18 Manual de usuario

VADDIO

VADDIO CeilingVIEW 70 PTZ HideAway Manual de usuario

VADDIO

VADDIO RoboSHOT 12 Manual de usuario

VADDIO

VADDIO RoboSHOT 20 UHD Manual de usuario

VADDIO

VADDIO ZoomShot 999-6920-000 Manual de usuario

VADDIO

VADDIO WideSHOT WallVIEW USB Manual de usuario

VADDIO

VADDIO CEILINGVIEW HD HIDEAWAY Manual de usuario

VADDIO

VADDIO CLEARVIEW HD-20 Manual de usuario

VADDIO

VADDIO WallVIEW 70 PTZ Manual de instalación y operación

VADDIO

VADDIO RoboSHOT 12E USB Manual de usuario

VADDIO

VADDIO CANON XU-81 Manual de usuario

VADDIO

VADDIO IntelliSHOT 999-21100-000 Manual de usuario

VADDIO

VADDIO 999-6925-000 Manual de usuario

VADDIO

VADDIO RoboSHOT HDBT Series Manual de usuario

VADDIO

VADDIO WALLVIEW HD-19 Manual de usuario

VADDIO

VADDIO RoboSHOT 12 HD-SDI Manual de usuario

VADDIO

VADDIO RoboSHOT 20 UHD Manual de usuario

VADDIO

VADDIO WallVIEW CCU HD-18 HD-SDI Manual de usuario

VADDIO

VADDIO WallVIEW D80 PTZ Manual de usuario

VADDIO

VADDIO RoboSHOT Manual de usuario

VADDIO

VADDIO RoboSHOT HDBT Series Manual de usuario

VADDIO

VADDIO PowerVIEW HD-22 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
