Vacmaster VK1620SWC Manual de usuario

20L 1600W

VK1620SWC

Original Instructions

24 25 26 27

20 21 22 23

15 16 17 18

TABLE OF CONTENTS

SECTION PAGE

Symbols..........................................................................................................................................

Safety Information ..........................................................................................................................

Unpacking and Checking Carton Contents.....................................................................................

Assembly........................................................................................................................................

Operation........................................................................................................................................

Maintenance...................................................................................................................................

Troubleshooting..............................................................................................................................

Technical Data................................................................................................................................

Recycling and Disposal..................................................................................................................

Plug/Fuse Replacement (UK & Ireland Only).................................................................................

Thank you for purchasing this Vacmaster® wet and dry vacuum cleaner. Feel condent that with

Vacmaster®you are obtaining a high-quality product that is engineered for optimal performance.

This vacuum cleaner is suitable for use with both liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SYMBOLS

Vacuum cleaners of dust category L according to IEC/EN 60335-2-69 for dry vacuuming of

materials with an exposition limit value > 1mg/m3that are hazardous to one's health.

The vacuum cleaner may contain

materials that are hazardous to one's health.

Have the emptying and maintenance, incl. the disposal

of dust-collection container, carried out by specialists.

Appropriate protective equipment is required. Do not

operate the vacuum cleaner without the complete lter

system. Otherwise there is danger to your own health.

WARNING:

SAFETY INFORMATION

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance off or unplug it from the

power supply.

• Do not vacuum or use this Wet and Dry Vacuum cleaner near

ammable liquids, gases or explosive vapours like gasoline

or other fuels, lighter uids, cleaners, oil-based paints, natural

gas, hydrogen, or explosive dusts like coal dust, magnesium

dust, grain dust or gun power. Sparks inside the motor can

ignite ammable vapours or dust.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Ensure the hose and connections are always pointed away

from the users face, hair, ears and eyes during operation and

never direct the nozzle towards persons or animals.

• Clear the working area of any items or precessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door

on cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• To reduce the risk of health hazards from vapours or dusts, do

not vacuum toxic materials.

• Frequently check that the oat valve positioned underneath the

motor is able to move freely.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used by or near children.

• To reduce the risk of injury from accidental starting, unplug

power cord before changing or cleaning lter.

• Do not leave vacuum cleaner unattended when plugged in.

Unplug from power supply when not in use and before carrying

out maintenance.

• Turn off Wet and Dry Vacuum cleaner before unplugging.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• For additional protection: It is recommended that this vacuum

cleaner can be used in conjunction with residual current device

(RCD) with a rated residual current of 30mA or less.

• Always unplug the appliance after use and before cleaning or

changing the lters or accessories.

When carrying out service or repair

operations, all contaminated items which cannot be

satisfactorily cleaned are to be disposed of; such items shall

be disposed of in impervious bags in accordance with any

current regulation for the disposal of such waste.

WARNING:

UNPACKING AND CHECKING CARTON

CONTENTS

ASSEMBLY

NOTE: A Phillips screwdriver is required.

1. Remove all the contents from inside of the vacuum cleaner container.

2. Turn the container upside down. Insert two rear wheels and two front casters into the slots and

apply pressure until they click into place. Secure them with supplied screws (Fig. 1 & 2).

3. Your vacuum cleaner comes ready for dry vacuum cleaning with the cartridge lter and nylon

pre-lter pre-installed. If the cartridge lter and nylon pre-lter are not installed, refer to page 10.

4. Optionally, for improved dust ltration, fully t the dust bag ange onto the inlet stub (Fig. 3).

5. For wet vacuuming, replace the cartridge lter and nylon pre-lter with the foam lter supplied.

Do not use a dust bag when wet vacuuming. If the foam lter is not installed, refer to page 11.

6. Secure the power head back on the container, using the 2 side latches. Insert the locking end

of the hose into the suction port of the container and turn clockwise to lock into place (Fig. 4).

7. Choose the desired accessories and/or extension wands and push t onto the hose nozzle.

1 Carry Handle 15 Nylon Pre-lter

2 Power Head 16 Crevice Tool

3Power Take-off Socket 17 Hard Floor Nozzle

4 Suction Port 18 Round Dust Brush

5 Container 19 Extension Wand (x2)

6 Front Caster 20 Cartridge Filter (pre-installed)

7 Anti-static Chain 21 Filter Retainer (pre-installed)

8 Rear Wheel 22 Exhaust Filter (pre-installed)

9 Latch 23 Dust Bag

10 On/Off Switch 24 Foam Filter

11 Power Cord Storage Hook 25 Handle with Air Flow Regulation

12 Exhaust Filter Door 26 Screw (x4)

13 Accessory Storage 27 Instruction Manual

14 Suction Hose

1. Switching On/Off

Connect the mains plug to a suitable a power outlet.

2. Power Tool Take-Off Operation (Fig. 5)

OPERATION

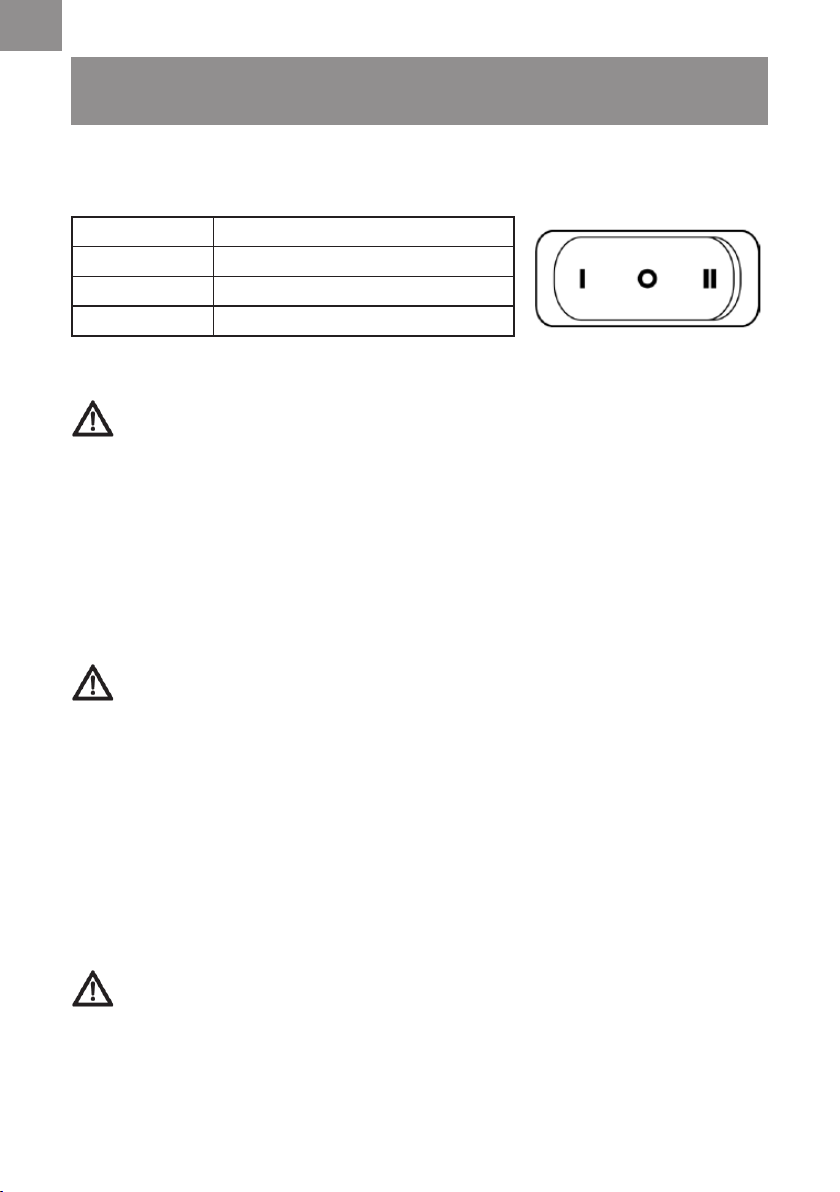

Position Status

I on

Ooff

II automatic synchronized start-up

WARNING: Always check the maximum wattage compatibility of the power tool take

off socket against the desired power tool before connecting to prevent overloading.

1) Connect the power cable of your power tool to the power take-off socket.

2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with

the supplied adaptor.

3) Switch the vacuum cleaner to position II, as described in Switching ON/OFF. The moment you

switch on the power tool, the vacuum cleaner will also switch on. Once the electrical appliance

has been switched off, the vacuum cleaner switches off following a time lapse (around 5

second) to allow the suction tube to be emptied.

3. Dry & Wet Vacuum Operation

WARNING! ENSURE YOU READ, UNDERSTAND AND APPLY SECTION ENTITLED

‘ SAFETY INFORMATION’.

1) Verify that the correct lter is installed for wet or dry vacuuming and the container latches are

secured.

2) Secure the locking end of the hose into the vacuum suction port.

3) Push the desired accessories onto the hose nozzle. The air ow regulation allows you to

change vacuum cleaner suction. For best cleaning results, fully close the air ow regulation (Fig. 6).

4) Plug the power cord into a power outlet.

5) Turn on the motor by assigning the switch to the “I” ON position.

6) Once you have completed vacuuming, switch to the “O” OFF position and unplug the power

cord from the power.

For Dry Vacuuming:

WARNING: BEFORE INSTALLING, REMOVING OR CLEANING THE VACUUM

CLEANER FILTER, ENSURE THAT THE POWER CORD IS UNPLUGGED AND

SWITCHED OFF.

1) To prepare your vacuum cleaner for dry vacuuming, install the cartridge lter over the lter cage

with the at end of the lter towards the vacuum power head. Carefully push lter until it sits

ush forming a tight seal.
