Use & Care Guide
MODEL NO. VSG2101
21.6V 2-IN-1 CORDLESS VACUUM
www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
(866) 384-8432
-2-
SECTION
Important Safety Instructions................................................................................................................3-5
Warranty…………....................................................................................................................................6
Technical Data
........................................................................................................................................6
Getting To Know Your Vacuum................................................................................................................7
General Assembly Instructions............................................................................................................8-10
Operating Instructions.......................................................................................................................11-13
Maintaining Your Vacuum................................................................................................................ 13-18
Troubleshooting................................................................................................................................19-21
TABLE OF CONTENTS
PAGE
Thank you for purchasing this Vacmaster®vacuum cleaner. With it you are
obtaining a high quality product that is engineered for optimal performance.
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual and your sales check (receipt) in a safe place for future
reference.
-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
WARNING - To reduce the risk of re, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by
or near children, pets or plants.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not charge if charging adapter is damaged. If appliance is not working as
it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
• Do not pull or carry the charging adapter by cord, use cord as a handle,
close a door on cord, or pull cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on charging cord.
• Do not handle charger, including charger plug, and charger terminals with wet
hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings
and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use without dust cup or lter in place.
• Prevent unintentional starting. Ensure the product does not operate before
connecting to hand vacuum, picking up or carrying the appliance. Carrying the
appliance with your nger on the switch invites accidents.
-4-
• Recharge only with the charger specied by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of re when used with
another battery pack.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact.
If contact accidentally occurs, ush affected area with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
• Do not use a battery pack or appliance that is damaged or modied. Damaged
or modied batteries may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
• Do not expose a battery pack or appliance to re or excessive temperature.
Exposure to re or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specied in the instructions. Charging
improperly or at temperatures outside of the specied range may damage the
battery and increase the risk of re.
• Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as
indicated in the instructions for use and care.
• Always turn off this appliance before connecting or disconnecting any
accessories.
• Do not charge the unit outdoors.
• Do not incinerate the appliance even if it is severely damaged. The batteries
can explode in a re.
• For Household Use Only.
SAVE THESE INSTRUCTIONS
-5-
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Product Disposal
This product contains an internal Lithium-ion battery pack formulated from
environmentally sensitive materials. This product must be disposed of properly
with due care for the environment. Do not dispose of product with household
garbage. Consult your local waste authority for information regarding available
recycling or disposal options.
WARNING
Any changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
-6-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call (866) 384-8432.
• This warranty does not cover lters, which are expendable parts that
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private
household purposes.
• This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
TECHNICAL DATA
2-in-1 Cordless Vacuum
Rated Voltage: 21.6VDC
Model: VSG2101
Battery Charger:
Model: CZH015265050USWH
Input: 100- 240VAC, 50/60Hz, 0.5A Max
Output: 26.5VDC, 500mA
WARRANTY
TECHNICAL DATA
-7-
GETTING TO KNOW YOUR VACUUM
Handle
REPLACEMENT PARTS
Available online at www.vacmaster.com or call (866) 384-8432.
Item Part No.
Filter (2) 561045114
Brush Roll 561045174
Charging Adapter 561045194
Wall Mounting Bracket 561045196
Screw (2) 561045197
Crevice Tool 561045198
2-in-1 Combination Tool 561045195
Dust Cup
Motorized Nozzle
Nozzle Release Button
Wand Release Button
Dust Cup Release Button
On/Off Button
LED Indicators (2)
Charging Port
Wand
Dust Release Latch
Charging
Adapter Crevice Tool Wall Mounting
Bracket
Screw(2)2-in-1
Combination Tool
-8-

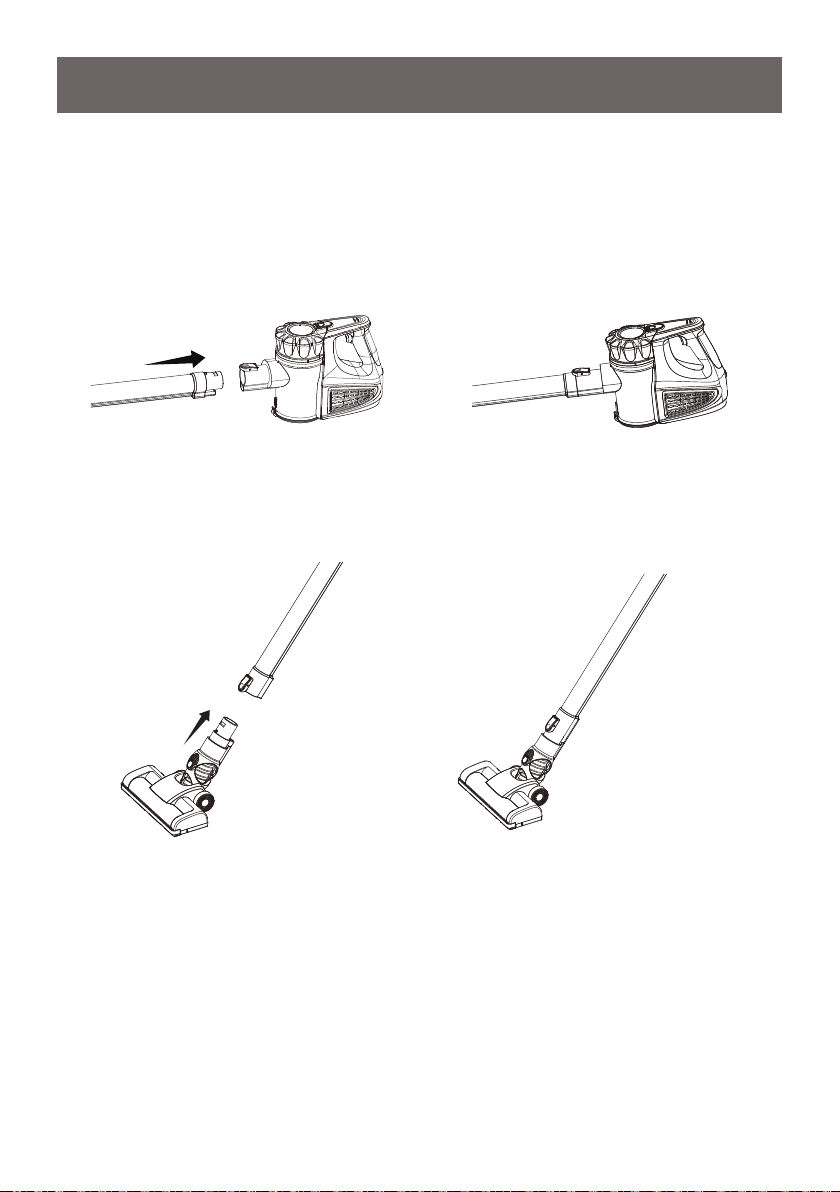

1. Align and insert the top of the wand into the hand vacuum until you hear a
click.
Note: Make sure it ts rmly. To remove the wand, press the wand release
button and separate.
2. Insert the motorized nozzle into the bottom of wand until you hear a click.
GENERAL ASSEMBLY INSTRUCTIONS
3. Mount the wall mounting bracket on the wall. Do not secure the bracket to
drywall only. Secure the screws to a stud. Use the 2 screws provided. Mount
at a recommended height of 59” and no less than 44” above the oor. Ensure
that no plumbing or electrical cables, wires or ductwork are located directly
behind the mounting area.
Assembly Instructions
-9-
4. To store, hang the hand vacuum on the wall mount. Align the slot on the
bottom of the hand vacuum with the protrusion on the wall mount as shown in
the picture below.
5. Insert the 2-in-1 combination tool into the right slot on top of the wall mounting
bracket for convenient storage. Insert the crevice tool into the left slot.
59”
(Recommended)
44”
(Minimum)
-10-
3. For improved battery performance, keep the vacuum cleaner charging while it
not in use. Do not start the vacuum cleaner while it is charging.
Caution: Use only original adapter for charging to avoid damages to
vacuum cleaner.
Caution: To optimize the battery longevity, charge the vacuum cleaner for
at least 5 hours before using for the rst time.
Never charge the batteries in temperatures above 104°F (40°C) or below
39.2°F (4°C). It is normal for the charger to become warm when charging.
Note: To optimize the battery longevity, it is recommended to let the vacuum
cleaner cool down when it is overheated before recharging.
Charging Instructions
1. Before charging, make sure the cordless vacuum is turned OFF. Insert the
charging connector into the charging port of the hand vacuum. Then insert
the charging plug into a wall outlet.
2. The LED indicators will show the progress of the charge. While the vacuum is
being charged, the LED indicators will be ashing blue alternately. Once fully
charged, the LED indicators will show static blue lights. The battery requires
approximately 4~5 hours of charging to regain full capacity.
LED Indicator Status
Alternately Flashing Blue Lights Charging
Static Blue Lights Fully Charged
LED Indicator
