USR IOT USR-BLE100 Manual de usuario

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 1 / 8 h.usriot.com

USR-BLE100 Hardware Manual

File version: 1.0.0

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 2 / 8 h.usriot.com

Content

USR-BLE100 Hardware Manual................................................................................................... 1

1. Product Overview ................................................................................................................... 3

1.1. Dimensions.................................................................................................................... 3

1.2. Encapsulation Size......................................................................................................... 3

1.3. Pin Defination................................................................................................................ 4

2. Hardware Design .................................................................................................................... 6

2.1. Typical Connection ........................................................................................................ 6

2.2. Power Interface............................................................................................................. 6

2.3. Reset, Reload and Wake up........................................................................................... 7

3. Contact ................................................................................................................................... 7

4. Disclaimer............................................................................................................................... 8

5. Update History........................................................................................................................ 8

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 3 / 8 h.usriot.com

1.Product Overview

1.1. Dimension

Module size: 18.2*26.7*2.8mm, error ±0.2mm, pin size as follows:

1.2. Encapsulation Size

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 4 / 8 h.usriot.com

You can download PCB library from http://www.usriot.com/usr-ble100-library-file/.

1.3. Pin Defination

Name

Signal Type

Defination

GND

Power Ground

RF signal output

Not available

nReset

Reset, take affect in “0”

GPIO1

I/O

GPIO1 pin

GPIO2

I/O

GPIO2 pin

GPIO3

I/O

GPIO3 pin

Not available

12C_SDA

I/O

I2C Data Pin

12C_SCL

I/O

I2C Clock Pin

GND

Power Ground

GND

Power Ground

VCC

Power VCC, positive, range from 1.9v~5.5v

VCC

Power VCC, positive, range from 1.9v~5.5v

GPIO8

I/O

GPIO8

Not available

GND

Power Ground

PWM1

PWM Output Pin 1

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 5 / 8 h.usriot.com

UART0_TX

UART0 transmit pin

UART0_RX

UART0 receive pin

nReload

Press 1s to restore default settings

Press over 3s to restore factory settings

AD collection pin

LED

LED pin

UART0_CTS

UART0 CTS signal

UART0_RTS

UART0 RTS signal

SWDATA

I/O

Data pin of module burning

SWCLK

Clock pin of module burning

GND

Power Ground

GND

Power Ground

UART_TX

UARTtransmit pin(Not available)

UART_RX

UART receive pin(Not available)

PWM2

PWM output pin 2

SPI_SS1

SPI send request pin

SPI_CLK

I/O

SPI clock pin

SPI_MISO

I/O

SPI MISO function pin

SPI_MOSI

I/O

SPI MOSI function pin

SPI_SS0

I/O

SPI chip selection function pin

Wake_Up

Wake up pin

UART1_CTS

UART1 CTS signal

USRT1_RTS

UART1 RTS signal

Not available

GND

Power Ground

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 6 / 8 h.usriot.com

2.Hardware Design

2.1. Typical Connection

2.2. Power Interface

Working voltage VCC range from 1.9V~5.5V, 3.3V is recommended.Power the module by main power pin,

pin interface is in parallel with appropriate energy-storage capacitance and high frequency capacitance.

Circuit diagram as follows:

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 7 / 8 h.usriot.com

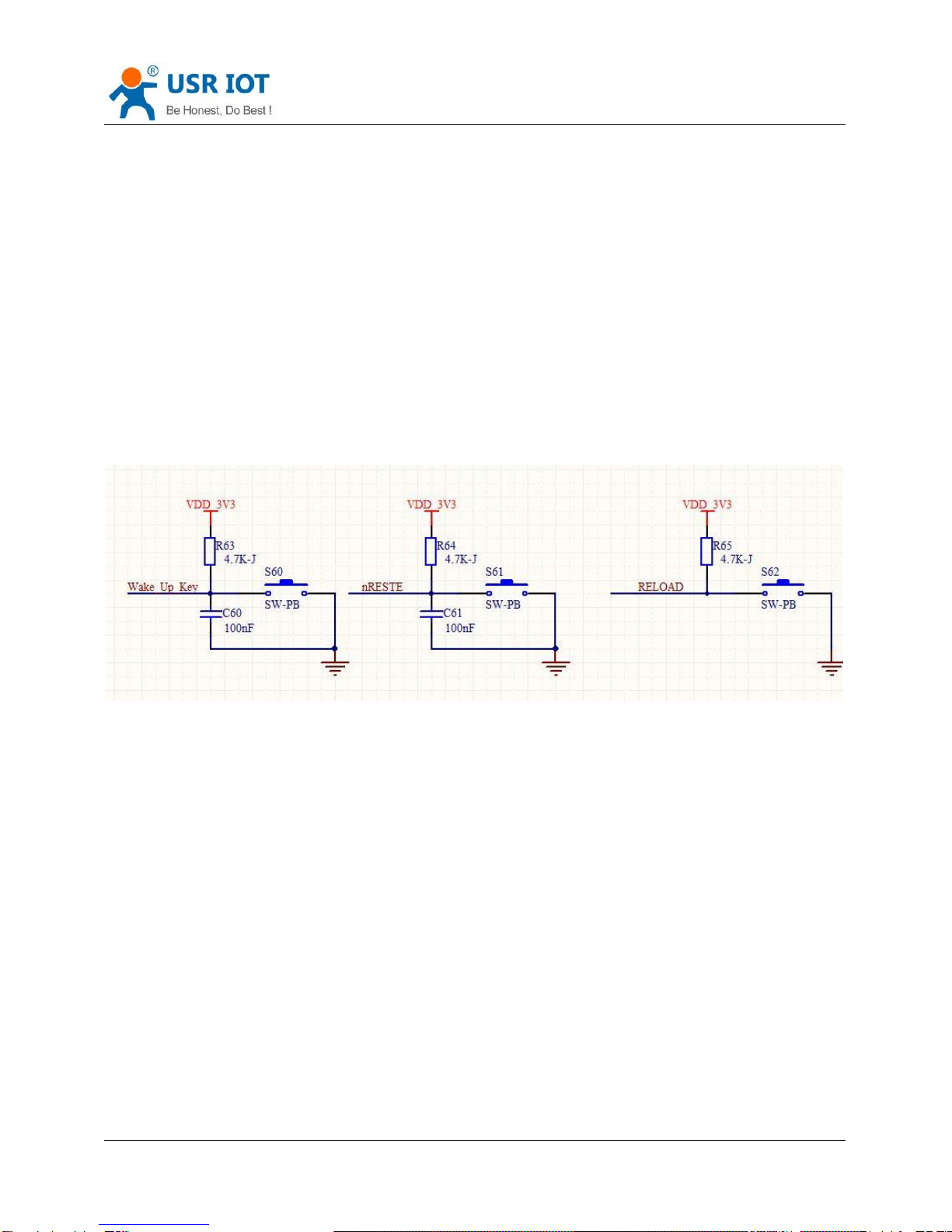

2.3. Reset, Reload and Wake up

nReload:nReload pin can connect to outer button . When press the button, pull down pin to low level, release

after 3s, module will restore factory defaults and restart.

nReset: Module reset pin, take affect when low level. There is 10K resistor pull up to 3.3V in module. When

module power on or break down, MCU will reset the module, pull down nReset pin as least 0.5s, then

release.

Wake_Up Key: Can connect to outer button or setup pin. When press the button to pull down pin to low

level,and release after 3s, module will wake up to normal work mode.

Circuit diagram as follows:

3.Contact

Company: Jinan USR IOT Technology Limited

Address: Floor 11, Building No.1, No.1166, Xinluo Street, Gaoxin District, Jinan city, Shandong province,

250101 China

Tel: 86-531-88826739

Web: www.usriot.com

Support: h.usriot.com

Email: sales@usr.cn

USR-BLE100 Hardware Manual www.usriot.com

Jinan USR IOT Technology Limited 8 / 8 h.usriot.com

4.Disclaimer

This document provide the information of USR-BLE100 products, it hasn’t been granted any intellectual

property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in

sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and

use explicitly or implicitly, including particular purpose merchantability and marketability, the tort liability of any

other patent right, copyright, intellectual property right. We may modify specification and description at any

time without prior notice.

5.Update History

2017-6-28 V1.0.0 created.
