Urmet domus 1722 Manual de usuario

DS1722-089 LBT20156

Mod.

1722

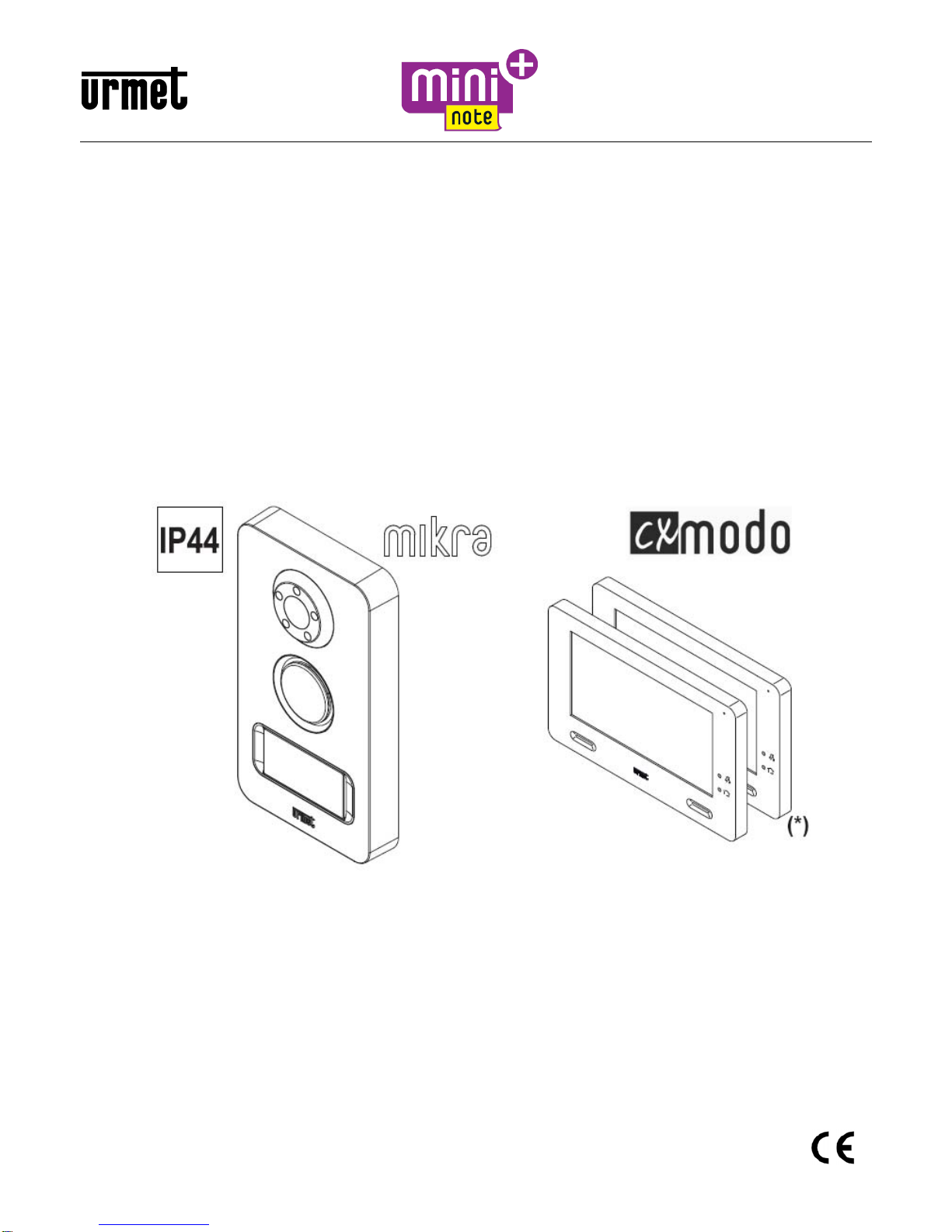

ONE- AND TWO-HOUSEHOLD COLOUR HANDS-FREE VIDEO DOOR PHONE KIT

Ref.1722/85 - 1722/86 (*)

COMPLETE MONITOR USER'S GUIDE

DS1722-089 2LBT20156

Contents

1DESCRIPTION OF COMPONENTS............................................................................................................3

2FUNCTIONS................................................................................................................................................4

2.1HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCtION...............................4

2.2HOW TO CHANGE MONITOR SETTINGS.......................................................................................5

2.2.1How to change the monitor language..................................................................................5

2.2.2How to change the monitor date and time...........................................................................5

2.2.3How to change the audio settings........................................................................................6

2.2.4How to enter the monitor names for the Intercom function..................................................6

2.2.5How to activate the automatic image storage mode............................................................7

2.2.6How to configure Yokis Home Automation buttons. ............................................................8

2.2.7How to reset the monitor......................................................................................................8

2.3HOW TO TURN OFF THE SCREEN.................................................................................................8

2.4HOW TO ANSWER AN EXTERNAL CALL........................................................................................9

2.5HOW TO MAKE VIDEO SWITCHING BETWEEN MONITORS ......................................................10

2.6HOW TO CONTROL AUTO-ON AT THE CALLING STATION........................................................10

2.7HOW TO MAKE AN INTERCOM CALL...........................................................................................11

2.8HOW TO VIEW THE STORED SNAPSHOTS PRESENT IN THE MONITOR ................................13

2.9HOW TO ACTIVATE A YOKIS CONTROL......................................................................................14

DS1722-089 3LBT20156

1 DESCRIPTION OF COMPONENTS

1. 7” touchscreen display

2. Microphone

3. Active Mute red indicator LED

4. Sent Yokis control confirmation blue LED

5. ON/OFF button

6. Speakers

DS1722-089 4LBT20156

2 FUNCTIONS

2.1 HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTION

•Tap the screen at any point, or

•Press the button (5) at the bottom right of the screen to bring up the Home Page.

The Home Page is the following:

and gives access to the following functions:

View footage from the video camera.

Mute the call (Mute) to the monitor (the activation of this function is highlighted by the red

indicator LED 3 lighting up and by the flashing of the Mute icon).

Access the Yokis Home Automation screen page.

View a snapshot from among those already saved to the photo gallery.

Make an intercom call to other users in the same apartment or between users in different

apartments.

Turn off the screen.

Change monitor settings

Current time.

DS1722-089 5LBT20156

Access to a QR Code referring the user to an area of the Urmet website where instruction

manuals, demo videos, etc. can be downloaded.

2.2 HOW TO CHANGE MONITOR SETTINGS

2.2.1 How to change the monitor language

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page:

•Tap the icon . A new window opens in which the monitor language can be chosen by selecting

it from among the suggested ones with the arrow keys 'ST'. Confirm with ‘OK’.

2.2.2 How to change the monitor date and time

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page.

•Tap the icon . A new window opens in which the device date and time settings can be changed

by using the arrow keys 'ST'. Confirm with 'OK' or quit the settings page by pressing the button

'BACK'.

In this screen page you can also activate automatic shifting between summer and winter time

(DST) by pressing the icon .

DS1722-089 6LBT20156

2.2.3 How to change the audio settings

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page.

•Tap the icon . A new window opens in which you can change:

othe monitor ring tone volume with the buttons '+' and '-'.

othe calling tune of the monitor by selecting it from the 5 available options (by pressing

one of the buttons numbered 1 to 5).

oActivate or not the 'Notification when pressing a button' via the icons 'ON' and 'OFF'

2.2.4 How to enter the monitor names for the Intercom function

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page.

•Tap the icon . The following window will be displayed:

----- ----- -----

DS1722-089 7LBT20156

By tapping the icon the following screen page can be accessed:

In this page, a name can be associated to the selected monitor via the keypad.

If necessary, repeat the previous steps for the remaining monitors (icons and ).

•Confirm with 'OK' or quit the settings page by pressing the button 'BACK'.

2.2.5 How to activate the automatic image storage mode

This feature allows images (snapshots) from the calling station displayed on the monitor to be stored. This

can be done automatically (on Master only) after a call, or manually (on both Master and Slave). The

maximum number of images that can be stored is 100 (after this number the new image will overwrite the

oldest one).

To activate this feature:

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page.

•Tap the icon . A new window opens in which to choose between the automatic and the

manual mode.

•Confirm with 'OK' or quit the settings page by pressing the button 'BACK'.

The image store function must be set on manual mode in case of Slave monitor.

DS1722-089 8LBT20156

2.2.6 How to configure Yokis Home Automation buttons.

For the configuration of Yokis Home Automation buttons please refer to the dedicated instruction manual,

available on the Urmet website in \Products\Online Catalogue area, after searching by product code.

Alternatively, the manual can be downloaded by scanning the QR Code below with your smartphone or

tablet.

2.2.7 How to reset the monitor

The monitor has multiple resetting levels to only delete certain stored data. To do this:

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to go to the general configurations page.

•Tap the icon . A new window opens in which to choose one of the following resetting modes:

o'Reset Video Intercom Parameters' (ring tone volume and calling tune, button pressing

notification; monitor speaker sound volume, brightness, contrast and colour of the screen in the

conversation phase);

o‘Reset Snapshot Memory’;

o‘Reset Home Automation Parameters’, i.e. Yokis button configurations;

o‘Reset to Factory Default’.

•Confirm your required option with 'OK' and then press the 'Yes' button, or quit the settings page by

pressing the button ‘No’ or 'BACK'.

Any reset operation is irreversible.

2.3 HOW TO TURN OFF THE SCREEN

To turn off the screen press or press the Monitor button (5) or wait for the timeout delay.

DS1722-089 9LBT20156

2.4 HOW TO ANSWER AN EXTERNAL CALL

When the CXModo Monitor receives an outdoor door phone video call, it rings and the screen lights up from its

default switched-off state.

By tapping the various icons you can:

Answer the call and begin a hands-free conversation; then, to end the call press the same icon once

again, the screen will turn itself off.

Open the door.

Open a driveway or garage gate.

Activate an auxiliary function, e.g. turning on the stair lights. (The icon is only active if the feature has

been configured in the 'Settings' menu for Yokis Home Automation options. For the button

configuration, please refer to the dedicated instruction manual available on the Urmet website.)

Open a submenu where you can:

Change the audio volume in the calling point-to-monitor direction, or the brightness

, contrast , and colour of the display (the changes will be stored only if the

button is pressed afterwards).

Enlarge or shrink the image, also changing its format from 4:3 to 16:9.

(Do not use: pre-setting for future functions.)

Store a snapshot of the outdoor picture displayed on the screen.

Turn the monitor microphone off and then back on, to prevent the caller hearing what you

are saying. The icon will only be active after the call has been answered.

The icon will flash to signal an activated function.

Close the previous submenu.

DS1722-089 10 LBT20156

2.5 HOW TO MAKE VIDEO SWITCHING BETWEEN MONITORS

The call tone will be generated in alternating manner by the different monitors after a call if "Slave" monitors

(OP3) are present in the system. The 'Master' monitor will enable also the monitor switching on. In this case,

during the call pick-up time (3 minutes from the call), the other device monitors can be switched on by pressing

and buttons in sequence (monitor switching function), until one of the monitors picks up.

The picture of the camera will appear only on the device that picked up afterwards.

The camera picture will therefore be normally shown on only one apartment station at a time.

2.6 HOW TO CONTROL AUTO-ON AT THE CALLING STATION

•Turn on the screen, if off, by tapping it at any point or by pressing the button (5) in the bottom right

corner of the screen.

•Tap the icon to view the images from the camera at the calling station.

By pressing the various icons at the same time it is possible to:

Listen to the environmental noise near the calling station and start a hands-free conversation. To

stop viewing, press the same icon again: the screen will go off.

Open the door.

Open a driveway or garage gate.

Activate an auxiliary function, e.g. turning on the stair lights.

(The icon is only active if the feature has been configured in the 'Settings' menu for Yokis Home

Automation options. For the button configuration, please refer to the dedicated instruction manual

available on the Urmet website.)

Open a submenu where you can:

Change the audio volume in the calling point-to-monitor direction, or the brightness

, contrast , and colour of the display (the changes will be stored only if the

button is pressed afterwards).

Enlarge or shrink the image, also changing its format from 4:3 to 16:9.

Stop the vision of the camera if the audio is disabled

Store a snapshot of the outdoor picture displayed on the screen.

Turn off or reactivate the monitor microphone, to prevent anyone opposite the calling station

from overhearing the conversation. The icon will only be active after pressing the button

. The icon will flash to signal an activated function.

Close the previous submenu.
