Uplift Desk ACC055 Manual de usuario
Step 1
Using eight M4x10 Machine screws, attach the CPU Holder
track to the Track spacer brackets in the orientation shown
at the left. The Track spacer bracket with cubby should be
facing the front of the desk.
Note: you may also rotate the rear bracket 180° (see below)
to t the assembly in other locations under your desktop.
Track guard
16’’ CPU Holder track Back bumper5/8’’ Wood screws (qty 8)
M4x10 Machine screws
(qty 12)
Track spacer bracket
(qty 1)
Track spacer bracket with cubby
(qty 1)

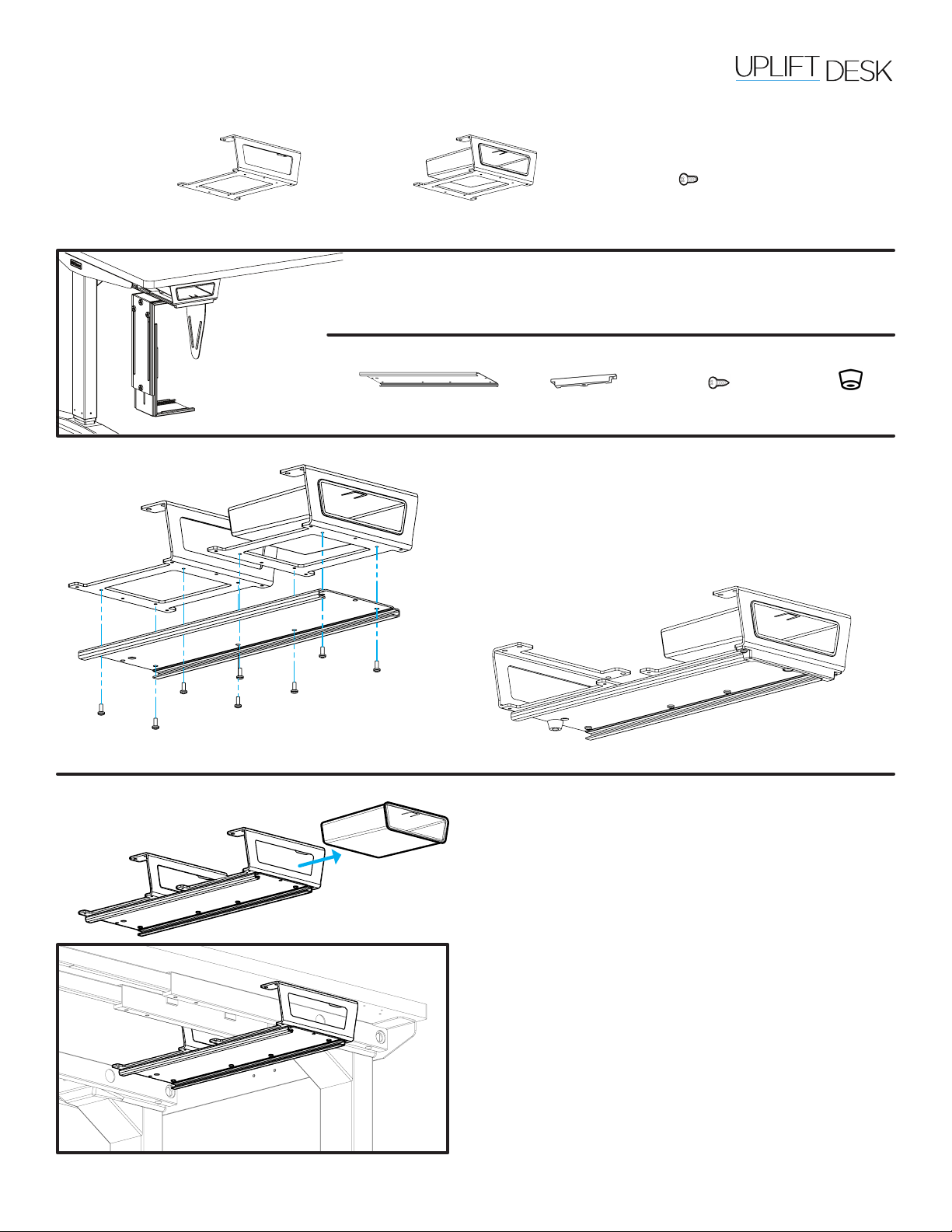

Package Contents
Track Spacer
ACC055
Parts needed from your CPU Holder box:
CPU Holder Mounting
For mounting your Track Spacer with an UPLIFT Desk CPU Holder.
IMPORTANT NOTE:
If you are installing this Track Spacer on an UPLIFT 4-leg desk
with front and rear crossbars, you will need to rst remove the
plastic cubby from the Track spacer bracket to avoid interfer-
ence with the front crossbars.
Step 4
Slide the CPU holder onto the Track.
Step 5
Attach the Track guard using three M4x10 Machine screws.
Complete installation by referring to the instructions that come
with your CPU Holder.
Step 3
Attach the Back bumper to the rear side of the assembly. Insert
one M4x10 Machine screw into the center hole.
Step 2
Place the assembly where desired, and mark the screw loca-
tions with a pencil.
If you own a drill, you can make this a lit-
tle easier by drilling pilot holes where you’ve made your pencil
marks using a 1/8” diameter bit.
Note: DRILL NO DEEPER THAN 1/2” because that will
increase the risk of drilling through your desktop. We
recommend wrapping a piece of tape around your drill
bit 1/2” from the tip. Stop drilling just before the tape
touches the desktop.
Attach assembly to the desktop using eight 5/8’’ Wood screws.
1/2’’
Note: When pre-drilling on a desktop with
a curved edge, take care to ensure that the
screw is not too close to the edge to avoid
piercing the desktop with the screw. (see
g. 1)
g 1.
Track guard
21’’ Keyboard tray track Back bumper5/8’’ Wood screws (qty 8)
Parts needed from your Keyboard Tray Mech box:
Keyboard Tray Mounting
For mounting your Track Spacer with an UPLIFT Desk Keyboard Tray.
IMPORTANT NOTE:
If you are installing this Track Spacer on an UPLIFT 4-leg desk
with front and rear crossbars, you will need to rst remove the
plastic cubby from the Track spacer bracket to avoid interfer-
ence with the front crossbars.
Step 2
Place the assembly near the center of your desk, slightly back from
the front edge, and mark the screw locations with a pencil. If you
own a drill, you can make this a little easier by drilling pilot holes
where you’ve made your pencil marks using a 1/8” diameter bit.
Note: DRILL NO DEEPER THAN 1/2” because that will in-
crease the risk of drilling through your desktop. We rec-
ommend wrapping a piece of tape around your drill bit
1/2” from the tip. Stop drilling just before the tape touches
the desktop.
Attach assembly to the desktop using eight 5/8’’ Wood screws.
1/2’’
Note: When pre-drilling on a desktop with
a curved edge, take care to ensure that the
screw is not too close to the edge to avoid
piercing the desktop with the screw. (see
g. 1)
g 1.

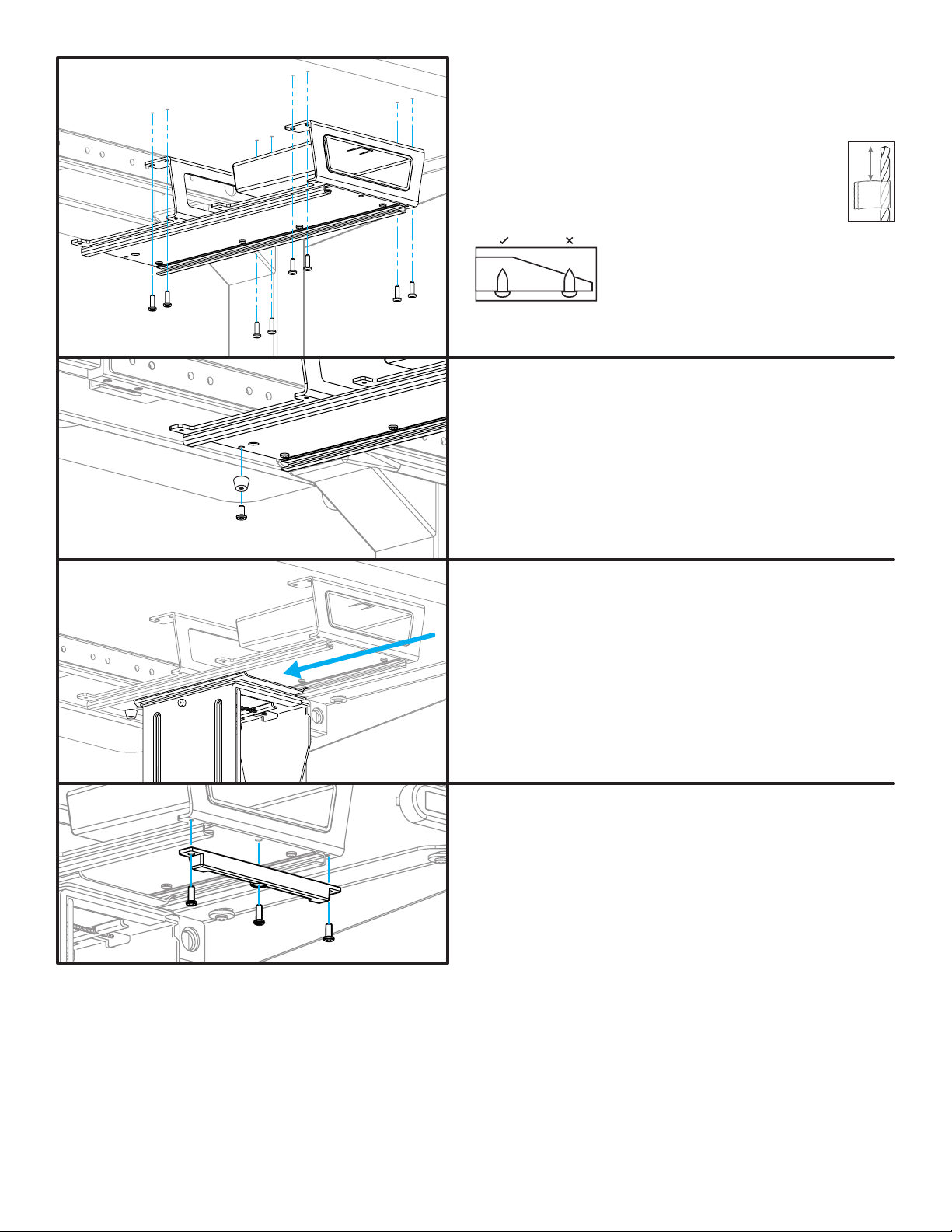

Step 1
Using eight M4x10 Machine screws, attach the Keyboard tray
track to the Track spacer brackets in the orientation shown
at the left. The Track spacer bracket with cubby should be
facing the front of the desk.
Note: you may also rotate the rear bracket 180° (see below)
to t the assembly in other locations under your desktop.
Copyright Notice:
This guide is a component of the UPLIFT Track Spacer. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com. Ex-
cerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.
©
AI-ACC055-1.190.014.01.0907v.B
CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may
result in damage or personal injury.
CAUTIONS & WARNINGS
!
!
Step 5
After the Keyboard tray is on the Track and assembled, attach
the Track guard using three M4x10 Machine screws.

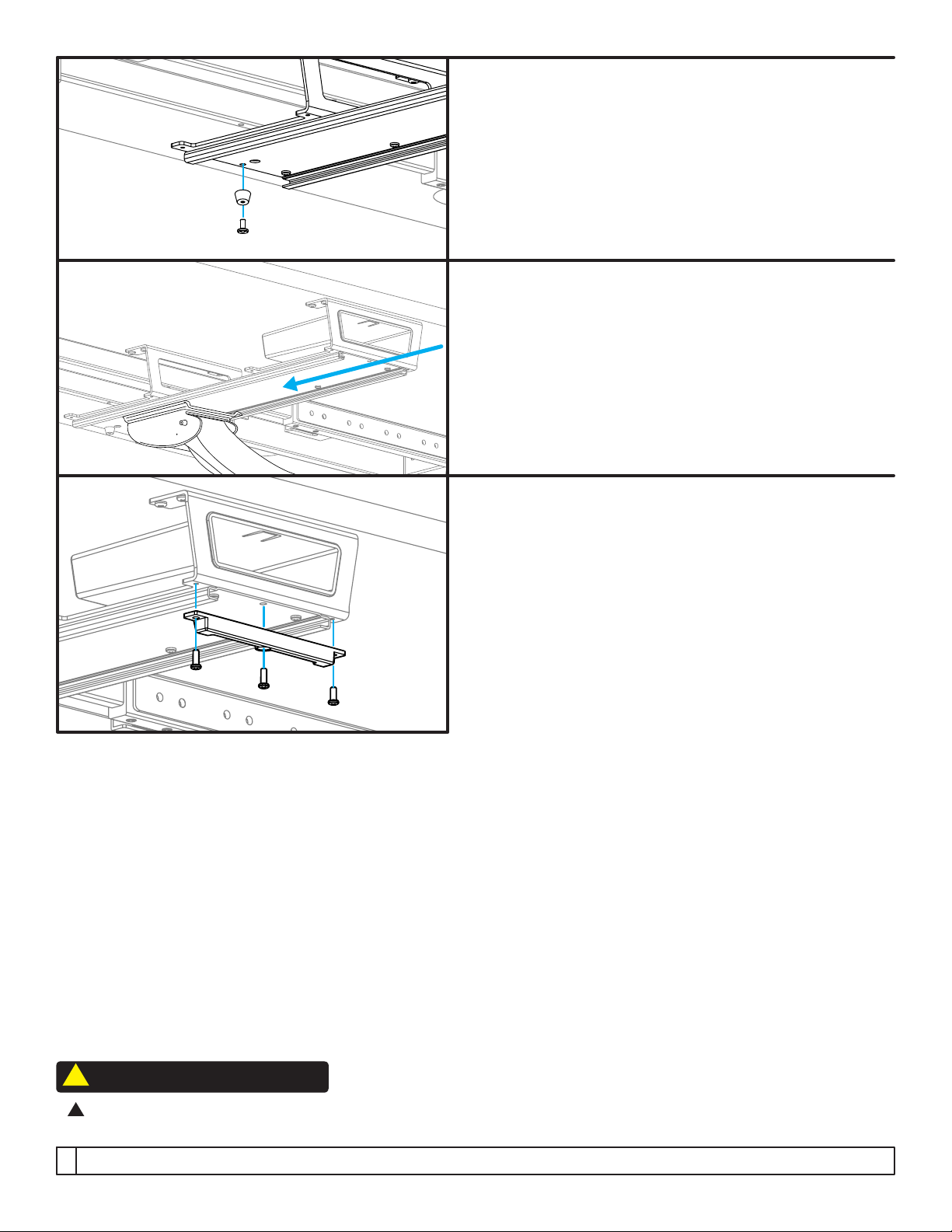

Step 4
Follow the instructions provided with your UPLIFT Desk Key-
board tray for sliding the Mech onto the Track, and assembling
the Keyboard tray to the Mech.
Step 3
Attach the Back bumper to the rear side of the assembly. Insert
one M4x10 Machine screw into the center hole.
