Unit UT60D Manual de usuario
Title
Overview
Unpacking Inspection
Safety Information
Rules For Safe Operation
International Electrical Symbols
The Meter Structure
Rotary Switch
Functional Buttons
Display Symbols
Measurement Ranges
A. Selecting a Measurement Range
B. Manual Ranging and Autoranging
Measurement Operation
A. AC & DC Voltage Measurement
B. Measuring Continuity, Diodes &
Resistance
C. Frequency & Revolution (RPM)
Measurement
D. DC or AC Current Measurement
Turning on the Display Backlight
The BLUE Button
The RS232C Button
Operation of Hold Mode
Full Icons Display
Sleep Mode
Analogue Bar Graph Display
General Specifications
Table of Contents
Page
3
4
5
6
8
9
10
11
13
15
15
15
17
17
19
22
24
26
26
26
27
27
27
28
29
1
Model UT60D: OPERATING MANUAL
Accuracy Specifications
A. AC Voltage
B. DC Voltage
C. Continuity, Diodes & Resistance Test
D. Frequency
E. Revolution (RPM)
F. DC Current
G. AC Current
Maintenance
A. General Service
B. Testing the Fuses
C. Replacing the Battery
D. Replacing the Fuses
RS232C Serial Port
A. RS232C Port Cable
B. Setting of RS232C Serial Ports
C. System Requirements for Installing
the UT60D Interface Program
Page
30
30
30
31
32
32
33
33
34
34
35
36
37
38
38
38
39
Model UT60D: OPERATING MANUAL
2
This Operating Manual covers information on safety and
cautions. Please read the relevant information carefully
and observe all the Warnings and Notes strictly.
Warning
To avoid electric shock or personal injury, read the
"Safety Information" and "Rules for Safe Operation"
carefully before using the Meter.
Digital Multimeter Model UT60D (hereafter referred to
as "the Meter") has autorange and manual range options
with maximum reading 3400. The enclosure structure
design adopted advanced "co-injection" technique in
order to provide sufficient insulation.
In addition to the conventional measuring functions, it is
equipped with a 34 segments analogue bar graph and
RS232C standard serial port for easy connection with
computer to realize macro recording and monitoring and
capture of transient dynamic data, displaying change of
waveform during the measurement, providing data and
evidence to engineering technicians for scientific research.
This is also a highly applied digital multimeter of good
performance with full overload protection.
Overview
Model UT60D: OPERATING MANUAL
3
Open the package case and take out the Meter. Check
the following items carefully to see any missing or
damaged part:
Unpacking Inspection
Item
1
2
3
4
5
Description
Operating Manual
Test Lead
9V Battery (NEDA1604, 6F22 or
006P) (installed)
RS232C Interface Cable
CD-ROM (Installation Guide &
Computer Interface Software)
Qty
1 piece
1 pair
1 piece
1 piece
1 piece
In the event you find any missing or damage, please
contact your dealer immediately.
Model UT60D: OPERATING MANUAL
4
This Meter complies with the standards IEC61010: in
pollution degree 2, overvoltage category (CAT. III 1000V,
CAT. IV 600V) and double insulation.
CAT. III: Distribution level, fixed installation, with smaller
transient overvoltages than CAT. IV
CAT IV: Primary supply level, overhead lines, cable
systems etc.
Use the Meter only as specified in this operating manual,
otherwise the protection provided by the Meter may be
impaired.
In this manual, a Warning identifies conditions and
actions that pose hazards to the user, or may damage
the Meter or the equipment under test.
A Note identifies the information that user should pay
attention on.
International electrical symbols used on the Meter and
in this Operating Manual are explained on page 8.
Safety Information
Model UT60D: OPERATING MANUAL
5
Warning
To avoid possible electric shock or personal injury,
and to avoid possible damage to the Meter or to the
equipment under test, adhere to the following rules:
lBefore using the Meter inspect the case. Do not
use the Meter if it is damaged or the case (or
part of the case) is removed. Look for cracks
or missing plastic. Pay attention to the insulation
around the connectors.
lInspect the test leads for damaged insulation or
exposed metal. Check the test leads for
continuity. Replace damaged test leads with
identical model number or electrical
specifications before using the Meter.
lDo not apply more than the rated voltage, as
marked on the Meter, between the terminals or
between any terminal and grounding.
lThe rotary switch should be placed in the right
position and no any changeover of range shall
be made during measurement is conducted to
prevent damage of the Meter.
lWhen the Meter working at an effective voltage
over 60V in DC or 30V rms in AC, special care
should be taken for there is danger of electric
shock.
lUse the proper terminals, function, and range
for your measurements.
lDo not use or store the Meter in an environment
of high temperature, humidity, explosive,
inflammable and strong magnetic field. The
performance of the Meter may deteriorate after
dampened.
lWhen using the test leads, keep your fingers
behind the finger guards.
Rules For Safe Operation (1)
Model UT60D: OPERATING MANUAL
6
Rules For Safe Operation (2)
lDisconnect circuit power and discharge all high-
voltage capacitors before testing continuity,
diodes, resistance or current.
lBefore measuring current, check the Meter’s
fuses and turn off power to the circuit before
connecting the Meter to the circuit.
lReplace the battery as soon as the battery
indicator appears. With a low battery, the
Meter might produce false readings that can
lead to electric shock and personal injury.
lRemove test leads and RS232C interface cable
from the Meter and turn the Meter power off
before opening the Meter case.
lWhen servicing the Meter, use only the same
model number or identical electrical
specifications replacement parts.
lThe internal circuit of the Meter shall not be
altered at will to avoid damage of the Meter and
any accident.
lSoft cloth and mild detergent should be used to
clean the surface of the Meter when servicing.
No abrasive and solvent should be used to
prevent the surface of the Meter from corrosion,
damage and accident.
lThe Meter is suitable for indoor use.
lUnder the environment with high (+/-4kV)
electrostatic discharge, the Meter may not be
operated as normal condition. The user may
require resetting the Meter.
lTurn the Meter power off when it is not in use
and take out the battery when not using for a
long time.
lConstantly check the battery as it may leak when
it has been using for some time, replace the
battery as soon as leaking appears. A leaking
battery will damage the Meter.
Model UT60D: OPERATING MANUAL
7

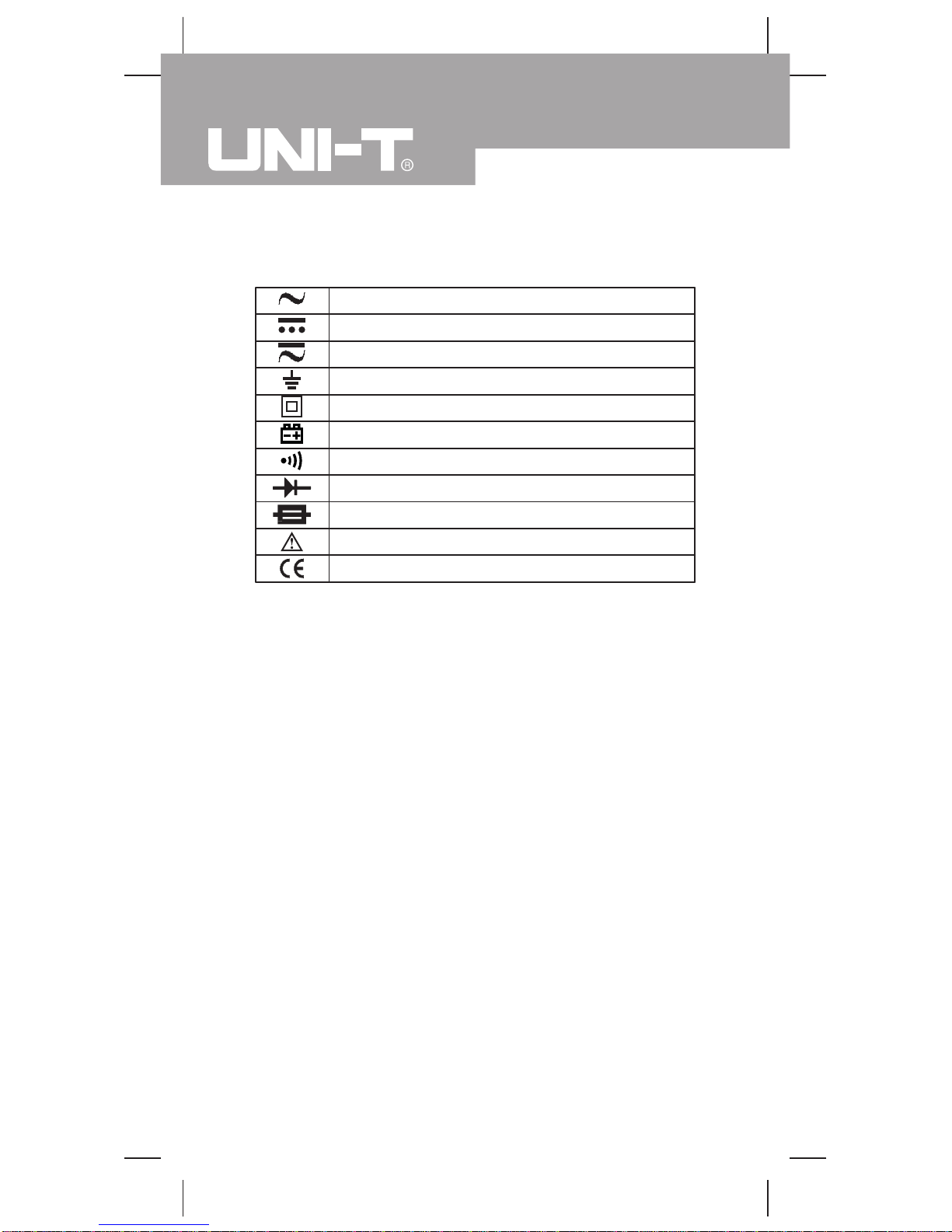

International Electrical Symbols
AC (Alternating Current)
DC (Direct Current)
AC or DC
Grounding
Double Insulated
Deficiency of Built-In Battery.
Continuity Test.
Diode.
Fuse.
Warning. Refer to the Operating Manual.
Conforms to Standards of European Union.
Model UT60D: OPERATING MANUAL
8
The Meter Structure (see figure 1)
(figure 1)
LCD Display
Functional Buttons
Rotary Switch
HzV Input Terminal:
Input for voltage, frequency/rpm, resistance, diode
and continuity measurements.
COM Input Terminal:
Return terminal for all measurements.
AmA Input Terminal:
Input for 0.1 A to 340.0mA current measurements.
10A Input Terminal:
Input for 0.01A to 10.00A current measurements.
1
2
3
4
5
6
7
Model UT60D: OPERATING MANUAL
9

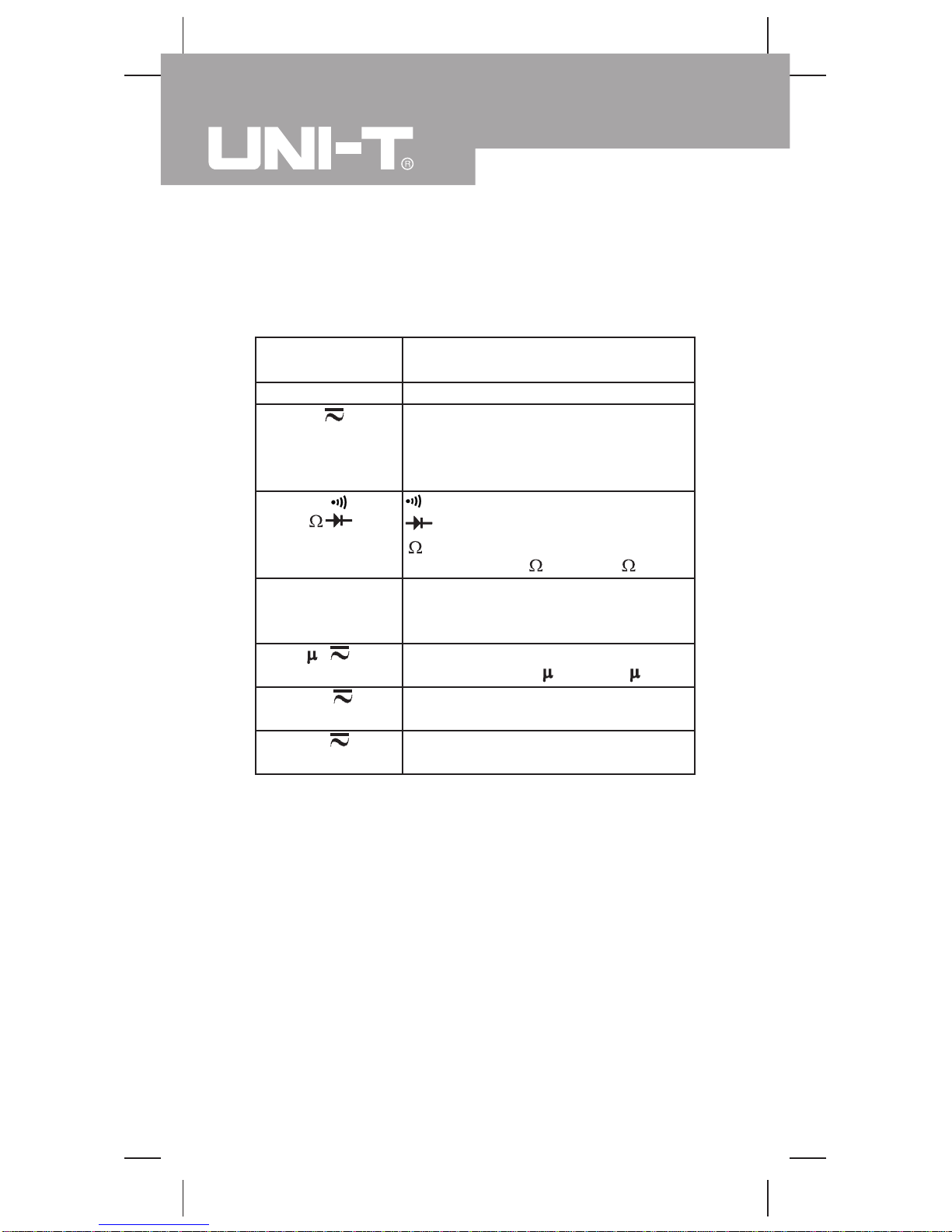

Rotary Switch
Below table indicated for information about the rotary
switch positions.
Rotary Switch
Position
OFF
V
Hz
HzRPM
A
Hz
mA
Hz
Hz
A
Power is turned off
DC voltage measurement range from
340.0mV to 1000V or
AC voltage measurement range from
3.400V to 750.0V.
Continuity test.
Diode test.
Resistance measurement range
from 340.0 to 34.00M .
Frequency measurement range from
3.400KHz to 34.00MHz or RPM
measurement.
AC or DC current measurement
range from 340.0 A to 3400 A.
AC or DC current measurement
range from 34.00mA to 340.0mA.
AC or DC current measurement
10.00A.
Function
Model UT60D: OPERATING MANUAL
10
