Uniden BearCat PC78XL+ Manual de usuario

Owner’s Manual

Printed in Vietnam

U01UT400AZZ(0)

PC78XL+

CONTENTS

SAFETY NOTICE .......................................................................... 1

UNPACKING ................................................................................ 2

DESCRIPTION.............................................................................. 2

FCC PART 15 COMPLIANCE .......................................................................... 2

EMERGENCY OPERATION ............................................................................ 2

CONTROLS AND FUNCTIONS .................................................... 3

INSTALLATION............................................................................ 5

MOBILE STATION INSTALLATION................................................................ 5

MOBILE STATION ANTENNA........................................................................ 5

MARINE INSTALLATION ............................................................................... 5

CONNECTING THE POWER CORDS.............................................................. 6

GROUND INFORMATION.............................................................................. 6

Negative Ground System ............................................................................ 6

USING YOUR PC78XL+ ............................................................... 6

TURN PC78XL+ ON/OFF ............................................................................... 6

CB MODE........................................................................................................ 7

Basic Settings .............................................................................................. 7

PA MODE........................................................................................................ 7

TO TRANSMIT.............................................................................. 8

MULTI-FUNCTION METER.......................................................... 8

PREVENTIVE MAINTENANCE .................................................... 9

MAINTENANCE ........................................................................... 9

TROUBLESHOOTING .................................................................. 9

SERVICING YOUR TRANSCEIVER ........................................... 10

SPECIFICATIONS....................................................................... 10

RADIO CODE DEFINITIONS ..................................................... 12

10-CODES..................................................................................................... 12

ONE-YEAR EXTENDED WARRANTY ........................................ 13

Uniden is a registered trademark of Uniden America Corporation.

Bearcat is a registered trademark of Uniden America Corporation.

Features, specifications, and availability of optional accessories are all

subject to change without notice.

SAFETY NOTICE

The antenna used for this radio must be properly installed and

maintained and must provide a separation distance of at least 34 cm

(13.4 Inches) from all persons and must not be collocated or operated in

conjunction with any other antenna or transmitter. Never transmit if any

person is closer than the specified distance to the antenna.

Note that Uniden does not specify or supply any antenna with this

transceiver. While a 0 dBi gain antenna is normal for a typical installation,

the above limit applies to any antenna with up to 3 dBi gain.

This device complies with Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this

device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation.

Changes or modifications to this product or use of accessories not

expressly approved by Uniden, or operation of this product in any way

other than as provided in the Uniden Owner’s Manual could void your

authority to operate this product.

A complete Owner’s Manual in French can be downloaded from

http://www.uniden.com/.

L’appareil est conforme aux normes d’Industrie Canada. Son

fonctionnement est soumis aux deux conditions suivantes : (1) Ce

dispositif ne doit pas causer d’interférences et (2), il doit pouvoir accepter

les interférences, incluant celles pouvant nuire à son fonctionnement

normal.

Tous les changements apportés à cet appareil, s’ils ne sont pas

expressément approuvés par Uniden ou toute utilisation de celui-ci

d’une autre manière que celle décrite dans ce guide peut annuler votre

autorisation de le faire fonctionner.

Un guide d’utilisation en français peut être téléchargé à l’adresse

http://www.uniden.com/.

UNPACKING

Carefully unpack your PC78XL+ and check the contents against this list:

PC78XL+ CB 2-way mobile radio

Microphone

Mounting Bracket Kit

DC Power Cord

User’s Guide

Part 95 Subpart D (FCC Rules)

If any items are missing or damaged, contact your place of purchase

immediately.

DESCRIPTION

Your Uniden PC78XL+ is a high-quality communications device designed

for use in the Citizens Band Radio Service. It will operate on any of the 40

AM frequencies authorized by the Federal Communications Commission

(FCC).

FCC PART 15 COMPLIANCE

The Citizens Band Radio Service is under the jurisdiction of the Federal

Communications Commission (FCC). Any adjustments or alterations

which would alter the performance of the transceiver’s original FCC

certification, or which would change the frequency determining

method, are strictly prohibited. Replacement or substitution of crystal,

transistors, ICs, regulator diodes, or any other part of a unique nature,

with parts other than those recommend by Uniden, may cause violations

of the technical regulations in Part 95 of the FCC Rules or in violation of

certification requirements in Part 2 of the rules.

EMERGENCY OPERATION

1. Set the switch to CH9 or turn Channel Selector knob to Channel 9.

2. Press the microphone PTT switch and speak clearly.

3. If there is no response, select an active channel and ask that party

to relay your emergency broadcast on Channel 9.

All channels except Channel 9 may be used for normal communication.

Channel 9 is reserved by the FCC for emergency communication

involving the immediate safety of individuals or protection of property.

Channel 9 may also be used to render assistance to others.

This is an FCC rule and applies to all operators of CB radios.

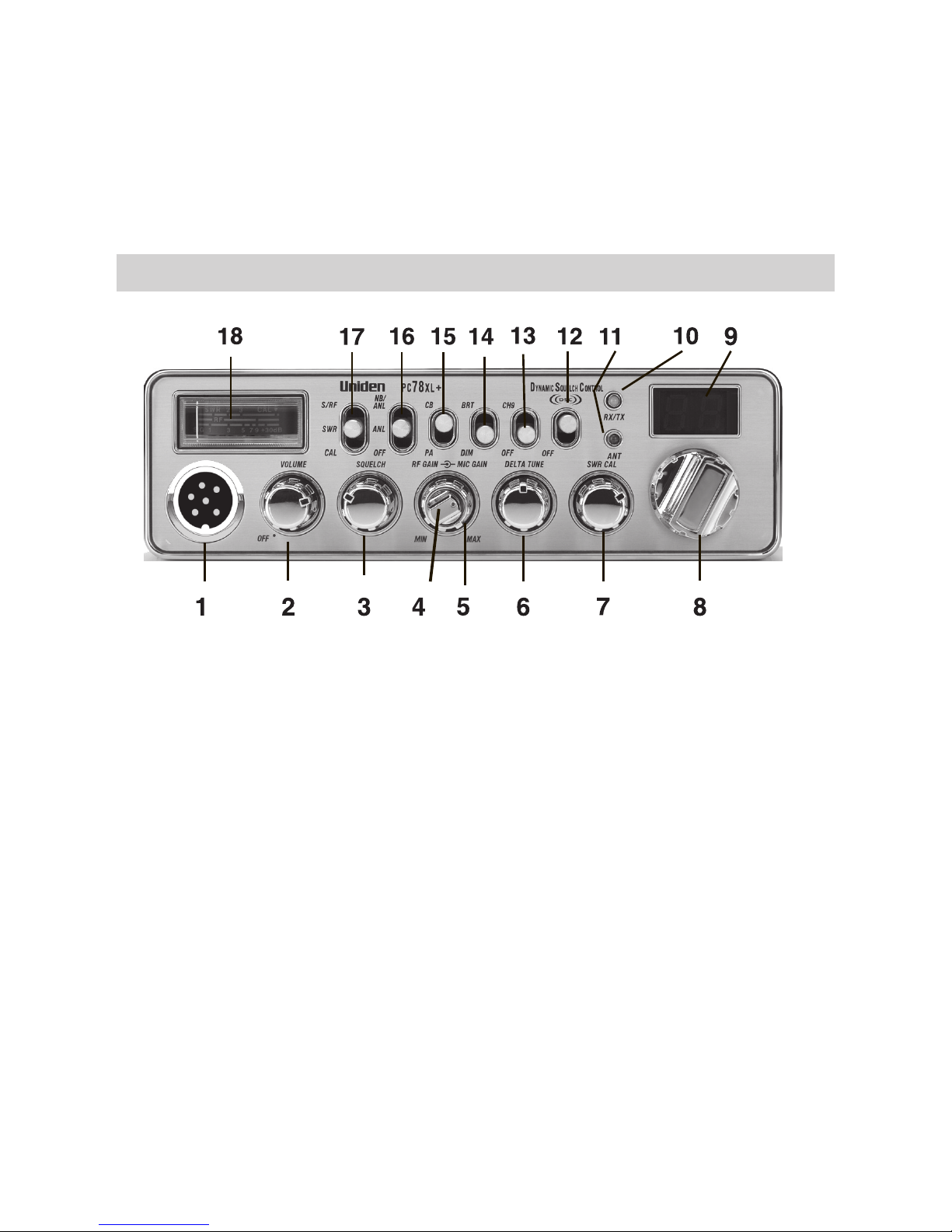

CONTROLS AND FUNCTIONS

1. Microphone jack

The PC78XL+ is precongured for Uniden’s wireless, noise-canceling

microphone technology. Visit www.uniden.com to order Uniden’s 6-pin

wireless microphone and adapter.

2. ON OFF - VOLUME: Turns radio on or o; adjusts speaker volume.

3. SQUELCH: Reduces background noise when there is no incoming

signal.

4. RF GAIN inner knob: Improves reception in strong signal areas.

5. MIC GAIN outer knob: Adjusts microphone sensitivity.

6. DELTA inner knob: Fine tunes the receiver.

7. SWR outer knob: Calibrates the meter for Standing Wave Ratio

(SWR) measurements.

8. Channel knob: Selects channel.

9. Channel Display: Displays current channel selection.

10. RX/TX LED: Red-transmitting; green-receiving.

11. ANT LED: Indicates a high SWR condition in antenna system.

Check antenna, cable, and connections.

12. Dynamic Squelch Control (DSC) switch: Automatically sets

Squelch to optimal level for stronger signals.

13. CH9/OFF switch: Turns Channel 9 on or o.

14. BRT/DIM switch: Adjusts the LED brightness.

15. CB/PA switch: Selects CB (Citizen’s Band) or PA (Public Address).

Do not use PA function unless an external speaker is connected.

16. NB/ANL switch: Reduces external noise and interference from

vehicle ignition systems.

17. S/RF/SWR/ CAL switch: Selects meter function. S/RF - normal;

SWR and CAL are for SWR measurements only. See page 8 for

calibration procedures.

18. Multi-function meter: Measures SWR, RF and S signal strength.

19. POWER connector: Connects DC power to transceiver.

20. EXT. SP. jack: Connects optional 8-ohm 4-watt speaker to

remotely monitor the receiver.

When the external speaker is plugged in, the internal speaker is o.

21. PA SP. jack: Connects external 8-ohm, 4-watt speaker.

To prevent acoustic feedback, separate the microphone from the speaker

when operating the PA at high output levels.

22. Antenna socket: Connects antenna cable to transceiver.

INSTALLATION

MOBILE STATION INSTALLATION

Plan the location of the transceiver and microphone bracket before

beginning installation.

1. Select a location that is convenient for operating the radio, but

does not interfere with the driver or passenger.

2. Install bracket with self-tapping screws provided.

3. Connect wiring. (See instructions for Connecting the Power

Cords.)

4. Attach the microphone bracket to the side of the radio.

5. Attach radio to bracket.

MOBILE STATION ANTENNA

Because the maximum power output of the transmitter is limited by

the FCC, the quality of your antenna is very important. To achieve the

maximum transmission distance, we strongly recommend that you

install only a high quality antenna. You have just purchased a superior

transceiver - don’t diminish its performance by installing an inferior

antenna.

Only a properly matched antenna system will allow maximum power

transfer from the 50 ohm transmission line to the radiating element.

Your Uniden dealer is qualified to help you select the proper antenna for

your requirements. A whip style antenna may be used for automobile

installation.

A short “loaded” whip antenna is easier to install on an automobile.

However, the efficiency of the short whip antenna is less than that of a

full quarter-wave whip antenna.

MARINE INSTALLATION

Consult your dealer for information regarding marine installation. It is

important to adequately ground the system and to prevent electrolysis

between the fittings in the hull and the water.

CONNECTING THE POWER CORDS

Uniden recommends connecting the power lead to the Ignition Switch

Accessory Terminal. This way, the transceiver is automatically turned off

when the ignition switch is turned off.

As an alternative, the power cord may be connected to an available

terminal on the fuse block or to a point in the wiring harness. However,

take care to prevent a short circuit. If in doubt, contact your vehicle

dealer for information.

This transceiver may be installed and used in any 12-volt DC negative

ground system vehicle.

GROUND INFORMATION

Most newer U.S. and foreign made cars and small trucks use a negative

ground system. Some older cars, and some new large trucks, use a

positive ground system.

With a negative ground system, the negative (-) battery terminal is

usually connected to the vehicle motor block. If you cannot determine

the polarity system of your vehicle, contact your vehicle dealer for

information.

Negative Ground System

For negative ground systems, connect the red DC power cord from the

transceiver to the positive (+) battery

terminal or other convenient point.

Then connect the black power cord

to the vehicle chassis or negative (-)

battery terminal.

Otros manuales para BearCat PC78XL+

Tabla de contenidos

Otros manuales de Transceptor de Uniden

Uniden

Uniden Remote VFO 8010 Manual de usuario

Uniden

Uniden UH5040 Manual de usuario

Uniden

Uniden Jackson UT-547C/D Manual de usuario

Uniden

Uniden UH220 Series Manual de usuario

Uniden

Uniden UH7700NB Manual de usuario

Uniden

Uniden UH9050 Manual de usuario

Uniden

Uniden PRO5050 Manual de usuario

Uniden

Uniden UH825 Series Manual de usuario

Uniden

Uniden UH405SX-2NB Manual de usuario

Uniden

Uniden UH076SX-NB Manual de usuario

Uniden

Uniden UH037SX-2NB Manual de usuario

Uniden

Uniden MHS245 Manual de usuario

Uniden

Uniden 2020 Manual de usuario

Uniden

Uniden SEA-WASP MC-4300 Manual de usuario

Uniden

Uniden 2020 Manual de usuario

Uniden

Uniden MHS050 Manual de usuario

Uniden

Uniden JACKSON Manual de usuario

Uniden

Uniden Sundowner UH-100 Manual de usuario

Uniden

Uniden XTRAK 50 Series Manual de usuario

Uniden

Uniden UH750 Manual de usuario

Uniden

Uniden UH064SX-2NB Manual de usuario

Uniden

Uniden UH9000S Manual de usuario

Uniden

Uniden PRESIDENT JACKSON Manual de usuario

Uniden

Uniden UH5060VP Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
