UH064SX-2NB

UHF CB Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

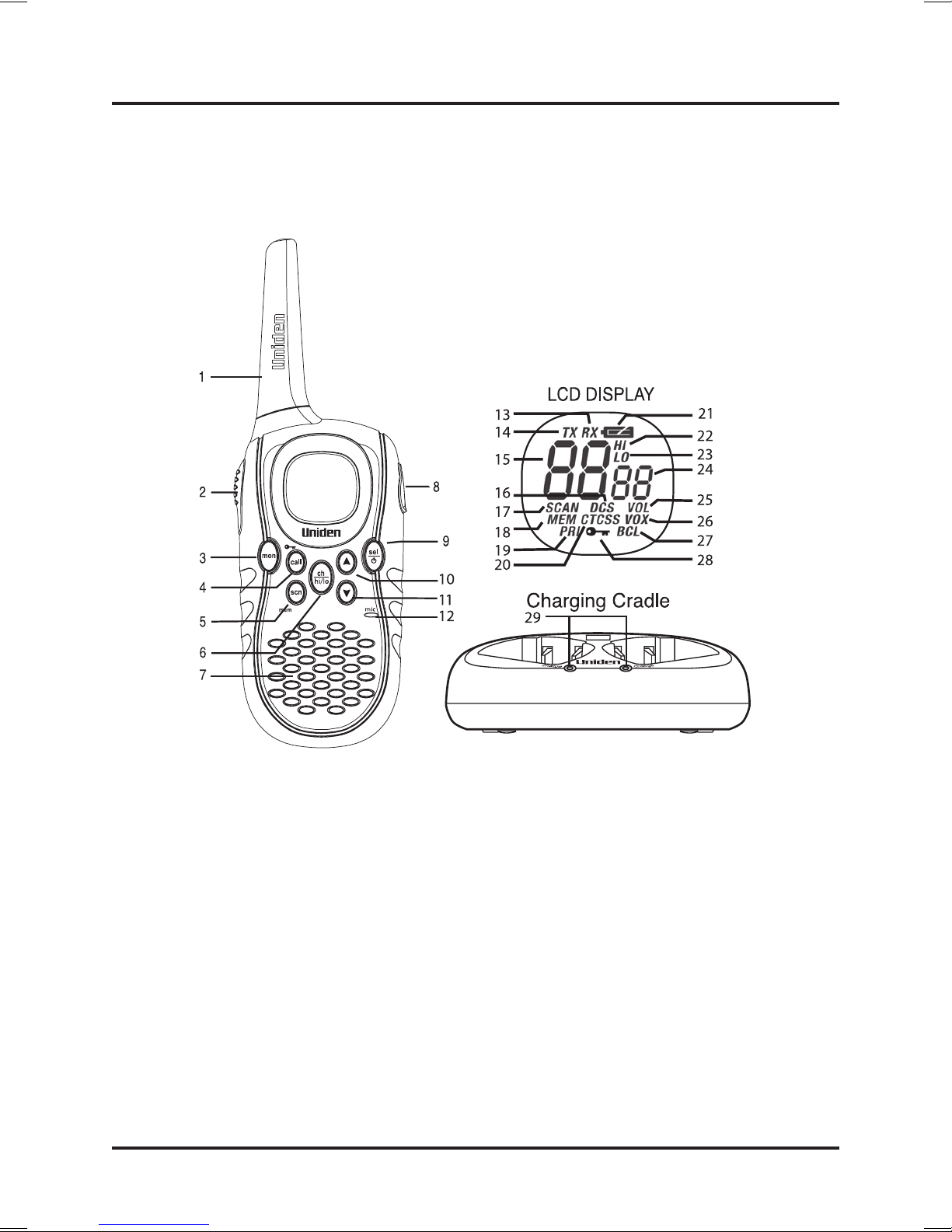

Controls & Indicators

Included in your Package

• UH064SX-NBRadio(2)

• OperatingGuide

• BeltClip(2)

• ChargingCradlewithACAdaptor

• NiMHBatteryPack(2)

• EarpieceMic(2)

1 Antenna

2 PTT(Push-To-Talk)Key

3 MonitorKey

4 Keylock/CallKey

5 Memory/ScanKey

6 Channel/PowerHi-LoKey

7 Speaker

8 HeadsetJack

9 Select/PowerOn-OffKey

10 Volume/SelectUpKey

11 Volume/SelectDownKey

12 Microphone

13 ReceiveIndicator

14 TransmitIndicator

15 ChannelIndicator

16 DCSONIndicator

17 ScanIndicator

18 MemoryIndicator

19 PriorityChannelIndicator

20 CTCSSONIndicator

21 BatteryLevelIndicator

22 HITransmitIndicator

23 LoTransmitIndicator

24 CTCSSandDCSCode/Volume

 LevelIndictor

25 VolumeSettingIndicator

26 VOXIndicator

27 BusyChannelLockoutIndicator

28 KeypadLockIndicator

29 ChargingLEDs

1UHFCBTransceiverUNIDENUH064SX-2NB

Optional Accessories

• SpeakerMicrophone

• VoxHeadset•CarryCase

• CommercialAccessories

Getting Started

NOTE

Unidendoesnotrepresentthisproducttobewaterproof.

DonotexposethisproducttoRainorMoisture.

Battery Installation

YourUH064SX-2NBunitusestheincludedNiMHbatterypackforpower.

Theunitcanbepoweredwithoptional4AAAALKALINEbatteries.

NOTE

Ifyoudon’tusetheUH064SX-2NBforlongperiods,Uniden

recommendremovingthebatteries.TheUH064SX-2NBis

designedtoretaintheprevioususersettings.Thisfeature

willcontinuetouseasmallamountofbatterypowerwhile

theunitisswitchedoff.

OLD

NEW

Toavoiddamagetotheunitdonotmixoldandnew

batteries.

To install the batteries:

1. Makesureyourradioisoff.

2. Releasethebatterycoverclip,thenremovethe

  batterycover.

3. InsertNiMHbatterypackaccordingtothe

  orientationonthebatterypack.

  Insert4AAAALKALINEbatteries(notincluded)

  accordingtothepolaritysymbolsinsidethe

  batterycompartment.

4. Alignthebatterycovertabswiththe

  UH064SX-2NBtabholesthenreplacethecoverclip.

NOTE

Donotchargealkalineornonrechargeablebatteries.

2UHFCBTransceiverUNIDENUH064SX-2NB

Getting Started

3UHFCBTransceiverUNIDENUH064SX-2NB

Installing the Charge Cradle

1. PlugtheACadaptorintotherearofthechargecradleandintothe

  mainspower.

2. PlacetheUH064SX-2NBintothechargecradle.Thechargelightwill

  comeontoindicatetheunitischarging.

3. BeforeoperatingtheUH064SX-2NB,chargethebatterypackfor

  16hours.

NOTE

Donotchargealkalineornonrechargeablebatteries.

User License Information

NOTE

ThecitizenbandradioserviceislicencedinAustraliaby

ACMARadio-communications(CitizenBandRadio

Stations)ClassLicenceandinNewZealandbyMED

GeneralUserLicenceforCitizenBandRadioandoperation

issubjecttoconditionscontainedinthoselicences.

Getting Started

Belt Clip

To attach the belt clip:

Slidethebeltclipuntilitsnapsintoplace.

To remove the belt clip:

Toremovethebeltclip,pressandhold

beltcliplocker,slidethebeltclipatthe

sametimeuntilreleased.

Low Battery Alert

Ifthebatterylevelbecomeslow,thebattery

indicatoricononthedisplaybeginsashing.

Whenthebatteriesintheunitarelow,theunit

willgointoabatteryLowmode.TheTransmit

modeisdisabled.Replacethealkaline

batteriesimmediatelyorifyouareusingthe

NiMHbatterypack,placetheradioonthe

chargecradletorecharge.Fullchargewilltake

upto16Hrs.

Back Light

TheUH064SX-2NBhasanautomaticdisplaybacklightwhichremainson

for10secondsafterakeypress(allkeysexceptPTTkey).Thebacklight

willworkevenifthekeypadislockedbutwillnotworkduringlowbattery

alertmode.

4UHFCBTransceiverUNIDENUH064SX-2NB

BeltClipLocker

Operation

5UHFCBTransceiverUNIDENUH064SX-2NB

Power On/Off

1. PressandholdSELECT/ keytoturntheradioon.

  Achannelnumberwillappearonthedisplay.

2. PressandholdSELECT/ keytoturntheradiooff.

Volume

Press or keytoincreaseordecreasethe

volumelevel.‘VOL’iconappearsonthedisplay

whilevolumeisbeingadjusted.

Thereare8volumelevels.Level0(NoAudio)to

Level7(MaximumVolume).

Adjusting the Key Beeps

Yourradioemitsabeepeachtimeoneofthekeys

(exceptforthePTTkey)ispressed.

1. ToturnOFFthisbeep:Pressandhold /CALLkeywhileturning

  ontheradio.

2. ToturnONthisbeep:Pressandhold /CALL keywhileturning

  ontheradio.

Roger Beep

RogerBeepisaBEEPthatissenttonotifytheendoftransmission(bothPTT

andVOXtransmission.)RogerBeepcanbeheardthroughthespeakerwhen

KeyBeepison.RogerBeepistransmittedevenifKeyBeepisturnedoff.

However,RogerBeepwillnotbeheardfromthespeaker.

1.ToturnOFFRogerBeep:Pressandhold keywhileturningontheradio.

2.ToturnONRogerBeep:Pressandhold keywhileturningontheradio.

Keylock On/Off

1.Press /CALL keyfor1.5secondstoenterkeylockonmode.

2.Press /CALL keyfor1.5secondswhileinKeylockmodetoexit

 theKeylockmode.

NOTE

WhileinKeylockonmode,theUH064SX-2NBcanstill

receiveandtransmit.

Operation

6UHFCBTransceiverUNIDENUH064SX-2NB

Selecting a Channel

1. PressCH / HI / LOkeymomentarilytoactivatechannel

  selectmode.Thedisplayedchannelwillash.

2. Press or keytoselectthedesiredchannel.

NOTE

Refertochannelguidelinesonpage12.

ForAustralia,Channels05and35are

reservedforEmergencyCalls.

3. PressCH / HI / LOkeymomentarilytoexitchannel

  selectmode.Ifnokeyispressedwithin5secthe

  UH064SX-2NBwillexitfromthechannelselectmode.

To Transmit and Receive

TheUH064SX-2NBusestheUHF-CBChannels

(Channels 22 and 23 are for telemetry and

telecommand applications. Transmit is

inhibited on these channels).

1. Beforeyoutransmit,listenforactivityonthe

  selectedchannel.

2. Whenthechannelisclear,pressandholdthePTTkeytotransmit.

TXiconappearsonthedisplay.

Holdtheradiowithmicrophoneapproximately5cminfrontofyourmouth

withtheantennaatapproximately45°angleawayfromyourhead.Speak

inaclear,normalconversationalvoice.

3. Whenyouhavenishedspeaking,releasethePTTandlistenfora

  response.TX iconthendisappearsonthedisplay.Whilereceiving,

theRX iconisdisplayed.

Transmit Hi/Lo Power Select

PressandholdCH / HI / LOkeytoselectdesiredtransmit

level.HI iconwillappearonthedisplayformaximum

transmitlevel.LO iconwillappearonthedisplayfor

minimumtransmitlevel.TheRFtransmitpowerofthe

UH064SX-2NBisselectablebetween2.0W(Hi)

and0.5W(Lo).

Operation

Automatic Squelch Feature

TheUH064SX-2NBisequippedwithanAutomaticSquelchSystem

whichshutsoffweaktransmissionsandunwantednoise.

Monitor

Thisfeatureenablesuserstolistenforweaksignalsonthecurrent

channelatthepressofakey.

To use monitor

1. PressMONkey.TheRX iconwillash.

2. Releasewithin1.5secondsandtheunitexits

  Monitormode.

3. PressandholdMON keyfor2secondsforcontinuouslistening.

  Thereceivercircuitwillstayopen,lettinginboththenoise&weak

  signals.TheRX iconashesinthisstatus.

4. ToreturntonormalReceivemodepressMONkey.TheRX icon

  disappearsorstopsashinginthisstatus.

Scanning

ThescanfunctionscansallchannelswhicharestoredintheSCAN

CHANNELMEMORYandstopsatanactivechannel.IfaPRIORITY

channelhasbeenselectedthenthischannelwillbemonitoredforactivity

every3seconds.Whenthesignalstops,theUH064SX-2NBwaits

2seconds(ReplyDelay)beforescanningresumes.

To initiate scanning;

1. PressMEM / SCNkeymomentarilytobegin

  scanning.

  TheSCANiconisdisplayed.

2. PressSELECT / ,MEM / SCN , /CALL

  orPTTkeytocancel.

Whenscanstopsatabusychannel,pressing

CH / HI / LOkeywillresumescan.

7UHFCBTransceiverUNIDENUH064SX-2NB

Operation

Reply Delay

Whilescanning,theUH064SX-2NBstopsatabusychannelandreceives

atransmission.Whenthereceivedsignalisover,theunitwillwaitfor2

secondsforthereturnofthesignal,otherwise,theradioresumesscanning.

To Operate in Duplex Mode (Repeaters)

TheDuplexfunctionenablesyoutoaccesslocalrepeaterstations.You

canonlyactivateDuplexfromCH01-CH08andCH41-CH48.

UHFCBRepeatersareusedtoretransmitorrelayyoursignal.Repeaters

willextendtherangeofyourradioandovercometheshieldingeffect

causedbysolidobstructions.

NOTE

Contactyourretailerforalistofrepeatersavailableinyour

area.

Operation With the Aid of a Repeater

1.PressSELECT / keysixtimes. appearsonthedisplay.

2.Press or tochange to forCH01-CH08and to for

 CH41-CH48.

3.PressSELECT / toconrm

Todeactivatetheduplexoperationrepeatactivationprocessandchange

to or to .UH064SX-2NBwillreturntonormaloperation.

NOTE

If or ispressedwhenthechannelisnotfrom

CH01-CH08orCH41-CH48,anerrortonesounds.

8UHFCBTransceiverUNIDENUH064SX-2NB

Operation

CTCSS & DCS

(Continuous Tone Coded Squelch System) & (Digital Coded Squelch)

CTCSSisafeaturethatallowsagrouptotalktoeachother

withouthearingotherusersonthesamechannel.

1. PressSELECT / keymomentarilytoenterCTCSS

  mode.ThecurrentselectedCTCSStoneashes.

2. Press keytoselecttherequiredCTCSS

  tone(OFFor1-38).

3. PressSELECT / keysixtimestoconrmthe

  selectedsettingandexittostandbymode.

ForchannelswithaCTCSStonesetting,theCTCSStoneisdisplayed

belowthechannelindicator.ForchannelswiththesettingofCTCSS

OFF,therewillbenodisplaybelowthechannelindicator.

DCSisadigitalextensionofCTCSS.Itprovides104extra,digitally

coded,squelchcodesthatfollowafterthe38CTCSScodes.CTCSS

1-38,followedbyDCS1-99plusDCS100-104(representedbyo0-o4on

thedisplay).

1. PressSELECT / keymomentarilytoenterCTCSS/DCSmode.

2. Use keytoselectaDCScode.TheDCScodes

  followonaftertheCTCSScodes.TheDCSiconwill

  replacetheCTCSScodeonthedisplay.

3. PressSELECT / keysixtimestoconrmthe

  selectedsettingandexittostandbymode.

  TheDCSiconwillappearwhenselected.Toturn

  offDCSselectCTCSSOFFandnodisplaywillshow

  belowthechannelindicator.

NOTE

Channels05and35areusedforemergencychannels.

CTCSSandDCSwillnotoperateonthesetwochannels.

9UHFCBTransceiverUNIDENUH064SX-2NB

Tabla de contenidos

Otros manuales de Transceptor de Uniden

Uniden

Uniden UH8060NB Manual de usuario

Uniden

Uniden UH8080S Manual de usuario

Uniden

Uniden SPU554KTS Manual de usuario

Uniden

Uniden Benjamin Manual de usuario

Uniden

Uniden AX55 Manual de usuario

Uniden

Uniden ATLANTIS250 BK - ATLANTIS 250 VHF Radio Manual de servicio

Uniden

Uniden UH5040 Manual de usuario

Uniden

Uniden GRANT XL Manual de usuario

Uniden

Uniden HAND- HELD TRANSCEIVER AX52 Manual de usuario

Uniden

Uniden UH076DLX Manual de usuario

Uniden

Uniden PRO5050 Manual de usuario

Uniden

Uniden UH8050S Manual de usuario

Uniden

Uniden Sundowner UH-100 Manual de usuario

Uniden

Uniden BearTracker 885 Manual de usuario

Uniden

Uniden SEA-WASP MC-4300 Manual de usuario

Uniden

Uniden UH305SX-2NB Manual de usuario

Uniden

Uniden GRANT XL Manual de usuario

Uniden

Uniden UH6000 Manual de usuario

Uniden

Uniden UH405SX-2NB Manual de usuario

Uniden

Uniden Jackson UT-547C/D Manual de usuario

Uniden

Uniden UH078SX-NB Manual de usuario

Uniden

Uniden UH7750NB Manual de usuario

Uniden

Uniden SPU 554KT Manual de usuario

Uniden

Uniden UH078SX-NB Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
