Ubiquiti UniFi Manual de usuario

Enterprise WiFi System

UniFi Enterprise WiFi System User Guide

Table of Contents

Ubiquiti Networks, Inc.

Table of Contents

Chapter 1:

Product Overview ...................................................1

Package Contents ................................................................1

System Requirements ............................................................1

Network Topology Requirements .................................................1

Front .............................................................................2

Back .............................................................................2

Chapter 2:

Installation ..........................................................3

Hardware Installation.............................................................3

Software Installation..............................................................5

Chapter 3:

Using the UniFi Controller Software ..................................7

Map..............................................................................7

Statistics .........................................................................9

Access Points.....................................................................9

Users............................................................................10

Guests ..........................................................................10

Recent Events ...................................................................11

Alerts ...........................................................................15

Settings .........................................................................15

Admin ..........................................................................17

Appendix A:

Specifications.......................................................18

Appendix B:

Warranty ...........................................................19

General Warranty................................................................19

Appendix C:

Contact Information ................................................20

Ubiquiti Networks Support ......................................................20

1Ubiquiti Networks, Inc.

Chapter 1: Product OverviewUniFi Enterprise WiFi System User Guide

Chapter 1:

Product Overview

Thank you for purchasing the Ubiquiti UniFi Enterprise

WiFi System. The UniFi Enterprise WiFi System includes

the UniFi Controller software that allows you to manage

your wireless network using your Web browser.

The UniFi Enterprise WiFi System also includes the

necessary hardware for mounting the unit on a wall or a

ceiling. The UniFi Enterprise WiFi System supports Passive

PoE which works with the included PoE adapter. If you

want to power the UniFi AP from an 802.3af compliant

switch, Ubiquiti Networks offers the optional Instant

802.3af Adapter to instantly transform any PoE device into

a fully 48V 802.3af compliant product. Product details are

available on our website at http://ubnt.com/8023af

Package Contents

Wall Mount

UniFi Enterprise AP Wall-Mount Bracket Ceiling-Mount Plate

UniFi Controller

CD with User Guide Quick Start Guide 24v PoE

Adapter Power Cord

M3X30 Flat Head

Screw (Qty. 3)

M3 Nut with Tooth

Washer (Qty. 3)

M2.9x20 Self Tapping

Screw (Qty. 3)

M3x20 Screw

Anchor (Qty. 3)

System Requirements

• Microsoft Windows XP, Windows Vista, Windows 7, or

Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or

Microsoft Internet Explorer 8 (or above)

Network Topology Requirements

• A DHCP-enabled network (for AP to obtain an IP as well

as for the wireless clients after the deployment)

• Access point(s) and the management station computer

connected to the same layer-2 network.

Switch

Computer to be used as

Management Station

Enterprise APEnterprise AP

Enterprise AP

Sample Network Diagram

2Ubiquiti Networks, Inc.

Chapter 1: Product OverviewUniFi Enterprise WiFi System User Guide

Front

LED Indicates the status of the device. See

the table below for details.

LED Color Status

Flashing Amber Initializing

Steady Amber Factory default, waiting to be integrated

Alternating

Amber/Green

Device is busy, do not touch or unplug it,

this usually indicates a process such as a

firmware upgrade is taking place

Quickly Flashing

Green

This is used to locate an AP.

When you click on Locate in the UniFi

Controller software, the AP will blink. It will

also display the location of the AP on the

map.

Steady Green Indicates the device has been successfully

integrated into a network and is working

properly

Back

Ethernet Port Connects to the 24v PoE

Adapter to provide power to the unit.

Reset Button The reset button serves two functions:

• Restart It will restart the device when you press

and release it quickly.

• Restore Factory Defaults When you press and

hold it for more then 5 seconds, it will restore the

device to the factory default settings.

3Ubiquiti Networks, Inc.

Chapter 2: InstallationUniFi Enterprise WiFi System User Guide

Chapter 2:

Installation

Hardware Installation

The UniFi Enterprise AP is powered by the included PoE

(Power over Ethernet) adapter. To install the AP, perform

the following steps:

1. Connect an Ethernet cable to the Ethernet port on the

UniFi Enterprise AP.

2. Connect the power cord to the power port on the PoE

Adapter. Connect the other end to of the power cord to

a power outlet.

3. Connect the other end of the Ethernet cable to the

Ethernet port labeled POE on the PoE Adapter.

Note: If you plan to mount the AP on your ceiling,

perform the ceiling mount installation steps before

connecting the Ethernet cable to the PoE Adapter.

Below is an overview of the Power over Ethernet

connections.

Power Connection Diagram

Mounting the Access Point

The UniFi Enterprise AP can be wall-mounted or

mounted on a ceiling. Perform the following steps for the

appropriate installation:

Wall-Mount

1. Align the wall-mounting bracket with the Wall Mount

text facing up. There are horizontal and vertical lines on

the bracket to help with orientation.

Wall Mount

Wall Mount text

2. Use a pencil to mark the holes on the wall.

3. Use a 6 mm drill bit to drill the holes in the wall.

4. Insert the 3 screw anchors into the wall.

5. Secure the wall-mount bracket to the wall by inserting

the self tapping screws into the anchors.

Wall Mount

4Ubiquiti Networks, Inc.

Chapter 2: InstallationUniFi Enterprise WiFi System User Guide

6. Align the notches on the AP with the notches on the

wall-mount bracket.

Wall Mount

7. Turn the AP clockwise until it locks into place.

Wall Mount

Ceiling-Mount

1. Remove the ceiling tile.

2. Align the ceiling-mount plate to the center of the top

side of the ceiling tile.

3. Use a 3.5 mm drill bit to drill holes for the three flat

head screws.

4. Cut or drill a circle approximately 25 mm in size that

lines up with the larger circle on the ceiling-mount

plate. This will be used for the Ethernet cabling.

5. Secure the wall-mount bracket and ceiling-mount plate

to the ceiling tile using the 3 flathead screws and 3 nuts

with tooth washers.

6. Feed the Ethernet cable through the hole and then

align the Enterprise AP with the notches on the wall-

mount bracket.

Note: The UniFi AP supports Passive PoE which

works with the included PoE adapter. If you want

to power the UniFi AP from an 802.3af compliant

switch, Ubiquiti Networks offers the optional

Instant 802.3af Adapter to instantly transform

any PoE device into a fully 48V 802.3af compliant

product. Product details are available on our

website at http://ubnt.com/8023af

7. Turn the AP clockwise until it locks into place.

5Ubiquiti Networks, Inc.

Chapter 2: InstallationUniFi Enterprise WiFi System User Guide

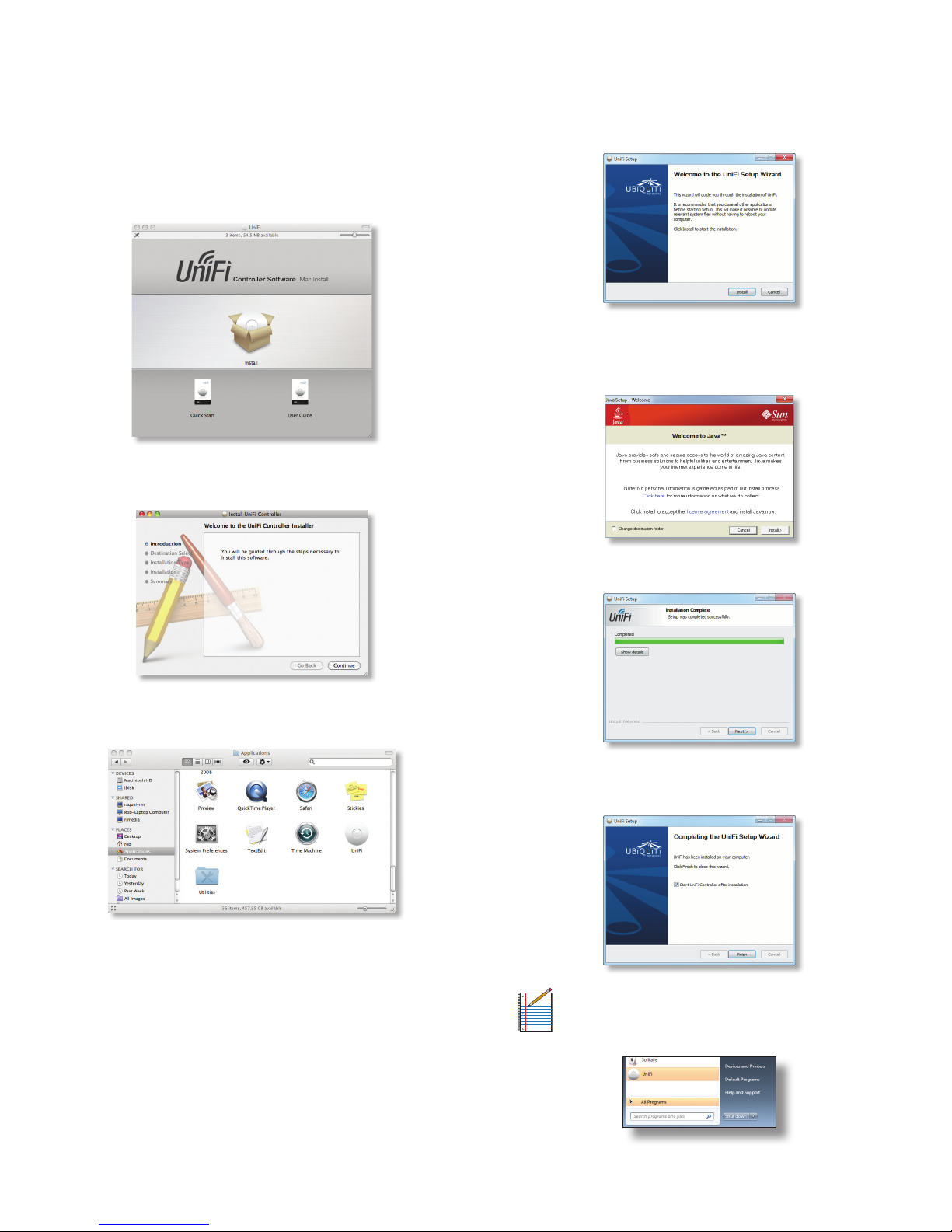

Software Installation

Insert the UniFi Controller software CD into your CD-

ROM drive and follow the instructions for your specific

computer type.

Mac Users

1. Click on the Install icon.

2. Click Continue and follow the on-screen instructions to

install the software.

3. Go to Go > Applications and double-click the UniFi

icon.

Proceed to Configuring the UniFi Controller Software on

page 6.

PC Users

1. Launch UniFi-installer.exe.

2. Click Install.

3. If your computer doesn’t have Java 1.6 or above installed,

you will be prompted to install it. Click Install to

continue.

4. Click Next.

5. Be sure the Start UniFi Controller after installation option

is checked and click Finish.

Note: The UniFi Controller software can also be

launched from Start > All Programs.

6Ubiquiti Networks, Inc.

Chapter 2: InstallationUniFi Enterprise WiFi System User Guide

Configuring the UniFi Controller Software

1. The UniFi Controller software startup will begin. When

the option becomes available, click Launch a Browser

to Manage Wireless Network.

2. Select your language and country. Click Next.

3. Select the devices that you want to configure and click

Next.

4. The UniFi Installation Wizard will create a secure

primary wireless network for your devices. Perform the

following steps:

a. Enter the wireless network name (SSID) in the Secure

SSID field.

b. Enter a passphrase to be used for your primary

network.

c. To enable guest access, select Enable Guest Access

and enter a guest network name in the Guest SSID field.

d. Click Next.

5. Enter an admin name and password to use when

accessing the management interface. Confirm your

password in the Confirm field. Click Next.

6. Review your settings. Click Back to make changes or

Finish to save your settings. Once finished you will be

redirected to the management interface via your web

browser.

Congratulations, your wireless network is now configured.

A login screen will appear for the UniFi Controller

management interface. Enter the admin name and

password that you created and click Login.

Proceed to the next chapter for information on using the

UniFi Controller software.

7Ubiquiti Networks, Inc.

Chapter 3: Using the UniFi Controller SoftwareUniFi Enterprise WiFi System User Guide

Chapter 3:

Using the UniFi Controller

Software

The UniFi Controller software that comes with your UniFi

Enterprise WiFi System has a browser-based interface for

easy configuration and management.

To access the interface, perform the following steps:

1. Launch the UniFi Controller application if hasn’t already

been started.

• Mac users: Go > Applications > UniFi

• PC users: Start > All Programs > UniFi

2. The login screen will appear. Enter the admin name and

password in the appropriate fields and click Login.

Map

The UniFi Controller software allows you to upload map

images of your location(s) for a visual representation of

your wireless network. When you initially launch the UniFi

Controller application, a default map is displayed.

To add a custom map, you must first create the image

using an illustration, image editing, or blueprint

application that exports .jpg, .gif, or .png file formats.

Once you’ve created the map, you can upload it to the

UniFi Controller software by performing the following

steps:

1. Click Configure Maps.

Configure Maps button

2. Click Add a Map.

Add a Map

3. Browse for an image to use as a map (valid file

formats are .jpg, .gif, and .png). Give the image a brief

description. Click Continue.

8Ubiquiti Networks, Inc.

Chapter 3: Using the UniFi Controller SoftwareUniFi Enterprise WiFi System User Guide

4. Click Close.

5. You can adjust the zoom using the slider on the right.

Drag the Access Point icon(s) from the Unplaced APs

list on the left to the appropriate location(s) on the map.

The access point will appear in the area that you placed it.

Access Point Shows the location of the Access

Point on the map.

Click and hold this icon to drag the Access Point

to another location on the map.

Click on the Access Point icon to reveal

additional options. Click a blank area of the map

to hide the additional options.

Lock Locks the selected Access Point in the

current location on the map.

Details Brings up the Details window. This

allows you to view Access Point settings and

connected users. You can also edit the radio

channel, transmit power, and device alias.

There are 4 tabs to select from in the

Details window. Details, Users, Guests, and

Configuration.

• Details Displays details on the Access Point

including the MAC address, model, version,

IP address, uptime, connected users, and

connected guests. Click Radio to display the

channel used, transmit power, and packet

information.

• Users Displays the hostname of the users

that are connected to the selected Access

Point and the IP address assigned to them.

You can click on the hostname to display

additional details of each user. A window

with Details, Statistics, and Configuration is

displayed. The Details tab displays the MAC

address, hostname, IP address, uptime and

the AP they are connected to. The Statistics

tab displays the channel used, signal strength,

transmit and receive rates, power saving

enabled or disabled, and the number of

packets sent and received. You can also click

History to see a sortable list of events. The

Configuration tab allows you to change the

alias name for the device.

• Guests Displays the MAC address of guests

that are connected to the guest network.

• Configuration Allows you to change the

alias name of the device, the channel setting,

and set the transmit power to Auto, High,

Medium, or Low. You can also remove the AP

if you no longer want to manage it with the

UniFi software.

Remove Remove the Access Point from the

location on the map.

Otros manuales para UniFi

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Ubiquiti

Ubiquiti

Ubiquiti UAP-IW-HD Manual de usuario

Ubiquiti

Ubiquiti UAP-PRO Manual de usuario

Ubiquiti

Ubiquiti airFiber AF-24HD Manual de usuario

Ubiquiti

Ubiquiti NanoStation loco Manual de usuario

Ubiquiti

Ubiquiti UAP-AC-LITE-5 Manual de usuario

Ubiquiti

Ubiquiti UniFi UAP-IW-HD Manual de usuario

Ubiquiti

Ubiquiti UniFI UAP-AC Manual de usuario

Ubiquiti

Ubiquiti UniFi WiFi BaseStation XG Manual de usuario

Ubiquiti

Ubiquiti UAP-AC Manual de usuario

Ubiquiti

Ubiquiti UniFi WiFi BaseStationXG UWB-XG-BK Manual de usuario

Ubiquiti

Ubiquiti UniFi Enterprise AP Manual de usuario

Ubiquiti

Ubiquiti Bullet Manual de usuario

Ubiquiti

Ubiquiti UniFi XG Instrucciones de funcionamiento y mantenimiento

Ubiquiti

Ubiquiti LiteBeam LBE-5AC-16-120 Manual de usuario

Ubiquiti

Ubiquiti airFiber 24 HD Manual de usuario

Ubiquiti

Ubiquiti NBE--2AC--13 Manual de usuario

Ubiquiti

Ubiquiti AirMax AC Manual de usuario

Ubiquiti

Ubiquiti AmpliFi MeshPoint HD Manual de usuario

Ubiquiti

Ubiquiti LAP-GPS Manual de usuario

Ubiquiti

Ubiquiti Rocket 5ac PtMP Manual de usuario

Ubiquiti

Ubiquiti LiteBeam LBE-5AC-16-120 Manual de usuario

Ubiquiti

Ubiquiti NanoStationM Series Manual de usuario

Ubiquiti

Ubiquiti UniFi AC MESH PRO Manual de usuario

Ubiquiti

Ubiquiti NBE-5AC-Gen2 Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario

EnGenius

EnGenius EAP350 Manual de usuario
