Ubiquiti UAP-IW-HD Manual de usuario

Package content

installation requirements

UAP-IW-HD Quick Start Guide

Torx security screw

UAP-IW-HD

Phillips screws (qty: 2)

cover plate

Torx screws (quantity: 2)Wall screws (qty: 4)

Phillips security screw

back plate

Pre-installed electrical wall box

Phillips and flat head screwdrivers

Category 5 (or higher) UTP cable certified for indoor use

T10 Torx bit (for Torx screw option)

hardware description

UAP-IW-HD Quick Start Guide

back section

System Requirements

UniFi Controller Software v5.7 or later (available at: ui.com/

download/unifi)

IMPORTANT: The UniFi Driver v5.7 is recommended to manage the UAP-IW-

HD, available for download at: ui.com/download/unifi

The 10/100/1000 Ethernet port supports 802.3af PoE input and data. The UAP-IW

HD itself requires 11W.

Web browser: Google Chrome (other browsers may have limited

functionality).

PoE + Data Input

IMPORTANT: The UAP-IW-HD requires a UniFi switch with PoE for power.

Passive PoE adapters are not recommended.

Java Runtime Environment 1.8 (o superior)

Linux, Mac OS X o Microsoft Windows 7/8/10

UniFi Switch with PoE

Panel lateral

Panel inferior

The reset button has two functions for the UAP-IW-HD:

10/100/1000 Ethernet port supports data and PoE gateway (requires

802.3at PoE+ input). The maximum output power of the PoE gateway is 12W.

Reset

Salida PoE + LAN 1

These three 10/100/1000 Ethernet ports support data only. They are used to

connect client devices to the LAN.

Restore Factory Default Settings: Press and hold the Reset button for more

than five seconds.

AND 2 - AND 4

Reset: Press and quickly release the Reset button.

PoE+ 802.3at input needs to use a PoE gateway. Connect this UAP-IW-HD Quick

Start Guide port to a UniFi switch with PoE connected toyour LAN and DHCP server.

Note: To power and connect an 802.3af device to the LAN, you

must use an 802.3at PoE+ input.

security tab

UAP-IW-HD Quick Start Guide

LED

(Optional) Security screw secures cover plate after installation. You have the

option of using the included Torx security screw (shown) or Phillips security

screw.

In addition to the optional security screw, the security tab helps secure the

cover plate after installation. If you need to remove it, use a flat head screwdriver

to depress the security tab while removing the cover plate:

security screw

The back plate has several mounting holes for use with different wall boxes. Here

are some examples with the proper mounting holes highlighted in blue:

UAP-IW-HD Quick Start Guide

back plate

An electrical wall box should be pre-wired with an Ethernet cable from the box to a UniFi switch with

PoE.

1.

EE. UU. o China

Europe

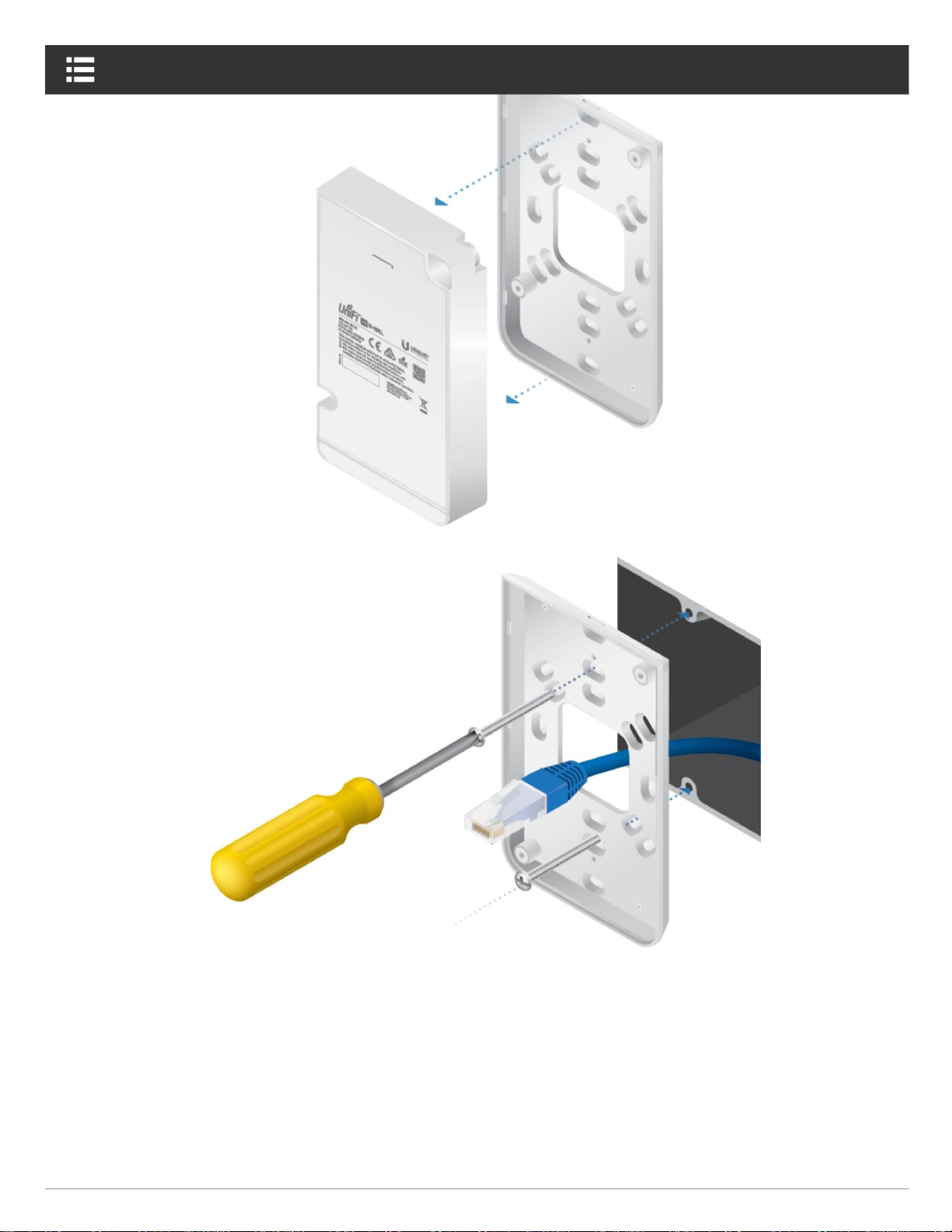

hardware installation

UAP-IW-HD Quick Start Guide

UAP-IW-HD Quick Start Guide

3.

2.

UAP-IW-HD Quick Start Guide

4.

O

UAP-IW-HD Quick Start Guide

5.

Optional

software installation

UAP-IW-HD Quick Start Guide

Download and install the latest version of the UniFi Controller software. Run it and

follow the instructions on the screen. The software and step-by-step User Guide

instructions are available at: ui.com/download/unifi

Once you have installed the software and run the UniFi Setup Wizard, a login

screen for the UniFi Controller management interface will appear. Enter the

administrator name and password you created and click the option to login.

O
