Ubiquiti GBE Manual de usuario
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 1/18
GBE Ball Joint Mount Lock Ring
Metal Strap Gigabit PoE (24V, 0.5A) with
Mounting Bracket
Power Cord
Package Contents
Installation Requirements
Clear line of sight between GigaBeam AP and station
Pole-mounting: 7 mm socket wrench or screwdriver
Wall-mounting: wall fastener (not included)
Shielded Category 5 (or above) cabling with drain wire should be used for all wired
Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit ui.com/toughcable
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP-G2, one near the device
and the other at the entry point to the building. The ETH-SP-G2 will absorb power
surges and safely discharge them into the ground.
Note: For guidelines about grounding and lightning protection, follow your
local electrical regulatory codes.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 2/18
Reset Button
PoE IN Port
Hardware Overview
To reset to factory defaults, press and hold the Reset button for more than 10
seconds while the device is powered on. Alternatively, the device may be reset
remotely via a Reset button located on the bottom of the Gigabit PoE Adapter.
This Gigabit Ethernet port is used to connect the power and should be connected
to the LAN and DHCP server.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 3/18
60 GHz LED
5 GHz LED
LAN LED
Power/Status LED
Lights steady blue when 60 GHz link is ready.
Lights steady blue when the 5 GHz link is ready.
The LED will light steady blue when an active Ethernet connection is made to the
Ethernet port and flash when there is activity.
Flashing White Bootup in progress.
White
Ready for use, not connected to Ubiquiti® Network
Management System (UNMS™). See “UNMS
Management”.
Blue Ready for use, connected to UNMS.
Steady Blue with
Occasional Flashing
Ready for use, unable to connect to UNMS, check
connection to UNMS server.
Quickly Flashing Blue Used to locate a device in UNMS.
Alternating
Blue/White Firmware upgrade in progress.
Hardware Installation
Go to the appropriate mounting instructions: Pole Mounting or “Wall Mounting”.
Pole-Mounting
1.
2.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 4/18
3.
4.
Wall Mounting
The device must be mounted directly to a wood stud or other structurally stable
surface to avoid damage to the mounting hole when you adjust the aim.
Optional Accessory
To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK
(sold separately).
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 5/18
Note: Center screw included. Two optional screws (not included) provide
additional stability.
Installation Instructions
1.
2.
3.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 6/18
Fastener (not included)
OR
NanoBeam Wall Mount Kit
4.
Aiming
Visually aim the GigaBeam radios at each other.
1.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 7/18
2.

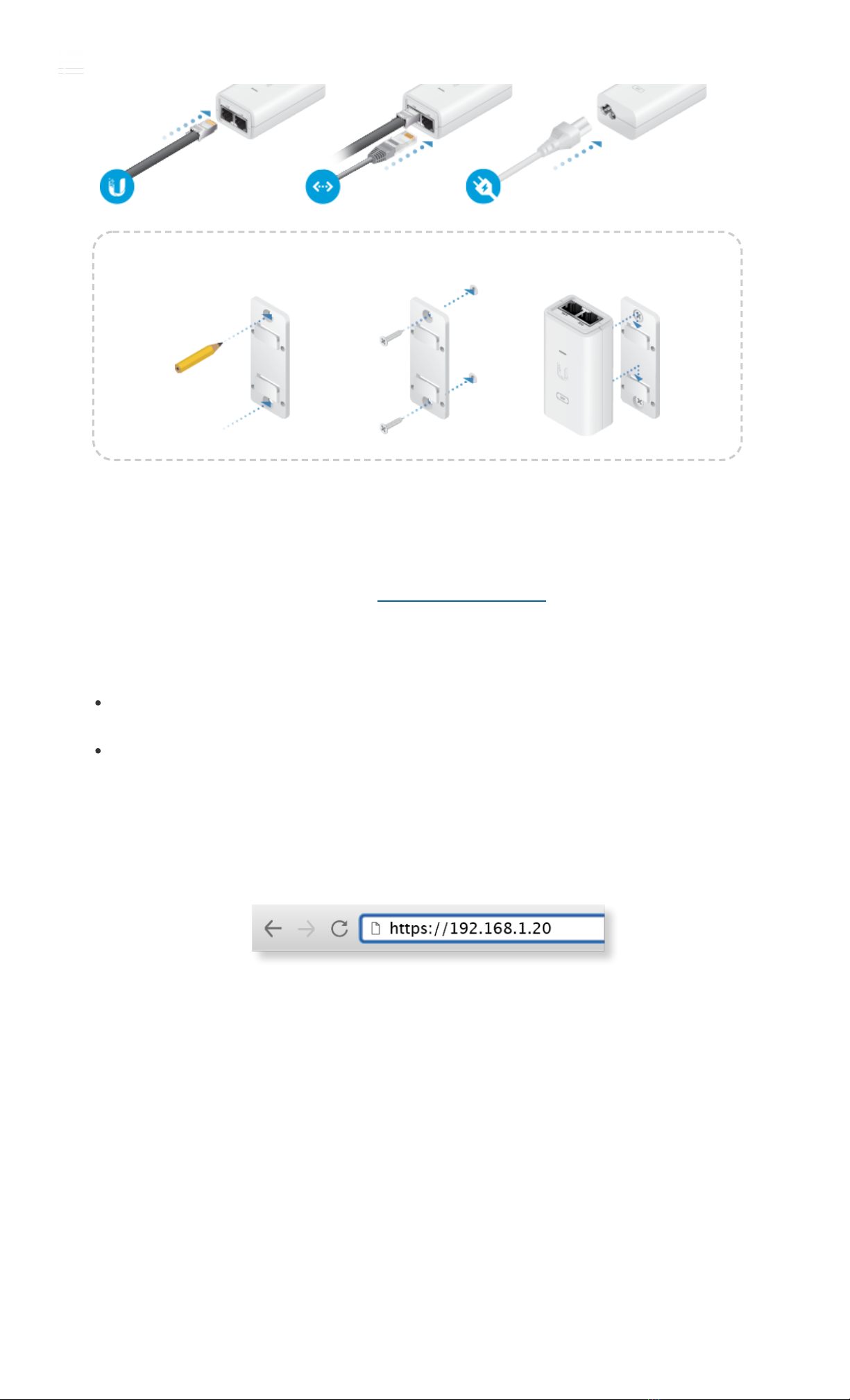

Connecting Power
1.
2.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 9/18
Optional
Configuration
The device is set to DHCP by default, so it will try to automatically obtain an IP
address. If that fails, it will use the default fallback IP address, 192.168.1.20. Proceed
to the appropriate section, DHCP or “Fallback IP Address”:
DHCP
Use one of the following methods:
Set up the DHCP server to provide a specific IP address to the device based on
its MAC address (on the label).
Let the device obtain an IP address and then check the DHCP server to see which
IP address was assigned.
1. Connect a computer to your network and configure the Ethernet adapter on your
computer with a static IP address on the 192.168.1.x subnet.
2. Launch your web browser. In the address field, type: https://192.168.1.20
Then press enter (PC) or return (Mac).
3. Select your Country and Language. You must agree to the Terms of Use to use
the product. Click Continue.
GBE Quick Start Guide
7. 2. 2020 GBE Quick Start Guide
https://dl.ui.com/qsg/GBE/GBE_EN.html 10/18
4. Enter a Username and Password, confirm the Password, and click Save.
5. Click the icon.
6. Configure the following settings:
a. For one device, enable Access Point mode. For the other device (the Station),
keep Access Point disabled.
b. Enter a name in the SSID field. This must be the same on both the AP and the
Station.
c. In the WPA2 Preshared Key field, enter a combination of alphanumeric
characters (0-9, A-Z, or a-z).
7. Click Save Changes.
8. Configure each device (AP and Station) with a unique IP address:
a. Click the icon.
Note: The key is an alphanumeric password between 8 and 63
characters long.
GBE Quick Start Guide
